Toyota Coaster HZB50 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZGMSSV (1993)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9301-9907)

Click highlighted areas on diagram

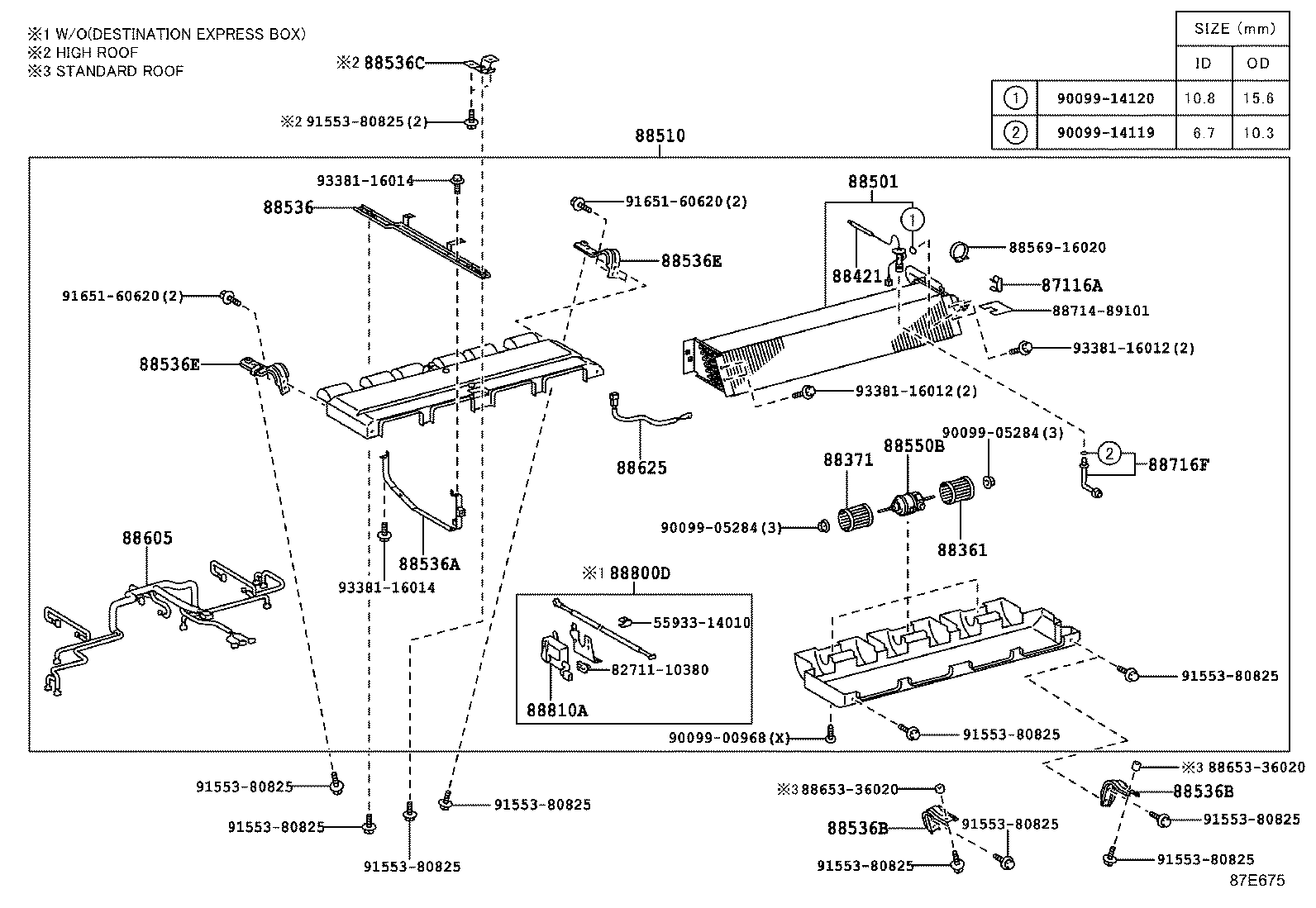

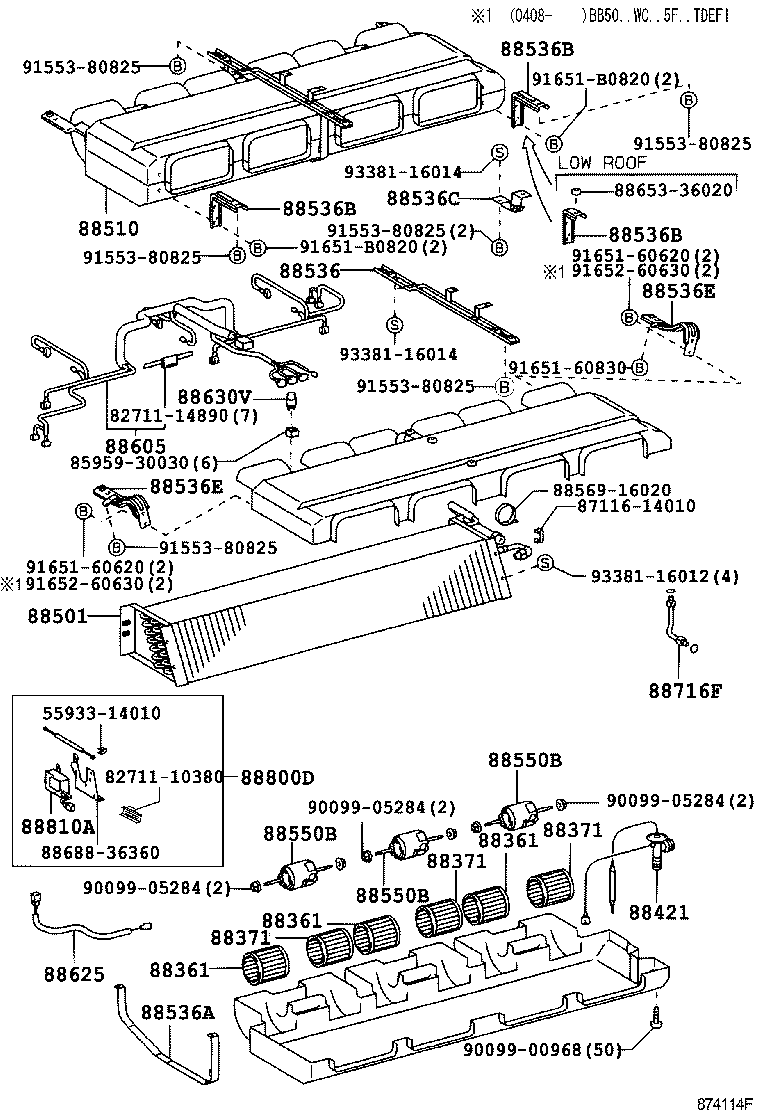

COOLER UNIT

Part #	Description	Period	Qty
88361 - FAN, COOLER BLOWER, NO.1
87105-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36060	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36060	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36060	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36060	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36060	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36060	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88421 - VALVE, EXPANSION, NO.2
88421-36011	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	09/1993 - 07/1999	1
88421-36011	BB42,5#,BZB40,50,HZB50,RZB40,50..WC	08/2004 - 04/2005	1
88421-36010	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 09/1993	1
88421-36050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88421-36050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	05/2005 - 01/2015	1
88421-36011	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-36080	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88501-36080	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88501-36080	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88501-36080	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88510 - UNIT ASSY, COOLER
88510-36130	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB50..HRF..WC..(ARL,GCC,GEN)..5F	01/1993 - 09/1993	1
88510-36131	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(ARL,GCC,GEN)..5F;BB40,42,5#..WC..(ARL,EUR,GCC,GEN)	09/1993 - 07/1999	1
88510-36172	RZB40,50..WC	05/2003 - 08/2004	1
88510-36132	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88510-36220	BZB40,50..STD	08/2001 - 08/2004	1
88510-36172	BZB40,50..STD W/O(DESTINATION EXPRESS BOX)	08/2004 - 12/2009	1
88510-36133	BB42..RHD..WC;BB50,HZB50..WC;BB42..LHD..SRF..WC	01/2010 - 01/2015	1
88510-36132	BB42,50,HZB50..WC..(DSL,TD) W/O(DESTINATION EXPRESS BOX)	08/2004 - 12/2009	1
88510-36220	BZB40,50..STD	08/2004 - 12/2009	1
88510-36221	BZB40,50,XZB40	01/2010 - 01/2015	1
88510-36240	XZB40..26S..WC;BZB50,TRB40,50,XZB5#..WC	01/2015 - 12/2999	1
88510-36172	TRB40,50..WC	08/2004 - 12/2009	1
88510-36250	BB42,HZB50..WC	01/2015 - 12/2999	1
88510-36173	BZB40,50,TRB40,50,XZB40,5#..WC..(ARL,GCC,GEN,TAIW) W/O(DESTINATION EXPRESS BOX)	01/2010 - 01/2015	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88536-36061	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/2000 - 08/2004	1
88536-36060	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	07/1999 - 07/2000	1
88536-36061	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88536-36061	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88536-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88536-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536C - BRACKET, COOLING UNIT, NO.4
88536-36110	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88536-36110	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	1
88536-36110	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	1
88536-36110	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36130	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL RH	01/1993 - 07/1999	1
88536-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL LH	01/1993 - 07/1999	1
88536-36120	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) LH	07/1999 - 08/2004	1
88536-36130	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) RH	08/2004 - 01/2015	1
88536-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) RH	07/1999 - 08/2004	1
88536-36120	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC LH	01/2015 - 12/2999	1
88536-36120	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) LH	08/2004 - 01/2015	1
88536-36130	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC RH	01/2015 - 12/2999	1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36130	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL RH	01/1993 - 07/1999	1
88536-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL LH	01/1993 - 07/1999	1
88536-36120	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) LH	07/1999 - 08/2004	1
88536-36130	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) RH	08/2004 - 01/2015	1
88536-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) RH	07/1999 - 08/2004	1
88536-36120	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC LH	01/2015 - 12/2999	1
88536-36120	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) LH	08/2004 - 01/2015	1
88536-36130	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC RH	01/2015 - 12/2999	1
88550B - MOTOR ASSY, BLOWER
88550-36130	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88550-36020	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	3
88550-36130	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88550-36020	BB42,HZB50..WC	01/2015 - 12/2999	3
88550-36130	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	3
88550B - MOTOR ASSY, BLOWER
88550-36130	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88550-36020	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	3
88550-36130	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88550-36020	BB42,HZB50..WC	01/2015 - 12/2999	3
88550-36130	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	3
88550B - MOTOR ASSY, BLOWER
88550-36130	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88550-36020	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	3
88550-36130	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88550-36020	BB42,HZB50..WC	01/2015 - 12/2999	3
88550-36130	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	3
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88605-36122	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/2000 - 08/2004	1
88605-36121	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	07/1999 - 07/2000	1
88605-36361	XZB40..26S..WC;BZB50,TRB40,50,XZB5#..WC	01/2015 - 12/2999	1
88605-36122	XZB59;XZB50..(20S,21S)..WC;BB42,50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2010	1
88605-36430	BB42,HZB50..WC	01/2015 - 12/2999	1
88605-36123	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC..(ARL,GCC,GEN,TAIW)	01/2010 - 01/2015	1
88625 - THERMISTOR, COOLER, NO.1
88625-36140	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88625-36140	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88625-36140	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88625-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88800D - COOLING UNIT SERVO
88800-36020	BB40,42,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(ARL,GCC,GEN)..5F	05/1993 - 07/1999	1
88800-36020	BB42..26S..WC;HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..LHD..SRF..WC;BB50..LHD..WC..CBU..5F;HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
88800-36020	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB50..HRF..WC..(ARL,GCC,GEN)..5F	01/1993 - 05/1993	1
88800-36010	RZB40..22S..CHI;BZB40,RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88800-36010	BZB40,50,RZB40,50..WC	05/2003 - 08/2004	1
88800-36010	BZB50..EX;BZB40,RZB40,50..WC	11/2002 - 05/2003	1
88800-36020	BB42,5#,HZB50..WC	05/2003 - 08/2004	1
88800-36020	BB50..WC..IV;BB42,58,59,HZB50..WC;BB50..(19S,20S,21S,30S)..WC	11/2002 - 05/2003	1
88800-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	1
88800-36010	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88800-36020	BB42,HZB50..WC	01/2015 - 12/2999	1
88800-36010	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	1
Common parts
82711-14890
88653-36020
91651-60830

ILLUST NO. 3 OF 4(9301-9905)

Click highlighted areas on diagram

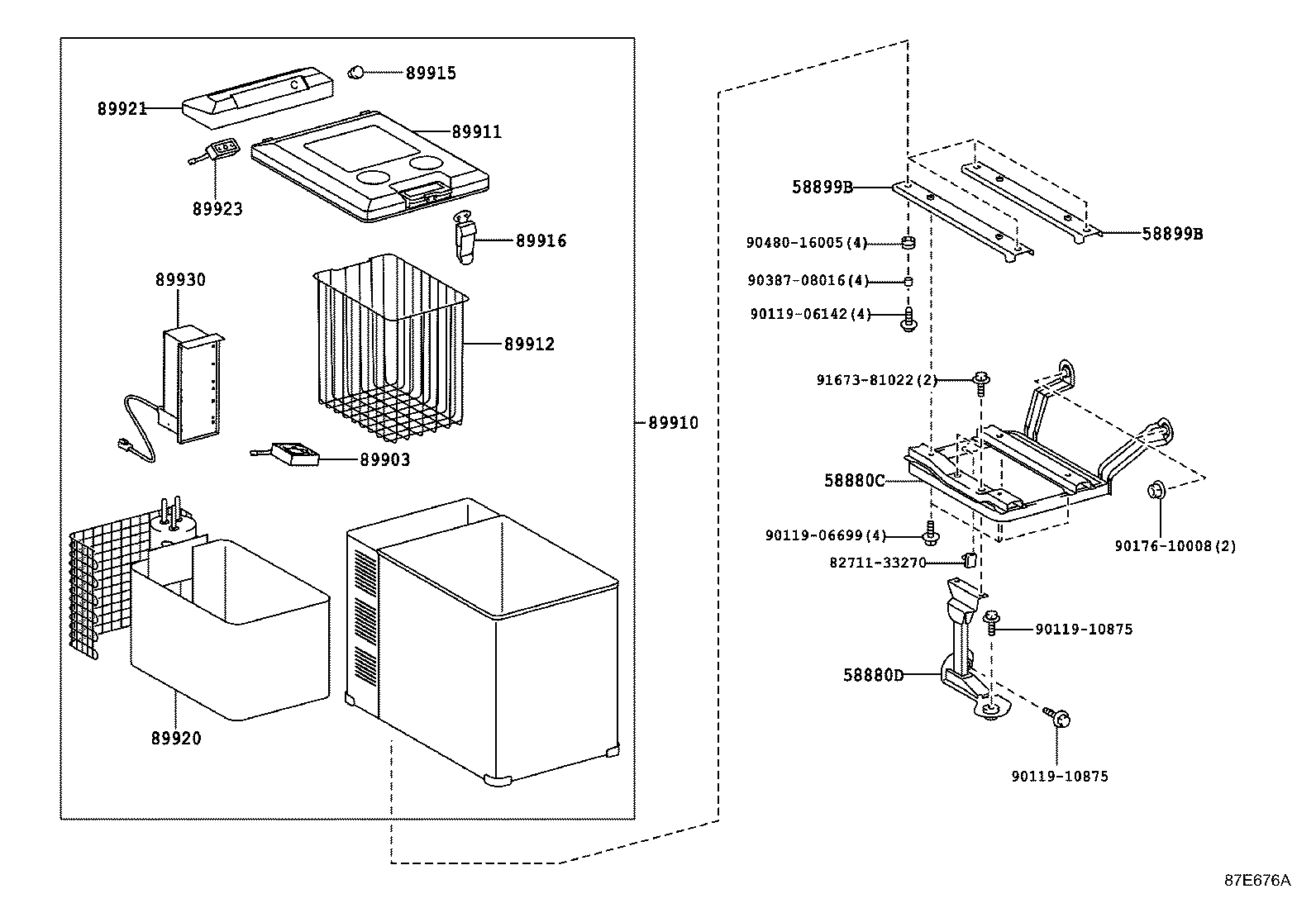

COOL BOX

Part #	Description	Period	Qty
89910 - BOX ASSY, COOLER
89910-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89910-36023	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
89910-36023	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89910-36024	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89910-36024	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89910-36024	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89911 - DOOR, COOLER BOX
89911-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89911-36021	BB42..SRF..WC;HZB50..EX..GEN;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1994 - 09/1994	1
89911-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	09/1994 - 05/1997	1
89911-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89911-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89911-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89911-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1994	1
89911-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89912 - TRAY, COOLER BOX
89912-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89912-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89912-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89912-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89912-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89912-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89912-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89915 - DIAL, COOLER CONTROL
89915-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89915-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89915-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89915-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89915-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89915-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89915-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89916 - LOCK, COOLER BOX
89916-36020	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89916-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 05/1997	1
89916-36021	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89916-36020	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89916-36021	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89916-36021	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89916 - LOCK, COOLER BOX
89916-36020	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89916-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 05/1997	1
89916-36021	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89916-36020	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89916-36021	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89916-36021	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89917 - HINGE, COOLER BOX DOOR, RH
89917-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1994	1
89918 - HINGE, COOLER BOX DOOR, LH
89918-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1994	1
89920 - UNIT ASSY, COOLER DRIVE MECHANISM
89920-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 04/1994	1
89920-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89920-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89920-36022	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	09/1994 - 05/1997	1
89920-36023	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
89920-36022	BB42..SRF..WC;HZB50..EX..GEN;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1994 - 09/1994	1
89920-36024	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89920-36024	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89920-36024	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89920-36023	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89921 - CASE, COOLER DRIVE UNIT
89921-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89921-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89921-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89921-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89921-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89921-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89921-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89923 - THERMISTOR, COOLER BOX
89923-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89923-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89923-36022	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89923-36023	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89923-36023	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89923-36023	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89923-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89923-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
89930 - PARTS ASSY, COOLER BOX ELECTRICAL
89930-36023	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89930-36023	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89930-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89930-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89930-36023	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89930-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89930-36022	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89930-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
Common parts
82711-33270
90387-08016
90480-16005

ILLUST NO. 1 OF 4(9907-1501)

Click highlighted areas on diagram

COOLER UNIT

Part #	Description	Period	Qty
88361 - FAN, COOLER BLOWER, NO.1
87105-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36060	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36060	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36060	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36060	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88361 - FAN, COOLER BLOWER, NO.1
87105-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36060	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36060	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88421 - VALVE, EXPANSION, NO.2
88421-36011	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	09/1993 - 07/1999	1
88421-36011	BB42,5#,BZB40,50,HZB50,RZB40,50..WC	08/2004 - 04/2005	1
88421-36010	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 09/1993	1
88421-36050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88421-36050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	05/2005 - 01/2015	1
88421-36011	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-36080	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88501-36080	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88501-36080	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88501-36080	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88510 - UNIT ASSY, COOLER
88510-36130	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB50..HRF..WC..(ARL,GCC,GEN)..5F	01/1993 - 09/1993	1
88510-36131	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(ARL,GCC,GEN)..5F;BB40,42,5#..WC..(ARL,EUR,GCC,GEN)	09/1993 - 07/1999	1
88510-36172	RZB40,50..WC	05/2003 - 08/2004	1
88510-36132	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88510-36220	BZB40,50..STD	08/2001 - 08/2004	1
88510-36172	BZB40,50..STD W/O(DESTINATION EXPRESS BOX)	08/2004 - 12/2009	1
88510-36133	BB42..RHD..WC;BB50,HZB50..WC;BB42..LHD..SRF..WC	01/2010 - 01/2015	1
88510-36132	BB42,50,HZB50..WC..(DSL,TD) W/O(DESTINATION EXPRESS BOX)	08/2004 - 12/2009	1
88510-36220	BZB40,50..STD	08/2004 - 12/2009	1
88510-36221	BZB40,50,XZB40	01/2010 - 01/2015	1
88510-36240	XZB40..26S..WC;BZB50,TRB40,50,XZB5#..WC	01/2015 - 12/2999	1
88510-36172	TRB40,50..WC	08/2004 - 12/2009	1
88510-36250	BB42,HZB50..WC	01/2015 - 12/2999	1
88510-36173	BZB40,50,TRB40,50,XZB40,5#..WC..(ARL,GCC,GEN,TAIW) W/O(DESTINATION EXPRESS BOX)	01/2010 - 01/2015	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88536-36061	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/2000 - 08/2004	1
88536-36060	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	07/1999 - 07/2000	1
88536-36061	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88536-36061	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88536-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88536-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536C - BRACKET, COOLING UNIT, NO.4
88536-36110	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88536-36110	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	1
88536-36110	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	1
88536-36110	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36130	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL RH	01/1993 - 07/1999	1
88536-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL LH	01/1993 - 07/1999	1
88536-36120	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) LH	07/1999 - 08/2004	1
88536-36130	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) RH	08/2004 - 01/2015	1
88536-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) RH	07/1999 - 08/2004	1
88536-36120	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC LH	01/2015 - 12/2999	1
88536-36120	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) LH	08/2004 - 01/2015	1
88536-36130	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC RH	01/2015 - 12/2999	1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36130	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL RH	01/1993 - 07/1999	1
88536-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL LH	01/1993 - 07/1999	1
88536-36120	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) LH	07/1999 - 08/2004	1
88536-36130	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) RH	08/2004 - 01/2015	1
88536-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) RH	07/1999 - 08/2004	1
88536-36120	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC LH	01/2015 - 12/2999	1
88536-36120	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) LH	08/2004 - 01/2015	1
88536-36130	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC RH	01/2015 - 12/2999	1
88550B - MOTOR ASSY, BLOWER
88550-36130	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88550-36020	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	3
88550-36130	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88550-36020	BB42,HZB50..WC	01/2015 - 12/2999	3
88550-36130	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	3
88550B - MOTOR ASSY, BLOWER
88550-36130	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88550-36020	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	3
88550-36130	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88550-36020	BB42,HZB50..WC	01/2015 - 12/2999	3
88550-36130	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	3
88550B - MOTOR ASSY, BLOWER
88550-36130	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88550-36020	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	3
88550-36130	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88550-36020	BB42,HZB50..WC	01/2015 - 12/2999	3
88550-36130	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	3
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88605-36122	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/2000 - 08/2004	1
88605-36121	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	07/1999 - 07/2000	1
88605-36361	XZB40..26S..WC;BZB50,TRB40,50,XZB5#..WC	01/2015 - 12/2999	1
88605-36122	XZB59;XZB50..(20S,21S)..WC;BB42,50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2010	1
88605-36430	BB42,HZB50..WC	01/2015 - 12/2999	1
88605-36123	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC..(ARL,GCC,GEN,TAIW)	01/2010 - 01/2015	1
88625 - THERMISTOR, COOLER, NO.1
88625-36140	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88625-36140	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88625-36140	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88625-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88630V - RELAY ASSY
90987-02004	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	12/1999 - 08/2004	6
90987-02005	BB42,50,HZB50..WC..(DSL,TD)	08/2004 - 01/2010	6
90987-02004	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2010	6
90987-02005	BZB40,50..STD W(AUTO AIR CONDITIONER)	05/2005 - 01/2010	6
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-36270	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88716-36270	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88716-36270	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88800D - COOLING UNIT SERVO
88800-36020	BB40,42,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(ARL,GCC,GEN)..5F	05/1993 - 07/1999	1
88800-36020	BB42..26S..WC;HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..LHD..SRF..WC;BB50..LHD..WC..CBU..5F;HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
88800-36020	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB50..HRF..WC..(ARL,GCC,GEN)..5F	01/1993 - 05/1993	1
88800-36010	RZB40..22S..CHI;BZB40,RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88800-36010	BZB40,50,RZB40,50..WC	05/2003 - 08/2004	1
88800-36010	BZB50..EX;BZB40,RZB40,50..WC	11/2002 - 05/2003	1
88800-36020	BB42,5#,HZB50..WC	05/2003 - 08/2004	1
88800-36020	BB50..WC..IV;BB42,58,59,HZB50..WC;BB50..(19S,20S,21S,30S)..WC	11/2002 - 05/2003	1
88800-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	1
88800-36010	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88800-36020	BB42,HZB50..WC	01/2015 - 12/2999	1
88800-36010	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	1
88810A - ACTUATOR ASSY, SERVO MOTER
88810-36011	RZB40..22S..CHI;BZB40,RZB40,50..(17S,26S,30S)..WC	12/1999 - 11/2002	1
88810-36021	BB50..WC..IV;BB42,58,59,HZB50..WC;BB50..(19S,20S,21S,30S)..WC	11/2002 - 05/2003	1
88810-36021	BB42..26S..WC;HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..LHD..SRF..WC;BB50..LHD..WC..CBU..5F;HZB50..HRF..(DX,STD)..WC..5F	12/1999 - 11/2002	1
88810-36011	BZB40,50,RZB40,50..WC	05/2003 - 08/2004	1
88810-36021	BB42,5#,HZB50..WC	05/2003 - 08/2004	1
88810-36011	BZB50..EX;BZB40,RZB40,50..WC	11/2002 - 05/2003	1
88810-36021	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	1
88810-36011	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88810-36021	BB42,HZB50..WC	01/2015 - 12/2999	1
88810-36011	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	1
Common parts
55933-14010
82711-10380
82711-14890
85959-30030
87116-14010
88569-16020
88653-36020
88688-36360
90099-00968
90099-05284
91553-80825
91651-60620
91651-60830
91651-B0820
91652-60630
93381-16012
93381-16014

ILLUST NO. 2 OF 4(9301-9907)

Click highlighted areas on diagram

COOLER BOX STAY

Part #	Description	Period	Qty
58880A - LEG ASSY, COOLING BOX
58880-36020E0	BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(20S,22S,30S)..WC..5F GREIGE,TRIM4#	05/1995 - 05/1997	1
58880-36022B0	BB42,50,HZB50..LHD..WC..(GCC,GEN)..5F MD.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
58880-36021E0	BB42,HZB50..LHD..WC GREIGE,TRIM4#	05/1997 - 07/1999	1
58880-36022B0	BB50..WC..TD;BB42,HZB50..GCC MD.CHARCOAL,TRIM1#	08/2004 - 08/2011	1
58880-36022E0	RZB40,50..CHI;BB42,50,HZB50..LHD..WC..CBU..5F GREIGE,TRIM4#	07/1999 - 08/2001	1
66999 - STAY, CUP OPENER
66999-90B00	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
66999-90B00	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
66999-90B00	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 05/1997	1
Common parts
90119-06142
90119-08301
90387-08016
90480-16005
90950-01153A0
91553-80822
91553-80830
93269-24014
93540-24012

ILLUST NO. 4 OF 4(9301-1501)

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14122
90099-14126

ILLUST NO. 1 OF 4(1501- )

Click highlighted areas on diagram

COOLER UNIT

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88361 - FAN, COOLER BLOWER, NO.1
87105-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36060	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36060	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88371 - FAN, COOLER BLOWER, NO.2
87105-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
87105-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
87105-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
87105-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88421 - VALVE, EXPANSION, NO.2
88421-36011	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	09/1993 - 07/1999	1
88421-36011	BB42,5#,BZB40,50,HZB50,RZB40,50..WC	08/2004 - 04/2005	1
88421-36010	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 09/1993	1
88421-36050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88421-36050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	05/2005 - 01/2015	1
88421-36011	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-36080	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88501-36080	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88501-36080	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88501-36080	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88510 - UNIT ASSY, COOLER
88510-36130	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB50..HRF..WC..(ARL,GCC,GEN)..5F	01/1993 - 09/1993	1
88510-36131	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(ARL,GCC,GEN)..5F;BB40,42,5#..WC..(ARL,EUR,GCC,GEN)	09/1993 - 07/1999	1
88510-36172	RZB40,50..WC	05/2003 - 08/2004	1
88510-36132	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88510-36220	BZB40,50..STD	08/2001 - 08/2004	1
88510-36172	BZB40,50..STD W/O(DESTINATION EXPRESS BOX)	08/2004 - 12/2009	1
88510-36133	BB42..RHD..WC;BB50,HZB50..WC;BB42..LHD..SRF..WC	01/2010 - 01/2015	1
88510-36132	BB42,50,HZB50..WC..(DSL,TD) W/O(DESTINATION EXPRESS BOX)	08/2004 - 12/2009	1
88510-36220	BZB40,50..STD	08/2004 - 12/2009	1
88510-36221	BZB40,50,XZB40	01/2010 - 01/2015	1
88510-36240	XZB40..26S..WC;BZB50,TRB40,50,XZB5#..WC	01/2015 - 12/2999	1
88510-36172	TRB40,50..WC	08/2004 - 12/2009	1
88510-36250	BB42,HZB50..WC	01/2015 - 12/2999	1
88510-36173	BZB40,50,TRB40,50,XZB40,5#..WC..(ARL,GCC,GEN,TAIW) W/O(DESTINATION EXPRESS BOX)	01/2010 - 01/2015	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88536-36061	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/2000 - 08/2004	1
88536-36060	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	07/1999 - 07/2000	1
88536-36061	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88536-36061	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88536-36070	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88536-36070	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536-36070	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-36100	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	2
88536-36100	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88536-36100	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	2
88536-36100	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	2
88536C - BRACKET, COOLING UNIT, NO.4
88536-36110	HZB50..LHD..EX;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..HRF..(GCC,GEN);BB42,50,HZB50,RZB40..HRF..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88536-36110	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC	01/1993 - 07/1999	1
88536-36110	BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC	01/2015 - 12/2999	1
88536-36110	BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..HRF..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36130	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL RH	01/1993 - 07/1999	1
88536-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL LH	01/1993 - 07/1999	1
88536-36120	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) LH	07/1999 - 08/2004	1
88536-36130	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) RH	08/2004 - 01/2015	1
88536-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) RH	07/1999 - 08/2004	1
88536-36120	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC LH	01/2015 - 12/2999	1
88536-36120	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) LH	08/2004 - 01/2015	1
88536-36130	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC RH	01/2015 - 12/2999	1
88536E - BRACKET, COOLING UNIT, NO.5
88536-36130	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL RH	01/1993 - 07/1999	1
88536-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL LH	01/1993 - 07/1999	1
88536-36120	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) LH	07/1999 - 08/2004	1
88536-36130	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) RH	08/2004 - 01/2015	1
88536-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN) RH	07/1999 - 08/2004	1
88536-36120	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC LH	01/2015 - 12/2999	1
88536-36120	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD) LH	08/2004 - 01/2015	1
88536-36130	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC RH	01/2015 - 12/2999	1
88550B - MOTOR ASSY, BLOWER
88550-36130	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88550-36020	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	3
88550-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	3
88550-36130	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	3
88550-36020	BB42,HZB50..WC	01/2015 - 12/2999	3
88550-36130	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	3
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-36120	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88605-36122	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/2000 - 08/2004	1
88605-36121	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	07/1999 - 07/2000	1
88605-36361	XZB40..26S..WC;BZB50,TRB40,50,XZB5#..WC	01/2015 - 12/2999	1
88605-36122	XZB59;XZB50..(20S,21S)..WC;BB42,50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2010	1
88605-36430	BB42,HZB50..WC	01/2015 - 12/2999	1
88605-36123	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC..(ARL,GCC,GEN,TAIW)	01/2010 - 01/2015	1
88625 - THERMISTOR, COOLER, NO.1
88625-36140	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88625-36140	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88625-36140	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88625-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-36270	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88716-36270	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88716-36270	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88800D - COOLING UNIT SERVO
88800-36020	BB40,42,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(ARL,GCC,GEN)..5F	05/1993 - 07/1999	1
88800-36020	BB42..26S..WC;HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..LHD..SRF..WC;BB50..LHD..WC..CBU..5F;HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
88800-36020	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;BB4#..WC..(ARL,GCC,GEN);HZB50..HRF..WC..(ARL,GCC,GEN)..5F	01/1993 - 05/1993	1
88800-36010	RZB40..22S..CHI;BZB40,RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88800-36010	BZB40,50,RZB40,50..WC	05/2003 - 08/2004	1
88800-36010	BZB50..EX;BZB40,RZB40,50..WC	11/2002 - 05/2003	1
88800-36020	BB42,5#,HZB50..WC	05/2003 - 08/2004	1
88800-36020	BB50..WC..IV;BB42,58,59,HZB50..WC;BB50..(19S,20S,21S,30S)..WC	11/2002 - 05/2003	1
88800-36020	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	1
88800-36010	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88800-36020	BB42,HZB50..WC	01/2015 - 12/2999	1
88800-36010	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	1
88810A - ACTUATOR ASSY, SERVO MOTER
88810-36011	RZB40..22S..CHI;BZB40,RZB40,50..(17S,26S,30S)..WC	12/1999 - 11/2002	1
88810-36021	BB50..WC..IV;BB42,58,59,HZB50..WC;BB50..(19S,20S,21S,30S)..WC	11/2002 - 05/2003	1
88810-36021	BB42..26S..WC;HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..LHD..SRF..WC;BB50..LHD..WC..CBU..5F;HZB50..HRF..(DX,STD)..WC..5F	12/1999 - 11/2002	1
88810-36011	BZB40,50,RZB40,50..WC	05/2003 - 08/2004	1
88810-36021	BB42,5#,HZB50..WC	05/2003 - 08/2004	1
88810-36011	BZB50..EX;BZB40,RZB40,50..WC	11/2002 - 05/2003	1
88810-36021	BB42..RHD..WC;BB42..LHD..SRF..WC;BB50,HZB50..30S..WC	08/2004 - 01/2015	1
88810-36011	BZB40,50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88810-36021	BB42,HZB50..WC	01/2015 - 12/2999	1
88810-36011	BZB40,50,TRB40,50..STD..WC	08/2004 - 01/2015	1
Common parts
55933-14010
82711-10380
88569-16020
88653-36020
88714-89101
90099-00968
90099-05284
90099-14119
90099-14120
91553-80825
91651-60620
93381-16012
93381-16014

ILLUST NO. 3 OF 4(1501- )LHD

Click highlighted areas on diagram

COOL BOX

Part #	Description	Period	Qty
89903 - MOTOR SUB-ASSY, COOLER BOX FAN
89903-36010	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89903-36011	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89903-36011	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89903-36011	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89903-36010	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
89910 - BOX ASSY, COOLER
89910-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89910-36023	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
89910-36023	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89910-36024	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89910-36024	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89910-36024	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89911 - DOOR, COOLER BOX
89911-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89911-36021	BB42..SRF..WC;HZB50..EX..GEN;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1994 - 09/1994	1
89911-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	09/1994 - 05/1997	1
89911-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89911-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89911-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89911-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1994	1
89911-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89912 - TRAY, COOLER BOX
89912-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89912-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89912-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89912-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89912-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89912-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89912-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89915 - DIAL, COOLER CONTROL
89915-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89915-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89915-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89915-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89915-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89915-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89915-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89916 - LOCK, COOLER BOX
89916-36020	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89916-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 05/1997	1
89916-36021	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89916-36020	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89916-36021	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89916-36021	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89920 - UNIT ASSY, COOLER DRIVE MECHANISM
89920-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 04/1994	1
89920-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89920-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89920-36022	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	09/1994 - 05/1997	1
89920-36023	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
89920-36022	BB42..SRF..WC;HZB50..EX..GEN;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1994 - 09/1994	1
89920-36024	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89920-36024	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89920-36024	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89920-36023	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89921 - CASE, COOLER DRIVE UNIT
89921-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 07/1999	1
89921-36021	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89921-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89921-36022	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89921-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89921-36022	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89921-36022	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89923 - THERMISTOR, COOLER BOX
89923-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89923-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89923-36022	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89923-36023	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89923-36023	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89923-36023	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89923-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89923-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
89930 - PARTS ASSY, COOLER BOX ELECTRICAL
89930-36023	BB50..WC..5F;RZB40,50..CHI;BB42,HZB50..LHD..WC	08/2001 - 11/2002	1
89930-36023	BB42,HZB50..GCC;BB42,50..LHD..HRF..WC..5F	08/2004 - 08/2011	1
89930-36020	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	01/1993 - 04/1993	1
89930-36021	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1997 - 05/1999	1
89930-36023	BB42,HZB50..LHD..WC;BB50,BZB50..(20S,21S,30S)..WC..5F	11/2002 - 08/2004	1
89930-36021	HZB50..20S;BB42..SRF..WC;HZB50..GCC..4FC;BB42,HZB50..LHD..(22S,30S)..WC..5F	04/1993 - 05/1997	1
89930-36022	HZB50..EX;BB50..CBU..5F;RZB40,50..CHI;BB42,HZB50..LHD..STD..WC	07/1999 - 08/2001	1
89930-36022	BB50,HZB50..EX;BB42,HZB50..LHD..STD..WC	05/1999 - 07/1999	1
Common parts
82711-33270
90119-06142
90119-06699
90119-10875
90176-10008
90387-08016
90480-16005
91673-81022

HZB50L-ZGMSSV (1993)

ILLUST NO. 1 OF 4(9301-9907)

ILLUST NO. 3 OF 4(9301-9905)

ILLUST NO. 1 OF 4(9907-1501)

ILLUST NO. 2 OF 4(9301-9907)

ILLUST NO. 4 OF 4(9301-1501)

ILLUST NO. 1 OF 4(1501- )

ILLUST NO. 3 OF 4(1501- )LHD

Part Price Details
