HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-1501)

Click highlighted areas on diagram

diagram 827111A750 8271150400 86300 9015040005 9046905005
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-36030

BB4#,HZB50,RZB40,50..CBU

 1
86300-36040

BB42,58,59,HZB50,RZB40,50;BB50,BZB50..19S,20S,21S,30S

 1
86300-36040

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;BB5#,RZB50..(CHI,GCC,GEN)..(EFI,TDEFI);HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)

 1
86300-36040

BB40,42,5#,HZB50,RZB40,50..(ARL,GCC,GEN)..CBU

 1
86300-36070

BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU

 1
86300-36080

XZB59;BB42,HZB50,TRB40,50,XZB40,50..20S,21S,26S,30S

 1
86300-36040

BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU..5F

 1
86300-36030

RZB40;BB4#,HZB50,RZB50..19S,20S,22S,26S,30S

 1
Common parts
82711-1A750
82711-50400
90150-40005
90469-05005

(1501- )LHD

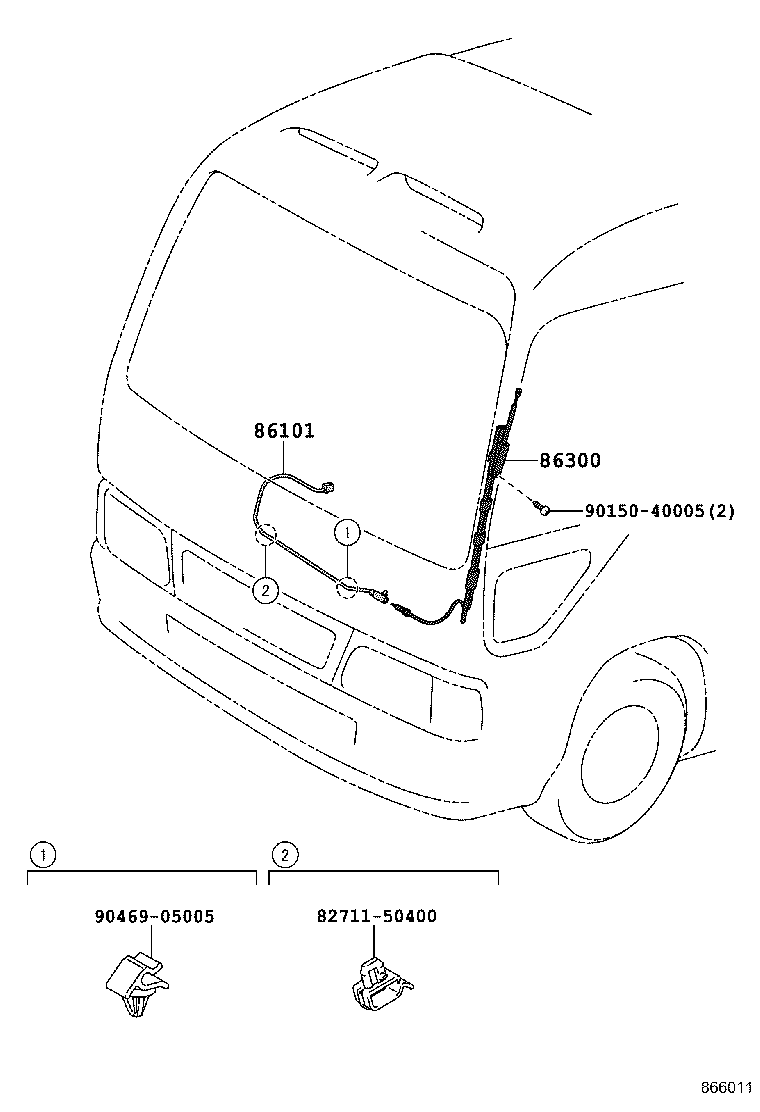

Click highlighted areas on diagram

diagram 8271150400 86101 86300 9015040005 9046905005
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-36060

BB42,HZB50,TRB40,50..GCC

W/O(AUDIO)

 1
86101-36080

BB42,HZB50,TRB40,50,XZB40,50..LHD

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-36030

BB4#,HZB50,RZB40,50..CBU

 1
86300-36040

BB42,58,59,HZB50,RZB40,50;BB50,BZB50..19S,20S,21S,30S

 1
86300-36040

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;BB5#,RZB50..(CHI,GCC,GEN)..(EFI,TDEFI);HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)

 1
86300-36040

BB40,42,5#,HZB50,RZB40,50..(ARL,GCC,GEN)..CBU

 1
86300-36070

BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU

 1
86300-36080

XZB59;BB42,HZB50,TRB40,50,XZB40,50..20S,21S,26S,30S

 1
86300-36040

BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU..5F

 1
86300-36030

RZB40;BB4#,HZB50,RZB50..19S,20S,22S,26S,30S

 1
Common parts
82711-50400
90150-40005
90469-05005
