Toyota Coaster HZB50 ELECTRONIC FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZGMSSV (1993)
8404 - ELECTRONIC FUEL INJECTION SYSTEM

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

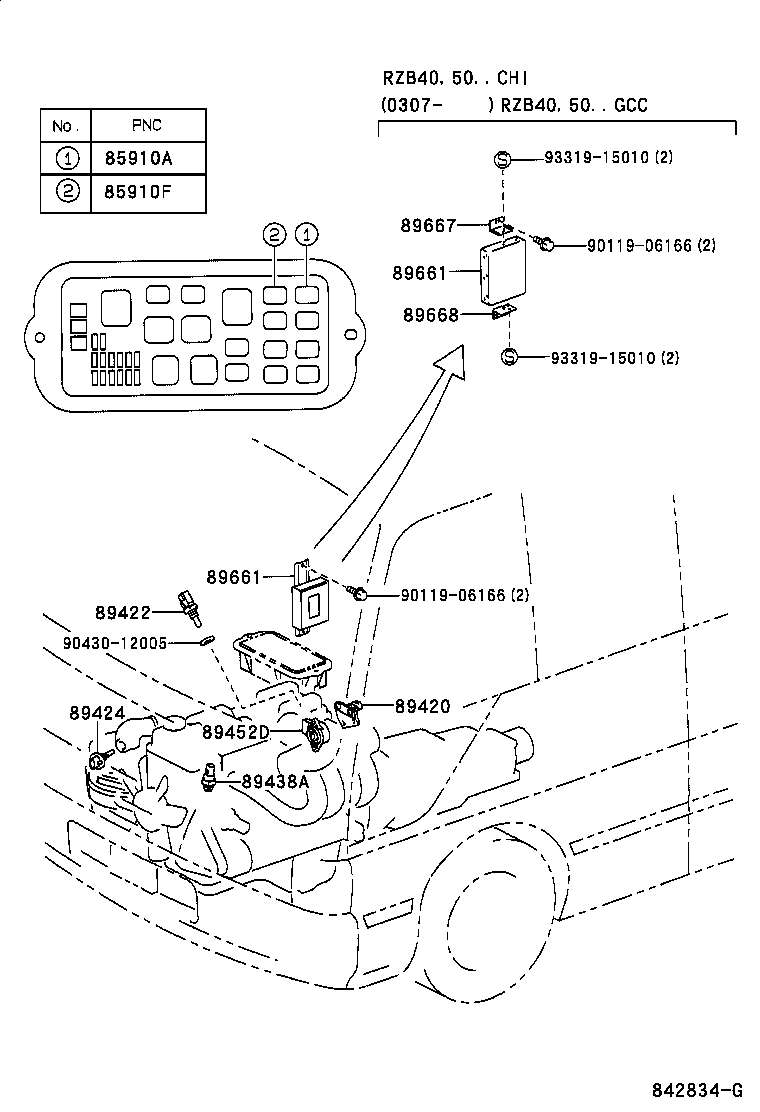

(9907-0708)RZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027	TRB40,50	08/2007 - 01/2015	1
90987-02012	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90987-02027	TRB40,50	01/2015 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90987-02027	TRB40,50	01/2015 - 12/2999	1
90987-02027	TRB40,50	08/2007 - 01/2015	1
89420 - SENSOR ASSY, VACUUM
89420-60040	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
89422-16010	TRB40,50	08/2007 - 01/2015	1
89422-16010	TRB40,50	01/2015 - 12/2999	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
89424-12010	BZB40,50,RZB40,50	08/2004 - 01/2015	1
89424-12010	BZB40,50	12/2000 - 08/2004	1
89424-12010	BZB40,50	01/2015 - 12/2016	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
89438-33010	RZB40,50,TRB40,50	08/2004 - 01/2015	1
89438-33010	TRB40,50	01/2015 - 08/2016	1
89438-71010	TRB40,50	09/2016 - 12/2016	1
89452D - SENSOR, THROTTLE POSITION
89452-35020	RZB40,50..GCC,GEN	07/2002 - 08/2004	1
89661 - COMPUTER, ENGINE CONTROL
89661-36082	BZB40,50	07/2002 - 06/2003	1
89661-36111	BZB40,50	12/2003 - 08/2004	1
89661-36110	BZB40,50	06/2003 - 12/2003	1
89661-36060	RZB40,50..GCC	07/2003 - 08/2004	1
89661-36270	TRB40,50..GCC	08/2007 - 09/2010	1
89661-36230	BZB40,50	01/2015 - 12/2999	1
89661-36271	TRB40,50..GCC	10/2010 - 01/2015	1
89660-36020	RZB40,50..WC..GCC	07/1999 - 07/2003	1
89661-36111	BZB40,50..STD	08/2004 - 08/2007	1
89661-36230	BZB40,50	08/2007 - 01/2015	1
89661-36271	TRB40,50..GCC	01/2015 - 12/2999	1
89661 - COMPUTER, ENGINE CONTROL
89661-36082	BZB40,50	07/2002 - 06/2003	1
89661-36111	BZB40,50	12/2003 - 08/2004	1
89661-36110	BZB40,50	06/2003 - 12/2003	1
89661-36060	RZB40,50..GCC	07/2003 - 08/2004	1
89661-36270	TRB40,50..GCC	08/2007 - 09/2010	1
89661-36230	BZB40,50	01/2015 - 12/2999	1
89661-36271	TRB40,50..GCC	10/2010 - 01/2015	1
89660-36020	RZB40,50..WC..GCC	07/1999 - 07/2003	1
89661-36111	BZB40,50..STD	08/2004 - 08/2007	1
89661-36230	BZB40,50	08/2007 - 01/2015	1
89661-36271	TRB40,50..GCC	01/2015 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-36020	RZB40,50..GCC	07/2003 - 08/2004	1
89667-36020	BZB40,50..STD	08/2004 - 01/2015	1
89667-36020	BZB40,50	01/2015 - 12/2999	1
89667-36100	TRB40,50	08/2007 - 01/2015	1
89667-36100	TRB40,50	01/2015 - 12/2999	1
89667-36020	BZB40,50	12/2000 - 08/2004	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36010	BZB40,50	12/2000 - 08/2004	1
89668-36010	BZB40,50..STD	08/2004 - 01/2015	1
89668-36010	RZB40,50..GCC	07/2003 - 08/2004	1
89668-36090	TRB40,50	01/2015 - 12/2999	1
89668-36090	TRB40,50	08/2007 - 01/2015	1
89668-36010	BZB40,50	01/2015 - 12/2999	1
Common parts
90119-06166
90430-12005
93319-15010

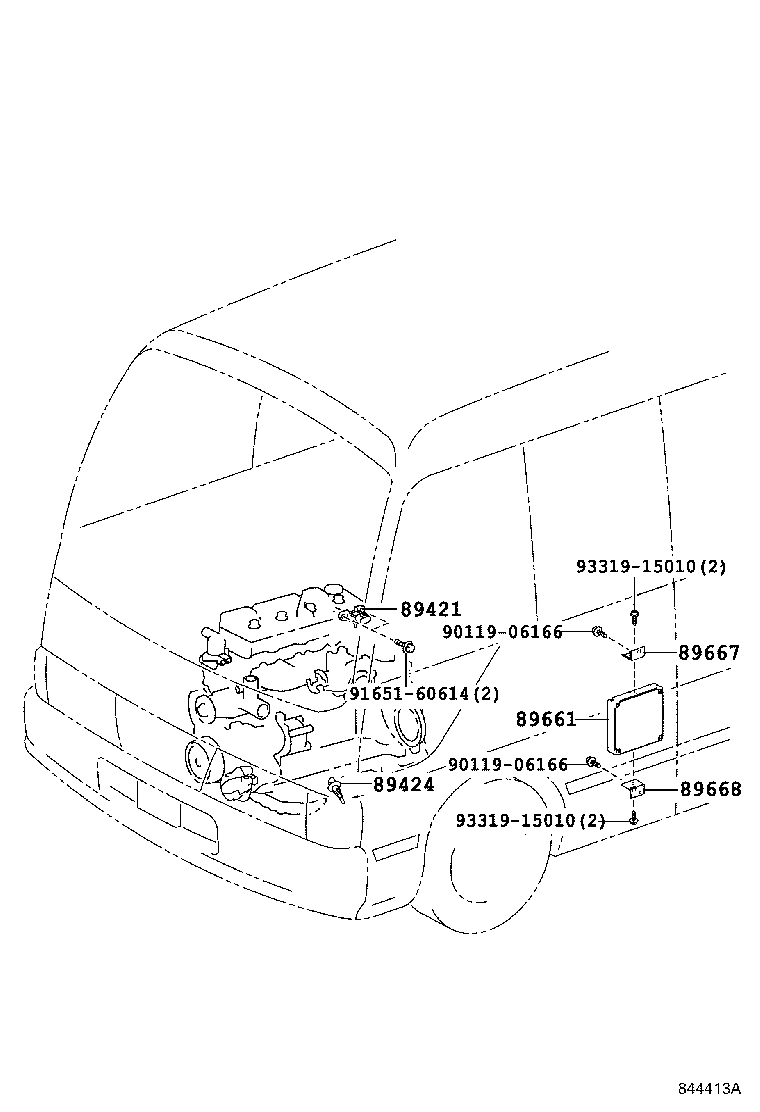

(0108- )BZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20190	BZB40,50	01/2015 - 12/2999	1
89421-20190	BZB40,50..STD	08/2004 - 01/2015	1
89421-20190	BZB40,50	08/2001 - 08/2004	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
89424-12010	BZB40,50,RZB40,50	08/2004 - 01/2015	1
89424-12010	BZB40,50	12/2000 - 08/2004	1
89424-12010	BZB40,50	01/2015 - 12/2016	1
89661 - COMPUTER, ENGINE CONTROL
89661-36082	BZB40,50	07/2002 - 06/2003	1
89661-36111	BZB40,50	12/2003 - 08/2004	1
89661-36110	BZB40,50	06/2003 - 12/2003	1
89661-36060	RZB40,50..GCC	07/2003 - 08/2004	1
89661-36270	TRB40,50..GCC	08/2007 - 09/2010	1
89661-36230	BZB40,50	01/2015 - 12/2999	1
89661-36271	TRB40,50..GCC	10/2010 - 01/2015	1
89660-36020	RZB40,50..WC..GCC	07/1999 - 07/2003	1
89661-36111	BZB40,50..STD	08/2004 - 08/2007	1
89661-36230	BZB40,50	08/2007 - 01/2015	1
89661-36271	TRB40,50..GCC	01/2015 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-36020	RZB40,50..GCC	07/2003 - 08/2004	1
89667-36020	BZB40,50..STD	08/2004 - 01/2015	1
89667-36020	BZB40,50	01/2015 - 12/2999	1
89667-36100	TRB40,50	08/2007 - 01/2015	1
89667-36100	TRB40,50	01/2015 - 12/2999	1
89667-36020	BZB40,50	12/2000 - 08/2004	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36010	BZB40,50	12/2000 - 08/2004	1
89668-36010	BZB40,50..STD	08/2004 - 01/2015	1
89668-36010	RZB40,50..GCC	07/2003 - 08/2004	1
89668-36090	TRB40,50	01/2015 - 12/2999	1
89668-36090	TRB40,50	08/2007 - 01/2015	1
89668-36010	BZB40,50	01/2015 - 12/2999	1
Common parts
90119-06166
91651-60614
93319-15010

(0708- )TRB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027	TRB40,50	08/2007 - 01/2015	1
90987-02012	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90987-02027	TRB40,50	01/2015 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90987-02027	TRB40,50	01/2015 - 12/2999	1
90987-02027	TRB40,50	08/2007 - 01/2015	1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02027	TRB40,50..GCC	08/2007 - 01/2015	1
90987-02027	TRB40,50..GCC	01/2015 - 12/2999	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
89422-16010	TRB40,50	08/2007 - 01/2015	1
89422-16010	TRB40,50	01/2015 - 12/2999	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
89438-33010	RZB40,50,TRB40,50	08/2004 - 01/2015	1
89438-33010	TRB40,50	01/2015 - 08/2016	1
89438-71010	TRB40,50	09/2016 - 12/2016	1
89661 - COMPUTER, ENGINE CONTROL
89661-36082	BZB40,50	07/2002 - 06/2003	1
89661-36111	BZB40,50	12/2003 - 08/2004	1
89661-36110	BZB40,50	06/2003 - 12/2003	1
89661-36060	RZB40,50..GCC	07/2003 - 08/2004	1
89661-36270	TRB40,50..GCC	08/2007 - 09/2010	1
89661-36230	BZB40,50	01/2015 - 12/2999	1
89661-36271	TRB40,50..GCC	10/2010 - 01/2015	1
89660-36020	RZB40,50..WC..GCC	07/1999 - 07/2003	1
89661-36111	BZB40,50..STD	08/2004 - 08/2007	1
89661-36230	BZB40,50	08/2007 - 01/2015	1
89661-36271	TRB40,50..GCC	01/2015 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-36020	RZB40,50..GCC	07/2003 - 08/2004	1
89667-36020	BZB40,50..STD	08/2004 - 01/2015	1
89667-36020	BZB40,50	01/2015 - 12/2999	1
89667-36100	TRB40,50	08/2007 - 01/2015	1
89667-36100	TRB40,50	01/2015 - 12/2999	1
89667-36020	BZB40,50	12/2000 - 08/2004	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36010	BZB40,50	12/2000 - 08/2004	1
89668-36010	BZB40,50..STD	08/2004 - 01/2015	1
89668-36010	RZB40,50..GCC	07/2003 - 08/2004	1
89668-36090	TRB40,50	01/2015 - 12/2999	1
89668-36090	TRB40,50	08/2007 - 01/2015	1
89668-36010	BZB40,50	01/2015 - 12/2999	1
Common parts
90119-06166
90159-60432
90179-06200
90430-12005
93319-15010
