HZB50L-ZGMSSV (1993)
Toyota Coaster
(9301-1501)LHD
FRONT & REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73019 - SHAFT SUB-ASSY, SEAT BELT | ||||
| 73019-36020E1 |
BB58;HZB50..LHD..SRF..WC;HZB50..LHD..WOC..DSL;HZB50..30S..GEN..4FC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC OAK,TRIM4# |
1 | ||
| 73019-36020E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73019-36020E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73019-36020B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36020B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36020E2 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) SANDAL WOOD,TRIM4# |
1 | ||
| 73019-36020B0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36020B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||

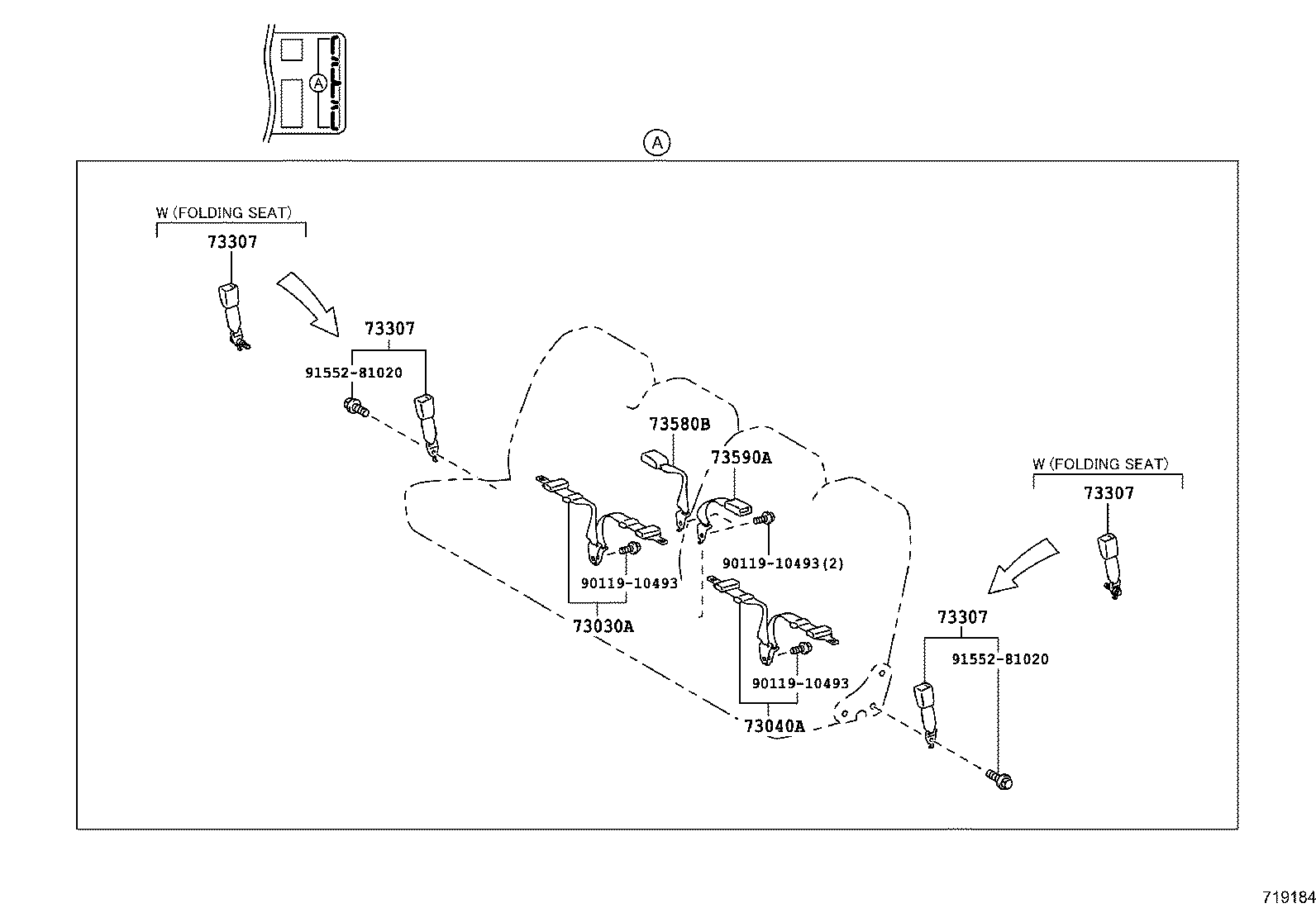

| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73040-36010E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73040-36021E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73040-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73040-36021B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73040-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73040-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73040-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73040A - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73030-36010E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73030-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73030-36021E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73030-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73030-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73030-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73030-36021B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73370-36010E0 |
HZB50..LHD..EX;BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU PASSENGER SEAT 3 POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
HZB50,RZB40..LHD..EX;BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 73370-36040E0 |
BB58;HZB50..LHD..WOC;HZB50..LHD..SRF..WC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73370-36041E0 |
BB42,58,HZB50,RZB40,50..LHD W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB50..EX;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN);BB4#,5#,RZB40,50..(17S,19S,22S,23S,26S,30S)..WC OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36030E0 |
BB42,HZB50,RZB40,50..LHD..CBU W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36060E0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..CBU..5F W(2 POINT PASSENGERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,5#,BZB40,50,HZB50,RZB40,50..WC..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
TRB40,50,XZB50..LHD..CBU GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36070E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73360-36030E1 |
BB42,50,HZB50,TRB40,50..LHD W(2 POINT PASSENGERS SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36060E1 |
BB42,50,HZB50,TRB40,50..LHD W(3 POINT PASSENGER SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73370-36010E0 |
HZB50..LHD..EX;BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU PASSENGER SEAT 3 POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
HZB50,RZB40..LHD..EX;BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 73370-36040E0 |
BB58;HZB50..LHD..WOC;HZB50..LHD..SRF..WC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73370-36041E0 |
BB42,58,HZB50,RZB40,50..LHD W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB50..EX;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN);BB4#,5#,RZB40,50..(17S,19S,22S,23S,26S,30S)..WC OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36030E0 |
BB42,HZB50,RZB40,50..LHD..CBU W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36060E0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..CBU..5F W(2 POINT PASSENGERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,5#,BZB40,50,HZB50,RZB40,50..WC..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
TRB40,50,XZB50..LHD..CBU GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36070E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73360-36030E1 |
BB42,50,HZB50,TRB40,50..LHD W(2 POINT PASSENGERS SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36060E1 |
BB42,50,HZB50,TRB40,50..LHD W(3 POINT PASSENGER SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73360-36010E0 |
HZB50..EX..GEN;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42..WOC..GCC;HZB50..EX..GEN;HZB50..GCC..4FC;BB42,HZB50..LHD..STD..WC..5F..DSL GREIGE,TRIM4# |
1 | ||
| 73210-36010E0 |
HZB50,RZB40..LHD..EX;BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73210-36010E1 |
HZB50..LHD..EX;BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73210-36070E1 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..LHD..CBU GRAY,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD GREGE,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73210-36110E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73173-90K00E2 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) SANDAL WOOD,TRIM4# |
1 | ||
| 73173-90K00B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00E1 |
BB42,58,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73173-90K00B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73173-90K00E0 |
RZB40..WC;BB42..GEN;RZB50..HRF..GEN;BB42,RZB50..WC..GCC;BB40,HZB50..ARL,GCC,GEN GREIGE,TRIM4# |
1 | ||
| 73173-90K00E1 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,HZB50..RHD..(ARL,GEN)..5F;BB42,HZB50,RZB40..LHD..WC..CBU..5F OAK,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73380-36030E0 |
BB42,HZB50..WC..GCC W(3-POINT ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73380-36030E0 |
HZB50..LHD..EX;BB42,HZB50..WC..GCC W(3-POINT ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73230-36010E0 |
BB42,HZB50..WC..GCC GREIGE,TRIM4# |
1 | ||
| 73380-36030E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73380-36060E0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),SANDAL WOOD,TRIM4# |
1 | ||
| 73380-36060B0 |
BB50..WC..TD;BB42,58,HZB50,RZB40,50..LHD W(3 POINT PASSENGER SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36030E1 |
BB58;HZB50..LHD..WOC;HZB50..LHD..SRF..WC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC OAK,TRIM4# |
1 | ||
| 73380-36060B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36030E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73380-36200E1 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E2 |
BB42..WC;BB50..EX;HZB50..HRF..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;BB42,HZB50..LHD..WOC;BB43,5#,RZB40,50..17S,19S,22S,23S,26S,30S SANDAL WOOD,TRIM4# |
1 | ||
| 73233-33010B2 |
BB42..WC;HZB50..GCC,GEN;BB42..LHD..WOC;BB5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-36010E0 |
BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73230-36010E0 |
BB42,HZB50,RZB40,50..GCC GREIGE,TRIM4# |
1 | ||
| 73230-36010E1 |
BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73230-36040E1 |
BB50..STD..GEN..CBU..5F;BB42,HZB50,RZB40,50..GCC W(WARNING SENSOR),SANDAL WOOD,TRIM4# |
1 | ||
| 73230-36040B0 |
BB42,HZB50,RZB40,50..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-36040B0 |
BB42,HZB50,TRB40,50..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-36040B0 |
BB42,HZB50,RZB40,50,TRB40,50..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 73303 - BELT SUB-ASSY, SUB SEAT, OUTER | ||||
| 73303-36010E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU OAK,TRIM4# |
1 | ||
| 73303-36010E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 73303-36040E0 |
HZB50;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73303-36031B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73303-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
1 | ||
| 73303-36031E1 |
BB42,50,HZB50,TRB40,50..LHD GREGE,TRIM1# |
1 | ||
| 73303-36031B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73303-36031E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
1 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36010E0 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
2 | ||
| 73307-36010E1 |
BB42,HZB50,RZB40,50..STD..GCC OAK,TRIM4# |
2 | ||
| 73307-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
2 | ||
| 73307-36030B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36040B0 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GRAY,TRIM1# |
2 | ||
| 73307-36040E1 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36010E0 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
2 | ||
| 73307-36010E1 |
BB42,HZB50,RZB40,50..STD..GCC OAK,TRIM4# |
2 | ||
| 73307-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
2 | ||
| 73307-36030B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36040B0 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GRAY,TRIM1# |
2 | ||
| 73307-36040E1 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73308 - BELT SUB-ASSY, SUB SEAT, INNER | ||||
| 73308-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73308-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
1 | ||
| 73308-36020B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73308-36010E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU OAK,TRIM4# |
1 | ||
| 73308-36010E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 73308-36020E1 |
BB42,50,HZB50,TRB40,50..LHD GREGE,TRIM1# |
1 | ||
| 73308-36030E0 |
HZB50;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-36061E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
5 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-36061E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
3 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36040E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
12 | ||
| 73380-36080E0 |
BB50,HZB50,RZB50..LHD..STD..(GCC,GEN)..CBU..5F W(REAR SEAT=02S X 6),SANDAL WOOD,TRIM4# |
12 | ||
| 73380-36040E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
12 | ||
| 73380-36080B0 |
HZB50..LHD..STD;BB50,58,RZB50..(23S,30S)..WC..(GCC,GEN) W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36100B0 |
BB50,58,HZB50,RZB50..LHD..(23S,30S) W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36040E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
12 | ||
| 73380-36080E0 |
BB50,HZB50,RZB50..LHD..STD..(GCC,GEN)..CBU..5F W(REAR SEAT=02S X 6),SANDAL WOOD,TRIM4# |
12 | ||
| 73380-36040E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
12 | ||
| 73380-36080B0 |
HZB50..LHD..STD;BB50,58,RZB50..(23S,30S)..WC..(GCC,GEN) W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36100B0 |
BB50,58,HZB50,RZB50..LHD..(23S,30S) W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36040E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
5 | ||
| 73380-36040E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
5 | ||
| 73380-36080E0 |
RZB50..CHI;RZB40..26S;BB42..WC..GCC;HZB50..LHD..STD..WC;BB42,50..LHD..(20S,26S,30S)..(CHI,GEN) W(REAR SEAT=01S X 4),SANDAL WOOD,TRIM4# |
4 | ||
| 73380-36080E0 |
BB50,HZB50,RZB50..LHD..STD..CBU..5F W(REAR SEAT=01S X 5),SANDAL WOOD,TRIM4# |
5 | ||
| 73380-36080B0 |
RZB50..CHI;BB42,RZB40..LHD..26S;BB50,HZB50..LHD..WC..5F W(REAR SEAT=01S X 4),MD.CHARCOAL,TRIM1# |
4 | ||
| 73380-36100B0 |
BB42,RZB40..LHD..STD;BB50,HZB50..LHD..WC..5F W(REAR SEAT=01S X 4),MD.CHARCOAL,TRIM1# |
4 | ||
| 73380-36100B0 |
BB50,58,HZB50,RZB50..LHD..(23S,30S) W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36080B0 |
HZB50..LHD..STD;BB50,58,RZB50..(23S,30S)..WC W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36100B0 |
BB42,RZB40..LHD;BB50,HZB50..LHD..WC..5F W(REAR SEAT=01S X 4),MD.CHARCOAL,TRIM1# |
4 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50,XZB50..(21S,30S)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101E1 |
BB50..WC;HZB50..GCC W(REAR SEAT=01S X 4),GREGE,TRIM1# |
4 | ||
| 73380-36101E1 |
BZB40,50,XZB40;BB42..LHD..WC..GEN W(REAR SEAT=01S X 3),GREGE,TRIM1# |
3 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),GREGE,TRIM1# |
5 | ||
| 73380-36101B0 |
BB42,TRB40;BB50,HZB50..LHD..WC W(REAR SEAT=01S X 4),MD.CHARCOAL,TRIM1# |
4 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36010E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
6 | ||
| 73470-36010E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
6 | ||
| 73470-36021E0 |
BB50,HZB50,RZB50..LHD..STD..(GCC,GEN)..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36020E0 |
BB50,HZB50,RZB50..LHD..STD..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36021B0 |
HZB50..LHD..STD;BB50,RZB50..30S..WC..(GCC,GEN) W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73570B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73570-36010E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
5 | ||
| 73570-36010E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
5 | ||
| 73570-36020E0 |
BB50,HZB50,RZB50..LHD..STD..CBU..5F W(REAR SEAT=01S X 5),OAK,TRIM4# |
5 | ||
| 73570-36020E0 |
HZB50..LHD..WC;BB42,50,RZB40..LHD..(26S,30S) W(REAR SEAT=01S X 4),OAK,TRIM4# |
4 | ||
| 73570-36021E0 |
BB5#,HZB50,RZB50..LHD..(23S,30S) W(REAR SEAT=01S X 5),OAK,TRIM4# |
5 | ||
| 73570-36021B0 |
RZB50..CHI;BB42,RZB40..LHD..26S;BB50,HZB50..LHD..WC..5F W(REAR SEAT=01S X 4),GRAY,TRIM1# |
4 | ||
| 73570-36021E0 |
RZB50..CHI;HZB50..LHD..WC;BB42,50,RZB40..LHD..(20S,26S,30S) W(REAR SEAT=01S X 4),OAK,TRIM4# |
4 | ||
| 73570-36021B0 |
HZB50..LHD..STD;BB50,58,RZB50..(23S,30S)..WC W(REAR SEAT=01S X 5),GRAY,TRIM1# |
5 | ||
| 73570-36040B0 |
BB50,58,HZB50,RZB50..LHD..(23S,30S) W(REAR SEAT=01S X 5),GRAY,TRIM1# |
5 | ||
| 73570-36040B0 |
BB42,RZB40..LHD..STD;BB50,HZB50..LHD..WC..5F W(REAR SEAT=01S X 4),GRAY,TRIM1# |
4 | ||
| 73570-36040B0 |
BB42,RZB40,TRB40..LHD;BB50,HZB50..LHD..WC..5F W(REAR SEAT=01S X 4),GRAY,TRIM1# |
4 | ||
| 73570-36040B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=01S X 5),GRAY,TRIM1# |
5 | ||
| 73570-36040E1 |
BB50..WC;HZB50..GCC W(REAR SEAT=01S X 4),GREGE,TRIM1# |
4 | ||
| 73570-36040E1 |
BB50,HZB50,TRB50 W(REAR SEAT=01S X 5),GREGE,TRIM1# |
5 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73590-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73590-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73590-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73590-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73590-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73590-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73580-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73580-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73580-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73580-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73580-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73580-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73580-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73580-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73580-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90119-08357 | ||||
| 90119-10493 | ||||
| 90206-12003 | ||||
| 91552-81020 | ||||
| 91621-40614 | ||||
| 93560-14014 | ||||
| 93560-54014 | ||||
(0408- )

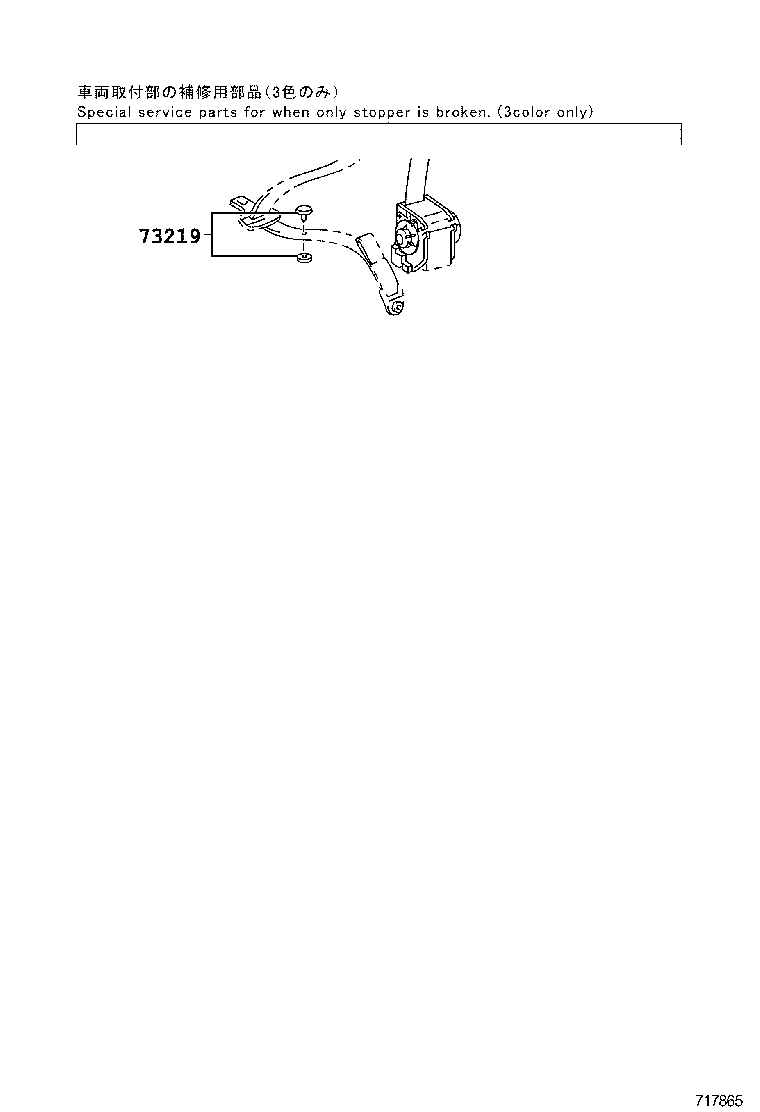

TONGUE STOPPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) GRAY |
1 | ||
| 73219-33010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# BLACK |
1 | ||
| 73219-33030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# BEIGE |
1 | ||
| 73219-33030 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) BEIGE |
1 | ||
| 73219-33010 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) BLACK |
1 | ||
| 73219-33020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# GRAY |
1 | ||
(1501- )LHD
FRONT & REAR(NO.1) & SUB(NO.1)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73019 - SHAFT SUB-ASSY, SEAT BELT | ||||
| 73019-36020E1 |
BB58;HZB50..LHD..SRF..WC;HZB50..LHD..WOC..DSL;HZB50..30S..GEN..4FC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC OAK,TRIM4# |
1 | ||
| 73019-36020E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73019-36020E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73019-36020B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36020B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36020E2 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) SANDAL WOOD,TRIM4# |
1 | ||
| 73019-36020B0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36020B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73370-36010E0 |
HZB50..LHD..EX;BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU PASSENGER SEAT 3 POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
HZB50,RZB40..LHD..EX;BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 73370-36040E0 |
BB58;HZB50..LHD..WOC;HZB50..LHD..SRF..WC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73370-36041E0 |
BB42,58,HZB50,RZB40,50..LHD W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB50..EX;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN);BB4#,5#,RZB40,50..(17S,19S,22S,23S,26S,30S)..WC OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36030E0 |
BB42,HZB50,RZB40,50..LHD..CBU W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36060E0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..CBU..5F W(2 POINT PASSENGERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,5#,BZB40,50,HZB50,RZB40,50..WC..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
TRB40,50,XZB50..LHD..CBU GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36070E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73360-36030E1 |
BB42,50,HZB50,TRB40,50..LHD W(2 POINT PASSENGERS SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36060E1 |
BB42,50,HZB50,TRB40,50..LHD W(3 POINT PASSENGER SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73370-36010E0 |
HZB50..LHD..EX;BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..WC..GCC ASSISTANTS SEAT 3-POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU PASSENGER SEAT 3 POINT TYPE,GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
HZB50,RZB40..LHD..EX;BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 73370-36040E0 |
BB58;HZB50..LHD..WOC;HZB50..LHD..SRF..WC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73370-36041E0 |
BB42,58,HZB50,RZB40,50..LHD W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB50..EX;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN);BB4#,5#,RZB40,50..(17S,19S,22S,23S,26S,30S)..WC OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36030E0 |
BB42,HZB50,RZB40,50..LHD..CBU W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36060E0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..CBU..5F W(2 POINT PASSENGERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..WC;BB42..LHD..WOC;BB50,HZB50,RZB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,5#,BZB40,50,HZB50,RZB40,50..WC..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
TRB40,50,XZB50..LHD..CBU GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36070E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73360-36030E1 |
BB42,50,HZB50,TRB40,50..LHD W(2 POINT PASSENGERS SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36060E1 |
BB42,50,HZB50,TRB40,50..LHD W(3 POINT PASSENGER SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73360-36010E0 |
HZB50..EX..GEN;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42..WOC..GCC;HZB50..EX..GEN;HZB50..GCC..4FC;BB42,HZB50..LHD..STD..WC..5F..DSL GREIGE,TRIM4# |
1 | ||
| 73210-36010E0 |
HZB50,RZB40..LHD..EX;BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73210-36010E1 |
HZB50..LHD..EX;BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73210-36070E1 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..LHD..CBU GRAY,TRIM1# |
1 | ||
| 73210-36070B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD GREGE,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73210-36110E0 |
BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU GREGE,TRIM1# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73173-90K00E2 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) SANDAL WOOD,TRIM4# |
1 | ||
| 73173-90K00B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00E1 |
BB42,58,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73173-90K00B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73173-90K00E0 |
RZB40..WC;BB42..GEN;RZB50..HRF..GEN;BB42,RZB50..WC..GCC;BB40,HZB50..ARL,GCC,GEN GREIGE,TRIM4# |
1 | ||
| 73173-90K00E1 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,HZB50..RHD..(ARL,GEN)..5F;BB42,HZB50,RZB40..LHD..WC..CBU..5F OAK,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73380-36030E0 |
BB42,HZB50..WC..GCC W(3-POINT ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73380-36030E0 |
HZB50..LHD..EX;BB42,HZB50..WC..GCC W(3-POINT ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73230-36010E0 |
BB42,HZB50..WC..GCC GREIGE,TRIM4# |
1 | ||
| 73380-36030E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73380-36060E0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),SANDAL WOOD,TRIM4# |
1 | ||
| 73380-36060B0 |
BB50..WC..TD;BB42,58,HZB50,RZB40,50..LHD W(3 POINT PASSENGER SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36030E1 |
BB58;HZB50..LHD..WOC;HZB50..LHD..SRF..WC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC OAK,TRIM4# |
1 | ||
| 73380-36060B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36030E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73380-36200E1 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73380-36030E0 |
BB42,HZB50..WC..GCC W(3-POINT ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73380-36030E0 |
HZB50..LHD..EX;BB42,HZB50..WC..GCC W(3-POINT ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73230-36010E0 |
BB42,HZB50..WC..GCC GREIGE,TRIM4# |
1 | ||
| 73380-36030E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73380-36060E0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) W(3 POINT PASSENGER SEAT BELT),SANDAL WOOD,TRIM4# |
1 | ||
| 73380-36060B0 |
BB50..WC..TD;BB42,58,HZB50,RZB40,50..LHD W(3 POINT PASSENGER SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36030E1 |
BB58;HZB50..LHD..WOC;HZB50..LHD..SRF..WC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC OAK,TRIM4# |
1 | ||
| 73380-36060B0 |
BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36030E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73380-36200E1 |
BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E2 |
BB42..WC;BB50..EX;HZB50..HRF..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;BB42,HZB50..LHD..WOC;BB43,5#,RZB40,50..17S,19S,22S,23S,26S,30S SANDAL WOOD,TRIM4# |
1 | ||
| 73233-33010B2 |
BB42..WC;HZB50..GCC,GEN;BB42..LHD..WOC;BB5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-36010E0 |
BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73230-36010E0 |
BB42,HZB50,RZB40,50..GCC GREIGE,TRIM4# |
1 | ||
| 73230-36010E1 |
BB42,HZB50,RZB40,50..GCC OAK,TRIM4# |
1 | ||
| 73230-36040E1 |
BB50..STD..GEN..CBU..5F;BB42,HZB50,RZB40,50..GCC W(WARNING SENSOR),SANDAL WOOD,TRIM4# |
1 | ||
| 73230-36040B0 |
BB42,HZB50,RZB40,50..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-36040B0 |
BB42,HZB50,TRB40,50..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-36040B0 |
BB42,HZB50,RZB40,50,TRB40,50..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 73303 - BELT SUB-ASSY, SUB SEAT, OUTER | ||||
| 73303-36010E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU OAK,TRIM4# |
1 | ||
| 73303-36010E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 73303-36040E0 |
HZB50;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73303-36031B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73303-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
1 | ||
| 73303-36031E1 |
BB42,50,HZB50,TRB40,50..LHD GREGE,TRIM1# |
1 | ||
| 73303-36031B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73303-36031E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
1 | ||
| 73308 - BELT SUB-ASSY, SUB SEAT, INNER | ||||
| 73308-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73308-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
1 | ||
| 73308-36020B0 |
BB42,50,HZB50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73308-36010E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU OAK,TRIM4# |
1 | ||
| 73308-36010E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 73308-36020E1 |
BB42,50,HZB50,TRB40,50..LHD GREGE,TRIM1# |
1 | ||
| 73308-36030E0 |
HZB50;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-08095 | ||||
| 90119-08357 | ||||
| 90206-12003 | ||||
| 90901-19040 | ||||
| 91621-40614 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(1501- )LHD..GCC,GEN

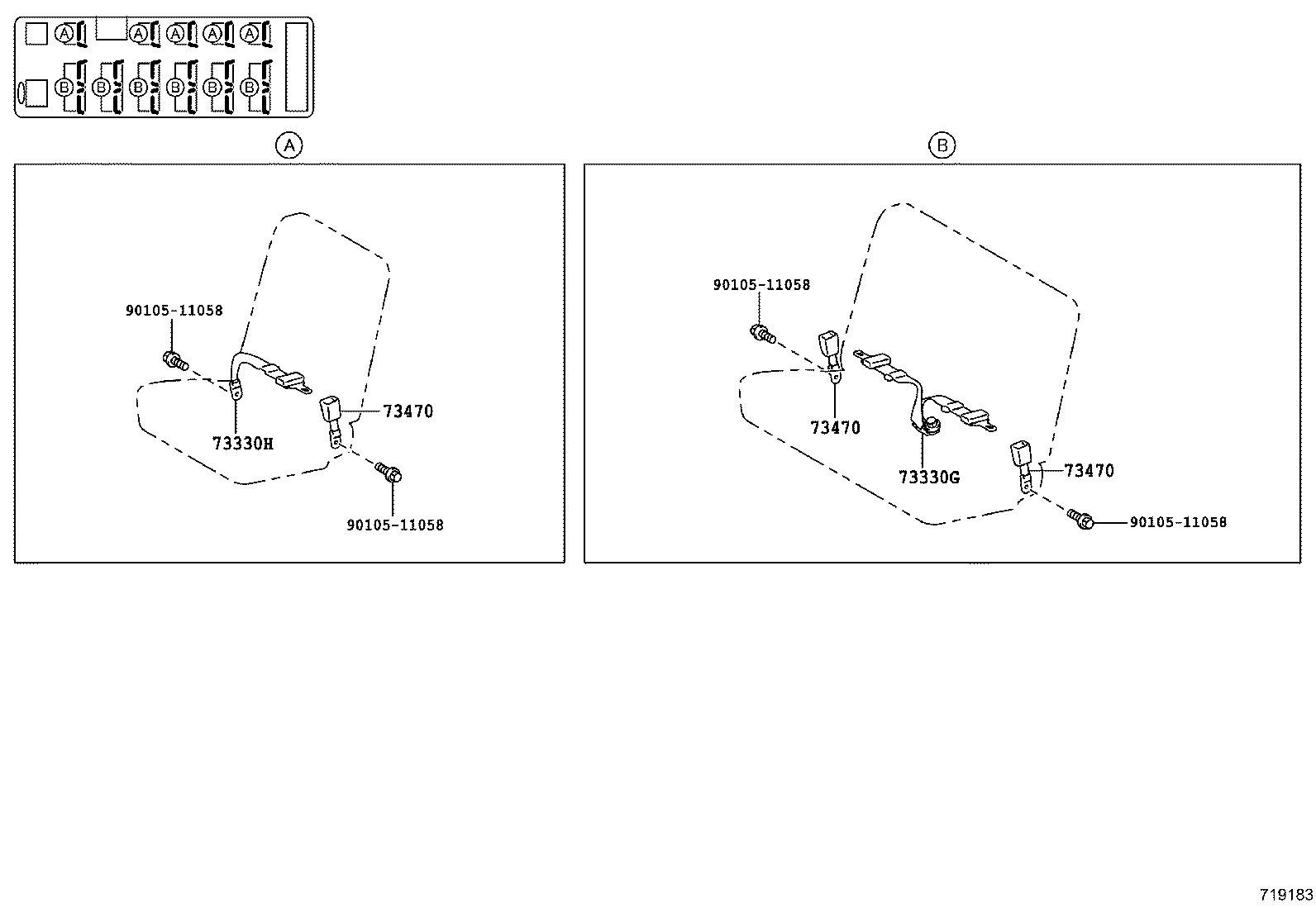

REAR(NO.2-NO.7)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73330G - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36150E0 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
6 | ||
| 73330H - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36160E0 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
5 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36010E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
6 | ||
| 73470-36010E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
6 | ||
| 73470-36021E0 |
BB50,HZB50,RZB50..LHD..STD..(GCC,GEN)..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36020E0 |
BB50,HZB50,RZB50..LHD..STD..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36021B0 |
HZB50..LHD..STD;BB50,RZB50..30S..WC..(GCC,GEN) W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36010E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
6 | ||
| 73470-36010E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
6 | ||
| 73470-36021E0 |
BB50,HZB50,RZB50..LHD..STD..(GCC,GEN)..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36020E0 |
BB50,HZB50,RZB50..LHD..STD..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36021B0 |
HZB50..LHD..STD;BB50,RZB50..30S..WC..(GCC,GEN) W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36010E1 |
HZB50,RZB50..LHD..STD..CBU OAK,TRIM4# |
6 | ||
| 73470-36010E0 |
HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
6 | ||
| 73470-36021E0 |
BB50,HZB50,RZB50..LHD..STD..(GCC,GEN)..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36020E0 |
BB50,HZB50,RZB50..LHD..STD..CBU..5F W(REAR SEAT=02S X 6),OAK,TRIM4# |
6 | ||
| 73470-36021B0 |
HZB50..LHD..STD;BB50,RZB50..30S..WC..(GCC,GEN) W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| Common parts | ||||
| 90105-11058 | ||||
(1501- )LHD..GCC,GEN
LAST ROW(NO.8)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73040-36010E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73040-36021E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73040-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73040-36021B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73040-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73040-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73040-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73040A - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73030-36010E1 |
BB42,HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73030-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73030-36021E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73030-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73030-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73030-36010E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 73030-36021B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36010E0 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
2 | ||
| 73307-36010E1 |
BB42,HZB50,RZB40,50..STD..GCC OAK,TRIM4# |
2 | ||
| 73307-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
2 | ||
| 73307-36030B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36040B0 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GRAY,TRIM1# |
2 | ||
| 73307-36040E1 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36010E0 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
2 | ||
| 73307-36010E1 |
BB42,HZB50,RZB40,50..STD..GCC OAK,TRIM4# |
2 | ||
| 73307-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
2 | ||
| 73307-36030B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36040B0 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GRAY,TRIM1# |
2 | ||
| 73307-36040E1 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36010E0 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
2 | ||
| 73307-36010E1 |
BB42,HZB50,RZB40,50..STD..GCC OAK,TRIM4# |
2 | ||
| 73307-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
2 | ||
| 73307-36030B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36040B0 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GRAY,TRIM1# |
2 | ||
| 73307-36040E1 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36010E0 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
2 | ||
| 73307-36010E1 |
BB42,HZB50,RZB40,50..STD..GCC OAK,TRIM4# |
2 | ||
| 73307-36030E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F OAK,TRIM4# |
2 | ||
| 73307-36030B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F GRAY,TRIM1# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36040B0 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GRAY,TRIM1# |
2 | ||
| 73307-36040E1 |
HZB50..HRF..GCC W(FOLDING REAR SEAT),GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73590-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| 73590-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73580-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..CBU..5F OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42..22S;BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU OAK,TRIM4# |
1 | ||
| 73580-36010E1 |
BB42,HZB50,RZB40,50..LHD OAK,TRIM4# |
1 | ||
| 73580-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73580-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
BB42,50,HZB50,RZB40,50..LHD..(GCC,GEN)..5F GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10493 | ||||
| 91552-81020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
