Toyota Coaster HZB50 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZGMSSV (1993)

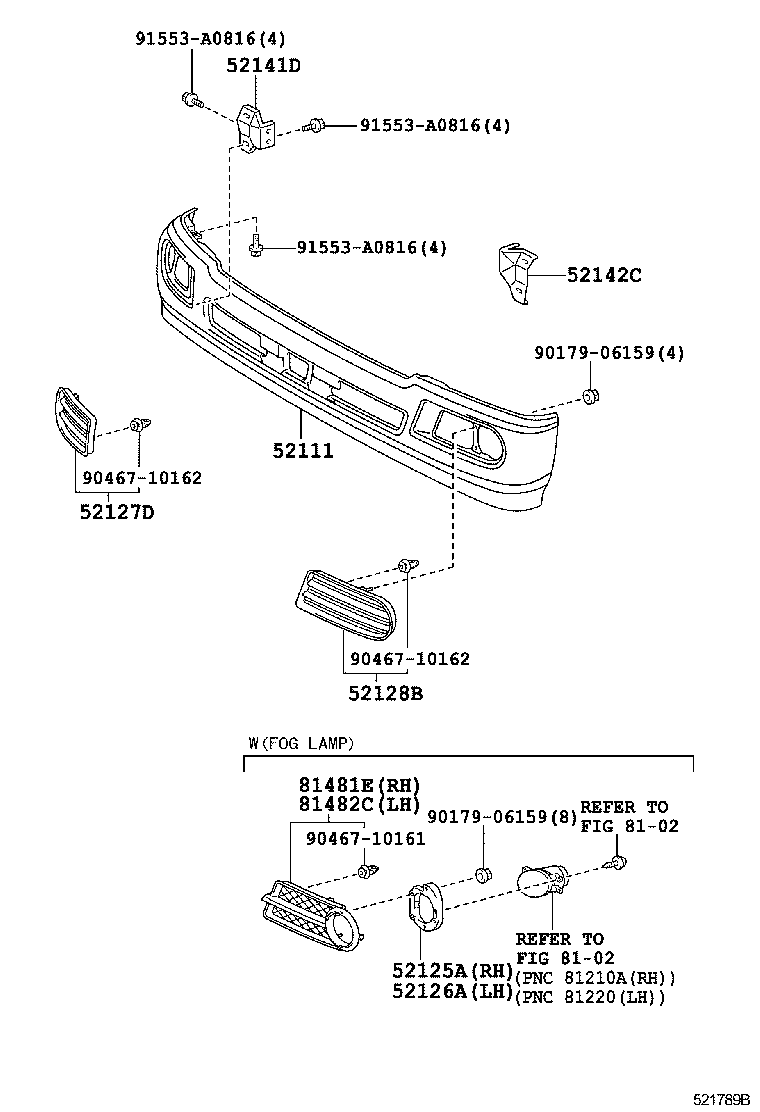

5252 - FRONT BUMPER & BUMPER STAY

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9301-0408) ; (0408-0708)ARL,GCC,GEN,TAIW ; (0708- )26S,30S..GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
52111 - BUMPER ASSY, FRONT
52018-36901	HZB50,RZB40,50..GCC,GEN W(PRECLEANER)	01/1993 - 05/1995	1
52018-36900	RZB40;BB4#,HZB50,RZB50..19S,20S,22S,26S,30S	07/1994 - 05/1995	1
52018-36907	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
52018-36907	BB50..DX;BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN) FOR COLOR PAINT PARTS	07/1999 - 08/2004	1
52018-36900	BB4#,5#,HZB50,RZB40,50..CBU	05/1995 - 07/1999	1
52018-36903	RZB40,50;HZB50..(20S,30S)..(GCC,GEN) W(PRECLEANER)	05/1995 - 07/1999	1
52018-36908	HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(PRECLEANER)	07/1999 - 08/2004	1
52018-36908	RZB50;HZB50..GCC;RZB40..GEN;RZB40..SRF..GCC W(PRECLEANER)	08/2004 - 08/2007	1
52018-36907	BB42,HZB50..GCC;RZB40..SRF..GCC;BZB40,50,RZB50..STD;RZB40,XZB5#..ARL,GEN,TAIW	08/2004 - 08/2007	1
52018-36935	BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC)	08/2007 - 01/2015	1
52018-36935	BB42,HZB50,TRB40,50,XZB50..ARL,GCC	01/2015 - 12/2999	1
52018-36937	BZB40,50	08/2007 - 01/2015	1
52018-36937	BZB40,50	01/2015 - 12/2999	1
52141D - STAY, FRONT BUMPER, RH
52141-36040	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
52141-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
52141-36040	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
52141-36040	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
52142C - STAY, FRONT BUMPER, LH
52142-36040	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
52142-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
52142-36040	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
52142-36040	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
Common parts
91553-A0816

(0708- )LHD..EUR,GCC,TAIW ; (0708- )BZB40,50,XZB40,5#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
52111 - BUMPER ASSY, FRONT
52018-36901	HZB50,RZB40,50..GCC,GEN W(PRECLEANER)	01/1993 - 05/1995	1
52018-36900	RZB40;BB4#,HZB50,RZB50..19S,20S,22S,26S,30S	07/1994 - 05/1995	1
52018-36907	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
52018-36907	BB50..DX;BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN) FOR COLOR PAINT PARTS	07/1999 - 08/2004	1
52018-36900	BB4#,5#,HZB50,RZB40,50..CBU	05/1995 - 07/1999	1
52018-36903	RZB40,50;HZB50..(20S,30S)..(GCC,GEN) W(PRECLEANER)	05/1995 - 07/1999	1
52018-36908	HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(PRECLEANER)	07/1999 - 08/2004	1
52018-36908	RZB50;HZB50..GCC;RZB40..GEN;RZB40..SRF..GCC W(PRECLEANER)	08/2004 - 08/2007	1
52018-36907	BB42,HZB50..GCC;RZB40..SRF..GCC;BZB40,50,RZB50..STD;RZB40,XZB5#..ARL,GEN,TAIW	08/2004 - 08/2007	1
52018-36935	BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC)	08/2007 - 01/2015	1
52018-36935	BB42,HZB50,TRB40,50,XZB50..ARL,GCC	01/2015 - 12/2999	1
52018-36937	BZB40,50	08/2007 - 01/2015	1
52018-36937	BZB40,50	01/2015 - 12/2999	1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-36031	BZB40,50,XZB40,59..HRF;XZB50..(20S,21S)..(GEN,TAIW)	01/2015 - 12/2999	1
52125-36030	BZB40,50,XZB40,59;XZB50..(20S,21S)..(GEN,TAIW)	08/2007 - 08/2011	1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-36031	BZB40,50,XZB40,59..HRF;XZB50..(20S,21S)..(GEN,TAIW)	01/2015 - 12/2999	1
52126-36030	BZB40,50,XZB40,59;XZB50..(20S,21S)..(GEN,TAIW)	08/2007 - 08/2011	1
52127D - COVER, FRONT BUMPER HOLE, RH
52030-36010	BB42,HZB50,TRB40,50,XZB50..ARL,GCC	01/2015 - 12/2999	1
52030-36010	BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC)	08/2007 - 01/2015	1
52128B - COVER, FRONT BUMPER HOLE, LH
52040-36010	BB42,HZB50,TRB40,50,XZB50..ARL,GCC	01/2015 - 12/2999	1
52040-36010	BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC)	08/2007 - 01/2015	1
52141D - STAY, FRONT BUMPER, RH
52141-36040	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
52141-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
52141-36040	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
52141-36040	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
52142C - STAY, FRONT BUMPER, LH
52142-36040	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
52142-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
52142-36040	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
52142-36040	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
81481E - COVER, FOG LAMP, RH
53025-36040	BZB40,50,XZB40,59..HRF;XZB50..(20S,21S)..(GEN,TAIW)	01/2015 - 12/2999	1
53025-36040	BZB40,50,XZB40,59;XZB50..(20S,21S)..(GEN,TAIW) UNPAINTED	08/2007 - 01/2015	1
81482C - COVER, FOG LAMP, LH
53026-36040	BZB40,50,XZB40,59..HRF;XZB50..(20S,21S)..(GEN,TAIW)	01/2015 - 12/2999	1
53026-36040	BZB40,50,XZB40,59;XZB50..(20S,21S)..(GEN,TAIW) UNPAINTED	08/2007 - 01/2015	1
Common parts
90179-06159
90467-10161
90467-10162
91553-A0816
Linked diagrams
8102

HZB50L-ZGMSSV (1993)

(9301-0408) ; (0408-0708)ARL,GCC,GEN,TAIW ; (0708- )26S,30S..GEN

(0708- )LHD..EUR,GCC,TAIW ; (0708- )BZB40,50,XZB40,5#..RHD
