HZB50L-ZGMSSV (1993)
Toyota Coaster

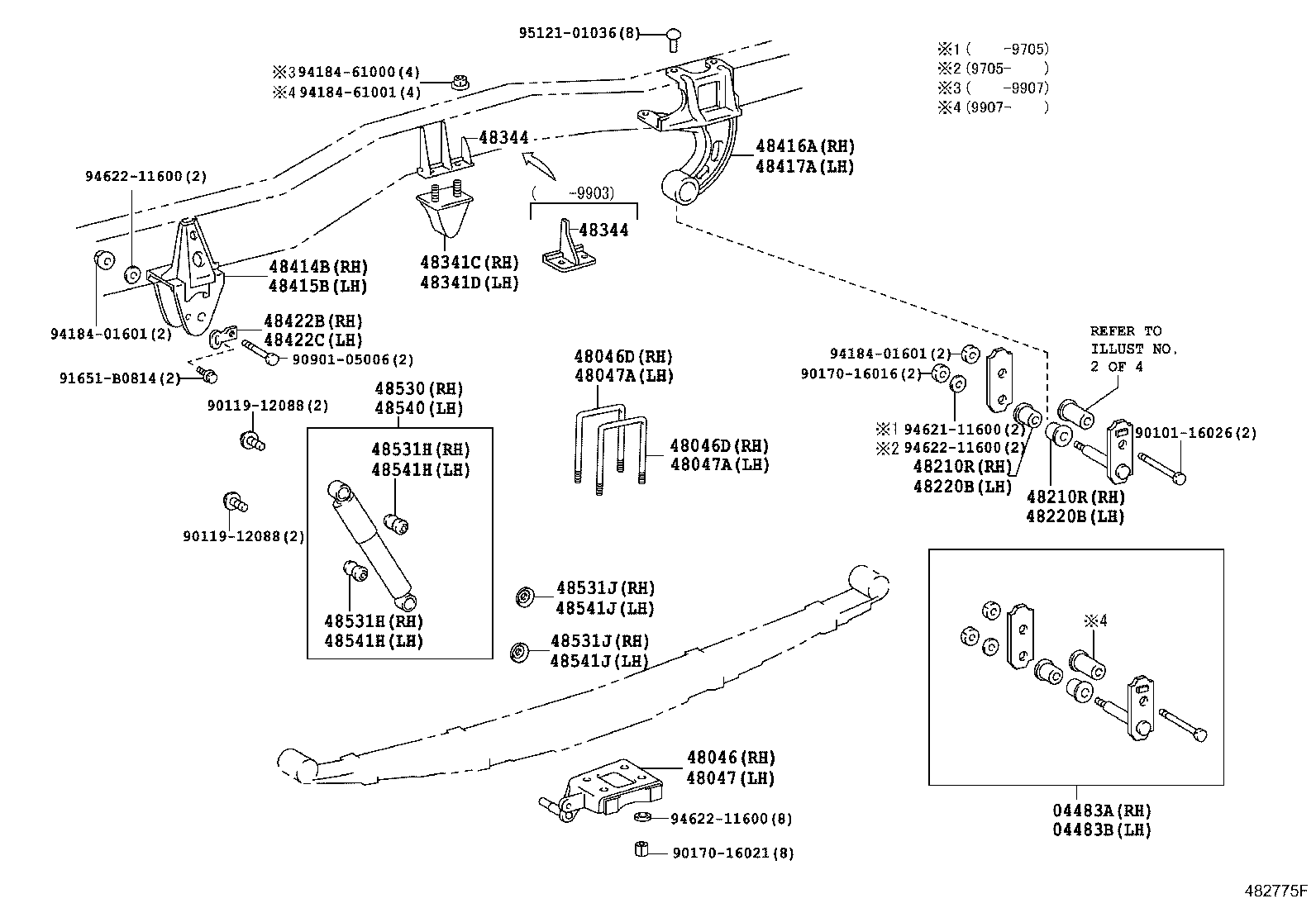

ILLUST NO. 2 OF 4(9301-0408) ; (0408- )BB50,XZB50..IV
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

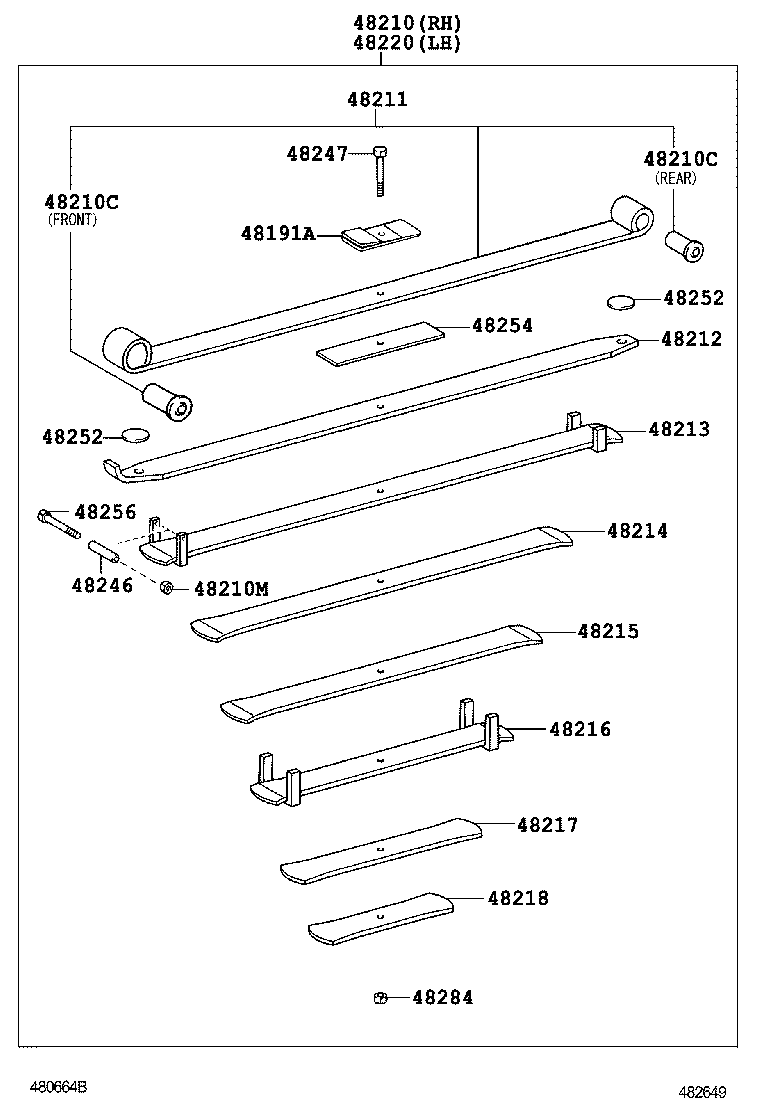

| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3C010 |
BB50,HZB50,RZB50..LHD..STD..CBU 2-LEAF |
1 | ||
| 48210-3C010 |
RZB40..WOC..GEN;BB42,50,HZB50,RZB50..LHD..STD..CBU 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C010 |
BB42..WC..GCC;HZB50..LHD..STD;BB42,RZB40..LHD..26S..GEN;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C010 |
BB42..LHD..SRF;BB50,HZB50..LHD..5F 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C141 |
HZB50,TRB40,50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) 8-LEAF |
1 | ||
| 48210-3C010 |
HZB50,TRB50,XZB40,50..LHD..(GCC,GEN) 2-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16015 |
BB4#,5#,HZB50,RZB40,50 REAR |
2 | ||
| 90389-16018 |
BB4#,5#,HZB50,RZB40,50 FRONT |
2 | ||
| 90389-16015 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC REAR |
2 | ||
| 90389-16018 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC FRONT |
2 | ||
| 90389-16015 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) REAR |
2 | ||
| 90389-16018 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) FRONT |
2 | ||
| 90389-16018 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
2 | ||
| 90389-16015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# REAR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16015 |
BB4#,5#,HZB50,RZB40,50 REAR |
2 | ||
| 90389-16018 |
BB4#,5#,HZB50,RZB40,50 FRONT |
2 | ||
| 90389-16015 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC REAR |
2 | ||
| 90389-16018 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC FRONT |
2 | ||
| 90389-16015 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) REAR |
2 | ||
| 90389-16018 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) FRONT |
2 | ||
| 90389-16018 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
2 | ||
| 90389-16015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# REAR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3C010 |
HZB50,RZB50..30S PASSENGER SIDE |
1 | ||
| 48201-3C020 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C020 |
HZB50,RZB50..30S DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C010 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C020 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB50,RZB50..30S..WC..(GCC,GEN);BB42,HZB50..HRF..(26S,30S)..WC 2-LEAF,HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB50,RZB50..30S..WC..(GCC,GEN);BB42,HZB50..HRF..(26S,30S)..WC 2-LEAF,HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C010 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) PASSENGER SIDE |
1 | ||
| 48201-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S 8-LEAF,DRIVER SIDE |
1 | ||
| 48201-3C020 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) DRIVER SIDE |
1 | ||
| 48201-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S 8-LEAF,PASSENGER SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3C020 |
HZB50,RZB50..30S DRIVER SIDE |
1 | ||
| 48202-3C010 |
HZB50,RZB50..30S PASSENGER SIDE |
1 | ||
| 48202-3C010 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C020 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C010 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB42,HZB50..HRF..(26S,30S)..WC;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB42,HZB50..HRF..(26S,30S)..WC;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C020 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) DRIVER SIDE |
1 | ||
| 48202-3C010 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) PASSENGER SIDE |
1 | ||
| 48212-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING),PASSENGER SIDE |
1 | ||
| 48212-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING),DRIVER SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S PASSENGER SIDE |
1 | ||
| 48202-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S DRIVER SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3C020 |
BB50,HZB50,RZB50..LHD..STD..CBU 2-LEAF |
1 | ||
| 48210-3C020 |
RZB40..WOC..GEN;BB42,50,HZB50,RZB50..LHD..STD..CBU 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
BB42..WC..GCC;HZB50..LHD..STD;BB42,RZB40..LHD..26S..GEN;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
BB42..LHD..SRF;BB50,HZB50..LHD..5F 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
HZB50,TRB50,XZB40,50..LHD..(GCC,GEN) 2-LEAF |
1 | ||
| 48210-3C131 |
HZB50,TRB40,50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) 8-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B840 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F W(5.50F-16 DISC WHEEL) |
2 | ||
| 48247-3B840 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB50,58,RZB40,50..LHD..(17S,23S,26S,30S)..WC..(GCC,GEN) W(5.50F-16 DISC WHEEL) |
2 | ||
| 48247-3B840 |
BB42..WOC;TRB40,50..GCC;BB42..LHD..SRF..WC;BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 48247-3B840 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48247-3C130 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3B730 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48253-3B730 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 48253-3B730 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48253-3B730 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3B730 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48253-3B730 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 48253-3B730 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48253-3B730 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 48284-37130 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48284-37130 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48284-37130 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
ILLUST NO. 2 OF 4(9301-0408) ; (0408- )ARL,GCC,GEN,TAIW
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3C010 |
BB50,HZB50,RZB50..LHD..STD..CBU 2-LEAF |
1 | ||
| 48210-3C010 |
RZB40..WOC..GEN;BB42,50,HZB50,RZB50..LHD..STD..CBU 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C010 |
BB42..WC..GCC;HZB50..LHD..STD;BB42,RZB40..LHD..26S..GEN;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C010 |
BB42..LHD..SRF;BB50,HZB50..LHD..5F 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C141 |
HZB50,TRB40,50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) 8-LEAF |
1 | ||
| 48210-3C010 |
HZB50,TRB50,XZB40,50..LHD..(GCC,GEN) 2-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16015 |
BB4#,5#,HZB50,RZB40,50 REAR |
2 | ||
| 90389-16018 |
BB4#,5#,HZB50,RZB40,50 FRONT |
2 | ||
| 90389-16015 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC REAR |
2 | ||
| 90389-16018 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC FRONT |
2 | ||
| 90389-16015 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) REAR |
2 | ||
| 90389-16018 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) FRONT |
2 | ||
| 90389-16018 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
2 | ||
| 90389-16015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# REAR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16015 |
BB4#,5#,HZB50,RZB40,50 REAR |
2 | ||
| 90389-16018 |
BB4#,5#,HZB50,RZB40,50 FRONT |
2 | ||
| 90389-16015 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC REAR |
2 | ||
| 90389-16018 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC FRONT |
2 | ||
| 90389-16015 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) REAR |
2 | ||
| 90389-16018 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) FRONT |
2 | ||
| 90389-16018 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
2 | ||
| 90389-16015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# REAR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3C010 |
HZB50,RZB50..30S PASSENGER SIDE |
1 | ||
| 48201-3C020 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C020 |
HZB50,RZB50..30S DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C010 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C020 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB50,RZB50..30S..WC..(GCC,GEN);BB42,HZB50..HRF..(26S,30S)..WC 2-LEAF,HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB50,RZB50..30S..WC..(GCC,GEN);BB42,HZB50..HRF..(26S,30S)..WC 2-LEAF,HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C010 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) PASSENGER SIDE |
1 | ||
| 48201-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S 8-LEAF,DRIVER SIDE |
1 | ||
| 48201-3C020 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) DRIVER SIDE |
1 | ||
| 48201-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S 8-LEAF,PASSENGER SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3C020 |
HZB50,RZB50..30S DRIVER SIDE |
1 | ||
| 48202-3C010 |
HZB50,RZB50..30S PASSENGER SIDE |
1 | ||
| 48202-3C010 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C020 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C010 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB42,HZB50..HRF..(26S,30S)..WC;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB42,HZB50..HRF..(26S,30S)..WC;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C020 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) DRIVER SIDE |
1 | ||
| 48202-3C010 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) PASSENGER SIDE |
1 | ||
| 48212-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING),PASSENGER SIDE |
1 | ||
| 48212-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING),DRIVER SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3C020 |
BB50,HZB50,RZB50..LHD..STD..CBU 2-LEAF |
1 | ||
| 48210-3C020 |
RZB40..WOC..GEN;BB42,50,HZB50,RZB50..LHD..STD..CBU 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
BB42..WC..GCC;HZB50..LHD..STD;BB42,RZB40..LHD..26S..GEN;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
BB42..LHD..SRF;BB50,HZB50..LHD..5F 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
HZB50,TRB50,XZB40,50..LHD..(GCC,GEN) 2-LEAF |
1 | ||
| 48210-3C131 |
HZB50,TRB40,50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) 8-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B840 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F W(5.50F-16 DISC WHEEL) |
2 | ||
| 48247-3B840 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB50,58,RZB40,50..LHD..(17S,23S,26S,30S)..WC..(GCC,GEN) W(5.50F-16 DISC WHEEL) |
2 | ||
| 48247-3B840 |
BB42..WOC;TRB40,50..GCC;BB42..LHD..SRF..WC;BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 48247-3B840 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48247-3C130 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-3B730 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48253-3B730 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 48253-3B730 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48253-3B730 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 48284-37130 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48284-37130 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48284-37130 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| Common parts | ||||
| 94511-00800 | ||||
ILLUST NO. 3 OF 4(9301- )
W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-36030 |
BB43,5#;HZB50..(20S,22S)..GEN;BB42,HZB50,RZB40,50..GCC,SCO |
1 | ||
| 48812-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(GCC,GEN) |
1 | ||
| 48812-36030 |
BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..(GEN,TAIW);BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48812-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..GCC,GEN,TAIW |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-28010 |
BB43,5#;HZB50..(20S,22S)..GEN;BB42,HZB50,RZB40,50..GCC,SCO |
2 | ||
| 48815-28010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(GCC,GEN) |
2 | ||
| 48815-28010 |
BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..(GEN,TAIW);BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48815-28010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..GCC,GEN,TAIW |
2 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-36040 |
BB43,5#;HZB50..(20S,22S)..GEN;BB42,HZB50,RZB40,50..GCC,SCO |
2 | ||
| 48823-36040 |
BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..(GEN,TAIW);BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48823-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..GCC,GEN,TAIW |
2 | ||
| 48823-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(GCC,GEN) |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-36010 |
HZB50..TD;BB42,RZB40..17S;HZB50..(20S,22S)..(GEN,SCO) |
1 | ||
| 48830-36020 |
BB43,5#;HZB50..(20S,22S)..GEN;BB42,HZB50,RZB40,50..GCC,SCO |
1 | ||
| 48830-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48830-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN,TAIW |
1 | ||
| 48830-36020 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..(GEN,TAIW);BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-36010 |
HZB50..TD;BB42,RZB40..17S;HZB50..(20S,22S)..(GEN,SCO) |
1 | ||
| 48830-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48830-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN,TAIW |
1 | ||
| 48830-36020 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..(GEN,TAIW);BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48830-36020 |
BB43,5#;HZB50..(20S,22S)..GEN;BB42,HZB50,RZB40,50..GCC,SCO |
1 | ||
| Common parts | ||||
| 90179-12047 | ||||
| 90179-12128 | ||||
| 91641-K0822 | ||||
| 91651-B0825 | ||||
ILLUST NO. 2 OF 4(9712- )CBU
8-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48191-36121 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3C010 |
BB50,HZB50,RZB50..LHD..STD..CBU 2-LEAF |
1 | ||
| 48210-3C010 |
RZB40..WOC..GEN;BB42,50,HZB50,RZB50..LHD..STD..CBU 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C010 |
BB42..WC..GCC;HZB50..LHD..STD;BB42,RZB40..LHD..26S..GEN;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C010 |
BB42..LHD..SRF;BB50,HZB50..LHD..5F 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C141 |
HZB50,TRB40,50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) 8-LEAF |
1 | ||
| 48210-3C010 |
HZB50,TRB50,XZB40,50..LHD..(GCC,GEN) 2-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16015 |
BB4#,5#,HZB50,RZB40,50 REAR |
2 | ||
| 90389-16018 |
BB4#,5#,HZB50,RZB40,50 FRONT |
2 | ||
| 90389-16015 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC REAR |
2 | ||
| 90389-16018 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC FRONT |
2 | ||
| 90389-16015 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) REAR |
2 | ||
| 90389-16018 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) FRONT |
2 | ||
| 90389-16018 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
2 | ||
| 90389-16015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# REAR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16015 |
BB4#,5#,HZB50,RZB40,50 REAR |
2 | ||
| 90389-16018 |
BB4#,5#,HZB50,RZB40,50 FRONT |
2 | ||
| 90389-16015 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC REAR |
2 | ||
| 90389-16018 |
BB58,HZB50..20S,23S;HZB50,RZB40,50..STD..GCC FRONT |
2 | ||
| 90389-16015 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) REAR |
2 | ||
| 90389-16018 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) FRONT |
2 | ||
| 90389-16018 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
2 | ||
| 90389-16015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# REAR |
2 | ||
| 48210M - NUT(FOR REAR SPRING) | ||||
| 94130-00802 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3C010 |
HZB50,RZB50..30S PASSENGER SIDE |
1 | ||
| 48201-3C020 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C020 |
HZB50,RZB50..30S DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C010 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C020 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB50,RZB50..30S..WC..(GCC,GEN);BB42,HZB50..HRF..(26S,30S)..WC 2-LEAF,HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB50,RZB50..30S..WC..(GCC,GEN);BB42,HZB50..HRF..(26S,30S)..WC 2-LEAF,HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C020 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48201-3C010 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48201-3C010 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) PASSENGER SIDE |
1 | ||
| 48201-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S 8-LEAF,DRIVER SIDE |
1 | ||
| 48201-3C020 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) DRIVER SIDE |
1 | ||
| 48201-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S 8-LEAF,PASSENGER SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3C020 |
HZB50,RZB50..30S DRIVER SIDE |
1 | ||
| 48202-3C010 |
HZB50,RZB50..30S PASSENGER SIDE |
1 | ||
| 48202-3C010 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
BB42,HZB50,RZB50..19S,22S,26S,30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C020 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
RZB40..WC..GEN;HZB50..30S..4FC;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C010 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
RZB40..GEN;BB42,50,HZB50,RZB50..(DX,STD)..(ARL,GCC,GEN)..CBU..5F HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB42,HZB50..HRF..(26S,30S)..WC;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..26S..GEN;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB42,HZB50..HRF..(26S,30S)..WC;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C020 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48202-3C010 |
BB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48202-3C020 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) DRIVER SIDE |
1 | ||
| 48202-3C010 |
HZB50,TRB50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) PASSENGER SIDE |
1 | ||
| 48212-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING),PASSENGER SIDE |
1 | ||
| 48212-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING),DRIVER SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S PASSENGER SIDE |
1 | ||
| 48202-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S DRIVER SIDE |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S PASSENGER SIDE |
1 | ||
| 48214-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S DRIVER SIDE |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S PASSENGER SIDE |
1 | ||
| 48215-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S DRIVER SIDE |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S DRIVER SIDE |
1 | ||
| 48203-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S PASSENGER SIDE |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S DRIVER SIDE |
1 | ||
| 48217-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S PASSENGER SIDE |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-3C131 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S DRIVER SIDE |
1 | ||
| 48218-3C141 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S PASSENGER SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3C020 |
BB50,HZB50,RZB50..LHD..STD..CBU 2-LEAF |
1 | ||
| 48210-3C020 |
RZB40..WOC..GEN;BB42,50,HZB50,RZB50..LHD..STD..CBU 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
BB42..WC..GCC;HZB50..LHD..STD;BB42,RZB40..LHD..26S..GEN;BB50,RZB50..30S..WC..(GCC,GEN) 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
BB42..LHD..SRF;BB50,HZB50..LHD..5F 2-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-3C020 |
HZB50,TRB50,XZB40,50..LHD..(GCC,GEN) 2-LEAF |
1 | ||
| 48210-3C131 |
HZB50,TRB40,50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) 8-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-3B510 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B840 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F W(5.50F-16 DISC WHEEL) |
2 | ||
| 48247-3B840 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB50,58,RZB40,50..LHD..(17S,23S,26S,30S)..WC..(GCC,GEN) W(5.50F-16 DISC WHEEL) |
2 | ||
| 48247-3B840 |
BB42..WOC;TRB40,50..GCC;BB42..LHD..SRF..WC;BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 48247-3B840 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48247-3C130 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-3B800 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
4 | ||
| 48252-3B800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 48252-3B800 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 48252-3B800 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3B521 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 48284-37130 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48284-37130 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48284-37130 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
ILLUST NO. 4 OF 4(0708- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 3(9301-9703)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 04483-36120 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 04483-36120 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 04483-36080 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 04483-36080 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 04483-36120 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 04483-36120 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36260 |
HZB50..30S..4FC;BB40,42,HZB50,RZB40,50..(19S,22S,26S,30S)..5F |
1 | ||
| 48046-36240 |
BB5#,HZB50..TD;BB42,43,RZB40..17S;HZB50..(20S,22S)..(GEN,SCO) |
1 | ||
| 48046-36240 |
BB42,HZB50,RZB40,50..STD..GCC W(REAR STABILIZER) |
1 | ||
| 48046-36240 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48046-36292 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
1 | ||
| 48046-36240 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48046-36240 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48046D - BOLT, U(FOR REAR SPRING RH) | ||||
| 90117-16042 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90117-16042 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90117-16042 |
TRB40,50..GCC;BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 90117-16042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90117-16053 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36260 |
HZB50..30S..4FC;BB40,42,HZB50,RZB40,50..(19S,22S,26S,30S)..5F |
1 | ||
| 48047-36240 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48047-36240 |
BB5#,HZB50..TD;BB42,43,RZB40..17S;HZB50..(20S,22S)..(GEN,SCO) |
1 | ||
| 48047-36240 |
BB42,HZB50,RZB40,50..STD..GCC W(REAR STABILIZER) |
1 | ||
| 48047-36240 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48047-36292 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
1 | ||
| 48047-36240 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48047A - BOLT, U(FOR REAR SPRING LH) | ||||
| 90117-16042 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90117-16042 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90117-16042 |
TRB40,50..GCC;BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 90117-16053 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 90117-16042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48341C - BUMPER, REAR SPRING, NO.2 RH | ||||
| 48306-36080 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 48306-36090 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48306-36090 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48306-36090 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48341D - BUMPER, REAR SPRING, NO.2 LH | ||||
| 48306-36090 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48306-36080 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 48306-36090 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48306-36090 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36450 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 RH |
1 | ||
| 48344-36420 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 48345-36060 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 LH |
1 | ||
| 48344-36450 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) RH |
1 | ||
| 48345-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) LH |
1 | ||
| 48345-36060 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) LH |
1 | ||
| 48345-36060 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 48344-36450 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) RH |
1 | ||
| 48344-36450 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36320 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48414-36320 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48414-36320 |
BB50..6F..TDEFI;BB42,HZB50,RZB40,50..WC..GCC |
1 | ||
| 48414-36320 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48414-36320 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48414-36330 |
TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-36100 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48415-36100 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48415-36100 |
BB50..6F..TDEFI;BB42,HZB50,RZB40,50..WC..GCC |
1 | ||
| 48415-36100 |
HZB50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) JORDAN SPEC |
1 | ||
| 48415-36100 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48415-36110 |
BB42,TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48415-36100 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-36300 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48416-36300 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48416-36300 |
BB50..6F..TDEFI;BB42,HZB50..WC..GCC |
1 | ||
| 48416-36300 |
RZB40,50..WC..GCC;BB42..LHD..SRF..WOC..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 48416-36300 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48416-36300 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48416-36290 |
BB42,TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-36170 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48417-36170 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48417-36170 |
BB50..6F..TDEFI;BB42,HZB50..WC..GCC |
1 | ||
| 48417-36170 |
RZB40,50..WC..GCC;BB42..LHD..SRF..WOC..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 48417-36170 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48417-36160 |
BB42,TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48417-36170 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48422B - SUPPORT, REAR SPRING PIN, RH | ||||
| 48422-36030 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 48422-36030 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 48422-37010 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
1 | ||
| 48422-37010 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48422-37010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48422C - SUPPORT, REAR SPRING PIN, LH | ||||
| 48422-36030 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 48422-37010 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
1 | ||
| 48422-36030 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 48422-37010 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48422-37010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80154 |
BB4#,50,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB4#,5#,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN MARK 48531-36160 |
1 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80581 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB4#,5#,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) MARK 48531-36160 |
1 | ||
| 48531-80154 |
BB4#,50,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90170-16021 | ||||
| 90901-05006 | ||||
| 91651-B0814 | ||||
| 94184-01601 | ||||
| 94184-61000 | ||||
| 94621-11600 | ||||
| 94622-11600 | ||||
| 95121-01036 | ||||
ILLUST NO. 1 OF 4(9703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 04483-36120 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 04483-36120 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 04483-36080 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 04483-36080 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 04483-36120 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 04483-36120 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36260 |
HZB50..30S..4FC;BB40,42,HZB50,RZB40,50..(19S,22S,26S,30S)..5F |
1 | ||
| 48046-36240 |
BB5#,HZB50..TD;BB42,43,RZB40..17S;HZB50..(20S,22S)..(GEN,SCO) |
1 | ||
| 48046-36240 |
BB42,HZB50,RZB40,50..STD..GCC W(REAR STABILIZER) |
1 | ||
| 48046-36240 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48046-36292 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
1 | ||
| 48046-36240 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48046-36240 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48046D - BOLT, U(FOR REAR SPRING RH) | ||||
| 90117-16042 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90117-16042 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90117-16042 |
TRB40,50..GCC;BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 90117-16042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90117-16053 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 48046D - BOLT, U(FOR REAR SPRING RH) | ||||
| 90117-16042 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90117-16042 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90117-16042 |
TRB40,50..GCC;BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 90117-16042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90117-16053 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36260 |
HZB50..30S..4FC;BB40,42,HZB50,RZB40,50..(19S,22S,26S,30S)..5F |
1 | ||
| 48047-36240 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48047-36240 |
BB5#,HZB50..TD;BB42,43,RZB40..17S;HZB50..(20S,22S)..(GEN,SCO) |
1 | ||
| 48047-36240 |
BB42,HZB50,RZB40,50..STD..GCC W(REAR STABILIZER) |
1 | ||
| 48047-36240 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48047-36292 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
1 | ||
| 48047-36240 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48047A - BOLT, U(FOR REAR SPRING LH) | ||||
| 90117-16042 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90117-16042 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90117-16042 |
TRB40,50..GCC;BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 90117-16053 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 90117-16042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48047A - BOLT, U(FOR REAR SPRING LH) | ||||
| 90117-16042 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90117-16042 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90117-16042 |
TRB40,50..GCC;BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD) |
2 | ||
| 90117-16053 |
HZB50,TRB40,50..GEN;BB42,XZB40,50..26S,30S W(8-LEAF REAR SPRING) |
2 | ||
| 90117-16042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48210R - BUSH(FOR REAR SPRING SHACKLE LOWER RH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48220B - BUSH(FOR REAR SPRING SHACKLE LOWER LH) | ||||
| 90385-23002 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-23002 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-23002 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90385-23002 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 48341C - BUMPER, REAR SPRING, NO.2 RH | ||||
| 48306-36080 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 48306-36090 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48306-36090 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48306-36090 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48341D - BUMPER, REAR SPRING, NO.2 LH | ||||
| 48306-36090 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 48306-36080 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 48306-36090 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48306-36090 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36450 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 RH |
1 | ||
| 48344-36420 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 48345-36060 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 LH |
1 | ||
| 48344-36450 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) RH |
1 | ||
| 48345-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) LH |
1 | ||
| 48345-36060 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) LH |
1 | ||
| 48345-36060 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 48344-36450 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) RH |
1 | ||
| 48344-36450 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36450 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 RH |
1 | ||
| 48344-36420 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 48345-36060 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 LH |
1 | ||
| 48344-36450 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) RH |
1 | ||
| 48345-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) LH |
1 | ||
| 48345-36060 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) LH |
1 | ||
| 48345-36060 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 48344-36450 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) RH |
1 | ||
| 48344-36450 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36320 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48414-36320 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48414-36320 |
BB50..6F..TDEFI;BB42,HZB50,RZB40,50..WC..GCC |
1 | ||
| 48414-36320 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48414-36320 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48414-36330 |
TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-36100 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48415-36100 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48415-36100 |
BB50..6F..TDEFI;BB42,HZB50,RZB40,50..WC..GCC |
1 | ||
| 48415-36100 |
HZB50..LHD..GEN;BB42,XZB40,50..LHD..(GCC,GEN) JORDAN SPEC |
1 | ||
| 48415-36100 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48415-36110 |
BB42,TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48415-36100 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-36300 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48416-36300 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48416-36300 |
BB50..6F..TDEFI;BB42,HZB50..WC..GCC |
1 | ||
| 48416-36300 |
RZB40,50..WC..GCC;BB42..LHD..SRF..WOC..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 48416-36300 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48416-36300 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48416-36290 |
BB42,TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-36170 |
HZB50..EUR,GCC;BB42,50,RZB40,50..LHD..(EUR,GCC) |
1 | ||
| 48417-36170 |
BB50..LHD..EUR;BB50..STD..CBU;BB42,HZB50,RZB40,50..ARL,GCC |
1 | ||
| 48417-36170 |
BB50..6F..TDEFI;BB42,HZB50..WC..GCC |
1 | ||
| 48417-36170 |
RZB40,50..WC..GCC;BB42..LHD..SRF..WOC..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 48417-36170 |
BB42,HZB50,TRB40,50,XZB50..WC..(ARL,GCC,TAIW) |
1 | ||
| 48417-36160 |
BB42,TRB40..GCC;HZB50,TRB50..HRF..30S..GCC ROUGH ROAD AREA SPEC |
1 | ||
| 48417-36170 |
BB42,HZB50,TRB40,50,XZB50..ARL,GCC,TAIW |
1 | ||
| 48422B - SUPPORT, REAR SPRING PIN, RH | ||||
| 48422-36030 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 48422-36030 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 48422-37010 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
1 | ||
| 48422-37010 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48422-37010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48422C - SUPPORT, REAR SPRING PIN, LH | ||||
| 48422-36030 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 48422-37010 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
1 | ||
| 48422-36030 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 48422-37010 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 48422-37010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80154 |
BB4#,50,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB4#,5#,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN MARK 48531-36160 |
1 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80581 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB4#,5#,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN MARK 48531-36160 |
1 | ||
| 48531-80581 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) MARK 48531-36160 |
1 | ||
| 48531-80154 |
BB4#,50,HZB50,RZB40,50 MARK 48531-36160 |
1 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90385-19006 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90385-19006 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90385-19006 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 90385-19006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90948-03011 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90948-03011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90948-03011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90948-03011 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90170-16021 | ||||
| 90901-05006 | ||||
| 91651-B0814 | ||||
| 94184-01601 | ||||
| 94184-61000 | ||||
| 94184-61001 | ||||
| 94621-11600 | ||||
| 94622-11600 | ||||
| 95121-01036 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
