Toyota Coaster HZB50 EXHAUST BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZGMSSV (1993)
4710 - EXHAUST BRAKE TUBE & CLAMP

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9301- )BB4#,5#,HZB50

Click highlighted areas on diagram

Part #	Description	Period	Qty
44763D - TUBE, HOSE TO HOSE, NO.1
44763-36050	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44763-36050	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44763-36050	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44763-36051	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36160	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44773-36160	BB4#,5#,HZB50	01/1993 - 07/1999	1
44773-36170	XZB40,5#	01/2015 - 12/2999	1
44773-36160	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44773-36180	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44773-36180	BB42,HZB50	01/2015 - 12/2999	1
44775F - HOSE, WAY TO CONNECTOR
44775-36030	BB4#,HZB50	01/1993 - 12/1993	1
44775-36030	BB4#,5#;HZB50..DSL;HZB50..LHD..TD	12/1993 - 07/1999	1
44775-36030	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44775-36030	BB42,50,HZB50,XZB5#..DCR,DSL,TD	08/2004 - 03/2007	1
44775-36100	BB42..RHD;BB42..LHD..SRF;BB50,HZB50,XZB40,59;XZB50..(20S,21S)..WC	04/2007 - 01/2015	1
44775-36100	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44779-36100	BB4#,5#,HZB50	01/1993 - 07/1999	1
44779-36100	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44779-36121	BB42,HZB50	01/2015 - 12/2999	1
44779-36120	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44779-36110	XZB40,5# NO.2	01/2015 - 12/2999	1
44779-36121	XZB40,5# NO.1	01/2015 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
Common parts
90461-10780
91651-60616
96133-41500
Linked diagrams
4703
4711
8401

(0608- )XZB40,50..LHD

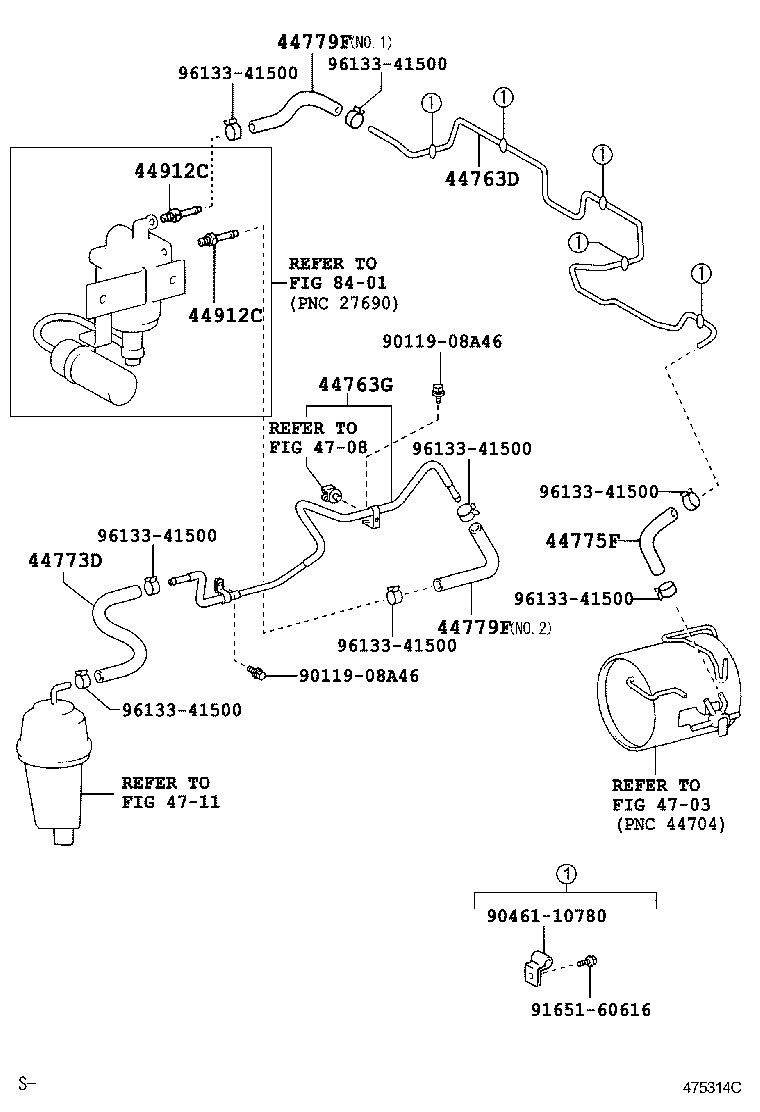

Click highlighted areas on diagram

Part #	Description	Period	Qty
44763D - TUBE, HOSE TO HOSE, NO.1
44763-36050	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44763-36050	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44763-36050	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44763-36051	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44763G - TUBE, HOSE TO HOSE, NO.2
44763-36080	XZB40,5#	01/2015 - 12/2999	1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36160	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44773-36160	BB4#,5#,HZB50	01/1993 - 07/1999	1
44773-36170	XZB40,5#	01/2015 - 12/2999	1
44773-36160	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44773-36180	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44773-36180	BB42,HZB50	01/2015 - 12/2999	1
44775F - HOSE, WAY TO CONNECTOR
44775-36030	BB4#,HZB50	01/1993 - 12/1993	1
44775-36030	BB4#,5#;HZB50..DSL;HZB50..LHD..TD	12/1993 - 07/1999	1
44775-36030	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44775-36030	BB42,50,HZB50,XZB5#..DCR,DSL,TD	08/2004 - 03/2007	1
44775-36100	BB42..RHD;BB42..LHD..SRF;BB50,HZB50,XZB40,59;XZB50..(20S,21S)..WC	04/2007 - 01/2015	1
44775-36100	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44779-36100	BB4#,5#,HZB50	01/1993 - 07/1999	1
44779-36100	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44779-36121	BB42,HZB50	01/2015 - 12/2999	1
44779-36120	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44779-36110	XZB40,5# NO.2	01/2015 - 12/2999	1
44779-36121	XZB40,5# NO.1	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44779-36100	BB4#,5#,HZB50	01/1993 - 07/1999	1
44779-36100	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44779-36121	BB42,HZB50	01/2015 - 12/2999	1
44779-36120	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44779-36110	XZB40,5# NO.2	01/2015 - 12/2999	1
44779-36121	XZB40,5# NO.1	01/2015 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
Common parts
90119-08A46
90461-10780
91651-60616
96133-41500
Linked diagrams
4703
4708
4711
8401

HZB50L-ZGMSSV (1993)

(9301- )BB4#,5#,HZB50

(0608- )XZB40,50..LHD
