Toyota Coaster HZB50 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZGMSSV (1993)
3312 - SHIFT LEVER & RETAINER

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9301-9907)BB42,HZB50,RZB40,50..LHD..5F

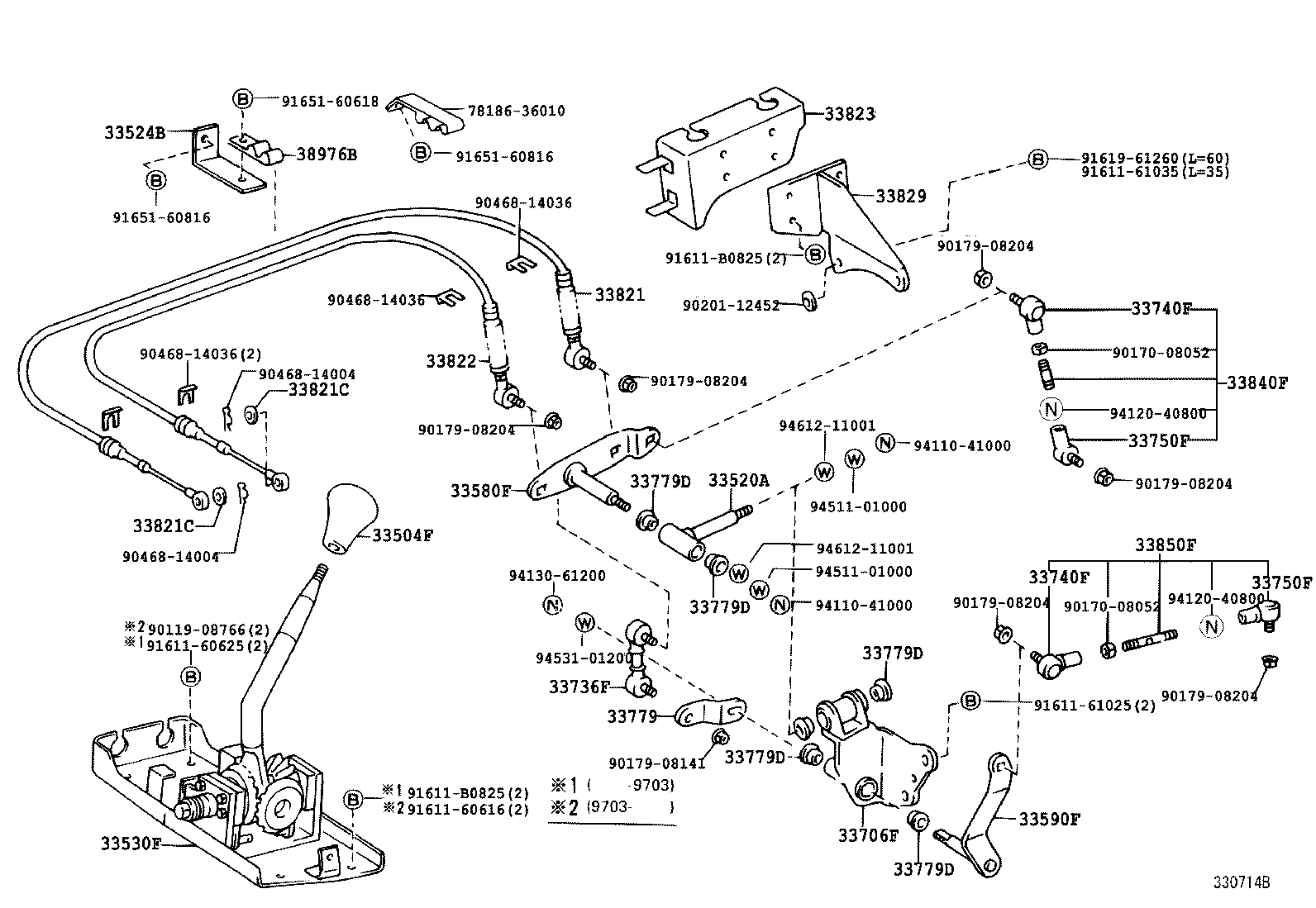

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36060E0	HZB50..TD GREIGE,TRIM4#	05/1995 - 05/1996	1
33504-36060E0	BB4#,HZB50,RZB40,50..5F GREIGE,TRIM4#	01/1993 - 05/1995	1
33504-36051E0	HZB50..5F..DSL;BB4#,5#,RZB40,50 GRAIGE,TRIM4#	05/1995 - 07/1999	1
33504-36051C0	BB42,50,59,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..5F BLACK,TRIM1#	08/2004 - 01/2015	1
33504-36051C0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F BLACK,TRIM1#	01/2015 - 12/2016	1
33504-36051C0	BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,HZB50,RZB40,50..5F BLACK,TRIM4#	07/1999 - 08/2001	1
33504-36051C0	BB42,50,59,BZB40,50,HZB50,RZB40,50..(GCC,GEN)..5F BLACK,TRIM1#	08/2001 - 08/2004	1
33520A - SHAFT ASSY, FLOOR SHIFT CONTROL
33520-36230	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33524B - BRACKET, CONTROL CABLE
33524-36040	BB42,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-36130	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)
33580-36090	BB42,HZB50..LHD..5F	01/1993 - 05/1997	1
33580-36100	BB50,RZB40,50..LHD	09/1993 - 05/1997	1
33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33590-36140	BB50,RZB40,50..LHD	09/1993 - 05/1997	1
33590-36120	HZB50..LHD..5F	01/1993 - 05/1997	1
33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT)
33706-36170	HZB50..LHD..5F	01/1993 - 05/1997	1
33706-36190	RZB40,50	09/1993 - 05/1997	1
33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33790-36560	BB42,HZB50..LHD..5F	01/1993 - 05/1997	1
33790-36570	BB50,RZB40,50..LHD	09/1993 - 05/1997	1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-36090	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	2
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-36090	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	2
33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33750-36040	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	2
33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33750-36040	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	2
33779 - ARM, SHIFT LEVER HOUSING, NO.2
33779-36140	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-14012	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	6
33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-14012	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	6
33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-14012	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	6
33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-14012	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	6
33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-14012	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	6
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-36040	BB42,58,HZB50..LHD;BB50..STD..WC..GEN	05/1997 - 07/1999	1
33821-36070	RZB40,50	05/1997 - 07/1999	1
33821-36010	BB42,HZB50..LHD..5F	01/1993 - 05/1997	1
33821-36020	RZB40,50	09/1993 - 05/1997	1
33821-36041	BB42,50,HZB50..LHD..5F	08/2004 - 08/2006	1
33821-36041	BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
33821-36070	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33821-36071	RZB40,50	09/2006 - 08/2007	1
33821-36141	BZB40,50	09/2006 - 01/2015	1
33821-36042	BB42..LHD..SRF;BB50,HZB50..LHD	09/2006 - 01/2015	1
33821-36211	XZB40,50..LHD	01/2015 - 12/2999	1
33821-36220	TRB40,50	08/2007 - 01/2015	1
33821-36141	BZB40,50	01/2015 - 12/2999	1
33821-36220	TRB40,50	01/2015 - 12/2999	1
33821-36042	BB42,HZB50..LHD	01/2015 - 12/2999	1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
90201-08023	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	2
90201-08023	HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN	07/1999 - 08/2004	1
90201-08023	BZB40,50,XZB40,5#..5F;BB42,HZB50,TRB40,50..LHD	01/2015 - 12/2999	1
90201-08023	XZB59;HZB50..LHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,TRB40,50,XZB40..STD..(DCR,EFI,LPG,TD)	08/2004 - 01/2015	1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
90201-08023	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	2
90201-08023	HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN	07/1999 - 08/2004	1
90201-08023	BZB40,50,XZB40,5#..5F;BB42,HZB50,TRB40,50..LHD	01/2015 - 12/2999	1
90201-08023	XZB59;HZB50..LHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,TRB40,50,XZB40..STD..(DCR,EFI,LPG,TD)	08/2004 - 01/2015	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-36060	RZB40,50	05/1997 - 07/1999	1
33822-36010	BB42,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33822-36030	BB42,58,HZB50..LHD;BB50..STD..WC..GEN	05/1997 - 07/1999	1
33822-36031	BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
33822-36060	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33822-36031	BB42,50,HZB50..LHD..5F	08/2004 - 08/2006	1
33822-36200	TRB40,50	08/2007 - 01/2015	1
33822-36121	BZB40,50	01/2015 - 12/2999	1
33822-36061	RZB40,50	09/2006 - 08/2007	1
33822-36032	BB42..LHD..SRF;BB50,HZB50..LHD	09/2006 - 01/2015	1
33822-36121	BZB40,50	09/2006 - 01/2015	1
33822-36200	TRB40,50	01/2015 - 12/2999	1
33822-36191	XZB40,50..LHD	01/2015 - 12/2999	1
33822-36032	BB42,HZB50..LHD	01/2015 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-36010	HZB50..LHD	05/1997 - 08/1997	1
33804-36040	RZB40,50	05/1997 - 08/1997	1
33823-36110	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33804-36011	HZB50..LHD	08/1997 - 07/1999	1
33804-36041	RZB40,50	08/1997 - 07/1999	1
33804-36011	HZB50..LHD	07/1999 - 08/2004	1
33804-36090	BZB40,50..STD	08/2004 - 01/2015	1
33804-36050	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33804-36011	HZB50..LHD	01/2015 - 12/2999	1
33804-36050	TRB40,50	08/2004 - 01/2015	1
33804-36011	HZB50..LHD	08/2004 - 01/2015	1
33804-36050	TRB40,50	01/2015 - 12/2999	1
33804-36120	XZB40,5#..5F	01/2015 - 12/2999	1
33804-36090	BZB40,50	01/2015 - 12/2999	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-36030	HZB50..LHD..5F	01/1993 - 05/1997	1
33829-36050	RZB40,50	09/1993 - 05/1997	1
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-36440	BB42,50,HZB50,RZB40,50..LHD..5F	08/1993 - 05/1997	1
33840-36380	BB42,HZB50..LHD..5F	01/1993 - 08/1993	1
33850F - ROD ASSY, GEAR SELECTING, NO.3
33850-36310	HZB50..LHD..5F	01/1993 - 05/1997	1
33850-36330	RZB40,50	09/1993 - 05/1997	1
38976B - CLAMP, PUSH PULL CABLE
38976-36010	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
Common parts
78186-36010
90119-08766
90170-08052
90179-08141
90179-08204
90201-12452
90468-14004
90468-14036
91611-60616
91611-60625
91611-61025
91611-61035
91611-B0825
91619-61260
91651-60618
91651-60816
94110-41000
94120-40800
94130-61200
94511-01000
94531-01200
94612-11001

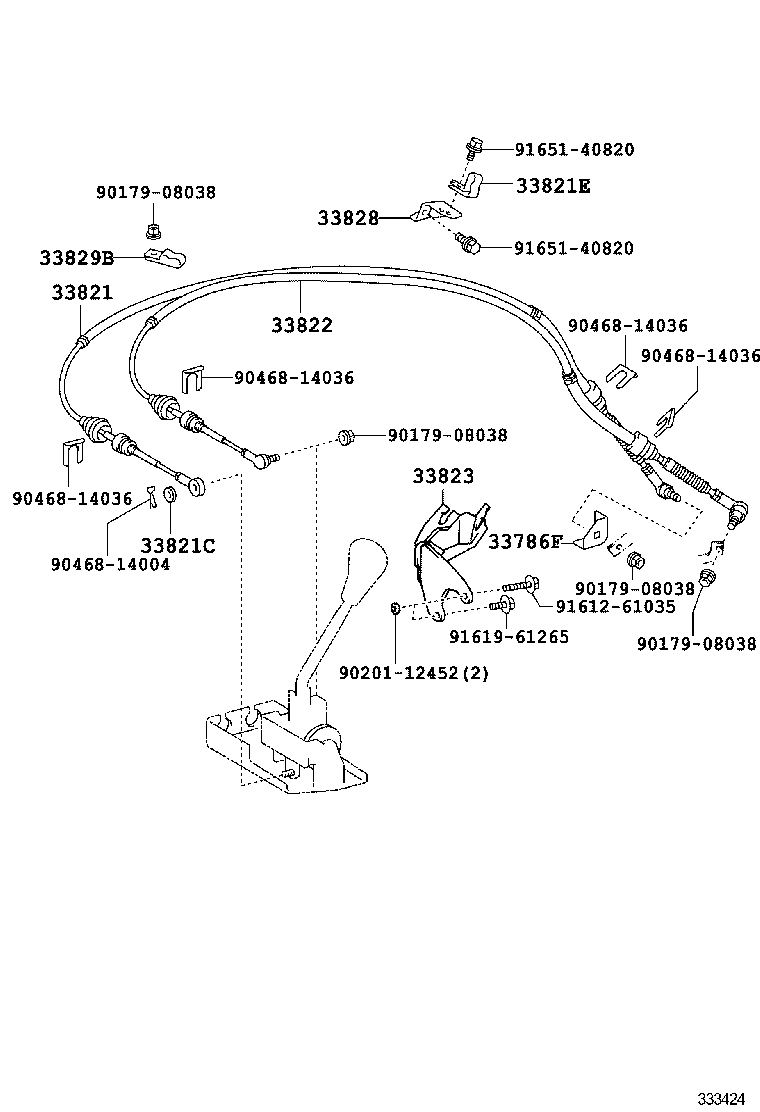

ILLUST NO. 2 OF 2(0708- )TRB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF
33786-25010	TRB40,50	01/2015 - 12/2999	1
33786-25010	TRB40,50	08/2007 - 01/2015	1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-36040	BB42,58,HZB50..LHD;BB50..STD..WC..GEN	05/1997 - 07/1999	1
33821-36070	RZB40,50	05/1997 - 07/1999	1
33821-36010	BB42,HZB50..LHD..5F	01/1993 - 05/1997	1
33821-36020	RZB40,50	09/1993 - 05/1997	1
33821-36041	BB42,50,HZB50..LHD..5F	08/2004 - 08/2006	1
33821-36041	BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
33821-36070	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33821-36071	RZB40,50	09/2006 - 08/2007	1
33821-36141	BZB40,50	09/2006 - 01/2015	1
33821-36042	BB42..LHD..SRF;BB50,HZB50..LHD	09/2006 - 01/2015	1
33821-36211	XZB40,50..LHD	01/2015 - 12/2999	1
33821-36220	TRB40,50	08/2007 - 01/2015	1
33821-36141	BZB40,50	01/2015 - 12/2999	1
33821-36220	TRB40,50	01/2015 - 12/2999	1
33821-36042	BB42,HZB50..LHD	01/2015 - 12/2999	1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08023	BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
90201-08023	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	2
90201-08023	HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN	07/1999 - 08/2004	1
90201-08023	BZB40,50,XZB40,5#..5F;BB42,HZB50,TRB40,50..LHD	01/2015 - 12/2999	1
90201-08023	XZB59;HZB50..LHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,TRB40,50,XZB40..STD..(DCR,EFI,LPG,TD)	08/2004 - 01/2015	1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01B24	BB43,50..GEN;BB42,58,HZB50..LHD	05/1997 - 07/1999	1
90949-01A28	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90949-01B24	XZB40,59;BB42..LHD..SRF;BB50,HZB50..LHD..5F;XZB50..(20S,21S)..WC..5F	08/2004 - 01/2015	1
90949-01B24	BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
90949-01B24	XZB40,5#..5F;BB42,HZB50..LHD	01/2015 - 12/2999	1
33829-36111	BZB40,50,TRB40,50	01/2015 - 12/2999	1
33829-36111	BZB40,50,TRB40,50..STD	08/2004 - 01/2015	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-36060	RZB40,50	05/1997 - 07/1999	1
33822-36010	BB42,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33822-36030	BB42,58,HZB50..LHD;BB50..STD..WC..GEN	05/1997 - 07/1999	1
33822-36031	BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
33822-36060	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33822-36031	BB42,50,HZB50..LHD..5F	08/2004 - 08/2006	1
33822-36200	TRB40,50	08/2007 - 01/2015	1
33822-36121	BZB40,50	01/2015 - 12/2999	1
33822-36061	RZB40,50	09/2006 - 08/2007	1
33822-36032	BB42..LHD..SRF;BB50,HZB50..LHD	09/2006 - 01/2015	1
33822-36121	BZB40,50	09/2006 - 01/2015	1
33822-36200	TRB40,50	01/2015 - 12/2999	1
33822-36191	XZB40,50..LHD	01/2015 - 12/2999	1
33822-36032	BB42,HZB50..LHD	01/2015 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-36010	HZB50..LHD	05/1997 - 08/1997	1
33804-36040	RZB40,50	05/1997 - 08/1997	1
33823-36110	BB42,50,HZB50,RZB40,50..LHD..5F	01/1993 - 05/1997	1
33804-36011	HZB50..LHD	08/1997 - 07/1999	1
33804-36041	RZB40,50	08/1997 - 07/1999	1
33804-36011	HZB50..LHD	07/1999 - 08/2004	1
33804-36090	BZB40,50..STD	08/2004 - 01/2015	1
33804-36050	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33804-36011	HZB50..LHD	01/2015 - 12/2999	1
33804-36050	TRB40,50	08/2004 - 01/2015	1
33804-36011	HZB50..LHD	08/2004 - 01/2015	1
33804-36050	TRB40,50	01/2015 - 12/2999	1
33804-36120	XZB40,5#..5F	01/2015 - 12/2999	1
33804-36090	BZB40,50	01/2015 - 12/2999	1
33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33828-36060	HZB50..4FC;BB43,50..GEN;BB42,58,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
33828-36060	BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..(GCC,GEN)..CBU..5F	07/1999 - 08/2004	1
33828-36100	XZB40,5#..5F	01/2015 - 12/2999	1
33828-36060	BB42..LHD..SRF;BB50,HZB50..LHD..5F	08/2004 - 01/2015	1
33828-36070	XZB50..4FC;BZB40,50,TRB40,50..STD	08/2004 - 01/2015	1
33828-36070	XZB50..4FC;BZB40,50,TRB40,50	01/2015 - 12/2999	1
33828-36060	BB42,HZB50..LHD	01/2015 - 12/2999	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37120	BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
33829-37120	BB42,50,58,HZB50,RZB40,50..LHD	11/2002 - 08/2004	1
33829-37120	BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)	07/1999 - 11/2002	1
33829-37120	BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
33829-37120	BB42,HZB50,TRB40,50,XZB40,50..LHD	01/2015 - 12/2999	1
Common parts
90179-08038
90201-12452
90468-14004
90468-14036
91612-61035
91619-61265
91651-40820

HZB50L-ZGMSSV (1993)

(9301-9907)BB42,HZB50,RZB40,50..LHD..5F

ILLUST NO. 2 OF 2(0708- )TRB40,50

Part Price Details
