HZB50L-ZGMSSV (1993)
Toyota Coaster
(9301-9610)5F ; (9610- )BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50..MTM..ARL,CHI,G
H260,M152,M155,M156
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

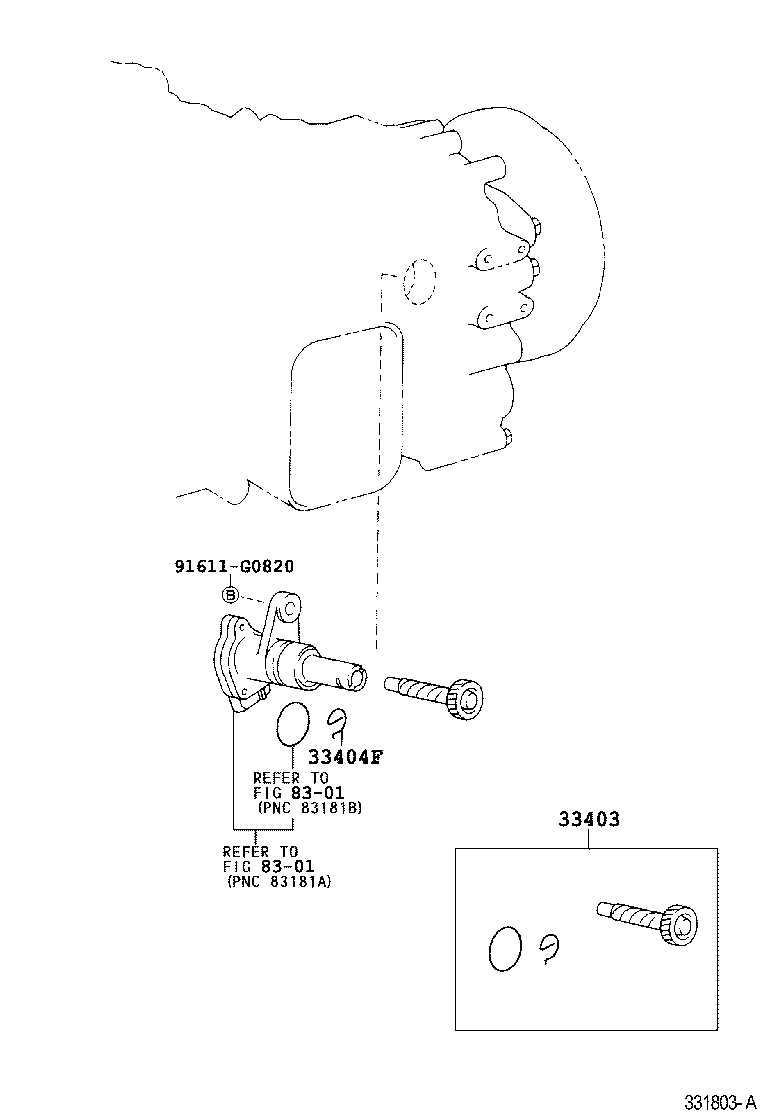

| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39445 |
BB42..WC..GCC;BB42,50..EUR,GEN;HZB50..(GCC,GEN)..5F N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
BB42..WC..(GEN,SCO);HZB50,RZB40,50..CBR,TD N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB42..GEN;BB42..WC..GCC;HZB50..(20S,30S)..5F N=22,MARK 22:6 |
1 | ||
| 33482-39445 |
BB42..WC..GCC;BB50..GEN..IV;BB42,43,58..GEN;BB50,HZB50..(20S,30S)..(GCC,GEN)..5F N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
RZB40,50;BB42..WC..(GEN,SCO) N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..(17S,21S,30S)..(ARL,GEN);BB42,58,BZB50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
BB42..26S..WC..GEN;HZB50..LHD..HRF..WOC;BB42,RZB40..LHD..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB50..17S,20S,21S,30S;BB42,58,BZB50,HZB50..21S,23S,26S,30S N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
TRB40,50;BB42..LHD..HRF;RZB40..HRF..GCC N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB42,HZB50 N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
TRB40,50;HZB50..LHD..WC..GEN N=24,MARK 24:6 |
1 | ||
| 33482-39455 |
HZB50..LHD;BB42,BZB40,50,TRB40 N=23,MARK 23:6 |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90468-12005 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 90468-12005 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 90468-12005 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| Common parts | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 8301 | ||||
(0608- )XZB40,5#..5F
M551
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39445 |
BB42..WC..GCC;BB42,50..EUR,GEN;HZB50..(GCC,GEN)..5F N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
BB42..WC..(GEN,SCO);HZB50,RZB40,50..CBR,TD N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB42..GEN;BB42..WC..GCC;HZB50..(20S,30S)..5F N=22,MARK 22:6 |
1 | ||
| 33482-39445 |
BB42..WC..GCC;BB50..GEN..IV;BB42,43,58..GEN;BB50,HZB50..(20S,30S)..(GCC,GEN)..5F N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
RZB40,50;BB42..WC..(GEN,SCO) N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..(17S,21S,30S)..(ARL,GEN);BB42,58,BZB50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
BB42..26S..WC..GEN;HZB50..LHD..HRF..WOC;BB42,RZB40..LHD..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB50..17S,20S,21S,30S;BB42,58,BZB50,HZB50..21S,23S,26S,30S N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
TRB40,50;BB42..LHD..HRF;RZB40..HRF..GCC N=24,MARK 24:6 |
1 | ||
| 33482-39445 |
BB42,HZB50 N=22,MARK 22:6 |
1 | ||
| 33482-39465 |
TRB40,50;HZB50..LHD..WC..GEN N=24,MARK 24:6 |
1 | ||
| 33482-39455 |
HZB50..LHD;BB42,BZB40,50,TRB40 N=23,MARK 23:6 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
XZB40,5#..5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
XZB40,5#..5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
XZB40,5#..5F |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90468-12005 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| 90468-12005 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 90468-12005 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
XZB40,5#..5F |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8301 | ||||
