Toyota Coaster HZB50 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZGMSSV (1993)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9309- )RZB40,50,TRB40,50

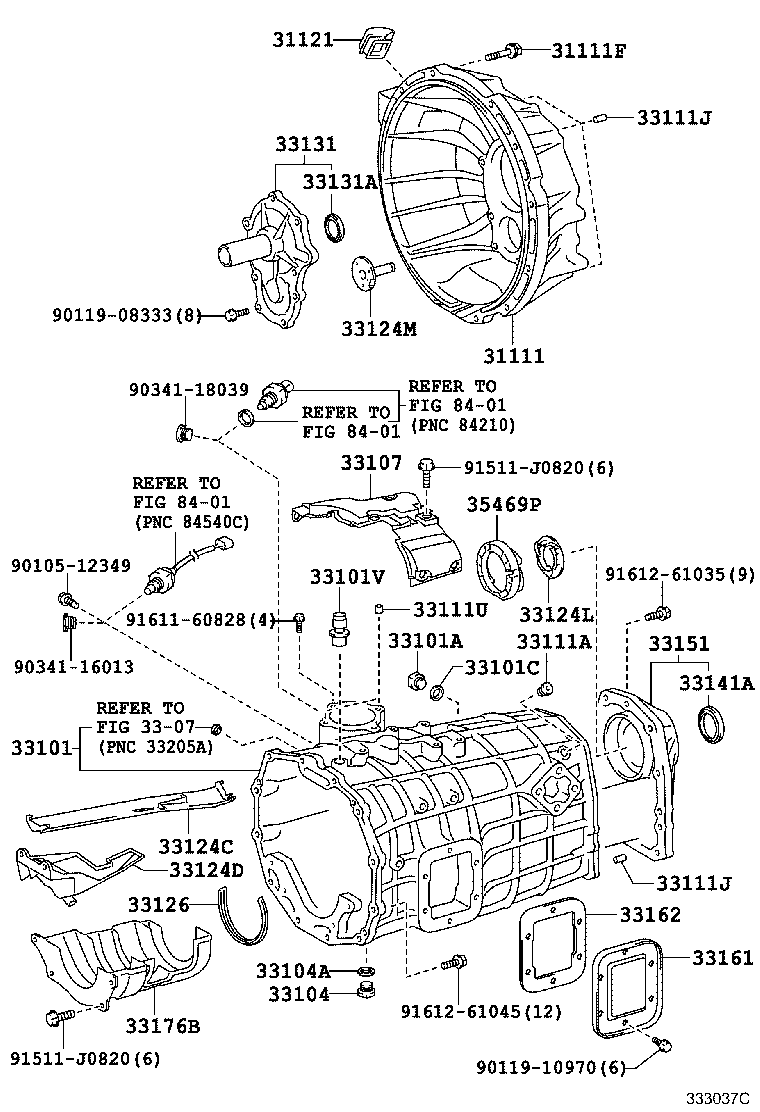

Click highlighted areas on diagram

M156

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-36331	RZB40,50	05/1995 - 07/1999	1
31111-36330	RZB40,50	09/1993 - 05/1995	1
31111-36320	HZB50..5F	01/1993 - 07/1999	1
31111-36331	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
31111-37020	BB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
31111-36320	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
31111-36331	TRB40,50	01/2015 - 12/2999	1
31111-36320	HZB50	08/2004 - 01/2015	1
31111-36331	TRB40,50	08/2004 - 01/2015	1
31111-37020	BZB40,50	01/2015 - 12/2999	1
31111-36400	XZB40,5#..5F	01/2015 - 12/2999	1
31111-36320	HZB50	01/2015 - 12/2999	1
31111-37020	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040	RZB40..GEN;RZB40..SRF..GCC;BB42,HZB50,RZB50	08/2004 - 08/2007	1
31121-36040	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 07/2007	1
31121-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
31121-36040	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
31121-28041	XZB40,5#..5F	01/2015 - 12/2999	1
31121-36110	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50	08/2007 - 01/2015	1
31121-36110	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
31123 - COVER, CLUTCH HOUSING, NO.2
31121-28041	BB50..EUR;BB40,42,RZB40,50	05/1995 - 07/1999	2
31121-28040	BB4#,RZB40,50	01/1993 - 05/1995	2
31121-36070	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
31121-36070	HZB50	01/2015 - 12/2999	1
31121-36070	HZB50..5F	01/1993 - 07/1999	1
31121-28041	TRB40,50;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	2
31121-28041	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
31121-28041	BB42,TRB40,50	01/2015 - 12/2999	2
31121-36070	HZB50	08/2004 - 01/2015	1
31123 - COVER, CLUTCH HOUSING, NO.2
31121-28041	BB50..EUR;BB40,42,RZB40,50	05/1995 - 07/1999	2
31121-28040	BB4#,RZB40,50	01/1993 - 05/1995	2
31121-36070	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
31121-36070	HZB50	01/2015 - 12/2999	1
31121-36070	HZB50..5F	01/1993 - 07/1999	1
31121-28041	TRB40,50;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	2
31121-28041	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
31121-28041	BB42,TRB40,50	01/2015 - 12/2999	2
31121-36070	HZB50	08/2004 - 01/2015	1
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36091	BB5#,HZB50..TD	01/1995 - 07/1999	1
33101-36080	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 08/1994	1
33101-36081	BB4#,HZB50,RZB40,50..CBU..5F	08/1994 - 01/1995	1
33101-36083	BB4#,HZB50,RZB40,50..5F	08/1998 - 07/1999	1
33101-36082	BB4#,HZB50,RZB40,50..CBU..5F	01/1995 - 08/1998	1
33101-36083	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BZB40,RZB40,50..(17S,26S,30S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 10/2001	1
33101-36084	BB42,BZB40,50,HZB50,RZB40,50..GCC,GEN	10/2001 - 08/2004	1
33101-36090	HZB50..TD	01/1993 - 01/1995	1
33101-36084	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33101-36084	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33101-36130	XZB40,5#..5F	01/2015 - 12/2999	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18006	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18057	XZB40,5#..5F	01/2015 - 12/2999	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90341-18006	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	3
96411-11600	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
96411-11600	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	3
96411-11600	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	BB4#,5#,HZB50,RZB40,50..5F L=11,OD=11	01/1993 - 07/1999	1
90253-13017	BB4#,5#,HZB50,RZB40,50..5F L=12,OD=13	01/1993 - 07/1999	2
90253-11001	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=11,OD=11	07/1999 - 08/2004	1
90253-11001	BB42,BZB40,50,HZB50,TRB40,50 L=11,OD=11	01/2015 - 12/2999	1
90253-13017	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=12,OD=13	07/1999 - 08/2004	2
90253-11021	XZB40,5#..5F L=8,OD=11	01/2015 - 12/2999	2
90253-11001	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=11,OD=11	08/2004 - 01/2015	1
90253-13017	BB42,BZB40,50,HZB50,TRB40,50 L=12,OD=13	01/2015 - 12/2999	2
90253-13017	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=12,OD=13	08/2004 - 01/2015	2
33118 - PLATE, STIFFENER, RH(MTM)
33118-60060	HZB50..5F	01/1998 - 07/1999	1
33118-37030	RZB40,50	05/1997 - 07/1999	1
33118-60030	HZB50..5F	01/1993 - 01/1998	1
33118-26010	RZB40,50	09/1993 - 05/1997	1
33118-60060	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33118-37020	BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
33118-37030	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33118-37020	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33118-37020	BZB40,50	01/2015 - 12/2999	1
33118-60060	HZB50	08/2004 - 01/2015	1
33118-60060	HZB50	01/2015 - 12/2999	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-26020	RZB40,50	09/1993 - 05/1995	1
33119-26021	RZB40,50	05/1995 - 07/1999	1
33119-60070	HZB50..5F	01/1998 - 07/1999	1
33119-60031	HZB50..5F	01/1993 - 01/1998	1
33119-26021	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33119-60070	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33119-37020	BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
33119-37020	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33119-60070	HZB50	08/2004 - 01/2015	1
33119-37020	BZB40,50	01/2015 - 12/2999	1
33119-60070	HZB50	01/2015 - 12/2999	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33124-36030	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33124-36030	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33124-36030	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33124-37021	XZB40,5#..5F	01/2015 - 12/2999	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33125-36020	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33125-36020	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33125-36020	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36080	HZB50..5F	01/1993 - 07/1999	1
33018-36060	RZB40,50	09/1993 - 05/1995	1
33018-36060	BB50..EUR;BB40,42,RZB40,50	05/1995 - 07/1999	1
33018-36060	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33018-36080	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33018-36080	HZB50	08/2004 - 01/2015	1
33018-37010	BB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
33018-36060	TRB40,50;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
33018-37010	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33018-37050	XZB40,5#..5F	01/2015 - 12/2999	1
33018-36060	BB42,TRB40,50	01/2015 - 12/2999	1
33018-37010	BZB40,50	01/2015 - 12/2999	1
33018-36080	HZB50	01/2015 - 12/2999	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90311-32012	BB50..EUR;BB40,42,RZB40,50	01/1993 - 07/1999	1
90311-35023	HZB50..5F;BB43,5#..GEN	01/1993 - 07/1999	1
90311-35023	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;BB58,59,BZB40,50;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90311-35023	BZB40,50,HZB50,XZB40,5#..5F	01/2015 - 12/2999	1
90311-32012	BB42,TRB40,50	01/2015 - 12/2999	1
90311-32012	BB42,RZB40,50,TRB40,50	08/2004 - 01/2015	1
90311-35023	BB5#,BZB40,50,HZB50,XZB40,5#..MTM	08/2004 - 01/2015	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	BB4#,HZB50,RZB40,50..CBU..5F	05/1994 - 07/1999	1
33017-36041	BB5#,HZB50..TD	03/1995 - 07/1999	1
33017-36040	HZB50..TD	01/1993 - 03/1995	1
33017-36030	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 05/1994	1
33017-36031	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33017-36080	XZB40,5#..5F	01/2015 - 12/2999	1
33017-36031	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33017-36031	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33151K - SEAL, TYPE T OIL
90311-48011	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90311-48011	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90311-48011	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90311-48011	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36040	HZB50..GCC;BB50,58..6F..TDEFI	07/1999 - 08/2004	1
33161-36010	BB4#,RZB40,50;HZB50..(GEN,SCO)..5F	01/1993 - 07/1999	1
33161-36040	HZB50..(ARL,GCC)..5F	01/1993 - 07/1999	1
33161-36010	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC..GEN;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33161-36010	BB42..RHD;TRB40,50,XZB59;BB42..LHD..SRF;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,XZB40..STD..GEN	08/2004 - 01/2015	1
33161-36040	HZB50..GCC *FGR=43:7	08/2004 - 01/2015	1
33161-36040	HZB50..GCC	01/2015 - 12/2999	1
33161-36010	HZB50..GEN;BB42,BZB40,50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB50..6F..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB58,BZB40,50,RZB40,50..(17S,21S,23S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33162-36020	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33162-36020	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33162-36020	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,TRB40,50,XZB40..STD	08/2004 - 01/2015	1
33449B - MAGNET, TRANSMISSION
33449-36010	BB50..EUR;BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
33449-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33449-36010	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33449-36010	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
Common parts
90119-08332
90119-08421
90119-10186
90119-10390
90119-10970
91611-61040
91611-B0610
91611-B0812
91612-61030
91612-61035
91612-61040
91612-61045
91612-61055
91619-61255
91619-61265

ILLUST NO. 2 OF 2(9301- )BB4#,BZB40,50,HZB50..ARL,GCC,GEN,SCO..5F

Click highlighted areas on diagram

M152,M155

Part #	Description	Period	Qty
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36091	BB5#,HZB50..TD	01/1995 - 07/1999	1
33101-36080	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 08/1994	1
33101-36081	BB4#,HZB50,RZB40,50..CBU..5F	08/1994 - 01/1995	1
33101-36083	BB4#,HZB50,RZB40,50..5F	08/1998 - 07/1999	1
33101-36082	BB4#,HZB50,RZB40,50..CBU..5F	01/1995 - 08/1998	1
33101-36083	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BZB40,RZB40,50..(17S,26S,30S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 10/2001	1
33101-36084	BB42,BZB40,50,HZB50,RZB40,50..GCC,GEN	10/2001 - 08/2004	1
33101-36090	HZB50..TD	01/1993 - 01/1995	1
33101-36084	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33101-36084	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33101-36130	XZB40,5#..5F	01/2015 - 12/2999	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18006	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18057	XZB40,5#..5F	01/2015 - 12/2999	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90341-18006	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	3
96411-11600	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
96411-11600	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	3
96411-11600	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	BB4#,5#,HZB50,RZB40,50..5F L=11,OD=11	01/1993 - 07/1999	1
90253-13017	BB4#,5#,HZB50,RZB40,50..5F L=12,OD=13	01/1993 - 07/1999	2
90253-11001	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=11,OD=11	07/1999 - 08/2004	1
90253-11001	BB42,BZB40,50,HZB50,TRB40,50 L=11,OD=11	01/2015 - 12/2999	1
90253-13017	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=12,OD=13	07/1999 - 08/2004	2
90253-11021	XZB40,5#..5F L=8,OD=11	01/2015 - 12/2999	2
90253-11001	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=11,OD=11	08/2004 - 01/2015	1
90253-13017	BB42,BZB40,50,HZB50,TRB40,50 L=12,OD=13	01/2015 - 12/2999	2
90253-13017	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=12,OD=13	08/2004 - 01/2015	2
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33124-36030	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33124-36030	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33124-36030	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33124-37021	XZB40,5#..5F	01/2015 - 12/2999	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33125-36020	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33125-36020	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33125-36020	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36080	HZB50..5F	01/1993 - 07/1999	1
33018-36060	RZB40,50	09/1993 - 05/1995	1
33018-36060	BB50..EUR;BB40,42,RZB40,50	05/1995 - 07/1999	1
33018-36060	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33018-36080	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33018-36080	HZB50	08/2004 - 01/2015	1
33018-37010	BB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
33018-36060	TRB40,50;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
33018-37010	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33018-37050	XZB40,5#..5F	01/2015 - 12/2999	1
33018-36060	BB42,TRB40,50	01/2015 - 12/2999	1
33018-37010	BZB40,50	01/2015 - 12/2999	1
33018-36080	HZB50	01/2015 - 12/2999	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90311-32012	BB50..EUR;BB40,42,RZB40,50	01/1993 - 07/1999	1
90311-35023	HZB50..5F;BB43,5#..GEN	01/1993 - 07/1999	1
90311-35023	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;BB58,59,BZB40,50;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90311-35023	BZB40,50,HZB50,XZB40,5#..5F	01/2015 - 12/2999	1
90311-32012	BB42,TRB40,50	01/2015 - 12/2999	1
90311-32012	BB42,RZB40,50,TRB40,50	08/2004 - 01/2015	1
90311-35023	BB5#,BZB40,50,HZB50,XZB40,5#..MTM	08/2004 - 01/2015	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	BB4#,HZB50,RZB40,50..CBU..5F	05/1994 - 07/1999	1
33017-36041	BB5#,HZB50..TD	03/1995 - 07/1999	1
33017-36040	HZB50..TD	01/1993 - 03/1995	1
33017-36030	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 05/1994	1
33017-36031	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33017-36080	XZB40,5#..5F	01/2015 - 12/2999	1
33017-36031	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33017-36031	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33151K - SEAL, TYPE T OIL
90311-48011	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90311-48011	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90311-48011	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90311-48011	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36040	HZB50..GCC;BB50,58..6F..TDEFI	07/1999 - 08/2004	1
33161-36010	BB4#,RZB40,50;HZB50..(GEN,SCO)..5F	01/1993 - 07/1999	1
33161-36040	HZB50..(ARL,GCC)..5F	01/1993 - 07/1999	1
33161-36010	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC..GEN;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33161-36010	BB42..RHD;TRB40,50,XZB59;BB42..LHD..SRF;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,XZB40..STD..GEN	08/2004 - 01/2015	1
33161-36040	HZB50..GCC *FGR=43:7	08/2004 - 01/2015	1
33161-36040	HZB50..GCC	01/2015 - 12/2999	1
33161-36010	HZB50..GEN;BB42,BZB40,50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36040	HZB50..GCC;BB50,58..6F..TDEFI	07/1999 - 08/2004	1
33161-36010	BB4#,RZB40,50;HZB50..(GEN,SCO)..5F	01/1993 - 07/1999	1
33161-36040	HZB50..(ARL,GCC)..5F	01/1993 - 07/1999	1
33161-36010	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC..GEN;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33161-36010	BB42..RHD;TRB40,50,XZB59;BB42..LHD..SRF;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,XZB40..STD..GEN	08/2004 - 01/2015	1
33161-36040	HZB50..GCC *FGR=43:7	08/2004 - 01/2015	1
33161-36040	HZB50..GCC	01/2015 - 12/2999	1
33161-36010	HZB50..GEN;BB42,BZB40,50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB50..6F..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB58,BZB40,50,RZB40,50..(17S,21S,23S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33162-36020	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33162-36020	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33162-36020	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,TRB40,50,XZB40..STD	08/2004 - 01/2015	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB50..6F..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB58,BZB40,50,RZB40,50..(17S,21S,23S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33162-36020	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33162-36020	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33162-36020	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,TRB40,50,XZB40..STD	08/2004 - 01/2015	1
33191 - GUIDE, TRANSMISSION AIR
33191-36020	HZB50..(ARL,GCC)..5F	01/1993 - 07/1999	1
33191-36020	HZB50..GCC	01/2015 - 12/2999	1
33191-36020	HZB50..GCC	08/2004 - 01/2015	1
33191-36020	HZB50..GCC	07/1999 - 08/2004	1
33449B - MAGNET, TRANSMISSION
33449-36010	BB50..EUR;BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
33449-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33449-36010	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33449-36010	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
Common parts
90119-08332
90119-08421
90119-10186
90119-10390
90119-10398
90119-10970
91611-B0610
91611-B0812
91612-61030
91612-61045
91651-41020

ILLUST NO. 2 OF 2(9301-9605)TD

Click highlighted areas on diagram

M155

Part #	Description	Period	Qty
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36091	BB5#,HZB50..TD	01/1995 - 07/1999	1
33101-36080	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 08/1994	1
33101-36081	BB4#,HZB50,RZB40,50..CBU..5F	08/1994 - 01/1995	1
33101-36083	BB4#,HZB50,RZB40,50..5F	08/1998 - 07/1999	1
33101-36082	BB4#,HZB50,RZB40,50..CBU..5F	01/1995 - 08/1998	1
33101-36083	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BZB40,RZB40,50..(17S,26S,30S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 10/2001	1
33101-36084	BB42,BZB40,50,HZB50,RZB40,50..GCC,GEN	10/2001 - 08/2004	1
33101-36090	HZB50..TD	01/1993 - 01/1995	1
33101-36084	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33101-36084	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33101-36130	XZB40,5#..5F	01/2015 - 12/2999	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18006	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18057	XZB40,5#..5F	01/2015 - 12/2999	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90341-18006	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	BB5#,HZB50..TD	01/1993 - 07/1999	1
90341-14008	XZB40,5#..5F	01/2015 - 12/2999	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	3
96411-11600	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
96411-11600	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	3
96411-11600	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	BB4#,5#,HZB50,RZB40,50..5F L=11,OD=11	01/1993 - 07/1999	1
90253-13017	BB4#,5#,HZB50,RZB40,50..5F L=12,OD=13	01/1993 - 07/1999	2
90253-11001	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=11,OD=11	07/1999 - 08/2004	1
90253-11001	BB42,BZB40,50,HZB50,TRB40,50 L=11,OD=11	01/2015 - 12/2999	1
90253-13017	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=12,OD=13	07/1999 - 08/2004	2
90253-11021	XZB40,5#..5F L=8,OD=11	01/2015 - 12/2999	2
90253-11001	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=11,OD=11	08/2004 - 01/2015	1
90253-13017	BB42,BZB40,50,HZB50,TRB40,50 L=12,OD=13	01/2015 - 12/2999	2
90253-13017	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=12,OD=13	08/2004 - 01/2015	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	BB5#,HZB50..TD	01/1993 - 07/1999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36080	HZB50..5F	01/1993 - 07/1999	1
33018-36060	RZB40,50	09/1993 - 05/1995	1
33018-36060	BB50..EUR;BB40,42,RZB40,50	05/1995 - 07/1999	1
33018-36060	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33018-36080	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33018-36080	HZB50	08/2004 - 01/2015	1
33018-37010	BB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
33018-36060	TRB40,50;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
33018-37010	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33018-37050	XZB40,5#..5F	01/2015 - 12/2999	1
33018-36060	BB42,TRB40,50	01/2015 - 12/2999	1
33018-37010	BZB40,50	01/2015 - 12/2999	1
33018-36080	HZB50	01/2015 - 12/2999	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90311-32012	BB50..EUR;BB40,42,RZB40,50	01/1993 - 07/1999	1
90311-35023	HZB50..5F;BB43,5#..GEN	01/1993 - 07/1999	1
90311-35023	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;BB58,59,BZB40,50;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90311-35023	BZB40,50,HZB50,XZB40,5#..5F	01/2015 - 12/2999	1
90311-32012	BB42,TRB40,50	01/2015 - 12/2999	1
90311-32012	BB42,RZB40,50,TRB40,50	08/2004 - 01/2015	1
90311-35023	BB5#,BZB40,50,HZB50,XZB40,5#..MTM	08/2004 - 01/2015	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	BB4#,HZB50,RZB40,50..CBU..5F	05/1994 - 07/1999	1
33017-36041	BB5#,HZB50..TD	03/1995 - 07/1999	1
33017-36040	HZB50..TD	01/1993 - 03/1995	1
33017-36030	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 05/1994	1
33017-36031	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33017-36080	XZB40,5#..5F	01/2015 - 12/2999	1
33017-36031	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33017-36031	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33151K - SEAL, TYPE T OIL
90311-48011	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90311-48011	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90311-48011	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90311-48011	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33449B - MAGNET, TRANSMISSION
33449-36010	BB50..EUR;BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
33449-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33449-36010	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33449-36010	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
Common parts
90119-08332
90119-10186
90119-10390
91611-B0812
91612-61030
91612-61045
Linked diagrams
3308

ILLUST NO. 1 OF 2(9301- )HZB50..5F

Click highlighted areas on diagram

M155

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-36331	RZB40,50	05/1995 - 07/1999	1
31111-36330	RZB40,50	09/1993 - 05/1995	1
31111-36320	HZB50..5F	01/1993 - 07/1999	1
31111-36331	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
31111-37020	BB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
31111-36320	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
31111-36331	TRB40,50	01/2015 - 12/2999	1
31111-36320	HZB50	08/2004 - 01/2015	1
31111-36331	TRB40,50	08/2004 - 01/2015	1
31111-37020	BZB40,50	01/2015 - 12/2999	1
31111-36400	XZB40,5#..5F	01/2015 - 12/2999	1
31111-36320	HZB50	01/2015 - 12/2999	1
31111-37020	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040	RZB40..GEN;RZB40..SRF..GCC;BB42,HZB50,RZB50	08/2004 - 08/2007	1
31121-36040	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 07/2007	1
31121-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
31121-36040	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
31121-28041	XZB40,5#..5F	01/2015 - 12/2999	1
31121-36110	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50	08/2007 - 01/2015	1
31121-36110	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
31121B - COVER, CLUTCH HOUSING, NO.3
31121-26020	HZB50..5F	01/1993 - 07/1999	1
31121-26020	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
31121-26020	HZB50	08/2004 - 01/2015	1
31121-26020	HZB50	01/2015 - 12/2999	1
31123 - COVER, CLUTCH HOUSING, NO.2
31121-28041	BB50..EUR;BB40,42,RZB40,50	05/1995 - 07/1999	2
31121-28040	BB4#,RZB40,50	01/1993 - 05/1995	2
31121-36070	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
31121-36070	HZB50	01/2015 - 12/2999	1
31121-36070	HZB50..5F	01/1993 - 07/1999	1
31121-28041	TRB40,50;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	2
31121-28041	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
31121-28041	BB42,TRB40,50	01/2015 - 12/2999	2
31121-36070	HZB50	08/2004 - 01/2015	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-60060	HZB50..5F	01/1998 - 07/1999	1
33118-37030	RZB40,50	05/1997 - 07/1999	1
33118-60030	HZB50..5F	01/1993 - 01/1998	1
33118-26010	RZB40,50	09/1993 - 05/1997	1
33118-60060	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33118-37020	BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
33118-37030	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33118-37020	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33118-37020	BZB40,50	01/2015 - 12/2999	1
33118-60060	HZB50	08/2004 - 01/2015	1
33118-60060	HZB50	01/2015 - 12/2999	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-26020	RZB40,50	09/1993 - 05/1995	1
33119-26021	RZB40,50	05/1995 - 07/1999	1
33119-60070	HZB50..5F	01/1998 - 07/1999	1
33119-60031	HZB50..5F	01/1993 - 01/1998	1
33119-26021	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33119-60070	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33119-37020	BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
33119-37020	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33119-60070	HZB50	08/2004 - 01/2015	1
33119-37020	BZB40,50	01/2015 - 12/2999	1
33119-60070	HZB50	01/2015 - 12/2999	1
Common parts
91612-61030
91612-61040
91619-61235
91619-61245
92136-61245

(0608- )XZB40,5#..5F

Click highlighted areas on diagram

M551

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-36331	RZB40,50	05/1995 - 07/1999	1
31111-36330	RZB40,50	09/1993 - 05/1995	1
31111-36320	HZB50..5F	01/1993 - 07/1999	1
31111-36331	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
31111-37020	BB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
31111-36320	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
31111-36331	TRB40,50	01/2015 - 12/2999	1
31111-36320	HZB50	08/2004 - 01/2015	1
31111-36331	TRB40,50	08/2004 - 01/2015	1
31111-37020	BZB40,50	01/2015 - 12/2999	1
31111-36400	XZB40,5#..5F	01/2015 - 12/2999	1
31111-36320	HZB50	01/2015 - 12/2999	1
31111-37020	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING)
90119-10898	XZB40,5#..5F	08/2006 - 01/2015	12
90119-10898	XZB40,5#..5F	01/2015 - 12/2999	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040	RZB40..GEN;RZB40..SRF..GCC;BB42,HZB50,RZB50	08/2004 - 08/2007	1
31121-36040	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 07/2007	1
31121-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
31121-36040	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
31121-28041	XZB40,5#..5F	01/2015 - 12/2999	1
31121-36110	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50	08/2007 - 01/2015	1
31121-36110	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36091	BB5#,HZB50..TD	01/1995 - 07/1999	1
33101-36080	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 08/1994	1
33101-36081	BB4#,HZB50,RZB40,50..CBU..5F	08/1994 - 01/1995	1
33101-36083	BB4#,HZB50,RZB40,50..5F	08/1998 - 07/1999	1
33101-36082	BB4#,HZB50,RZB40,50..CBU..5F	01/1995 - 08/1998	1
33101-36083	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BZB40,RZB40,50..(17S,26S,30S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 10/2001	1
33101-36084	BB42,BZB40,50,HZB50,RZB40,50..GCC,GEN	10/2001 - 08/2004	1
33101-36090	HZB50..TD	01/1993 - 01/1995	1
33101-36084	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33101-36084	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33101-36130	XZB40,5#..5F	01/2015 - 12/2999	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18006	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
90930-03090	XZB40,5#..5F	01/2015 - 12/2999	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90341-18006	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90341-18057	XZB40,5#..5F	01/2015 - 12/2999	1
90341-18006	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
90341-18006	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90430-18008	BB4#,5#,HZB50,RZB40,50..5F	01/1993 - 07/1999	1
90430-18008	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
90430-18008	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
33107 - COVER SUB-ASSY, TRANSMISSION, UPPER
33107-36010	XZB40,5#..5F	01/2015 - 12/2999	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	BB5#,HZB50..TD	01/1993 - 07/1999	1
90341-14008	XZB40,5#..5F	01/2015 - 12/2999	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12	01/1993 - 07/1999	4
90250-12002	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=16,OD=12	08/2004 - 01/2015	4
90250-12002	BB42,BZB40,50,HZB50,TRB40,50 L=16,OD=12	01/2015 - 12/2999	4
90250-12002	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=16,OD=12	07/1999 - 08/2004	4
90250-10232	XZB40,5#..5F L=15,OD=8	01/2015 - 12/2999	5
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	BB4#,5#,HZB50,RZB40,50..5F L=11,OD=11	01/1993 - 07/1999	1
90253-13017	BB4#,5#,HZB50,RZB40,50..5F L=12,OD=13	01/1993 - 07/1999	2
90253-11001	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=11,OD=11	07/1999 - 08/2004	1
90253-11001	BB42,BZB40,50,HZB50,TRB40,50 L=11,OD=11	01/2015 - 12/2999	1
90253-13017	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) L=12,OD=13	07/1999 - 08/2004	2
90253-11021	XZB40,5#..5F L=8,OD=11	01/2015 - 12/2999	2
90253-11001	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=11,OD=11	08/2004 - 01/2015	1
90253-13017	BB42,BZB40,50,HZB50,TRB40,50 L=12,OD=13	01/2015 - 12/2999	2
90253-13017	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) L=12,OD=13	08/2004 - 01/2015	2
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33124-36030	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33124-36030	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33124-36030	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33124-37021	XZB40,5#..5F	01/2015 - 12/2999	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-37030	XZB40,5#..5F	01/2015 - 12/2999	1
33124L - PIPE, OIL RECEIVER, N0.3(MTM)
33124-37040	XZB40,5#..5F	01/2015 - 12/2999	1
33124M - PIPE, OIL RECEIVER, N0.4(MTM)
33124-37050	XZB40,5#..5F	01/2015 - 12/2999	1
33126 - SEAL, OIL RECEIVER
33126-37010	XZB40,5#..5F	01/2015 - 12/2999	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36080	HZB50..5F	01/1993 - 07/1999	1
33018-36060	RZB40,50	09/1993 - 05/1995	1
33018-36060	BB50..EUR;BB40,42,RZB40,50	05/1995 - 07/1999	1
33018-36060	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33018-36080	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
33018-36080	HZB50	08/2004 - 01/2015	1
33018-37010	BB59,BZB40,50;BB50..EX..TDEFI;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
33018-36060	TRB40,50;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
33018-37010	BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
33018-37050	XZB40,5#..5F	01/2015 - 12/2999	1
33018-36060	BB42,TRB40,50	01/2015 - 12/2999	1
33018-37010	BZB40,50	01/2015 - 12/2999	1
33018-36080	HZB50	01/2015 - 12/2999	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90311-32012	BB50..EUR;BB40,42,RZB40,50	01/1993 - 07/1999	1
90311-35023	HZB50..5F;BB43,5#..GEN	01/1993 - 07/1999	1
90311-35023	HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;BB58,59,BZB40,50;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)	07/1999 - 08/2004	1
90311-35023	BZB40,50,HZB50,XZB40,5#..5F	01/2015 - 12/2999	1
90311-32012	BB42,TRB40,50	01/2015 - 12/2999	1
90311-32012	BB42,RZB40,50,TRB40,50	08/2004 - 01/2015	1
90311-35023	BB5#,BZB40,50,HZB50,XZB40,5#..MTM	08/2004 - 01/2015	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011	XZB40,5#..5F	08/2006 - 01/2015	1
90311-48011	XZB40,5#..5F	01/2015 - 12/2999	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	BB4#,HZB50,RZB40,50..CBU..5F	05/1994 - 07/1999	1
33017-36041	BB5#,HZB50..TD	03/1995 - 07/1999	1
33017-36040	HZB50..TD	01/1993 - 03/1995	1
33017-36030	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 05/1994	1
33017-36031	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33017-36080	XZB40,5#..5F	01/2015 - 12/2999	1
33017-36031	BB42,BZB40,50,HZB50,TRB40,50	01/2015 - 12/2999	1
33017-36031	BB42..RHD;BB42..LHD..SRF;BZB40,50,HZB50,TRB40,50..STD	08/2004 - 01/2015	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36040	HZB50..GCC;BB50,58..6F..TDEFI	07/1999 - 08/2004	1
33161-36010	BB4#,RZB40,50;HZB50..(GEN,SCO)..5F	01/1993 - 07/1999	1
33161-36040	HZB50..(ARL,GCC)..5F	01/1993 - 07/1999	1
33161-36010	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC..GEN;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33161-36010	BB42..RHD;TRB40,50,XZB59;BB42..LHD..SRF;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,XZB40..STD..GEN	08/2004 - 01/2015	1
33161-36040	HZB50..GCC *FGR=43:7	08/2004 - 01/2015	1
33161-36040	HZB50..GCC	01/2015 - 12/2999	1
33161-36010	HZB50..GEN;BB42,BZB40,50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB50..6F..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;BB58,BZB40,50,RZB40,50..(17S,21S,23S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
33162-36020	BB4#,HZB50,RZB40,50..CBU..5F	01/1993 - 07/1999	1
33162-36020	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F	01/2015 - 12/2999	1
33162-36020	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BZB40,50,HZB50,TRB40,50,XZB40..STD	08/2004 - 01/2015	1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-37010	XZB40,5#..5F	01/2015 - 12/2999	1
35469P - SPACER (FOR TRANSMISSION REAR RETAINER)
35469-37010	XZB40,5#..5F	01/2015 - 12/2999	1
Common parts
90105-12349
90119-08333
90119-10970
90341-16013
90341-18039
91511-J0820
91611-60828
91612-61035
91612-61045
Linked diagrams
3307
8401

HZB50L-ZGMSSV (1993)

(9309- )RZB40,50,TRB40,50

ILLUST NO. 2 OF 2(9301- )BB4#,BZB40,50,HZB50..ARL,GCC,GEN,SCO..5F

ILLUST NO. 2 OF 2(9301-9605)TD

ILLUST NO. 1 OF 2(9301- )HZB50..5F

(0608- )XZB40,5#..5F

Part Price Details
