Toyota Coaster HZB50 TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZGMSSV (1993)
3301 - TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

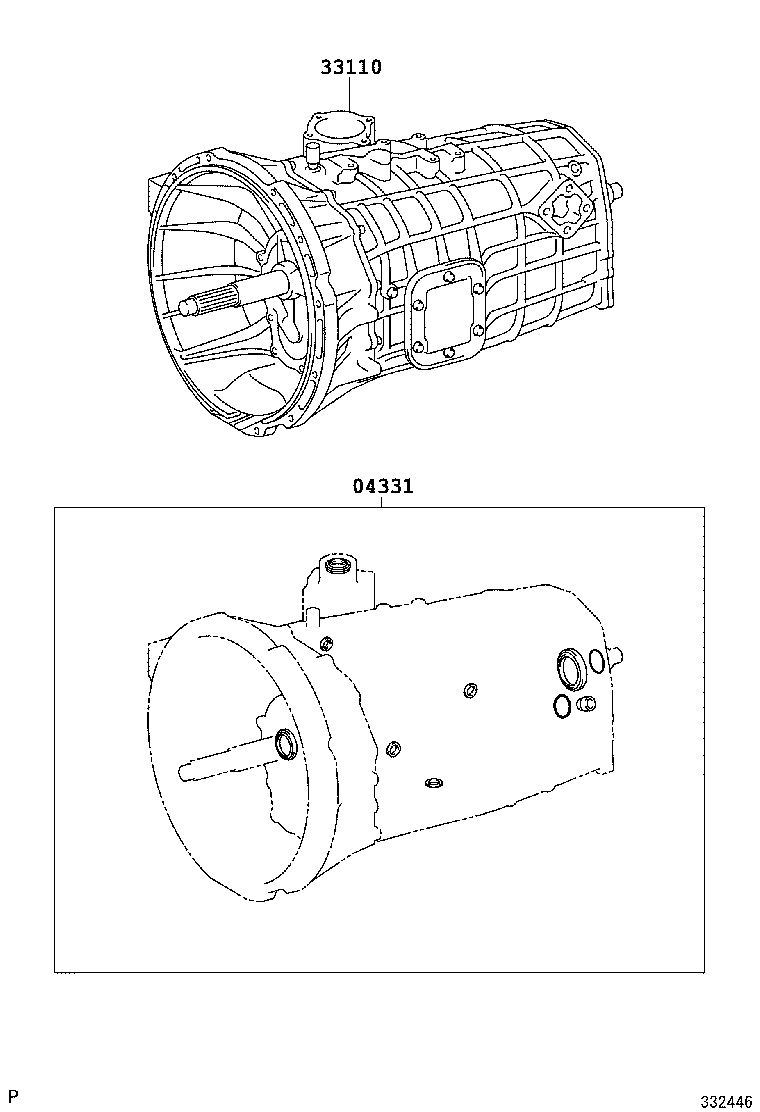

(9301- )BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50..5F

Click highlighted areas on diagram

M152,M155,M156

Part #	Description	Period	Qty
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-36080	BB4#,RZB40,50	01/1993 - 05/1995	1
04331-36090	HZB50..5F	01/1993 - 05/1995	1
04331-36080	BB4#,5#,HZB50,RZB40,50..5F	05/1995 - 07/1999	1
04331-36080	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
04331-36251	HZB50 W(EXHAUST BRAKE)	08/2004 - 01/2015	1
04331-36090	BB59,BZB40,50;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
04331-36420	TRB40,50;BB42..LHD..SRF	08/2004 - 01/2015	1
04331-36370	XZB40,5#..5F	01/2015 - 12/2999	1
04331-36420	TRB40,50	01/2015 - 12/2999	1
04331-36251	HZB50..GCC	01/2015 - 12/2999	1
33110 - TRANSMISSION ASSY, MANUAL
33120-3E630	HZB50..GCC..5F M155,W(EXHAUST BRAKE)	01/1993 - 05/1995	1
33120-3E620	HZB50..GCC..5F M155	01/1993 - 05/1995	1
33110-3J540	HZB50..LHD..TD M155	05/1995 - 05/1996	1
33120-3E700	HZB50..LHD..TD M155	01/1993 - 05/1995	1
33110-3J350	RZB40,50 M150	09/1993 - 05/1995	1
33110-3J460	HZB50..GCC..5F M155	05/1995 - 05/1997	1
33110-3J470	HZB50..GCC..5F M155,W(EXHAUST BRAKE)	05/1995 - 05/1997	1
33120-3E400	RZB40,50 M150	05/1995 - 05/1997	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	05/1997 - 07/1999	1
33110-3J461	HZB50..GCC M155	05/1997 - 07/1999	1
33120-3E401	RZB40,50 M150	05/1997 - 07/1999	1
33110-3J461	HZB50..GCC M155	07/1999 - 08/2004	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	07/1999 - 08/2004	1
33110-3J640	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) M156	07/1999 - 08/2004	1
33110-3J640	TRB40,50 M156	08/2004 - 10/2011	1
33110-36A21	XZB40,5#..5F M551	08/2011 - 09/2013	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	08/2004 - 01/2015	1
33110-3J461	HZB50..GCC M155	08/2004 - 01/2015	1
33110-3J710	HZB50..GCC M155,*FGR=43:7	09/2012 - 01/2015	1
33110-3J641	TRB40,50 M156	10/2011 - 01/2015	1
33110-3J720	HZB50..GCC M155,*FGR=43:7,W(EXHAUST BRAKE)	09/2012 - 01/2015	1
33110-36A22	XZB40,5#..5F M551	01/2015 - 12/2999	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	01/2015 - 12/2999	1
33110-3J660	BZB40,50 M155	01/2015 - 12/2999	1
33110-3J461	HZB50..GCC M155	01/2015 - 12/2999	1
33110-3J641	TRB40,50 M156	01/2015 - 12/2999	1
33110-3J710	HZB50..GCC M155,W(ABS)	01/2015 - 12/2999	1
33110-3J720	HZB50..GCC M155,W(ABS & EXHAUST BRAKE)	01/2015 - 12/2999	1

(0608- )XZB40,5#..5F

Click highlighted areas on diagram

M551

Part #	Description	Period	Qty
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-36080	BB4#,RZB40,50	01/1993 - 05/1995	1
04331-36090	HZB50..5F	01/1993 - 05/1995	1
04331-36080	BB4#,5#,HZB50,RZB40,50..5F	05/1995 - 07/1999	1
04331-36080	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
04331-36251	HZB50 W(EXHAUST BRAKE)	08/2004 - 01/2015	1
04331-36090	BB59,BZB40,50;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F	07/1999 - 08/2004	1
04331-36420	TRB40,50;BB42..LHD..SRF	08/2004 - 01/2015	1
04331-36370	XZB40,5#..5F	01/2015 - 12/2999	1
04331-36420	TRB40,50	01/2015 - 12/2999	1
04331-36251	HZB50..GCC	01/2015 - 12/2999	1
33110 - TRANSMISSION ASSY, MANUAL
33120-3E630	HZB50..GCC..5F M155,W(EXHAUST BRAKE)	01/1993 - 05/1995	1
33120-3E620	HZB50..GCC..5F M155	01/1993 - 05/1995	1
33110-3J540	HZB50..LHD..TD M155	05/1995 - 05/1996	1
33120-3E700	HZB50..LHD..TD M155	01/1993 - 05/1995	1
33110-3J350	RZB40,50 M150	09/1993 - 05/1995	1
33110-3J460	HZB50..GCC..5F M155	05/1995 - 05/1997	1
33110-3J470	HZB50..GCC..5F M155,W(EXHAUST BRAKE)	05/1995 - 05/1997	1
33120-3E400	RZB40,50 M150	05/1995 - 05/1997	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	05/1997 - 07/1999	1
33110-3J461	HZB50..GCC M155	05/1997 - 07/1999	1
33120-3E401	RZB40,50 M150	05/1997 - 07/1999	1
33110-3J461	HZB50..GCC M155	07/1999 - 08/2004	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	07/1999 - 08/2004	1
33110-3J640	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) M156	07/1999 - 08/2004	1
33110-3J640	TRB40,50 M156	08/2004 - 10/2011	1
33110-36A21	XZB40,5#..5F M551	08/2011 - 09/2013	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	08/2004 - 01/2015	1
33110-3J461	HZB50..GCC M155	08/2004 - 01/2015	1
33110-3J710	HZB50..GCC M155,*FGR=43:7	09/2012 - 01/2015	1
33110-3J641	TRB40,50 M156	10/2011 - 01/2015	1
33110-3J720	HZB50..GCC M155,*FGR=43:7,W(EXHAUST BRAKE)	09/2012 - 01/2015	1
33110-36A22	XZB40,5#..5F M551	01/2015 - 12/2999	1
33110-3J471	HZB50..GCC M155,W(EXHAUST BRAKE)	01/2015 - 12/2999	1
33110-3J660	BZB40,50 M155	01/2015 - 12/2999	1
33110-3J461	HZB50..GCC M155	01/2015 - 12/2999	1
33110-3J641	TRB40,50 M156	01/2015 - 12/2999	1
33110-3J710	HZB50..GCC M155,W(ABS)	01/2015 - 12/2999	1
33110-3J720	HZB50..GCC M155,W(ABS & EXHAUST BRAKE)	01/2015 - 12/2999	1

HZB50L-ZGMSSV (1993)

(9301- )BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50..5F

(0608- )XZB40,5#..5F
