HZB50L-ZGMSSV (1993)
Toyota Coaster

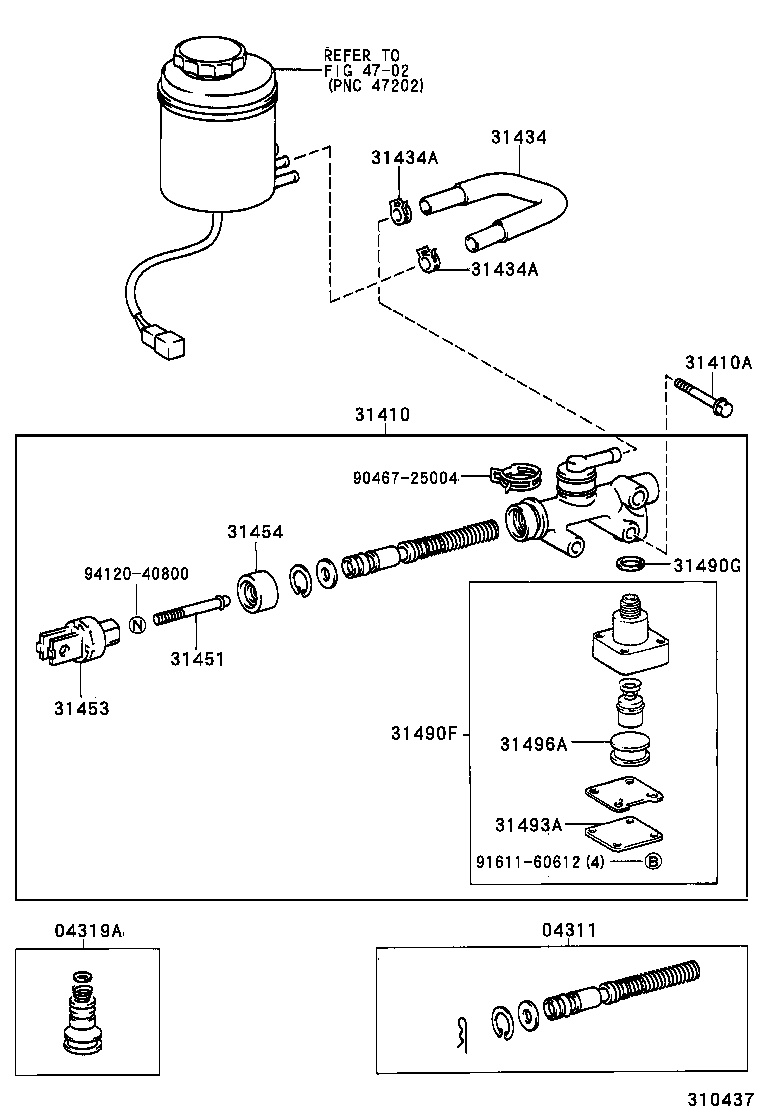

(9309-9505)RZB40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 04311-36180 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 04311-36150 |
BB43,5#,HZB50..TD |
1 | ||
| 04311-36150 |
BB5#,BZB40,50 |
1 | ||
| 04311-36151 |
BB5#,BZB40,50 |
1 | ||
| 04311-36150 |
BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 04311-36082 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 04311-12110 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 04311-26050 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 04311-36230 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 04311-36230 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 04311-26050 |
BB42,HZB50,TRB40,50 |
1 | ||
| 04319A - CYLINDER KIT, CLUTCH ACCUMULATOR | ||||
| 04319-60010 |
RZB40,50 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-36130 |
BB4#,HZB50..5F..DSL |
1 | ||
| 31420-36190 |
RZB40,50 |
1 | ||
| 31420-36130 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31401-36091 |
BB5#,BZB40,50 |
1 | ||
| 31420-36130 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 31401-36090 |
BB5#,BZB40,50 |
1 | ||
| 31401-36090 |
BB5#,BZB40,50 |
1 | ||
| 31420-36130 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31420-36130 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31401-36092 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 31401-36092 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90119-08472 |
BB40,42,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90119-08472 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 90119-08472 |
BB42,HZB50,RZB40,50 |
2 | ||
| 90119-08108 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
2 | ||
| 90119-08108 |
BB42,HZB50,TRB40,50 |
2 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36270 |
BB42,HZB50,RZB40,50..LHD..CBU..5F |
1 | ||
| 31434-36270 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;HZB50,RZB50..LHD..(GCC,GEN);RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 31434-36270 |
BB42,HZB50,TRB40,50..LHD |
1 | ||
| 31434-36310 |
XZB59;BZB40,50,XZB40..STD;XZB50..RHD..(20S,21S)..WC..5F |
1 | ||
| 31434-36270 |
BB42..LHD..SRF;HZB50,TRB40,50..LHD |
1 | ||
| 31434-36320 |
XZB40,50..LHD |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-13070 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 96132-51300 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
2 | ||
| 90467-13070 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 96132-51300 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
2 | ||
| 96132-51300 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-13070 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 96132-51300 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
2 | ||
| 90467-13070 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 96132-51300 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
2 | ||
| 96132-51300 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-36040 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31451-36040 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 31451-36040 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31451-36040 |
BB42,HZB50,RZB40,50 |
1 | ||
| 31451-36040 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-36021 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31404-36031 |
BB43,5#,HZB50..TD |
1 | ||
| 31404-35011 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 31404-35013 |
BB42,HZB50,RZB40,50 |
1 | ||
| 31404-36031 |
BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 31404-35011 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 31404-35013 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31404-36031 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 31404-35013 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31404-36031 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31454-14010 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31454-14010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 31454-14010 |
BB42,HZB50,RZB40,50 |
1 | ||
| 31490F - ACCUMULATOR ASSY, MASTER CYLINDER | ||||
| 31490-60010 |
RZB40,50 |
1 | ||
| 31490G - GASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR) | ||||
| 90430-16005 |
RZB40,50 |
1 | ||
| 31493A - BRACKET, CLUTCH ACCUMULATOR | ||||
| 31493-27030 |
RZB40,50 |
1 | ||
| 31496A - CUSHION, CLUTCH ACCUMULATOR | ||||
| 31496-35020 |
RZB40,50;BB42..LHD..HRF..26S |
1 | ||
| Common parts | ||||
| 90467-25004 | ||||
| 91611-60612 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4702 | ||||

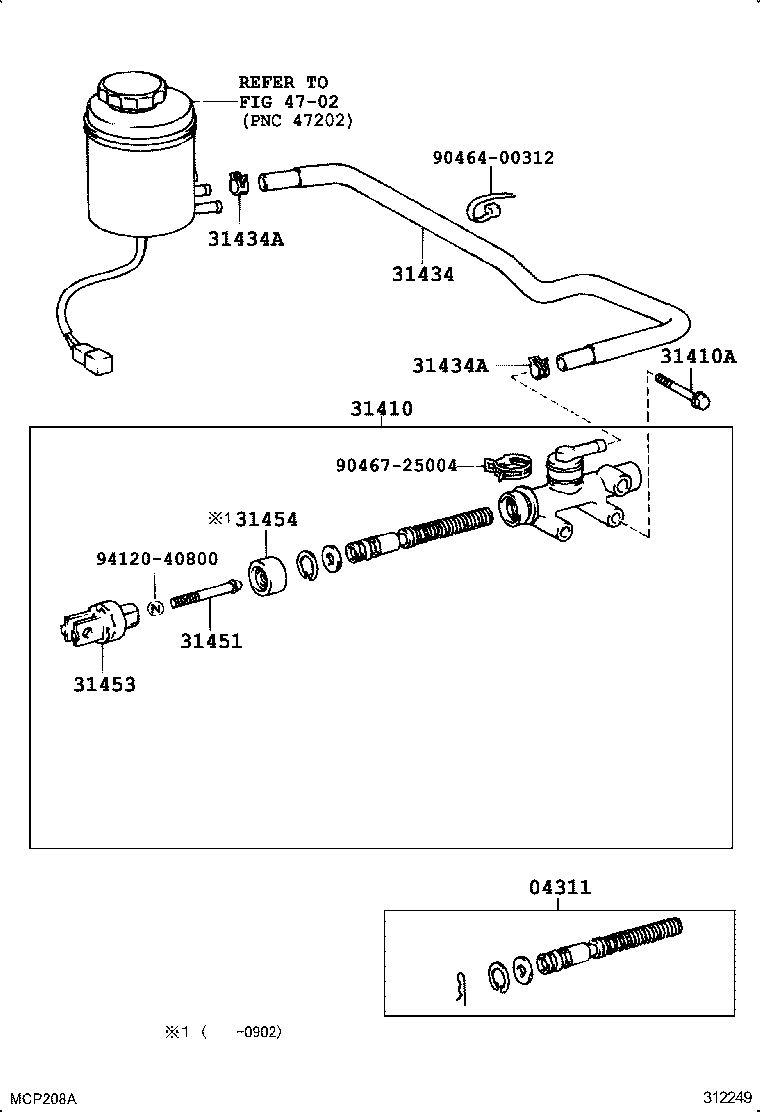

(9505-0708)RZB40,50 ; (0708- )TRB40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 04311-36180 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 04311-36150 |
BB43,5#,HZB50..TD |
1 | ||
| 04311-36150 |
BB5#,BZB40,50 |
1 | ||
| 04311-36151 |
BB5#,BZB40,50 |
1 | ||
| 04311-36150 |
BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 04311-36082 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 04311-12110 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 04311-26050 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 04311-36230 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 04311-36230 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 04311-26050 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-36130 |
BB4#,HZB50..5F..DSL |
1 | ||
| 31420-36190 |
RZB40,50 |
1 | ||
| 31420-36130 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31401-36091 |
BB5#,BZB40,50 |
1 | ||
| 31420-36130 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 31401-36090 |
BB5#,BZB40,50 |
1 | ||
| 31401-36090 |
BB5#,BZB40,50 |
1 | ||
| 31420-36130 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31420-36130 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31401-36092 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 31401-36092 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90119-08472 |
BB40,42,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90119-08472 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 90119-08472 |
BB42,HZB50,RZB40,50 |
2 | ||
| 90119-08108 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
2 | ||
| 90119-08108 |
BB42,HZB50,TRB40,50 |
2 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36270 |
BB42,HZB50,RZB40,50..LHD..CBU..5F |
1 | ||
| 31434-36270 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;HZB50,RZB50..LHD..(GCC,GEN);RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 31434-36270 |
BB42,HZB50,TRB40,50..LHD |
1 | ||
| 31434-36310 |
XZB59;BZB40,50,XZB40..STD;XZB50..RHD..(20S,21S)..WC..5F |
1 | ||
| 31434-36270 |
BB42..LHD..SRF;HZB50,TRB40,50..LHD |
1 | ||
| 31434-36320 |
XZB40,50..LHD |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-13070 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 96132-51300 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
2 | ||
| 90467-13070 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 96132-51300 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
2 | ||
| 96132-51300 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-13070 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 96132-51300 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
2 | ||
| 90467-13070 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 96132-51300 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
2 | ||
| 96132-51300 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-36040 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31451-36040 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 31451-36040 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31451-36040 |
BB42,HZB50,RZB40,50 |
1 | ||
| 31451-36040 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-36021 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31404-36031 |
BB43,5#,HZB50..TD |
1 | ||
| 31404-35011 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 31404-35013 |
BB42,HZB50,RZB40,50 |
1 | ||
| 31404-36031 |
BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 31404-35011 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 31404-35013 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31404-36031 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 31404-35013 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31404-36031 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31454-14010 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31454-14010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 31454-14010 |
BB42,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90467-25004 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(9301- )BB4#,HZB50..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 04311-36180 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 04311-36150 |
BB43,5#,HZB50..TD |
1 | ||
| 04311-36150 |
BB5#,BZB40,50 |
1 | ||
| 04311-36151 |
BB5#,BZB40,50 |
1 | ||
| 04311-36150 |
BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 04311-36082 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 04311-12110 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 04311-26050 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 04311-36230 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 04311-36230 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 04311-26050 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-36130 |
BB4#,HZB50..5F..DSL |
1 | ||
| 31420-36190 |
RZB40,50 |
1 | ||
| 31420-36130 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31401-36091 |
BB5#,BZB40,50 |
1 | ||
| 31420-36130 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 31401-36090 |
BB5#,BZB40,50 |
1 | ||
| 31401-36090 |
BB5#,BZB40,50 |
1 | ||
| 31420-36130 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31420-36130 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31401-36092 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 31401-36092 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90119-08472 |
BB40,42,HZB50,RZB40,50..CBU..5F |
2 | ||
| 90119-08472 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 90119-08472 |
BB42,HZB50,RZB40,50 |
2 | ||
| 90119-08108 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
2 | ||
| 90119-08108 |
BB42,HZB50,TRB40,50 |
2 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36270 |
BB42,HZB50,RZB40,50..LHD..CBU..5F |
1 | ||
| 31434-36270 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;HZB50,RZB50..LHD..(GCC,GEN);RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 31434-36270 |
BB42,HZB50,TRB40,50..LHD |
1 | ||
| 31434-36310 |
XZB59;BZB40,50,XZB40..STD;XZB50..RHD..(20S,21S)..WC..5F |
1 | ||
| 31434-36270 |
BB42..LHD..SRF;HZB50,TRB40,50..LHD |
1 | ||
| 31434-36320 |
XZB40,50..LHD |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-13070 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 96132-51300 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
2 | ||
| 90467-13070 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 96132-51300 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
2 | ||
| 96132-51300 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-13070 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 96132-51300 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN |
2 | ||
| 90467-13070 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
2 | ||
| 96132-51300 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
2 | ||
| 96132-51300 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-36040 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31451-36040 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 31451-36040 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31451-36040 |
BB42,HZB50,RZB40,50 |
1 | ||
| 31451-36040 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-36021 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31404-36031 |
BB43,5#,HZB50..TD |
1 | ||
| 31404-35011 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF..(26S,30S)..WC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 31404-35013 |
BB42,HZB50,RZB40,50 |
1 | ||
| 31404-36031 |
BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 31404-35011 |
BB40,42,HZB50,RZB40,50..5F |
1 | ||
| 31404-35013 |
BB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF |
1 | ||
| 31404-36031 |
XZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD) |
1 | ||
| 31404-35013 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31404-36031 |
BZB40,50,XZB40,5#..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31454-14010 |
BB42,HZB50,TRB40,50 |
1 | ||
| 31454-14010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN) |
1 | ||
| 31454-14010 |
BB42,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90464-00312 | ||||
| 90467-25004 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
