HZB50L-ZGMSSV (1993)
Toyota Coaster
(9301- )1HZ#

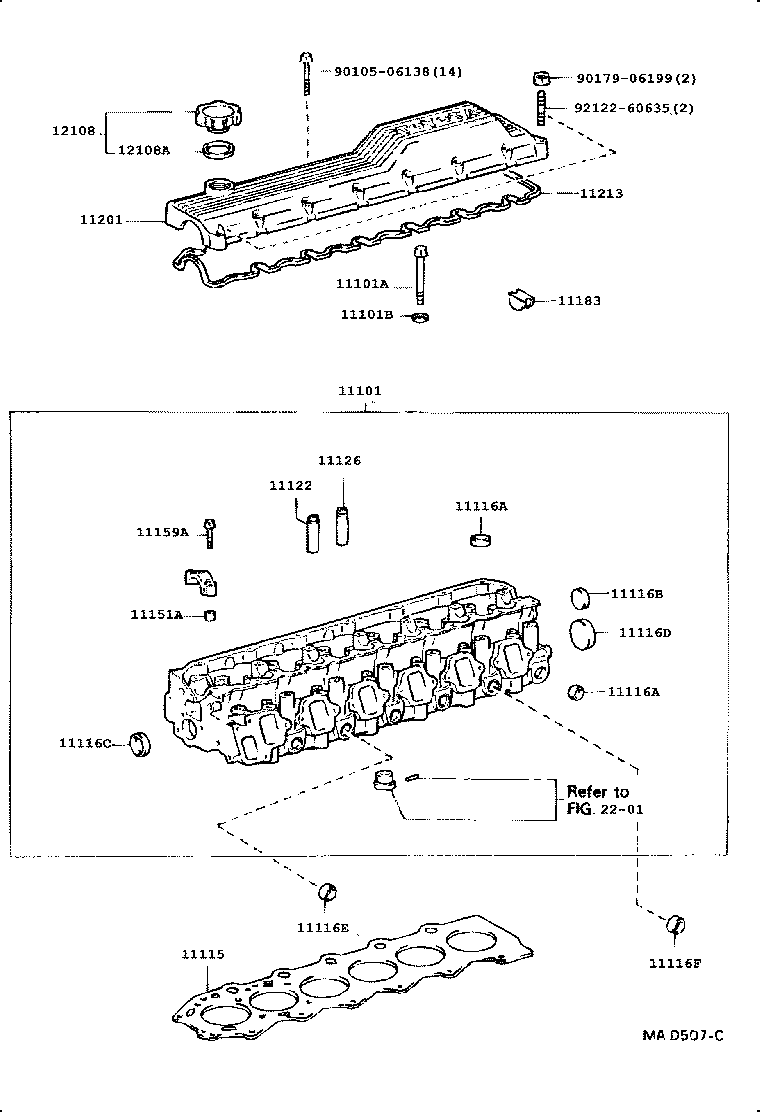

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-17010 |
1HZ..HZB50 |
1 | ||
| 11101-17011 |
1HZ..HZB50 |
1 | ||
| 11101-17012 |
1HZ..HZB50 |
1 | ||
| 11101-17050 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 11101-17050 |
1HZ..HZB50 |
1 | ||
| 11101-17050 |
1HZ..HZB50 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02096 |
1HZ#..HZB50 |
26 | ||
| 90910-02096 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
26 | ||
| 90910-02096 |
1HZ..HZB50 |
26 | ||
| 90910-02096 |
1HZ..HZB50 |
26 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11032 |
1HZ#..HZB50 |
26 | ||
| 90201-11027 |
1HZ#..HZB50 |
26 | ||
| 90201-11032 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
26 | ||
| 90201-11032 |
1HZ..HZB50 |
26 | ||
| 90201-11032 |
1HZ..HZB50 |
26 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-1701003 |
1HZ..HZB50 MARK 3 |
1 | ||
| 11115-1701001 |
1HZ..HZB50 MARK 1 |
1 | ||
| 11115-1701005 |
1HZ..HZB50 MARK 5 |
1 | ||
| 11115-1704003 |
1HZ..HZB50 MARK 3,MARK 3 |
1 | ||
| 11115-1704005 |
1HZ..HZB50 MARK 5,MARK 5 |
1 | ||
| 11115-1704001 |
1HZ..HZB50 MARK 1,MARK 1 |
1 | ||
| 11115-1704005 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC MARK 5 |
1 | ||
| 11115-1704003 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC MARK 3 |
1 | ||
| 11115-1704001 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC MARK 1 |
1 | ||
| 11115-1704001 |
1HZ..HZB50 MARK 1 |
1 | ||
| 11115-1704005 |
1HZ..HZB50 MARK 5 |
1 | ||
| 11115-1704003 |
1HZ..HZB50 MARK 3 |
1 | ||
| 11115-1704003 |
1HZ..HZB50 MARK 3 |
1 | ||
| 11115-1704005 |
1HZ..HZB50 MARK 5 |
1 | ||
| 11115-1704001 |
1HZ..HZB50 MARK 1 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
1HZ#..HZB50 |
10 | ||
| 96411-42500 |
1HZ..HZB50 |
10 | ||
| 96411-42500 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
10 | ||
| 96411-42500 |
1HZ..HZB50 |
10 | ||
| 96411-62500 |
1HZ..HZB50 |
10 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
1HZ#..HZB50 |
10 | ||
| 96411-42500 |
1HZ..HZB50 |
10 | ||
| 96411-42500 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
10 | ||
| 96411-42500 |
1HZ..HZB50 |
10 | ||
| 96411-62500 |
1HZ..HZB50 |
10 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-43500 |
1HZ#..HZB50 |
1 | ||
| 96411-43500 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 96411-43500 |
1HZ..HZB50 |
1 | ||
| 96411-43500 |
1HZ..HZB50 |
1 | ||
| 96411-63500 |
1HZ..HZB50 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-44000 |
1HZ#..HZB50 |
1 | ||
| 96411-44000 |
1HZ..HZB50 |
1 | ||
| 96411-44000 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 96411-64000 |
1HZ..HZB50 |
1 | ||
| 96411-44000 |
1HZ..HZB50 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-44500 |
1HZ#..HZB50 |
1 | ||
| 96411-44500 |
1HZ..HZB50 |
1 | ||
| 96411-44500 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 96411-64500 |
1HZ..HZB50 |
1 | ||
| 96411-44500 |
1HZ..HZB50 |
1 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-42500 |
1HZ..HZB50 |
1 | ||
| 96411-42500 |
1HZ..HZB50 |
1 | ||
| 96411-42500 |
1HZ..HZB50..GCC,GEN,SCO |
1 | ||
| 96411-42500 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 96411-42500 |
1HZ..HZB50 |
1 | ||
| 11116F - PLUG, TIGHT, NO.6 | ||||
| 96411-42500 |
1HZ..HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 96411-42500 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 96411-42500 |
1HZ..HZB50 |
1 | ||
| 96411-42500 |
1HZ..HZB50 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54020 |
1HZ#..HZB50 STD |
6 | ||
| 11122-17020 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC STD |
6 | ||
| 11123-54020 |
1HZ#..HZB50 O/S 0.05 |
6 | ||
| 11123-17020 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC O/S 0.05 |
6 | ||
| 11122-17020 |
1HZ..HZB50 STD |
6 | ||
| 11122-17020 |
1HZ..HZB50 STD |
6 | ||
| 11123-17020 |
1HZ..HZB50 O/S 0.05 |
6 | ||
| 11123-17020 |
1HZ..HZB50 O/S 0.05 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-54020 |
1HZ#..HZB50 STD |
6 | ||
| 11123-54020 |
1HZ#..HZB50 O/S 0.05 |
6 | ||
| 11122-17020 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC STD |
6 | ||
| 11123-17020 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC O/S 0.05 |
6 | ||
| 11122-17020 |
1HZ..HZB50 STD |
6 | ||
| 11122-17020 |
1HZ..HZB50 STD |
6 | ||
| 11123-17020 |
1HZ..HZB50 O/S 0.05 |
6 | ||
| 11123-17020 |
1HZ..HZB50 O/S 0.05 |
6 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC L=8,OD=11 |
14 | ||
| 90253-11021 |
1HZ#..HZB50 L=8,OD=11 |
14 | ||
| 90253-11021 |
1HZ..HZB50 L=8,OD=11 |
14 | ||
| 90253-11021 |
1HZ..HZB50 L=8,OD=11 |
14 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08789 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
14 | ||
| 90119-08789 |
1HZ#..HZB50 |
14 | ||
| 90119-08789 |
1HZ..HZB50 |
14 | ||
| 90119-08789 |
1HZ..HZB50 |
14 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-54011 |
1HZ#..HZB50 |
1 | ||
| 11183-54011 |
1HZ..HZB50 |
1 | ||
| 11183-54011 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 11183-54011 |
1HZ..HZB50 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-17020 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 11201-17020 |
1HZ#..HZB50 |
1 | ||
| 11201-17020 |
1HZ..HZB50 |
1 | ||
| 11201-17020 |
1HZ..HZB50 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-17010 |
1HZ#..HZB50 |
1 | ||
| 11213-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 11213-17010 |
1HZ..HZB50 |
1 | ||
| 11213-17010 |
1HZ..HZB50 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1HZ#..HZB50 |
1 | ||
| 12180-55010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 12180-55010 |
1HZ..HZB50 |
1 | ||
| 12180-55010 |
1HZ..HZB50 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37004 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 90430-37004 |
1HZ..HZB50 |
1 | ||
| 90430-37004 |
1HZ..HZB50 |
1 | ||
| 90430-37004 |
1HZ#..HZB50 |
1 | ||
| Common parts | ||||
| 90105-06138 | ||||
| 90179-06199 | ||||
| 92122-60635 | ||||
| Linked diagrams | ||||
| 2201 | ||||
