Toyota Coaster HZB50 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
EU
COASTER
HZB50L-ZCMQS (1993)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

HZB50L-ZCMQS (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

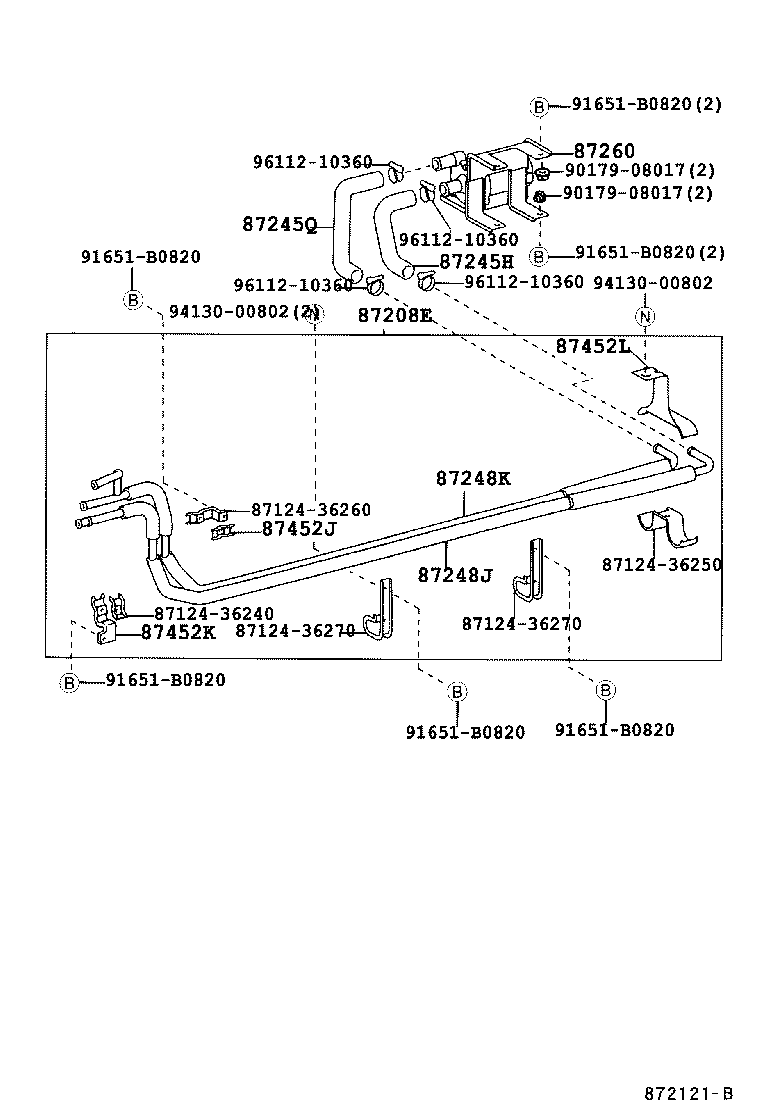

ILLUST NO. 3 OF 3(9301-9907)RHD..IV ; (9301-9907)GCC..4FC ; (9301-9907)BB42..LHD..WOC..GEN ; (9301-9

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36700	BB42,50,58,HZB50,RZB40,50..LHD..CBU	08/2001 - 11/2002	1
87208-36700	BB42,50,58,HZB50,RZB40,50..LHD..CBU	11/2002 - 08/2004	1
87208-36700	BB50..WOC..5F;BB50..LHD..TDEFI;BB42,5#,HZB50,RZB40,50..LHD..CBU	07/1999 - 08/2001	1
Common parts
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
91651-B0820
94130-00802
96112-10360

ILLUST NO. 2 OF 3(9301-9907)HZB50,RZB50..LHD

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36550	BB42,HZB50..LHD	01/1993 - 08/1993	1
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36700	BB42..LHD..WC;BB42..WOC..GCC;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	HZB50..HRF;HZB50..SRF..GCC;BB42,58,RZB40,50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36530	HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	08/1993 - 05/1997	1
87208-36530	BB4#,HZB50..ARL,EUR,GCC,GEN	01/1993 - 08/1993	1
87208-36670	HZB50..5F;BB42,5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-36290	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1997	1
87245-36280	BB42,HZB50,RZB40..LHD..(17S,20S,22S)..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	01/1993 - 05/1997	1
87245-3C590	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C600	BB42,HZB50,RZB40..LHD..(17S,20S,22S) FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-36290	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1997	1
87245-36280	BB42,HZB50,RZB40..LHD..(17S,20S,22S)..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	01/1993 - 05/1997	1
87245-3C590	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C600	BB42,HZB50,RZB40..LHD..(17S,20S,22S) FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1	05/1997 - 07/1999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B790	BB42,HZB50,RZB40..LHD..(17S,20S,22S)	01/1993 - 05/1997	1
87245-3B791	BB42,50,HZB50,RZB40..LHD..(17S,20S,22S)	05/1997 - 07/1999	1
87245-3B791	BB50,HZB50..LHD..EX;BB50..CBU..6F..TDEFI;RZB40..(17S,22S)..(CHI,GCC) NO.1	07/1999 - 11/2002	1
87245-3C600	BB50,HZB50..LHD..EX;BB50..CBU..6F..TDEFI;RZB40..(17S,22S)..(CHI,GCC) NO.2	07/1999 - 11/2002	1
87245-3B791	BB50,HZB50,RZB40..LHD..(17S,19S,20S) NO.1	11/2002 - 08/2004	1
87245-3C600	BB50,HZB50,RZB40..LHD..(17S,19S,20S) NO.2	11/2002 - 08/2004	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B760	BB42,HZB50..LHD	01/1993 - 08/1993	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B760	BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1997	1
87245-3B761	BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87255J - HOSE, HEATER WATER INLET, J
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87255K - HOSE, REAR HEATER WATER INLET, K
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-3B800	BB42,HZB50,RZB40..LHD..(17S,20S,22S)	01/1993 - 05/1997	1
87245-3B801	BB42,50,HZB50,RZB40..LHD..(17S,20S,22S)	05/1997 - 07/1999	1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87256K - HOSE, REAR HEATER WATER OUTLET, K
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87256L - HOSE, REAR HEATER WATER OUTLET, L
87245-3B750	BB42,HZB50..LHD	01/1993 - 08/1993	1
87245-3B750	BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1997	1
87245-3B751	BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
Common parts
87124-36040
87124-36050
87124-36060
87124-90B09
91651-60616
96112-10250
96134-42100
96134-42300

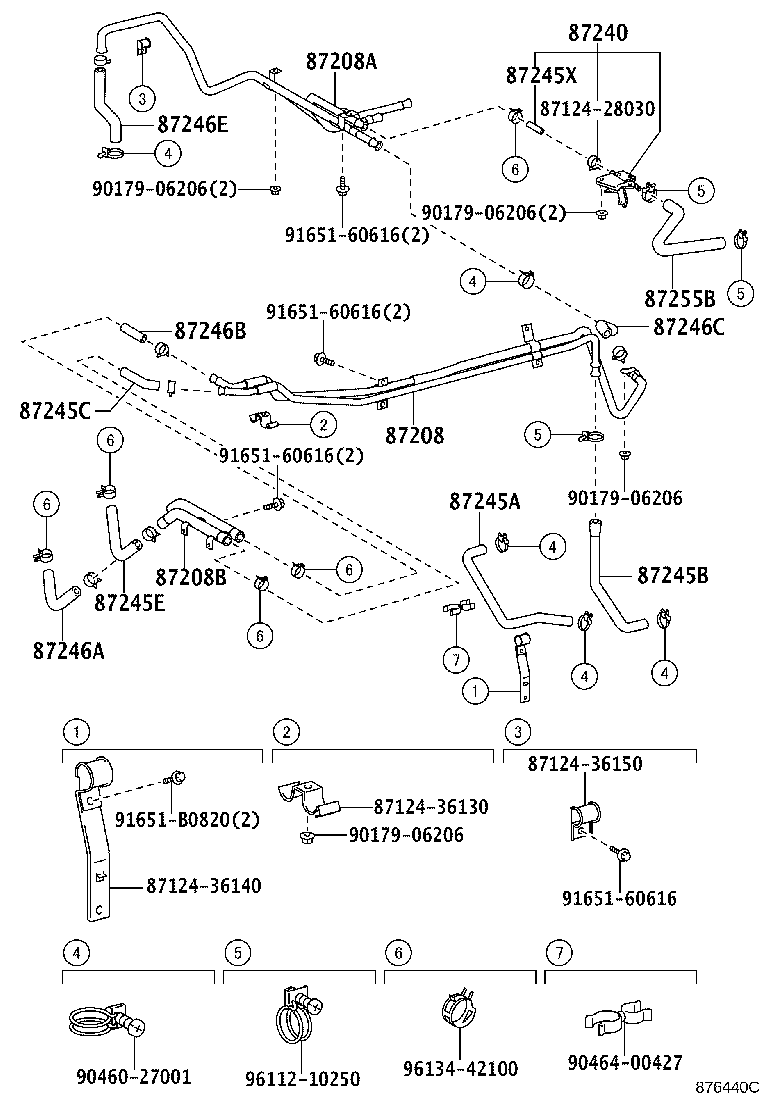

ILLUST NO. 1 OF 3(9301-9907)HZB50..LHD..GEN

Click highlighted areas on diagram

FRONT(W/WATER PUMP)

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36380	HZB50..LHD	01/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36382	HZB50..LHD	07/1999 - 08/2004	1
87208-36381	HZB50..LHD	05/1997 - 07/1999	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..GCC;HZB50..LHD..EX;HZB50..LHD..HRF..WOC..DSL FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..EX;HZB50..LHD..HRF..WOC..DSL FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 01/1994	1
87208-36460	HZB50..GCC;HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1995 - 05/1997	1
87208-36190	BB42,RZB40,50..LHD..HRF..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1995 - 05/1997	1
87208-36461	HZB50..GCC;HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1997 - 07/1999	1
87208-36730	BB42,RZB40,50..LHD..HRF..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36480	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C541	BB42..WC..GCC;BB50..LHD..TDEFI;BB42,50,58..LHD..(20S,23S,26S,30S)..(CHI,GEN)	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-3C541	BB42,50,58..LHD	11/2002 - 08/2004	1
87245B - HOSE, HEATER WATER, INLET B
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C461	HZB50..EX;HZB50..GCC;HZB50..HRF..WOC;BB42,RZB40,50..LHD	11/2002 - 08/2004	1
87245C - HOSE, HEATER WATER ,INLET C
87245-3B420	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3B421	HZB50..LHD;BB42..LHD..26S..WC;BB42..LHD..SRF..WOC..GEN	07/1999 - 08/2004	1
87245-3B421	BB42,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B490	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245X - HOSE, HEATER WATER
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-36290	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1997	1
87245-36280	BB42,HZB50,RZB40..LHD..(17S,20S,22S)..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	01/1993 - 05/1997	1
87245-3C590	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C600	BB42,HZB50,RZB40..LHD..(17S,20S,22S) FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1	05/1997 - 07/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B500	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C461	BB42,HZB50,RZB40,50..LHD	11/2002 - 08/2004	1
87245-3C461	BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;HZB50,RZB50..LHD;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC	07/1999 - 11/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
99556-30065	BB42,HZB50,RZB40,50..LHD *H,L=65	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3C440	BB42,HZB50..LHD	05/1997 - 07/1999	1
87245-3B481	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3B410	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36262	HZB50..5F	05/1997 - 07/1999	1
87245-36261	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 05/1997	1
87245-36263	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
Common parts
87124-28030
87124-36130
87124-36140
87124-36150
90179-06206
90460-27001
90464-00427
91651-60616
91651-B0820
96112-10250
96134-42100

ILLUST NO. 1 OF 3(9301-9907)HZB50..LHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36380	HZB50..LHD	01/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36382	HZB50..LHD	07/1999 - 08/2004	1
87208-36381	HZB50..LHD	05/1997 - 07/1999	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..GCC;HZB50..LHD..EX;HZB50..LHD..HRF..WOC..DSL FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..EX;HZB50..LHD..HRF..WOC..DSL FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 01/1994	1
87208-36460	HZB50..GCC;HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1995 - 05/1997	1
87208-36190	BB42,RZB40,50..LHD..HRF..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1995 - 05/1997	1
87208-36461	HZB50..GCC;HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1997 - 07/1999	1
87208-36730	BB42,RZB40,50..LHD..HRF..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36480	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C541	BB42..WC..GCC;BB50..LHD..TDEFI;BB42,50,58..LHD..(20S,23S,26S,30S)..(CHI,GEN)	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-3C541	BB42,50,58..LHD	11/2002 - 08/2004	1
87245C - HOSE, HEATER WATER ,INLET C
87245-3B420	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3B421	HZB50..LHD;BB42..LHD..26S..WC;BB42..LHD..SRF..WOC..GEN	07/1999 - 08/2004	1
87245-3B421	BB42,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B490	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245X - HOSE, HEATER WATER
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-36290	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1997	1
87245-36280	BB42,HZB50,RZB40..LHD..(17S,20S,22S)..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	01/1993 - 05/1997	1
87245-3C590	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C600	BB42,HZB50,RZB40..LHD..(17S,20S,22S) FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1	05/1997 - 07/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B500	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C461	BB42,HZB50,RZB40,50..LHD	11/2002 - 08/2004	1
87245-3C461	BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;HZB50,RZB50..LHD;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC	07/1999 - 11/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
99556-30065	BB42,HZB50,RZB40,50..LHD *H,L=65	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3C440	BB42,HZB50..LHD	05/1997 - 07/1999	1
87245-3B481	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3B410	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87248A - PIPE, HEATER WATER INLET, A
87248-14090	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87248-36300	HZB50..LHD..EX;HZB50..WOC..ARL;HZB50..LHD..WOC;BB50..6F..TDEFI;HZB50..LHD..SRF..WC;BB50,58..LHD..(20S,23S,30S);HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
87248-36300	BB50..LHD;BB58,HZB50;BB50..RHD..6F	11/2002 - 08/2004	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36262	HZB50..5F	05/1997 - 07/1999	1
87245-36261	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 05/1997	1
87245-36263	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
Common parts
87124-28030
87124-36130
87124-36150
87214-28030
90179-06206
90460-27001
91651-60616
96112-10250
96134-42100

ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36380	HZB50..LHD	01/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36382	HZB50..LHD	07/1999 - 08/2004	1
87208-36381	HZB50..LHD	05/1997 - 07/1999	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..GCC;HZB50..LHD..EX;HZB50..LHD..HRF..WOC..DSL FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..EX;HZB50..LHD..HRF..WOC..DSL FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 01/1994	1
87208-36460	HZB50..GCC;HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1995 - 05/1997	1
87208-36190	BB42,RZB40,50..LHD..HRF..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1995 - 05/1997	1
87208-36461	HZB50..GCC;HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1997 - 07/1999	1
87208-36730	BB42,RZB40,50..LHD..HRF..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36480	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C541	BB42..WC..GCC;BB50..LHD..TDEFI;BB42,50,58..LHD..(20S,23S,26S,30S)..(CHI,GEN)	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-3C541	BB42,50,58..LHD	11/2002 - 08/2004	1
87245C - HOSE, HEATER WATER ,INLET C
87245-3B420	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3B421	HZB50..LHD;BB42..LHD..26S..WC;BB42..LHD..SRF..WOC..GEN	07/1999 - 08/2004	1
87245-3B421	BB42,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B490	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245X - HOSE, HEATER WATER
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-36290	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1997	1
87245-36280	BB42,HZB50,RZB40..LHD..(17S,20S,22S)..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	01/1993 - 05/1997	1
87245-3C590	HZB50..LHD..EX FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.3	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C600	BB42,HZB50,RZB40..LHD..(17S,20S,22S) FR MANUAL HEATER,W/O(FILTER) & RR HEATER,NO.1	05/1997 - 07/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B500	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C461	BB42,HZB50,RZB40,50..LHD	11/2002 - 08/2004	1
87245-3C461	BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;HZB50,RZB50..LHD;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC	07/1999 - 11/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
99556-30065	BB42,HZB50,RZB40,50..LHD *H,L=65	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3C440	BB42,HZB50..LHD	05/1997 - 07/1999	1
87245-3B481	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3B410	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-3B460	RZB40,50	09/1993 - 05/1997	1
87245-3B461	RZB40,50	05/1997 - 07/1999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
Common parts
87124-28030
87124-36130
90179-06206
90339-16001
90460-27001
91651-60616
96112-10250
96134-42100

ILLUST NO. 1 OF 3(9401-9907)RZB40,50

Click highlighted areas on diagram

FRONT ONLY

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36380	HZB50..LHD	01/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36382	HZB50..LHD	07/1999 - 08/2004	1
87208-36381	HZB50..LHD	05/1997 - 07/1999	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36480	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C541	BB42..WC..GCC;BB50..LHD..TDEFI;BB42,50,58..LHD..(20S,23S,26S,30S)..(CHI,GEN)	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-3C541	BB42,50,58..LHD	11/2002 - 08/2004	1
87245C - HOSE, HEATER WATER ,INLET C
87245-3B420	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3B421	HZB50..LHD;BB42..LHD..26S..WC;BB42..LHD..SRF..WOC..GEN	07/1999 - 08/2004	1
87245-3B421	BB42,HZB50,RZB40,50..LHD	05/1997 - 07/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B490	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B500	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C461	BB42,HZB50,RZB40,50..LHD	11/2002 - 08/2004	1
87245-3C461	BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;HZB50,RZB50..LHD;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC	07/1999 - 11/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
99556-30065	BB42,HZB50,RZB40,50..LHD *H,L=65	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-3B460	RZB40,50	09/1993 - 05/1997	1
87245-3B461	RZB40,50	05/1997 - 07/1999	1
Common parts
87124-28030
87124-36130
90179-06206
90339-16001
90339-18001
91651-60616
96112-10250
96134-42100
96134-42300

HZB50L-ZCMQS (1993)

ILLUST NO. 3 OF 3(9301-9907)RHD..IV ; (9301-9907)GCC..4FC ; (9301-9907)BB42..LHD..WOC..GEN ; (9301-9

ILLUST NO. 2 OF 3(9301-9907)HZB50,RZB50..LHD

ILLUST NO. 1 OF 3(9301-9907)HZB50..LHD..GEN

ILLUST NO. 1 OF 3(9301-9907)HZB50..LHD

ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

ILLUST NO. 1 OF 3(9401-9907)RZB40,50

Part Price Details
