HZB50L-ZCMQS (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

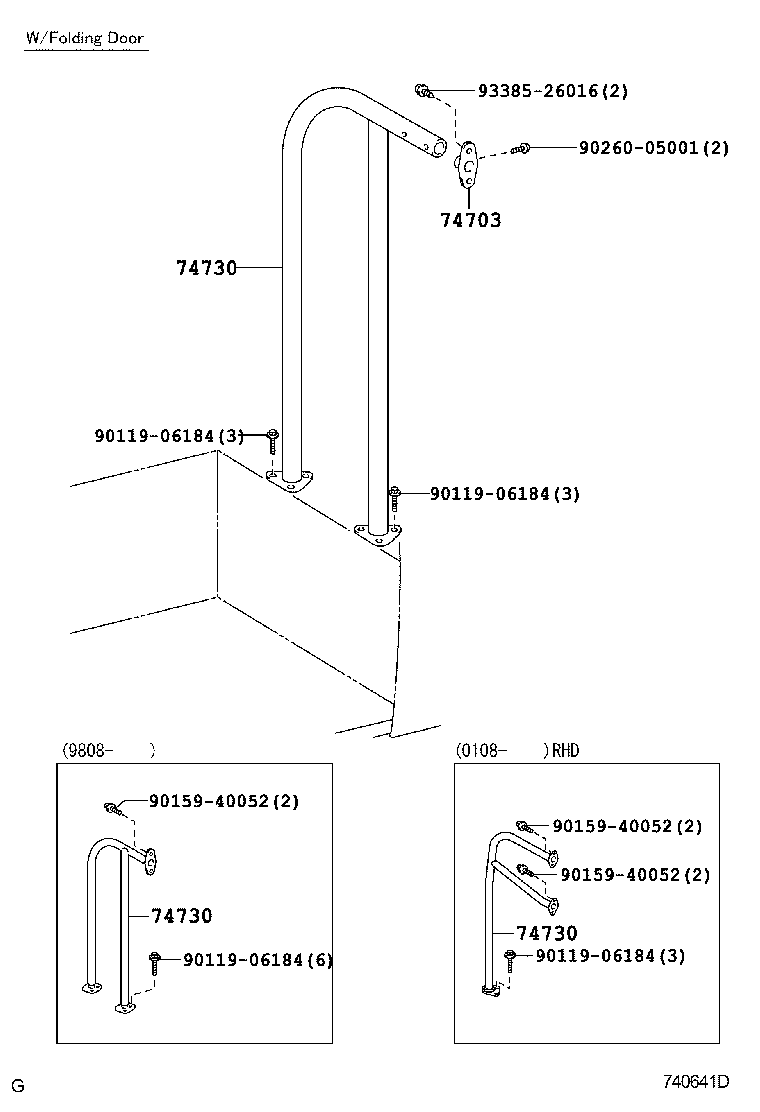

(9301-0408)HZB50..SCO ; (9301-0408)HZB50..LHD..TD ; (9301-0408)HZB50..RHD..STD ; (9

Click highlighted areas on diagram

DOOR SIDE(FOLDING DOOR)

diagram 74703 74730 74730 74730 9011906184 9011906184 9011906184 9011906184 9015940052 9015940052 9015940052 9026005001 9338526016
Part # Description Qty Price
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

HZB50..SCO;HZB50..LHD..EX;HZB50..STD..DSL;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S

 1
Common parts
90119-06184
90159-40052
90260-05001
93385-26016

(9301-1501)HZB50..RHD..TD ; (9301-1501)BB4#,50,BZB40,50,XZB40,50..RHD..STD ; (9301-

Click highlighted areas on diagram

DOOR SIDE(GLIDING DOOR)

diagram 74705B 74708 9011906184 9015940052 9015940052 9026906006
Part # Description Qty Price
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74730-36040

BB50..STD..CBU;HZB50,RZB40..LHD..EX

 1
74730-36041

BB50..STD..CBU;HZB50,RZB40..LHD..EX

 1
74730-36041

BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)

 1
Common parts
90119-06184
90159-40052
90269-06006

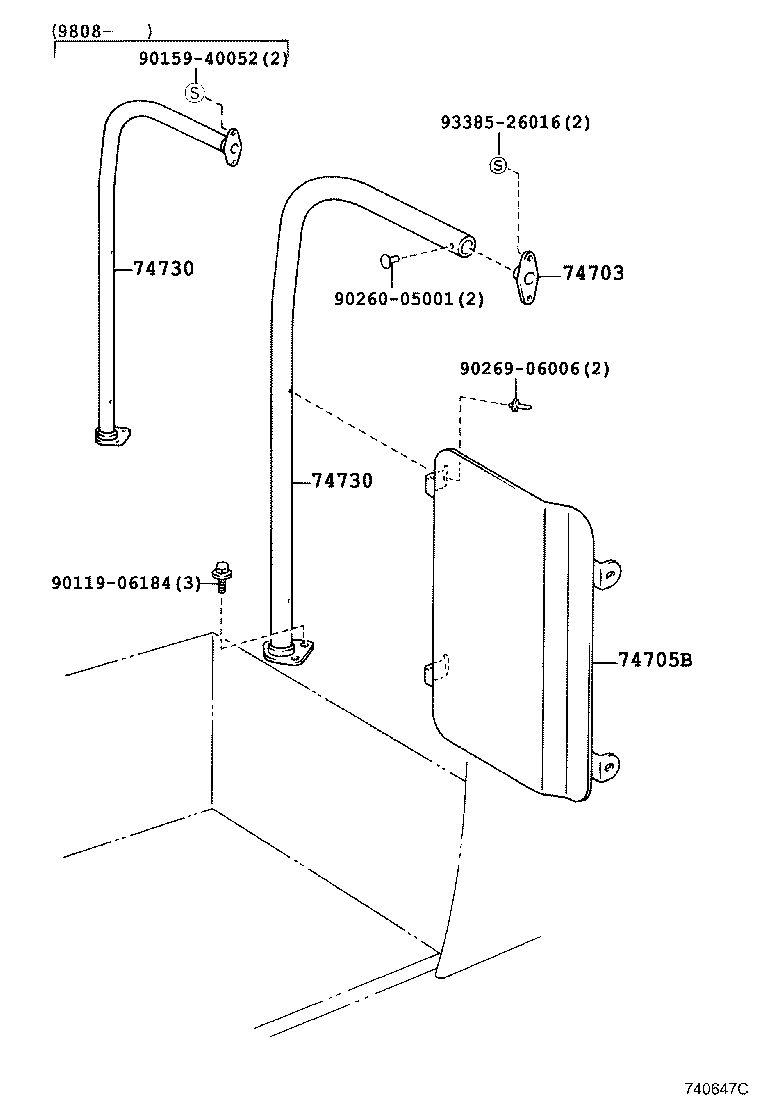

(9308-9808)BB42,43..17S ; (9808-0108)BB43 ; (9907-0305)BB50,BZB50..17S ; (0108-0410

Click highlighted areas on diagram

DOOR SIDE(FOLDING DOOR)

diagram 74703 74705B 74730 74730 9011906184 9015940052 9026005001 9026906006 9338526016
Part # Description Qty Price
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

HZB50..SCO;HZB50..LHD..EX;HZB50..STD..DSL;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S

 1
Common parts
90119-06184
90159-40052
90260-05001
90269-06006
93385-26016

(9301- )LHD

Click highlighted areas on diagram

DOOR SIDE(FOLDING DOOR)

diagram 74703 74730 74730 9011906184 9015940052 9026005001 9338526016
Part # Description Qty Price
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

HZB50..SCO;HZB50..LHD..EX;HZB50..STD..DSL;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S

 1
Common parts
90119-06184
90159-40052
90260-05001
93385-26016

(9301- )LHD

Click highlighted areas on diagram

DOOR SIDE(GLIDING DOOR)

diagram 74703 74708 74708 9011906184 9015940052 9026005001 9338526016
Part # Description Qty Price
74703 - FRAME SUB-ASSY, HAND GRIP SIDE
74703-90B00

HZB50..SCO;HZB50..LHD..EX;HZB50..STD..DSL;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S

 1
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74730-36040

BB50..STD..CBU;HZB50,RZB40..LHD..EX

 1
74730-36041

BB50..STD..CBU;HZB50,RZB40..LHD..EX

 1
74730-36041

BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)

 1
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74730-36040

BB50..STD..CBU;HZB50,RZB40..LHD..EX

 1
74730-36041

BB50..STD..CBU;HZB50,RZB40..LHD..EX

 1
74730-36041

BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)

 1
Common parts
90119-06184
90159-40052
90260-05001
93385-26016
