HZB50L-ZCMQS (1993)
Toyota Coaster
ILLUST NO. 1 OF 3(9301- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61295 - BRACKET, FRONT DOOR CHECK ARM | ||||
| 61295-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 61295-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62045A - FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH | ||||
| 62045-36020 |
HZB50..LHD..EX |
1 | ||
| 62045-36040 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62045-36041 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62045-36041 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) BLACK |
1 | ||
| 62045-36041 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) BLACK |
1 | ||
| 62045-36041 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) BLACK |
1 | ||
| 62049 - FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH | ||||
| 62049-36020 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62049-36021 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62049-36021 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) BLACK |
1 | ||
| 62049-36022 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) BLACK |
1 | ||
| 62049-36022 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) BLACK |
1 | ||
| 62049-36022 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) BLACK |
1 | ||
| 62229D - PACKING, FRONT DOOR WINDOW | ||||
| 62229-95J00 |
BB50..CBU..6F;BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..EX |
2 | ||
| 62229-95J00 |
BB50,RZB40,50..CHI;BB50,59..GEN..TDEFI;HZB50,RZB40..(17S,20S,22S)..(ARL,GCC,GEN) |
2 | ||
| 62229-95J00 |
BB50..CBU;HZB50,RZB40..EX |
2 | ||
| 62229-95J00 |
BB50..19S,20S,21S;BB59,BZB50,HZB50,RZB40..EX |
2 | ||
| 62229D - PACKING, FRONT DOOR WINDOW | ||||
| 62229-95J00 |
BB50..CBU..6F;BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..EX |
2 | ||
| 62229-95J00 |
BB50,RZB40,50..CHI;BB50,59..GEN..TDEFI;HZB50,RZB40..(17S,20S,22S)..(ARL,GCC,GEN) |
2 | ||
| 62229-95J00 |
BB50..CBU;HZB50,RZB40..EX |
2 | ||
| 62229-95J00 |
BB50..19S,20S,21S;BB59,BZB50,HZB50,RZB40..EX |
2 | ||
| 62269E - FILM, FRONT DOOR WINDOW FRAME, RH | ||||
| 62269-90K01 |
BB4#,5#,HZB50,RZB40,50..CBU |
5 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
5 | ||
| 62269E - FILM, FRONT DOOR WINDOW FRAME, RH | ||||
| 62269-90K01 |
BB4#,5#,HZB50,RZB40,50..CBU |
5 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
5 | ||
| 62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-36010B0 |
BB59,BZB50,HZB50..EX;BB50..(19S,20S)..TDEFI MD.CHARCOAL,TRIM1# |
1 | ||
| 62311-36010A0 |
BB50..CBU..6F;BB50,HZB50..EX IVORY,TRIM4# |
1 | ||
| 62325B - GLASS, FRONT DOOR WINDOW, FRONT LH | ||||
| 62325-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62325-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62325-36040 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,GREEN |
1 | ||
| 62325-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62325-36050 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62325-36050 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62325-36040 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,GREEN |
1 | ||
| 62327A - GLASS, FRONT DOOR WINDOW, REAR LH | ||||
| 62327-36050 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62327-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62327-36050 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62327-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62327-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62327-36040 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,GREEN |
1 | ||
| 62327-36040 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,GREEN |
1 | ||
| 62356B - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER | ||||
| 62255-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62255-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 62356B - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER | ||||
| 62255-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62255-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 62357D - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER REAR | ||||
| 62357-36011 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62256-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62357-36011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 62375F - CLIP, FRONT DOOR WINDOW | ||||
| 62376-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62376-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN IVORY,TRIM1# |
1 | ||
| 62384F - CAP,FRONT DOOR WINDOW | ||||
| 62384-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62384-36010B0 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62384-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62384-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62385A - SEAL, FRONT DOOR WINDOW, NO.1 | ||||
| 62386-36010 |
BB50..CBU..6F;BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..EX |
1 | ||
| 62386-36010 |
BB50,RZB40,50..CHI;BB50,59..GEN..TDEFI;HZB50,RZB40..(17S,20S,22S)..(ARL,GCC,GEN) |
1 | ||
| 62386-36010 |
BB50..CBU;HZB50,RZB40..EX |
1 | ||
| 62386-36010 |
BB50..19S,20S,21S;BB59,BZB50,HZB50,RZB40..EX |
1 | ||
| 62386A - SEAL, FRONT DOOR WINDOW, NO.2 | ||||
| 62386-36010 |
BB50..19S,20S,21S;BB59,BZB50,HZB50,RZB40..EX |
1 | ||
| 62386-36010 |
BB50..CBU..6F;BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..EX |
1 | ||
| 62386-36010 |
BB50..CBU;HZB50,RZB40..EX |
1 | ||
| 62386-36010 |
BB50,RZB40,50..CHI;BB50,59..GEN..TDEFI;HZB50,RZB40..(17S,20S,22S)..(ARL,GCC,GEN) |
1 | ||
| 62421D - RUN, FRONT DOOR WINDOW, LH | ||||
| 62421-36020 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62421-36030 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62421-36020 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62421-36010 |
BB42,HZB50..LHD..DSL |
1 | ||
| 62421-36030 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62421-36030 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) |
1 | ||
| 62746G - PACKING, QUARTER WINDOW | ||||
| 62746-90K00 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62746-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 62746-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62777X - CAP, FRONT DOOR WINDOW CENTER SASH, LH | ||||
| 62777-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62777-36012 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62777-36040 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62777-36012 |
BB50..CBU;HZB50..EX;BB42,58,HZB50,RZB40,50..LHD..(17S,22S,23S,26S,30S) |
1 | ||
| 62792F - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 62792-95A00 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..CBU |
2 | ||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62792F - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 62792-95A00 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..CBU |
2 | ||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62792G - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62792-95A00 |
HZB50..LHD..EX;BB43,RZB40..17S |
1 | ||
| 62792G - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62792-95A00 |
HZB50..LHD..EX;BB43,RZB40..17S |
1 | ||
| 62793G - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 62793-95J00 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..CBU |
2 | ||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62793G - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 62793-95J00 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..CBU |
2 | ||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62793H - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 62793-95J00 |
BB50..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 62793-95J00 |
HZB50..LHD..EX;BB43,RZB40..17S |
1 | ||
| 62793H - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 62793-95J00 |
BB50..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 62793-95J00 |
HZB50..LHD..EX;BB43,RZB40..17S |
1 | ||
| 62910L - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 62910-95702 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..CBU |
2 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62910L - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 62910-95702 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..CBU |
2 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62910N - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62910-95702 |
HZB50..LHD..EX;BB43,RZB40..17S |
1 | ||
| 62910N - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 62910-95702 |
HZB50..LHD..EX;BB43,RZB40..17S |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-36020 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 67002-36020 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 67002-36020 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 67831-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-36020 |
HZB50..(20S,22S)..5F;BB50,RZB40..17S,19S,20S |
1 | ||
| 67833-36020 |
RZB40..EX;BB40,50,HZB50..(19S,20S,22S)..5F |
1 | ||
| 67833-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-36010 |
BB42,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 67862-36010 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 67862-36010 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-36010 |
BB42,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 67863-36010 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 67863-36010 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
BB42,58,HZB50,RZB40,50..LHD..CBU |
22 | ||
| 67867-12150 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
22 | ||
| 67867-12150 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
22 | ||
| 67867-12150 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
22 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
13 | ||
| 67867-12150 |
BB42,58,HZB50,RZB40,50..LHD..CBU |
13 | ||
| 67868-22020 |
BB42,HZB50,RZB40,50..LHD..CBU |
13 | ||
| 67867-12150 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
13 | ||
| 67867-12150 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
13 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-36010 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 68610-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 68610-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 68617-20011 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 68617-50010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 69271 - HANDLE, FRONT DOOR INSIDE, RH | ||||
| 69271-36010B0 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 69271-36010E0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 69272D - HANDLE, FRONT DOOR INSIDE, LH | ||||
| 69271-36010E0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 69271-36010B0 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 69271-36010E0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90189-06018 | ||||
| 90333-40001 | ||||
| 90468-05116 | ||||
| 90950-01886 | ||||
| 90950-01959 | ||||
| 91553-A0614 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-56025 | ||||
ILLUST NO. 3 OF 3(9301-9907)

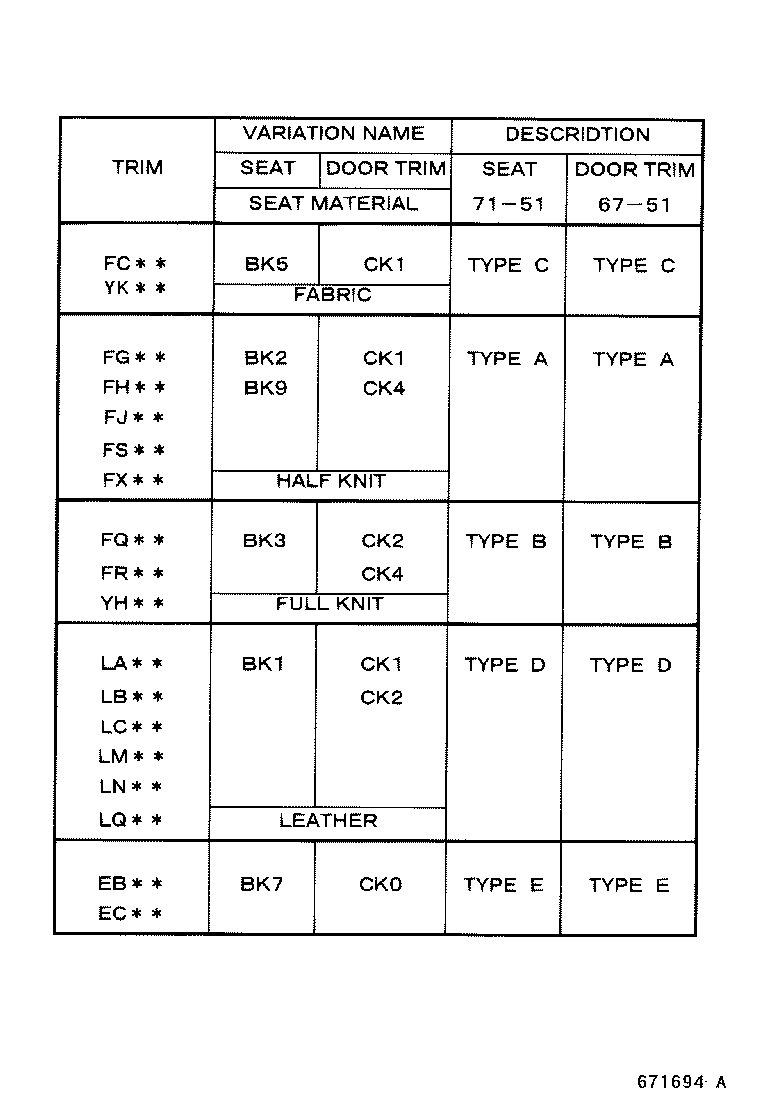

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9907-0108)BB50..STD..TD ; (9907-0108)BB50..EX..CBU ; (9907-0108)BB4#,58,HZB50,RZB4
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(9301- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-36020E1 |
HZB50..LHD..EX GREIGE,TRIM4# |
1 | ||
| 67620-36020E1 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 67620-36040E0 |
BB50,HZB50,RZB40..LHD..EX DOOR TRIM=TYPE B-*104,IVORY,TRIM4# |
1 | ||
| 67620-36040B0 |
BB50,HZB50,RZB40..LHD..EX DOOR TRIM=TYPE B-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67620-36040B0 |
HZB50,RZB40..EX DOOR TRIM=TYPE B-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 90168-40048 | ||||
| 90183-04057 | ||||
| 90189-06018 | ||||
| 90467-10161 | ||||
| 93540-56025 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(0108-0408)
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
