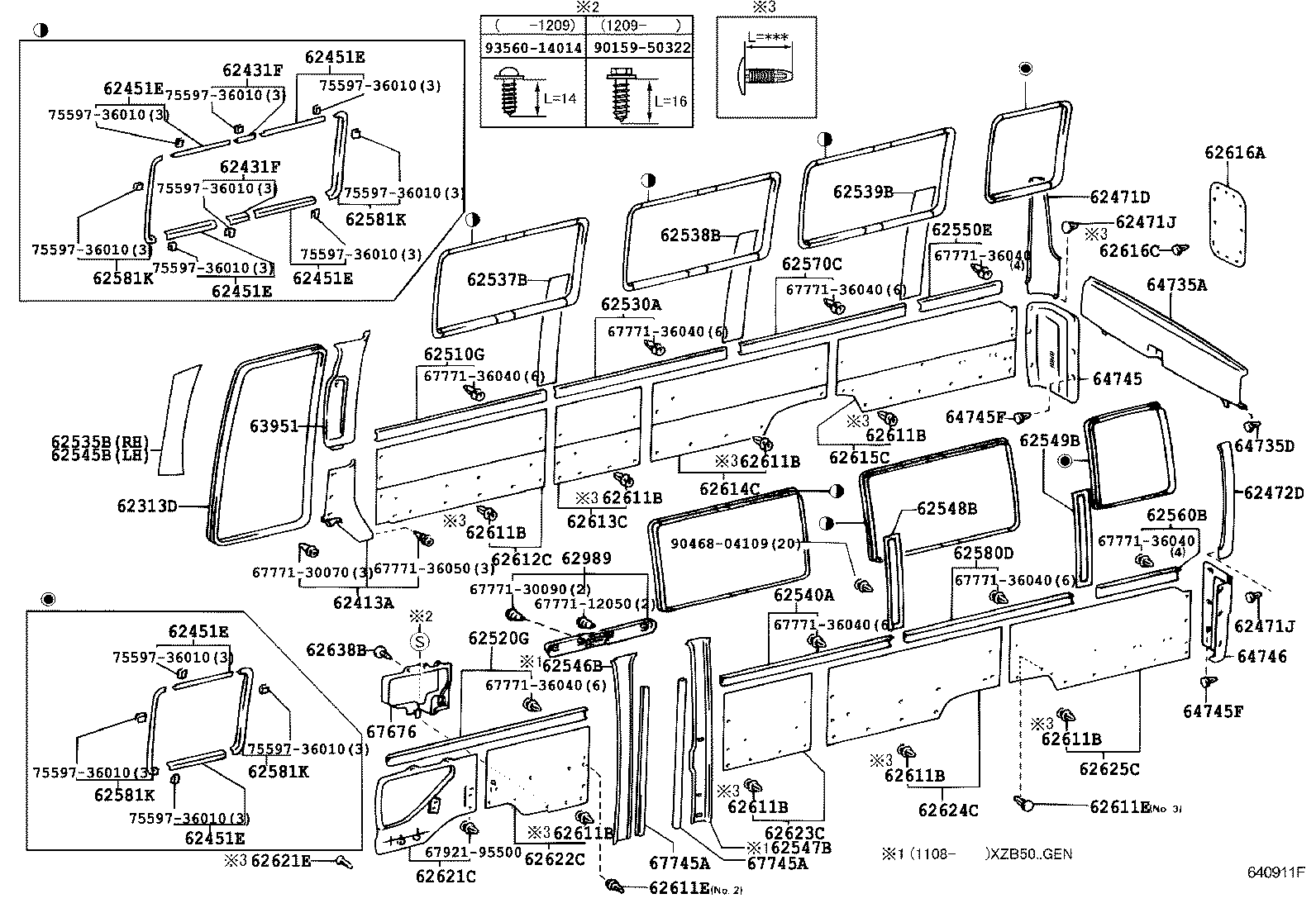

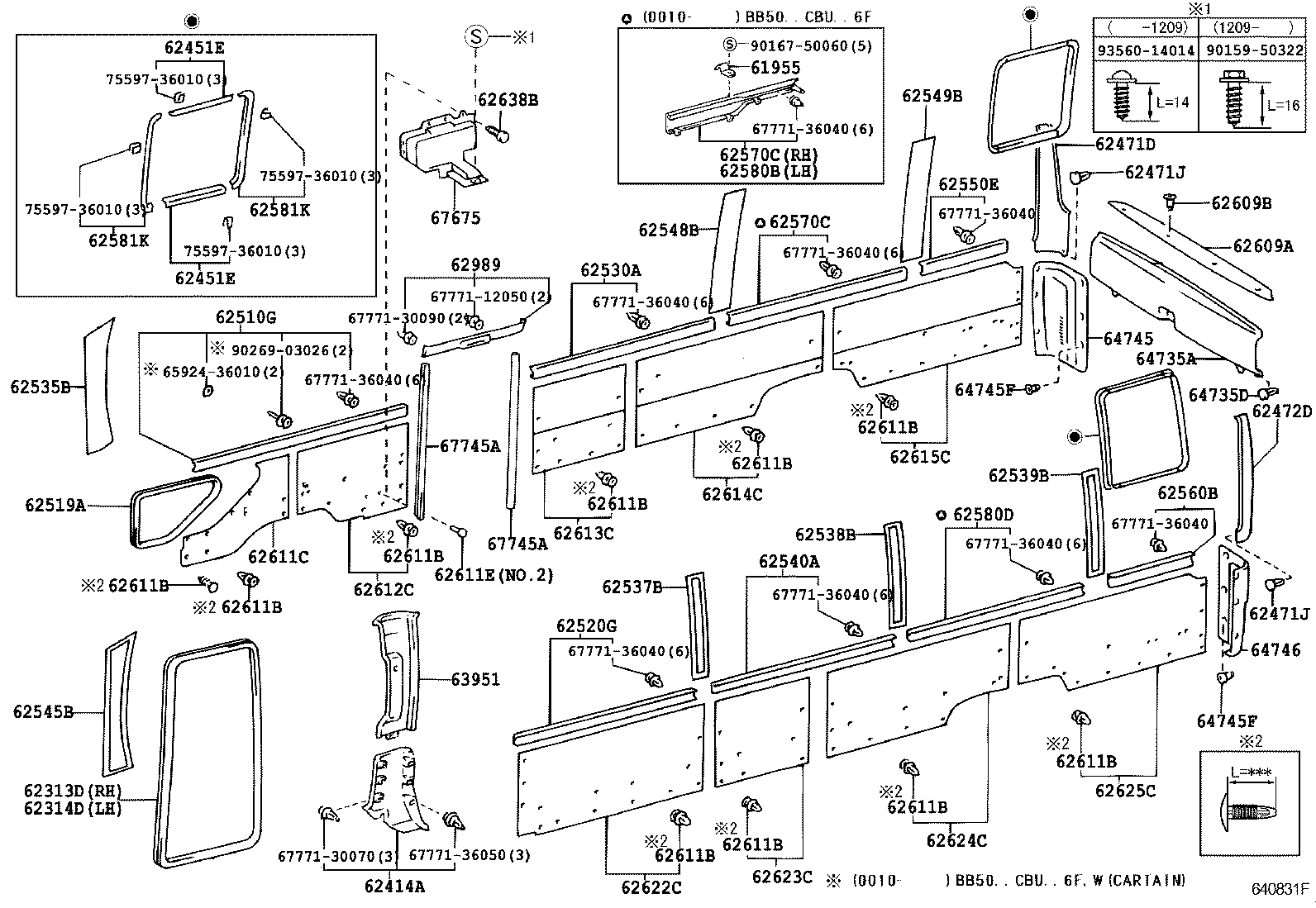

HZB50L-ZCMQS (1993)
Toyota Coaster
(9301-0108)LHD..IV..TD ; (9301-1501)BB50..STD..WC..GEN..CBU..TD ; (9301- )TAIW ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-36010A0 |
BB42,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62313-36010A1 |
BB42,58,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62313-36010A0 |
BB42..LHD..SRF;BB42,HZB50..LHD..(20S,22S,30S) IVORY,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..CBU..5F IVORY,TRIM4# |
1 | ||
| 62414-36010B0 |
BB50..LHD..GEN;BB42,58,HZB50,RZB40,50..LHD..WC..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62414-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..WC..CBU IVORY,TRIM4# |
1 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36250E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36320E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36260E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36310E0 |
HZB50,RZB40..LHD..EX W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36370E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN & 3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36350E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36340E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36360E0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36370E0 |
HZB50..LHD..EX CHINA SPEC & W(DX ROOM CARTAIN & ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 62510-36350E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36370E0 |
RZB50..CHI;HZB50..LHD..EX;BB50,RZB40..(17S,20S,30S)..(CHI,GCC) W(DX ROOM CARTAIN & 3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36360E0 |
RZB50..CHI;HZB50..LHD..EX;BB50,RZB40..(17S,20S,30S)..(CHI,GCC) W(3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340B0 |
HZB50,RZB40..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36350B0 |
HZB50,RZB40..EX W(DX ROOM CARTAIN),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36360B0 |
HZB50,RZB40..EX W(3-POINT ASSISTANTS SEAT BELT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36370B0 |
HZB50..EX W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62519A - TRIM, SIDE LOWER WINDOW | ||||
| 62519-36010A0 |
BB50..LHD..CBU;HZB50..LHD..EX;BB4#,58,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62519-36010B0 |
BZB50..STD;BB42,50,58,BZB40,HZB50,RZB40,50..(17S,19S,20S,21S,23S,26S,30S)..(ARL,GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62519-36010A0 |
HZB50..LHD..EX;BB4#,5#,HZB50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 62519-36010A0 |
BB4#,RZB40,50;HZB50..LHD..EX;HZB50..(DX,STD)..DSL IVORY,TRIM4# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36360E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440B0 |
HZB50..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62530-36280E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62530-36320B0 |
HZB50..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62570-36100E0 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
HZB50,RZB40..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36050E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 62550-36140E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC TYPE,GREIGE,TRIM4# |
1 | ||
| 62550-36140E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62550-36140B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36050E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 62560-36140E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62560-36140E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62560-36140B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36050E0 |
HZB50..20S GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62580D - TRIM ASSY, SIDE NO.4 LH | ||||
| 62570-36100E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36050E0 |
HZB50..20S GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62570-36100E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62609A - BOARD SUB-ASSY, LUGGAGE PARTITION | ||||
| 62691-36010A0 |
HZB50..30S;HZB50..LHD..EX;HZB50..LHD..TD;BB42,RZB40,50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-36010B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020B2 |
HZB50..LHD..HRF..WC;BB42,HZB50..SRF..GCC;BB50,59,BZB40,50..WC..(ARL,GEN)..(LPG,TDEFI) MD.CHARCOAL,TRIM1# |
27 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-08104A1 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;BB40,42,RZB40..WC..(ARL,GCC,GEN) IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-06020A0 |
RZB40..WC..GCC;HZB50..LHD..HRF..WC..GEN;BB50,RZB40,50..(20S,22S,30S)..(CHI,GCC) IVORY,TRIM4# |
27 | ||
| 90467-06020A0 |
RZB40..WOC..GCC;BB42,HZB50..GCC,SCO;BB42,43,50..(17S,20S,22S)..GEN W/O(ONLY REAR LOW SEAT),IVORY,TRIM4# |
27 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62630-36030A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36130A1 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36200A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36190A0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36180A0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36190A0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36200A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36180A0 |
HZB50,RZB40..LHD..EX W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360B0 |
BB42,50..LHD..(GCC,GEN)..5F;HZB50,RZB40,50..LHD..STD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36180B0 |
HZB50,RZB40..EX W(3-POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36190B0 |
HZB50,RZB40..EX W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36200B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62650-36040A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62650-36040A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62650-36040A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62650-36040B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62670-36050A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62670-36050A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62670-36050A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62670-36050B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62070-36020A1 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62070-36100A0 |
BB50..EX..CHI;HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62070-36100A0 |
HZB50,RZB40..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62070-36100B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36300B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62640-36060A1 |
BB50,HZB50..LHD..(20S,22S) IVORY,TRIM4# |
1 | ||
| 62640-36060A1 |
BB50,HZB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62640-36060A1 |
BB50,HZB50..LHD..EX IVORY,TRIM4# |
1 | ||
| 62640-36060B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62660-36040A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62660-36040A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62660-36040A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62660-36040B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62680-36050A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62680-36050A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62680-36050A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62680-36050B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62080-36020A1 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62080-36100A0 |
HZB50,RZB40..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62080-36100A0 |
BB50..EX..CHI;HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62080-36100B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36310B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-08104A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
6 | ||
| 90467-08104A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
6 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36070A0 |
HZB50..GCC..4FC;BB42,HZB50,RZB40,50..LHD..HRF..WC..CBU..5F W(3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130A0 |
HZB50,RZB40..LHD..EX..GEN W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130A1 |
HZB50..GCC..4FC;BB42,50,HZB50,RZB40,50..LHD..HRF..WC..CBU..5F W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
HZB50..LHD..EX;HZB50,RZB40,50..HRF..GCC NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
BB42,5#,HZB50,RZB40,50..LHD..HRF..WC..CBU NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36120A1 |
HZB50..GCC..4FC;RZB40,50..HRF..GEN;BB42,HZB50..LHD..HRF..STD..WC..5F..DSL W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
BB5#,RZB40,50..LHD..HRF..CBU W(3 POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
HZB50..LHD..EX;HZB50..HRF..GCC NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..LHD..HRF..WC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36130A1 |
RZB40..22S..CHI;RZB40..HRF..(17S,26S);BB42,50,HZB50,RZB50..LHD..HRF..WC..CBU..5F W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070B0 |
BB42,HZB50..LHD..HRF..WC W(3 POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36120B0 |
BB50,RZB40,50..LHD..HRF..WC..GEN..5F W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36130B0 |
BB42,50,HZB50,RZB40,50..LHD..HRF..WC..(GCC,GEN) W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A1 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64735-36010A1 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 64735-36010A1 |
HZB50..EX;HZB50,RZB40,50..GCC;BB42,50..19S,22S,26S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
1 | ||
| 64735-36010B0 |
BB50..LHD..GEN;BB42,HZB50,RZB40,50..GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 64735-36010A1 |
BB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
HZB50,RZB40,50..GCC;BB42,50,HZB50..(19S,20S,22S,26S)..MTM..(GCC,GEN) |
2 | ||
| 90467-05009 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
2 | ||
| 90467-05009 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB42,50,RZB40..(19S,20S,22S)..GEN |
2 | ||
| 90467-05009 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..CBU |
2 | ||
| 90467-05009 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36020A0 |
BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64745-36030A0 |
HZB50..22S;HZB50..SCO;BB4#,50..17S,19S,20S IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42..LHD..HRF..WOC;RZB40..STD..(GCC,GEN);BB43,5#,RZB50..(GCC,GEN)..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 64745-36010B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..GCC,GEN W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB50..EX;BB42..WOC..GCC IVORY,TRIM4# |
1 | ||
| 64745-36020B0 |
HZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN) W(DOUBLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB50,RZB40..EX..(GCC,GEN) W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
RZB40..EX..GCC;BB42,HZB50,RZB40,50..GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
HZB50..SCO;BB4#,5#,RZB50..CBU;HZB50,RZB40..(DX,STD)..CBU W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
HZB50,RZB40..EX..(GCC,GEN) W/O(*RW),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB50..EX W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB50..EX;BB42..WOC..GCC W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
BB42..SRF;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,RZB40,50..LHD..(GCC,GEN)..CBU W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT & *RW),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020A0 |
HZB50..EX W/O(*RW),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..RHD;BB42..LHD..WC;HZB50..GCC,GEN;BB42..LHD..SRF..WOC W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..RHD;BB42..LHD..WC;HZB50..GCC,GEN;BB42..LHD..SRF..WOC W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 67675 - COVER, SIDE TRIM BOARD, FRONT RH | ||||
| 67675-36030A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36030A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36030B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 75597-36010 | ||||
| 90159-40052 | ||||
| 90159-50322 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 7456 | ||||
(9301-0408)HZB50..LHD..EX ; (9705-0608)BB50..GEN..6F..TDEFI ; (9705-1501)BB50..LHD.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-36010A0 |
BB42,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62313-36010A1 |
BB42,58,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62313-36010A0 |
BB42..LHD..SRF;BB42,HZB50..LHD..(20S,22S,30S) IVORY,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..CBU..5F IVORY,TRIM4# |
1 | ||
| 62414-36010B0 |
BB50..LHD..GEN;BB42,58,HZB50,RZB40,50..LHD..WC..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62414-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..WC..CBU IVORY,TRIM4# |
1 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36030A0 |
HZB50,RZB40..17S,20S W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62471-36020A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62471-36030A1 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62471-36020A1 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62471-36020A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62471-36030B0 |
BZB50,HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62471-36020B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62471-36030A1 |
BB50,HZB50,RZB40..EX W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62471-36030B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
BB50..CBU;HZB50,RZB40..EX |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
BB50..CBU;HZB50,RZB40..EX |
2 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36020A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62472-36030A1 |
BB50,HZB50,RZB40..EX W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62472-36020A1 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62472-36030A0 |
HZB50,RZB40..17S,20S W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62472-36020A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62472-36020B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62472-36030B0 |
BB50,HZB50,RZB40..EX..(GCC,GEN) W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62472-36030A1 |
BB50,HZB50,RZB40..(17S,19S,20S)..(GCC,GEN) W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62472-36030B0 |
BZB50,HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36250E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36320E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36260E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36310E0 |
HZB50,RZB40..LHD..EX W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36370E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN & 3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36350E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36340E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36360E0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36370E0 |
HZB50..LHD..EX CHINA SPEC & W(DX ROOM CARTAIN & ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 62510-36350E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36370E0 |
RZB50..CHI;HZB50..LHD..EX;BB50,RZB40..(17S,20S,30S)..(CHI,GCC) W(DX ROOM CARTAIN & 3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36360E0 |
RZB50..CHI;HZB50..LHD..EX;BB50,RZB40..(17S,20S,30S)..(CHI,GCC) W(3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340B0 |
HZB50,RZB40..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36350B0 |
HZB50,RZB40..EX W(DX ROOM CARTAIN),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36360B0 |
HZB50,RZB40..EX W(3-POINT ASSISTANTS SEAT BELT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36370B0 |
HZB50..EX W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62519A - TRIM, SIDE LOWER WINDOW | ||||
| 62519-36010A0 |
BB50..LHD..CBU;HZB50..LHD..EX;BB4#,58,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62519-36010B0 |
BZB50..STD;BB42,50,58,BZB40,HZB50,RZB40,50..(17S,19S,20S,21S,23S,26S,30S)..(ARL,GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62519-36010A0 |
HZB50..LHD..EX;BB4#,5#,HZB50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 62519-36010A0 |
BB4#,RZB40,50;HZB50..LHD..EX;HZB50..(DX,STD)..DSL IVORY,TRIM4# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36360E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440B0 |
HZB50..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62530-36280E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62530-36320B0 |
HZB50..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62535B - GARNISH, PILLAR NO.1, RH | ||||
| 62535-36030A1 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62535-36030A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62535-36030A1 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
1 | ||
| 62535-36030B0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62537B - GARNISH, PILLAR NO.3, RH | ||||
| 62538-36010A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36010A1 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040A0 |
RZB40..EX;BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050A0 |
BB50,HZB50,RZB40..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62538B - GARNISH, PILLAR NO.4, RH | ||||
| 62538-36010A1 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040A0 |
RZB40..EX;BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050A0 |
BB50,HZB50,RZB40..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62539B - GARNISH, PILLAR NO.5, RH | ||||
| 62538-36010A1 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50,HZB50..19S,20S;BB50,RZB50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..19S,20S;BB50,RZB50..STD..CHI W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040B0 |
BB59,BZB50,HZB50..EX;BB50..(19S,20S)..TDEFI MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050B0 |
BB50,HZB50..EX..GEN W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62570-36100E0 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
HZB50,RZB40..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-36030A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62545-36031A1 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62545-36030A1 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62545-36031B0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62545-36031A1 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
1 | ||
| 62548B - GARNISH, PILLAR NO.4, LH | ||||
| 62538-36010A1 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
RZB40..EX;BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50,RZB40..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050B0 |
HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62549B - GARNISH, PILLAR NO.5, LH | ||||
| 62538-36011A1 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36010A1 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50..EX;BB50,RZB50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..19S,20S;BB50,RZB50..STD..CHI W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB50..CHI;BB50,HZB50..EX..GEN W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040B0 |
BB59,BZB50,HZB50..EX;BB50..(19S,20S)..TDEFI MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050B0 |
BB50,HZB50..(19S,20S)..GEN W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36050E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 62550-36140E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC TYPE,GREIGE,TRIM4# |
1 | ||
| 62550-36140E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62550-36140B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36050E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 62560-36140E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62560-36140E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62560-36140B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36050E0 |
HZB50..20S GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36050E0 |
HZB50..20S GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62580D - TRIM ASSY, SIDE NO.4 LH | ||||
| 62570-36100E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36050E0 |
HZB50..20S GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62570-36100E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62609A - BOARD SUB-ASSY, LUGGAGE PARTITION | ||||
| 62691-36010A0 |
HZB50..30S;HZB50..LHD..EX;HZB50..LHD..TD;BB42,RZB40,50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-36010B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020B2 |
HZB50..LHD..HRF..WC;BB42,HZB50..SRF..GCC;BB50,59,BZB40,50..WC..(ARL,GEN)..(LPG,TDEFI) MD.CHARCOAL,TRIM1# |
27 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-08104A1 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;BB40,42,RZB40..WC..(ARL,GCC,GEN) IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-06020A0 |
RZB40..WC..GCC;HZB50..LHD..HRF..WC..GEN;BB50,RZB40,50..(20S,22S,30S)..(CHI,GCC) IVORY,TRIM4# |
27 | ||
| 90467-06020A0 |
RZB40..WOC..GCC;BB42,HZB50..GCC,SCO;BB42,43,50..(17S,20S,22S)..GEN W/O(ONLY REAR LOW SEAT),IVORY,TRIM4# |
27 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62630-36030A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36130A1 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36200A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36190A0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36180A0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36190A0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36200A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36180A0 |
HZB50,RZB40..LHD..EX W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360B0 |
BB42,50..LHD..(GCC,GEN)..5F;HZB50,RZB40,50..LHD..STD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36180B0 |
HZB50,RZB40..EX W(3-POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36190B0 |
HZB50,RZB40..EX W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36200B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62650-36040A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62650-36040A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62650-36040A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62650-36040B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62670-36050A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62670-36050A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62670-36050A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62670-36050B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62070-36020A1 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62070-36100A0 |
BB50..EX..CHI;HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62070-36100A0 |
HZB50,RZB40..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62070-36100B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36300B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62640-36060A1 |
BB50,HZB50..LHD..(20S,22S) IVORY,TRIM4# |
1 | ||
| 62640-36060A1 |
BB50,HZB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62640-36060A1 |
BB50,HZB50..LHD..EX IVORY,TRIM4# |
1 | ||
| 62640-36060B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62660-36040A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62660-36040A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62660-36040A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62660-36040B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62680-36050A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62680-36050A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62680-36050A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62680-36050B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62080-36020A1 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62080-36100A0 |
HZB50,RZB40..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62080-36100A0 |
BB50..EX..CHI;HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62080-36100B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36310B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-08104A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
6 | ||
| 90467-08104A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
6 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36070A0 |
HZB50..GCC..4FC;BB42,HZB50,RZB40,50..LHD..HRF..WC..CBU..5F W(3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130A0 |
HZB50,RZB40..LHD..EX..GEN W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130A1 |
HZB50..GCC..4FC;BB42,50,HZB50,RZB40,50..LHD..HRF..WC..CBU..5F W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
HZB50..LHD..EX;HZB50,RZB40,50..HRF..GCC NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
BB42,5#,HZB50,RZB40,50..LHD..HRF..WC..CBU NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36120A1 |
HZB50..GCC..4FC;RZB40,50..HRF..GEN;BB42,HZB50..LHD..HRF..STD..WC..5F..DSL W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
BB5#,RZB40,50..LHD..HRF..CBU W(3 POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
HZB50..LHD..EX;HZB50..HRF..GCC NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..LHD..HRF..WC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36130A1 |
RZB40..22S..CHI;RZB40..HRF..(17S,26S);BB42,50,HZB50,RZB50..LHD..HRF..WC..CBU..5F W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070B0 |
BB42,HZB50..LHD..HRF..WC W(3 POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36120B0 |
BB50,RZB40,50..LHD..HRF..WC..GEN..5F W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36130B0 |
BB42,50,HZB50,RZB40,50..LHD..HRF..WC..(GCC,GEN) W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A1 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64735-36010A1 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 64735-36010A1 |
HZB50..EX;HZB50,RZB40,50..GCC;BB42,50..19S,22S,26S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
1 | ||
| 64735-36010B0 |
BB50..LHD..GEN;BB42,HZB50,RZB40,50..GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 64735-36010A1 |
BB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
HZB50,RZB40,50..GCC;BB42,50,HZB50..(19S,20S,22S,26S)..MTM..(GCC,GEN) |
2 | ||
| 90467-05009 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
2 | ||
| 90467-05009 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB42,50,RZB40..(19S,20S,22S)..GEN |
2 | ||
| 90467-05009 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..CBU |
2 | ||
| 90467-05009 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36020A0 |
BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64745-36030A0 |
HZB50..22S;HZB50..SCO;BB4#,50..17S,19S,20S IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42..LHD..HRF..WOC;RZB40..STD..(GCC,GEN);BB43,5#,RZB50..(GCC,GEN)..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 64745-36010B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..GCC,GEN W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB50..EX;BB42..WOC..GCC IVORY,TRIM4# |
1 | ||
| 64745-36020B0 |
HZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN) W(DOUBLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB50,RZB40..EX..(GCC,GEN) W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
RZB40..EX..GCC;BB42,HZB50,RZB40,50..GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
HZB50..SCO;BB4#,5#,RZB50..CBU;HZB50,RZB40..(DX,STD)..CBU W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
HZB50,RZB40..EX..(GCC,GEN) W/O(*RW),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB50..EX W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB50..EX;BB42..WOC..GCC W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
BB42..SRF;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,RZB40,50..LHD..(GCC,GEN)..CBU W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT & *RW),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020A0 |
HZB50..EX W/O(*RW),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..RHD;BB42..LHD..WC;HZB50..GCC,GEN;BB42..LHD..SRF..WOC W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..RHD;BB42..LHD..WC;HZB50..GCC,GEN;BB42..LHD..SRF..WOC W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 67675 - COVER, SIDE TRIM BOARD, FRONT RH | ||||
| 67675-36030A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36030A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36030B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 65924-36010 | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 75597-36010 | ||||
| 90159-50322 | ||||
| 90167-50060 | ||||
| 90269-03026 | ||||
| 93560-14014 | ||||
(9301-0608)BB50..RHD..EUR ; (9301- )BB50,HZB50,XZB50..RHD..EX..CBU ; (0211-0608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62451E - GARNISH, ROOF SIDE RAIL, REAR | ||||
| 62451-36060A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62451-36060A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62451-36060A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36030A0 |
HZB50,RZB40..17S,20S W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62471-36020A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62471-36030A1 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62471-36020A1 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62471-36020A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62471-36030B0 |
BZB50,HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62471-36020B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62471-36030A1 |
BB50,HZB50,RZB40..EX W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62471-36030B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
BB50..CBU;HZB50,RZB40..EX |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05009 |
BB50..CBU;HZB50,RZB40..EX |
2 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36020A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62472-36030A1 |
BB50,HZB50,RZB40..EX W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62472-36020A1 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62472-36030A0 |
HZB50,RZB40..17S,20S W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62472-36020A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62472-36020B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62472-36030B0 |
BB50,HZB50,RZB40..EX..(GCC,GEN) W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62472-36030A1 |
BB50,HZB50,RZB40..(17S,19S,20S)..(GCC,GEN) W(CURTAIN),IVORY,TRIM4# |
1 | ||
| 62472-36030B0 |
BZB50,HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36250E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36320E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36260E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36310E0 |
HZB50,RZB40..LHD..EX W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36370E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN & 3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36350E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36340E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36360E0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36370E0 |
HZB50..LHD..EX CHINA SPEC & W(DX ROOM CARTAIN & ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 62510-36350E0 |
HZB50,RZB40..LHD..EX W(DX ROOM CARTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36370E0 |
RZB50..CHI;HZB50..LHD..EX;BB50,RZB40..(17S,20S,30S)..(CHI,GCC) W(DX ROOM CARTAIN & 3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62510-36360E0 |
RZB50..CHI;HZB50..LHD..EX;BB50,RZB40..(17S,20S,30S)..(CHI,GCC) W(3-POINT ASSISTANTS SEAT BELT),GREGE,TRIM4# |
1 | ||
| 62510-36340B0 |
HZB50,RZB40..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36350B0 |
HZB50,RZB40..EX W(DX ROOM CARTAIN),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36360B0 |
HZB50,RZB40..EX W(3-POINT ASSISTANTS SEAT BELT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62510-36370B0 |
HZB50..EX W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36360E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62520-36440E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62520-36440B0 |
HZB50..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62530-36280E0 |
HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62530-36320E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62530-36320B0 |
HZB50..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62535B - GARNISH, PILLAR NO.1, RH | ||||
| 62535-36030A1 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62535-36030A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62535-36030A1 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
1 | ||
| 62535-36030B0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62537B - GARNISH, PILLAR NO.3, RH | ||||
| 62538-36010A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36010A1 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040A0 |
RZB40..EX;BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050A0 |
BB50,HZB50,RZB40..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62538B - GARNISH, PILLAR NO.4, RH | ||||
| 62538-36010A1 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040A0 |
RZB40..EX;BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050A0 |
BB50,HZB50,RZB40..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62539B - GARNISH, PILLAR NO.5, RH | ||||
| 62538-36010A1 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50,HZB50..19S,20S;BB50,RZB50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..19S,20S;BB50,RZB50..STD..CHI W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36040B0 |
BB59,BZB50,HZB50..EX;BB50..(19S,20S)..TDEFI MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050B0 |
BB50,HZB50..EX..GEN W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62570-36100E0 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50,RZB40..LHD..EX GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
HZB50,RZB40..EX MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62545B - GARNISH, PILLAR NO.1, LH | ||||
| 62545-36030A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62545-36031A1 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62545-36030A1 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62545-36031B0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62545-36031A1 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
1 | ||
| 62548B - GARNISH, PILLAR NO.4, LH | ||||
| 62538-36010A1 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
RZB40..EX;BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50,RZB40..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62538-36011A1 |
RZB40..EX;BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50,RZB40..EX;BB50,RZB40,50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,RZB40,50..STD..CHI;BB50,HZB50,RZB40..17S,19S,20S W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB40,50..CHI;BB50,HZB50,RZB40..EX..(GCC,GEN) W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040B0 |
BB50..(19S,20S)..TDEFI;BB59,BZB50,HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050B0 |
HZB50,RZB40..EX;BB50..(19S,20S)..TDEFI W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62549B - GARNISH, PILLAR NO.5, LH | ||||
| 62538-36011A1 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F IVORY,TRIM4# |
1 | ||
| 62538-36010A1 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50..CBU..6F;BB50,HZB50..EX;BB50,RZB50..STD..CHI IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..EX W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36050A0 |
BB50,HZB50..19S,20S;BB50,RZB50..STD..CHI W(DELUXE ROOM CURTAIN),IVORY,TRIM4# |
1 | ||
| 62538-36010A0 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 62538-36040A0 |
BB50,HZB50..(20S,22S)..GEN..5F IVORY,TRIM4# |
1 | ||
| 62538-36050B0 |
BB50,RZB50..CHI;BB50,HZB50..EX..GEN W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36040B0 |
BB59,BZB50,HZB50..EX;BB50..(19S,20S)..TDEFI MD.CHARCOAL,TRIM1# |
1 | ||
| 62538-36050B0 |
BB50,HZB50..(19S,20S)..GEN W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36050E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 62550-36140E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC TYPE,GREIGE,TRIM4# |
1 | ||
| 62550-36140E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62550-36140B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36050E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 62560-36140E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62560-36140E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62560-36140B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36050E0 |
HZB50..20S GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62580D - TRIM ASSY, SIDE NO.4 LH | ||||
| 62570-36100E0 |
BB50,HZB50..(20S,22S)..(GEN,SCO)..5F FABRIC,GREIGE,TRIM4# |
1 | ||
| 62570-36050E0 |
HZB50..20S GREIGE,TRIM4# |
1 | ||
| 62570-36100B0 |
BB50,HZB50..EX..GEN FABRIC,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 62570-36100E0 |
HZB50..LHD..EX;BB50,RZB50..CHI FABRIC,GREIGE,TRIM4# |
1 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-36010A1 |
BB50..STD..CBU;BB58,HZB50,RZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010A0 |
HZB50..ARL,GCC,GEN IVORY,TRIM4# |
4 | ||
| 62581-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB58,BZB50,HZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 62581-36010A1 |
BB50..LHD..CBU;BB58,HZB50,RZB50 IVORY,TRIM4# |
4 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 67771-12050 |
HZB50..EX..(ARL,GEN) RED |
57 | ||
| 90467-08104A1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) IVORY,TRIM4# |
10 | ||
| 67771-12050 |
HZB50..EX L=15.2 |
54 | ||
| 90467-08104A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4#,L=19.7 |
10 | ||
| 67771-12050 |
HZB50..LHD..EX L=15.2 |
54 | ||
| 90467-08104B1 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
10 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020B2 |
HZB50..LHD..HRF..WC;BB42,HZB50..SRF..GCC;BB50,59,BZB40,50..WC..(ARL,GEN)..(LPG,TDEFI) MD.CHARCOAL,TRIM1# |
27 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-08104A1 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;BB40,42,RZB40..WC..(ARL,GCC,GEN) IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-06020A0 |
RZB40..WC..GCC;HZB50..LHD..HRF..WC..GEN;BB50,RZB40,50..(20S,22S,30S)..(CHI,GCC) IVORY,TRIM4# |
27 | ||
| 90467-06020A0 |
RZB40..WOC..GCC;BB42,HZB50..GCC,SCO;BB42,43,50..(17S,20S,22S)..GEN W/O(ONLY REAR LOW SEAT),IVORY,TRIM4# |
27 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-06020B2 |
HZB50..LHD..HRF..WC;BB42,HZB50..SRF..GCC;BB50,59,BZB40,50..WC..(ARL,GEN)..(LPG,TDEFI) MD.CHARCOAL,TRIM1# |
27 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-08104A1 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;BB40,42,RZB40..WC..(ARL,GCC,GEN) IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 90467-06020A0 |
RZB40..WC..GCC;HZB50..LHD..HRF..WC..GEN;BB50,RZB40,50..(20S,22S,30S)..(CHI,GCC) IVORY,TRIM4# |
27 | ||
| 90467-06020A0 |
RZB40..WOC..GCC;BB42,HZB50..GCC,SCO;BB42,43,50..(17S,20S,22S)..GEN W/O(ONLY REAR LOW SEAT),IVORY,TRIM4# |
27 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62630-36030A1 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36130A1 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36200A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36190A0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36180A0 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36190A0 |
HZB50,RZB40..LHD..EX W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62630-36200A0 |
HZB50,RZB40..LHD..EX IVORY,TRIM4# |
1 | ||
| 62630-36180A0 |
HZB50,RZB40..LHD..EX W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360B0 |
BB42,50..LHD..(GCC,GEN)..5F;HZB50,RZB40,50..LHD..STD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36180B0 |
HZB50,RZB40..EX W(3-POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36190B0 |
HZB50,RZB40..EX W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62630-36200B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62650-36040A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62650-36040A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62650-36040A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62650-36040B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62670-36050A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62670-36050A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62670-36050A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62670-36050B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62070-36020A1 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62070-36100A0 |
BB50..EX..CHI;HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62070-36100A0 |
HZB50,RZB40..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62070-36100B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36300B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62640-36060A1 |
BB50,HZB50..LHD..(20S,22S) IVORY,TRIM4# |
1 | ||
| 62640-36060A1 |
BB50,HZB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62640-36060A1 |
BB50,HZB50..LHD..EX IVORY,TRIM4# |
1 | ||
| 62640-36060B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62660-36040A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62660-36040A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62660-36040A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62660-36040B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62680-36050A1 |
BB50..STD..CBU;HZB50..EX..GEN IVORY,TRIM4# |
1 | ||
| 62680-36050A1 |
HZB50..EX;BB50..EX..CHI IVORY,TRIM4# |
1 | ||
| 62680-36050A1 |
HZB50..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62680-36050B0 |
HZB50..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62080-36020A1 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62080-36100A0 |
HZB50,RZB40..EX;BB50..LHD..(19S,20S) IVORY,TRIM4# |
1 | ||
| 62080-36100A0 |
BB50..EX..CHI;HZB50,RZB40..EX IVORY,TRIM4# |
1 | ||
| 62080-36100B0 |
HZB50,RZB40..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36310B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-08104A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
6 | ||
| 90467-08104A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
6 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36070A0 |
HZB50..GCC..4FC;BB42,HZB50,RZB40,50..LHD..HRF..WC..CBU..5F W(3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130A0 |
HZB50,RZB40..LHD..EX..GEN W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130A1 |
HZB50..GCC..4FC;BB42,50,HZB50,RZB40,50..LHD..HRF..WC..CBU..5F W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
HZB50..LHD..EX;HZB50,RZB40,50..HRF..GCC NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
BB42,5#,HZB50,RZB40,50..LHD..HRF..WC..CBU NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36120A1 |
HZB50..GCC..4FC;RZB40,50..HRF..GEN;BB42,HZB50..LHD..HRF..STD..WC..5F..DSL W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
BB5#,RZB40,50..LHD..HRF..CBU W(3 POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070A1 |
HZB50..LHD..EX;HZB50..HRF..GCC NIGERIA SPEC & W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36130B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..LHD..HRF..WC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36130A1 |
RZB40..22S..CHI;RZB40..HRF..(17S,26S);BB42,50,HZB50,RZB50..LHD..HRF..WC..CBU..5F W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36070B0 |
BB42,HZB50..LHD..HRF..WC W(3 POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36120B0 |
BB50,RZB40,50..LHD..HRF..WC..GEN..5F W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36130B0 |
BB42,50,HZB50,RZB40,50..LHD..HRF..WC..(GCC,GEN) W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A1 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64735-36010A1 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 64735-36010A1 |
HZB50..EX;HZB50,RZB40,50..GCC;BB42,50..19S,22S,26S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
1 | ||
| 64735-36010B0 |
BB50..LHD..GEN;BB42,HZB50,RZB40,50..GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 64735-36010A1 |
BB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
HZB50,RZB40,50..GCC;BB42,50,HZB50..(19S,20S,22S,26S)..MTM..(GCC,GEN) |
2 | ||
| 90467-05009 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
2 | ||
| 90467-05009 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB42,50,RZB40..(19S,20S,22S)..GEN |
2 | ||
| 90467-05009 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..CBU |
2 | ||
| 90467-05009 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36020A0 |
BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64745-36030A0 |
HZB50..22S;HZB50..SCO;BB4#,50..17S,19S,20S IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42..LHD..HRF..WOC;RZB40..STD..(GCC,GEN);BB43,5#,RZB50..(GCC,GEN)..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB50..EX IVORY,TRIM4# |
1 | ||
| 64745-36010B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..GCC,GEN W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010A0 |
HZB50..EX;BB42..WOC..GCC IVORY,TRIM4# |
1 | ||
| 64745-36020B0 |
HZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN) W(DOUBLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
14 | ||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB50,RZB40..EX..(GCC,GEN) W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
RZB40..EX..GCC;BB42,HZB50,RZB40,50..GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
HZB50..SCO;BB4#,5#,RZB50..CBU;HZB50,RZB40..(DX,STD)..CBU W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
HZB50,RZB40..EX..(GCC,GEN) W/O(*RW),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB50..EX W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
HZB50..EX;BB42..WOC..GCC W(REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
BB42..SRF;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,RZB40,50..LHD..(GCC,GEN)..CBU W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT & *RW),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020A0 |
HZB50..EX W/O(*RW),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..RHD;BB42..LHD..WC;HZB50..GCC,GEN;BB42..LHD..SRF..WOC W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..RHD;BB42..LHD..WC;HZB50..GCC,GEN;BB42..LHD..SRF..WOC W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 67921-95500 | ||||
| 75597-36010 | ||||
| 90159-50322 | ||||
| 90468-04109 | ||||
| 93560-14014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
