HZB50L-ZCMQS (1993)
Toyota Coaster
(9301-9705)HZB50..SCO ; (9705-0408)BB50,BZB50..EX..GEN..CBU ; (0408-1501)LHD..23S,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61421 - GLASS, SIDE LOWER WINDOW | ||||
| 62171-36050 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=3.5,BLUE |
1 | ||
| 62171-36090 |
BB42,5#,HZB50,RZB40,50..LHD..CBU *TT,T=3.5,GREEN |
1 | ||
| 62171-36090 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) *TT,T=3.5,GREEN |
1 | ||
| 62129B - DAM, REAR SIDE WINDOW | ||||
| 62129-36010 |
BB5#,HZB50,RZB50..CBU |
2 | ||
| 62129-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB50,58,BZB50,RZB50..(17S,21S,23S,30S)..(ARL,GCC,GEN) |
2 | ||
| 62129B - DAM, REAR SIDE WINDOW | ||||
| 62129-36010 |
BB5#,HZB50,RZB50..CBU |
2 | ||
| 62129-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB50,58,BZB50,RZB50..(17S,21S,23S,30S)..(ARL,GCC,GEN) |
2 | ||
| 62129B - DAM, REAR SIDE WINDOW | ||||
| 62129-36010 |
BB5#,HZB50,RZB50..CBU |
2 | ||
| 62129-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB50,58,BZB50,RZB50..(17S,21S,23S,30S)..(ARL,GCC,GEN) |
2 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 62179-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62179-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 62269F - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HZB50,RZB40,50..CBU |
11 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
11 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
7 | ||
| 62279-36030 |
BB4#,5#,HZB50,RZB40,50..CBU |
7 | ||
| 62279-36010 |
BB4#,HZB50,RZB40,50..CBU |
3 | ||
| 62279-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
7 | ||
| 62376A - CLIP, SIDE WINDOW, NO.2 | ||||
| 62376-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62376-36010B0 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62376-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62385B - SEAL, SIDE WINDOW, NO.5 | ||||
| 62385-36020 |
BB50..CBU;HZB50,RZB40..EX |
1 | ||
| 62385-36020 |
HZB50..LHD..EX;BB59,BZB50,RZB40..EX;BB50..(19S,20S,21S)..TDEFI |
1 | ||

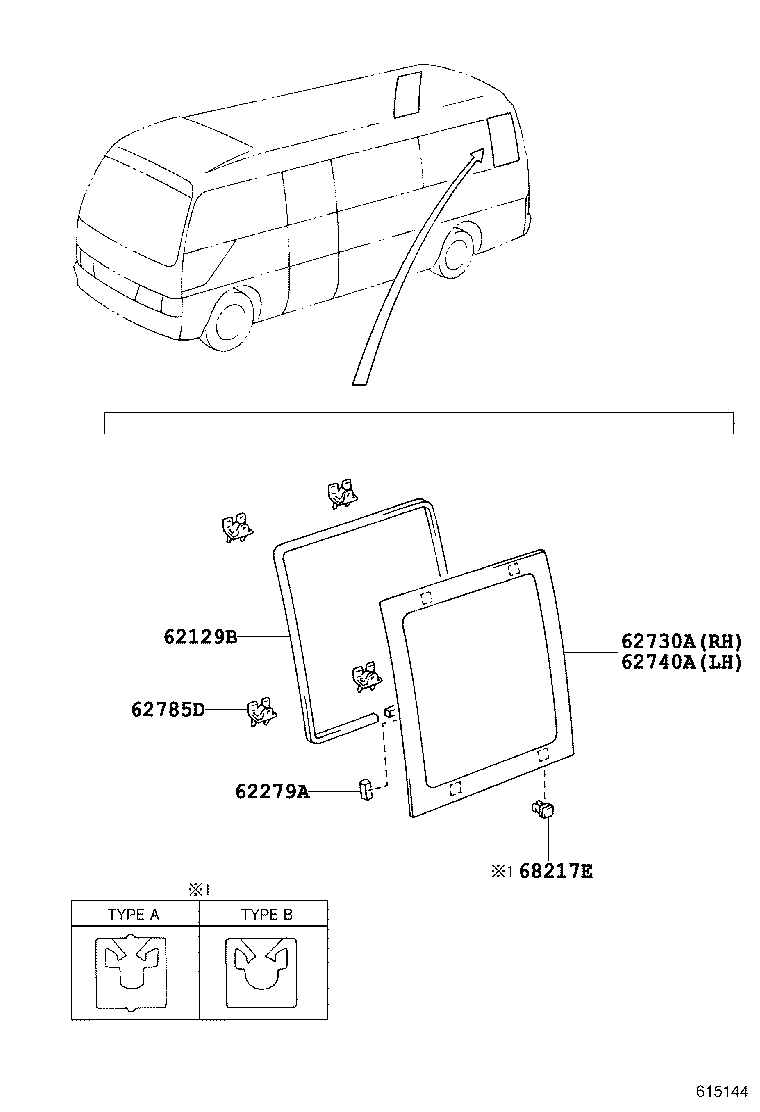

| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62115-36020 |
HZB50,RZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36030 |
HZB50..EX..(ARL,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50..STD..CBU *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36100 |
HZB50..EX;BB50..CBU..6F *TT,T=5.0,DK.GREEN |
1 | ||
| 62115-36070 |
HZB50..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62115-36020 |
HZB50,RZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36030 |
HZB50..EX..(ARL,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50..STD..CBU *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36100 |
HZB50..EX;BB50..CBU..6F *TT,T=5.0,DK.GREEN |
1 | ||
| 62115-36070 |
HZB50..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62740A - WINDOW ASSY, SIDE, REAR LH | ||||
| 62115-36030 |
HZB50..EX..(ARL,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36020 |
HZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36020 |
HZB50,RZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50..STD..CBU *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36100 |
HZB50..EX;BB50..CBU..6F *TT,T=5.0,DK.GREEN |
1 | ||
| 62740A - WINDOW ASSY, SIDE, REAR LH | ||||
| 62115-36030 |
HZB50..EX..(ARL,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36020 |
HZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36020 |
HZB50,RZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50..STD..CBU *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36100 |
HZB50..EX;BB50..CBU..6F *TT,T=5.0,DK.GREEN |
1 | ||
| 62778 - CAP, SIDE WINDOW FRONT SASH | ||||
| 62778-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62778-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62778-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62778-36010B0 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-36010 |
BB5#,HZB50,RZB50..CBU |
8 | ||
| 62785-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
8 | ||
| 68217A - PIN, SIDE WINDOW , NO.1 | ||||
| 68217-36010 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36020 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE C:REFER TO ILLUSTRATION,GRAY OR GREEN |
1 | ||
| 68217-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36030 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION,GRAY OR GREEN |
1 | ||
| 68217E - PIN, SIDE WINDOW, NO.4 | ||||
| 68217-36030 |
BB5#,HZB50,RZB50..CBU TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
BB5#,HZB50,RZB50..CBU TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36030 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217E - PIN, SIDE WINDOW, NO.4 | ||||
| 68217-36030 |
BB5#,HZB50,RZB50..CBU TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
BB5#,HZB50,RZB50..CBU TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36030 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217E - PIN, SIDE WINDOW, NO.4 | ||||
| 68217-36030 |
BB5#,HZB50,RZB50..CBU TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
BB5#,HZB50,RZB50..CBU TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36030 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68218B - BUSH, SIDE WINDOW | ||||
| 68218-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 68218-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
3 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
ILLUST NO. 1 OF 7(9301- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61421 - GLASS, SIDE LOWER WINDOW | ||||
| 62171-36050 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=3.5,BLUE |
1 | ||
| 62171-36090 |
BB42,5#,HZB50,RZB40,50..LHD..CBU *TT,T=3.5,GREEN |
1 | ||
| 62171-36090 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) *TT,T=3.5,GREEN |
1 | ||
| 62011 - FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER RH | ||||
| 62011-36021 |
HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62011-36022 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62011-36020 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62011-36022 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62019E - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36043 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62019-36020 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62019-36041 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62019-36040 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62019-36044 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62019-36042 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62019-36043 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62111F - GLASS, FRONT SIDE WINDOW, FRONT RH | ||||
| 62111-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62111-36060 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62111-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62111-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62111-36031 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62111-36050 |
HZB50..EX *TT,T=5.0,GREEN |
1 | ||
| 62111-36060 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 62179-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62179-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 62211E - GLASS, SIDE WINDOW, REAR RH | ||||
| 62711-36010 |
HZB50,RZB40..LHD..EX *TT,T=5.0,BLUE |
1 | ||
| 62711-36080 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62711-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62711-36090 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN,W(FOLDING SIDE DOOR) |
1 | ||
| 62711-36080 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62269F - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HZB50,RZB40,50..CBU |
11 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
11 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
7 | ||
| 62279-36030 |
BB4#,5#,HZB50,RZB40,50..CBU |
7 | ||
| 62279-36010 |
BB4#,HZB50,RZB40,50..CBU |
3 | ||
| 62279-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
7 | ||
| 62376A - CLIP, SIDE WINDOW, NO.2 | ||||
| 62376-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62376-36010B0 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62376-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62385B - SEAL, SIDE WINDOW, NO.5 | ||||
| 62385-36020 |
BB50..CBU;HZB50,RZB40..EX |
1 | ||
| 62385-36020 |
HZB50..LHD..EX;BB59,BZB50,RZB40..EX;BB50..(19S,20S,21S)..TDEFI |
1 | ||
| 62391C - STOPPER, SIDE WINDOW, NO.1 RH | ||||
| 62391-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
2 | ||
| 62391-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
2 | ||
| 62777G - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36020 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36021 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36021 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62777-36050 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62777-36010 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62778 - CAP, SIDE WINDOW FRONT SASH | ||||
| 62778-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62778-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62778-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62778-36010B0 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62792A - PACKING, SIDE WINDOW LOCK, RH | ||||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
2 | ||
| 62792-95A00 |
HZB50,RZB40..LHD..EX W(GLIDING AUTO DOOR, W(BUZZER)) |
1 | ||
| 62792-95A00 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62792A - PACKING, SIDE WINDOW LOCK, RH | ||||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
2 | ||
| 62792-95A00 |
HZB50,RZB40..LHD..EX W(GLIDING AUTO DOOR, W(BUZZER)) |
1 | ||
| 62792-95A00 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J00 |
HZB50..EX W(GLIDING AUTO DOOR, W(BUZZER)) |
1 | ||
| 62793-95J00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
2 | ||
| 62793-95J00 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
2 | ||
| 62793-95J00 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J00 |
HZB50..EX W(GLIDING AUTO DOOR, W(BUZZER)) |
1 | ||
| 62793-95J00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
2 | ||
| 62793-95J00 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
2 | ||
| 62793-95J00 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
2 | ||
| 62910-95702 |
HZB50..EX W(GLIDING AUTO DOOR, W(BUZZER)) |
1 | ||
| 62910-95702 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62910-95702 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
2 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
2 | ||
| 62910-95702 |
HZB50..EX W(GLIDING AUTO DOOR, W(BUZZER)) |
1 | ||
| 62910-95702 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62910-95702 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
2 | ||
| 68141D - RUN, SIDE FRONT WINDOW, RH | ||||
| 68141-36020 |
HZB50,RZB40..LHD..EX |
1 | ||
| 68141-36021 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 68141-36022 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 68141-36022 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 68141-36040 |
HZB50,RZB40..LHD..EX W(GLIDING AUTO DOOR, W(BUZZER)) |
1 | ||
| 68217A - PIN, SIDE WINDOW , NO.1 | ||||
| 68217-36010 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36020 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE C:REFER TO ILLUSTRATION,GRAY OR GREEN |
1 | ||
| 68217-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36030 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION,GRAY OR GREEN |
1 | ||
| 68218B - BUSH, SIDE WINDOW | ||||
| 68218-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 68218-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
3 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
ILLUST NO. 6 OF 7(9301- )RHD..4FC ; (9301- )BB50..RHD..CBU..5F ; (9301- )HZB50..19S,20S,26S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62029J - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36020 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62029-36020 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62029-36042 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62029-36042 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62029-36041 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62029-36041 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62029-36043 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62029-36043 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62029-36044 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62029-36044 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62029-36043 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62029-36043 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62221M - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36100 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36020 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..GEN;HZB50..(20S,22S,30S)..WC..(ARL,GCC,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..GEN;HZB50..(20S,22S,30S)..WC..(ARL,GCC,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62211-36030 |
HZB50,RZB40..EX..(ARL,GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36030 |
HZB50,RZB40..EX..(ARL,GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36020 |
BB4#..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..WC..(ARL,GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB4#..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..WC..(ARL,GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62211-36070 |
BB50..CBU..6F;HZB50,RZB40..EX *TT,T=5.0,DK.GREEN |
1 | ||
| 62211-36070 |
BB50..CBU..6F;HZB50,RZB40..EX *TT,T=5.0,DK.GREEN |
1 | ||
| 62221N - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36030 |
HZB50,RZB40..EX..(ARL,GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36030 |
HZB50,RZB40..EX..(ARL,GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36020 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..GEN;HZB50..(20S,22S,30S)..WC..(ARL,GCC,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..GEN;HZB50..(20S,22S,30S)..WC..(ARL,GCC,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62221-36080 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36020 |
BB4#..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..WC..(ARL,GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB4#..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..WC..(ARL,GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62221-36080 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36100 |
BB50..CBU..6F;HZB50,RZB40..EX *TT,T=5.0,DK.GREEN |
1 | ||
| 62221-36100 |
BB50..CBU..6F;HZB50,RZB40..EX *TT,T=5.0,DK.GREEN |
1 | ||
| 62269L - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
10 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
10 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62374H - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792-95A00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM10 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB50..(DX,STD)..CBU;BB42,58,BZB40,50,HZB50,RZB40,50..17S,20S,23S,26S,30S MD.CHARCOAL,TRIM1# |
5 | ||
| 62427-36010B0 |
BB50..(DX,STD)..CBU;BB42,58,BZB40,50,HZB50,RZB40,50..17S,20S,23S,26S,30S MD.CHARCOAL,TRIM1# |
5 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62461-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62461-36031 |
BB50..STD..CBU;BB4#,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62461-36031 |
BB50..STD..CBU;BB4#,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62461-36031 |
BB50..STD..CBU;BB42,43,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62461-36031 |
BB50..STD..CBU;BB42,43,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62461-36070 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62461-36070 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62708G - FRAME SUB-ASSY, SIDE REAR WINDOW, LH | ||||
| 62708-36020 |
HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62708-36020 |
HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62708-36021 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62708-36021 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62708-36021 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62708-36021 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62777T - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62777-36012 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62777-36040 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62777-36040 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62777-36011 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62777-36011 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62777-36010 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62777-36010 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62777-36012 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62777-36012 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62792S - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792-95A00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62793T - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62793-95J00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-95J00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62794C - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-36010 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62793-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910X - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62920L - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93249-64008 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 2 OF 7(9301- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62025 - FRAME SUB-ASSY, SIDE WINDOW, LH | ||||
| 62025-36020 |
HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62025-36021 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62025-36021 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62029F - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36042 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36041 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36020 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36043 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36044 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62029-36043 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62221F - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL BLUE |
1 | ||
| 62211-36020 |
BB42,HZB50,RZB40,50..LHD..CBU BLUE |
1 | ||
| 62211-36030 |
HZB50,RZB40..LHD..EX BRONZE |
1 | ||
| 62211-36070 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) DARK GREEN |
1 | ||
| 62211-36100 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62211-36100 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62221G - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36080 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62221-36080 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36100 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62269G - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
10 | ||
| 62279D - SPACER, SIDE WINDOW FRAME, LH | ||||
| 62279-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
6 | ||
| 62279-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
6 | ||
| 62279D - SPACER, SIDE WINDOW FRAME, LH | ||||
| 62279-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
6 | ||
| 62279-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
6 | ||
| 62374B - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62792-95A00 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM10 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB50..(DX,STD)..CBU;BB42,58,BZB40,50,HZB50,RZB40,50..17S,20S,23S,26S,30S MD.CHARCOAL,TRIM1# |
5 | ||
| 62388 - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-36010 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62461Q - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36031 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62461-36030 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62461-36031 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62461-36070 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62777Q - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36011 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36010 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36012 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36040 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62777-36012 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62792J - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62792-95A00 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 62793K - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62793-95J00 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62793V - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62793-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62910P - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62910-95702 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 62920E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 3 OF 7(9301- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62016 - FRAME SUB-ASSY, SIDE NO.2 WINDOW, OUTER RH | ||||
| 62016-36020 |
HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62016-36021 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX BLACK |
1 | ||
| 62016-36021 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62019G - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36041 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62019-36020 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62019-36044 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62019-36043 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62019-36043 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62019-36042 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62211J - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62211-36070 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62211-36100 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211K - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62221-36080 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36100 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62269J - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
10 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62374C - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM10 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB50..(DX,STD)..CBU;BB42,58,BZB40,50,HZB50,RZB40,50..17S,20S,23S,26S,30S MD.CHARCOAL,TRIM1# |
5 | ||
| 62451F - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36030 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62451-36031 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62451-36031 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62451-36120 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62777Y - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36011 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36010 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36012 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62777-36012 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36030 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62792K - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62792-95A00 |
HZB50..EX |
2 | ||
| 62793L - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62793-95J00 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62793W - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62793-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62910Q - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62910-95702 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62910-95702 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 62920F - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
BB42,50,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 4 OF 7(9301- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62029H - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36042 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36043 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36041 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36020 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62029-36043 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62029-36044 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62221K - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62221-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36100 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62221L - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36020 |
BB42..WOC..GCC;HZB50..GCC..4FC;BB42,HZB50..LHD..WC..5F..DSL *TT,T=5.0,BLUE |
1 | ||
| 62211-36100 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36020 |
BB42,HZB50,RZB40,50..LHD..CBU *TT,T=5.0,BLUE |
1 | ||
| 62211-36100 |
BB50,RZB50..STD..CHI;BB50,HZB50,RZB40..LHD..(17S,19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36030 |
HZB50,RZB40..LHD..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36070 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62269H - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
10 | ||
| 62279G - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
6 | ||
| 62279-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
6 | ||
| 62279G - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
6 | ||
| 62279-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
6 | ||
| 62374F - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM10 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB50..(DX,STD)..CBU;BB42,58,BZB40,50,HZB50,RZB40,50..17S,20S,23S,26S,30S MD.CHARCOAL,TRIM1# |
5 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62461-36031 |
BB50..STD..CBU;BB4#,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62461-36031 |
BB50..STD..CBU;BB42,43,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62461-36070 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62708F - FRAME SUB-ASSY, SIDE FRONT WINDOW, LH | ||||
| 62708-36020 |
HZB50..LHD..EX |
1 | ||
| 62708-36020 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62708-36021 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62708-36021 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62777S - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36011 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36012 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX |
1 | ||
| 62777-36040 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) |
1 | ||
| 62777-36012 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S) |
1 | ||
| 62792N - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62793P - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62793-95J00 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62793Z - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62793-36010 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62910T - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 62920J - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 62910-95702 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 7 OF 7(9301- )BZB50 ; (9301- )BB50,58,HZB50,RZB50,TRB50,XZB50..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62129B - DAM, REAR SIDE WINDOW | ||||
| 62129-36010 |
BB5#,HZB50,RZB50..CBU |
2 | ||
| 62129-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB50,58,BZB50,RZB50..(17S,21S,23S,30S)..(ARL,GCC,GEN) |
2 | ||
| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62115-36020 |
HZB50,RZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36030 |
HZB50..EX..(ARL,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50..STD..CBU *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36100 |
HZB50..EX;BB50..CBU..6F *TT,T=5.0,DK.GREEN |
1 | ||
| 62115-36070 |
HZB50..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62740A - WINDOW ASSY, SIDE, REAR LH | ||||
| 62115-36030 |
HZB50..EX..(ARL,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36020 |
HZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36020 |
HZB50,RZB50..20S,22S,30S *TT,T=5.0,BLUE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36070 |
HZB50..EX;BB50..STD..CBU *TEM,T=5.0,BRONZE |
1 | ||
| 62115-36100 |
HZB50..EX;BB50..CBU..6F *TT,T=5.0,DK.GREEN |
1 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-36010 |
BB5#,HZB50,RZB50..CBU |
8 | ||
| 62785-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) |
8 | ||
| 68217E - PIN, SIDE WINDOW, NO.4 | ||||
| 68217-36030 |
BB5#,HZB50,RZB50..CBU TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
BB5#,HZB50,RZB50..CBU TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36010 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
| 68217-36030 |
HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
4 | ||
ILLUST NO. 5 OF 7(9301- )XZB50 ; (9301- )BB50..LHD..CHI,GEN; (9301- )BB50..RHD..CBU..5F ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019J - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36042 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62019-36042 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62019-36041 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62019-36041 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62019-36043 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62019-36043 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62019-36043 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62019-36043 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62019-36020 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62019-36020 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62019-36044 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62019-36044 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62211N - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36020 |
BB42..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62211-36030 |
HZB50,RZB40..EX..(GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36030 |
HZB50,RZB40..EX..(GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36100 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62211-36070 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62211-36070 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62211P - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62221-36020 |
BB42..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62221-36030 |
HZB50,RZB40..EX..(GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36030 |
HZB50,RZB40..EX..(GCC,GEN) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
HZB50,RZB40..EX;BB50,RZB50..STD..CHI;BB50..LHD..(19S,20S) *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36100 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62221-36100 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(GCC,GEN) *TT,T=5.0,DK.GREEN |
1 | ||
| 62221-36080 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62221-36080 |
BB50..STD..CBU;HZB50,RZB40..EX *TEM,T=5.0,BRONZE |
1 | ||
| 62269K - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
10 | ||
| 62269-90K01 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
10 | ||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62279-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI);BB50,58,BZB40,50,RZB50..(17S,21S,23S,30S)..(DX,STD)..(ARL,GCC,GEN) |
6 | ||
| 62374G - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM10 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010B0 |
BB50..(DX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BB50..(DX,STD)..CBU;BB42,58,BZB40,50,HZB50,RZB40,50..17S,20S,23S,26S,30S MD.CHARCOAL,TRIM1# |
5 | ||
| 62427-36010B0 |
BB50..(DX,STD)..CBU;BB42,58,BZB40,50,HZB50,RZB40,50..17S,20S,23S,26S,30S MD.CHARCOAL,TRIM1# |
5 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62451-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62451-36031 |
BB50..STD..CBU;BB4#,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62451-36031 |
BB50..STD..CBU;BB4#,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62451-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62451-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62451-36031 |
BB50..STD..CBU;BB42,43,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62451-36031 |
BB50..STD..CBU;BB42,43,58,HZB50,RZB40,50..GCC,GEN |
1 | ||
| 62707C - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62707-36030 |
HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62707-36030 |
HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62707-36031 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62707-36031 |
BB50,HZB50,RZB40..LHD..(17S,19S,20S)..(DSL,EFI,TDEFI) BLACK |
1 | ||
| 62707-36031 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62707-36031 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) BLACK |
1 | ||
| 62777W - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36012 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62777-36012 |
BB50..STD..CBU;HZB50,RZB40..EX |
1 | ||
| 62777-36030 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62777-36030 |
HZB50,RZB40..LHD..EX;BB50..CBU..6F..TDEFI |
1 | ||
| 62777-36011 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62777-36011 |
BB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN) |
1 | ||
| 62777-36010 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62777-36010 |
HZB50,RZB40..EX..(ARL,GCC,GEN) |
1 | ||
| 62777-36012 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62777-36012 |
BB50..CBU..6F;HZB50,RZB40..EX |
1 | ||
| 62792R - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793S - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62793-95J00 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62793-95J00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-95J00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62794B - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-36010 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62793-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910W - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62920K - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB50,58,BZB40,50,RZB50..(17S,23S,30S)..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
1 | ||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
