HZB50L-ZCMQS (1993)

Toyota Coaster

Production Jan 1993 - Aug 2004
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

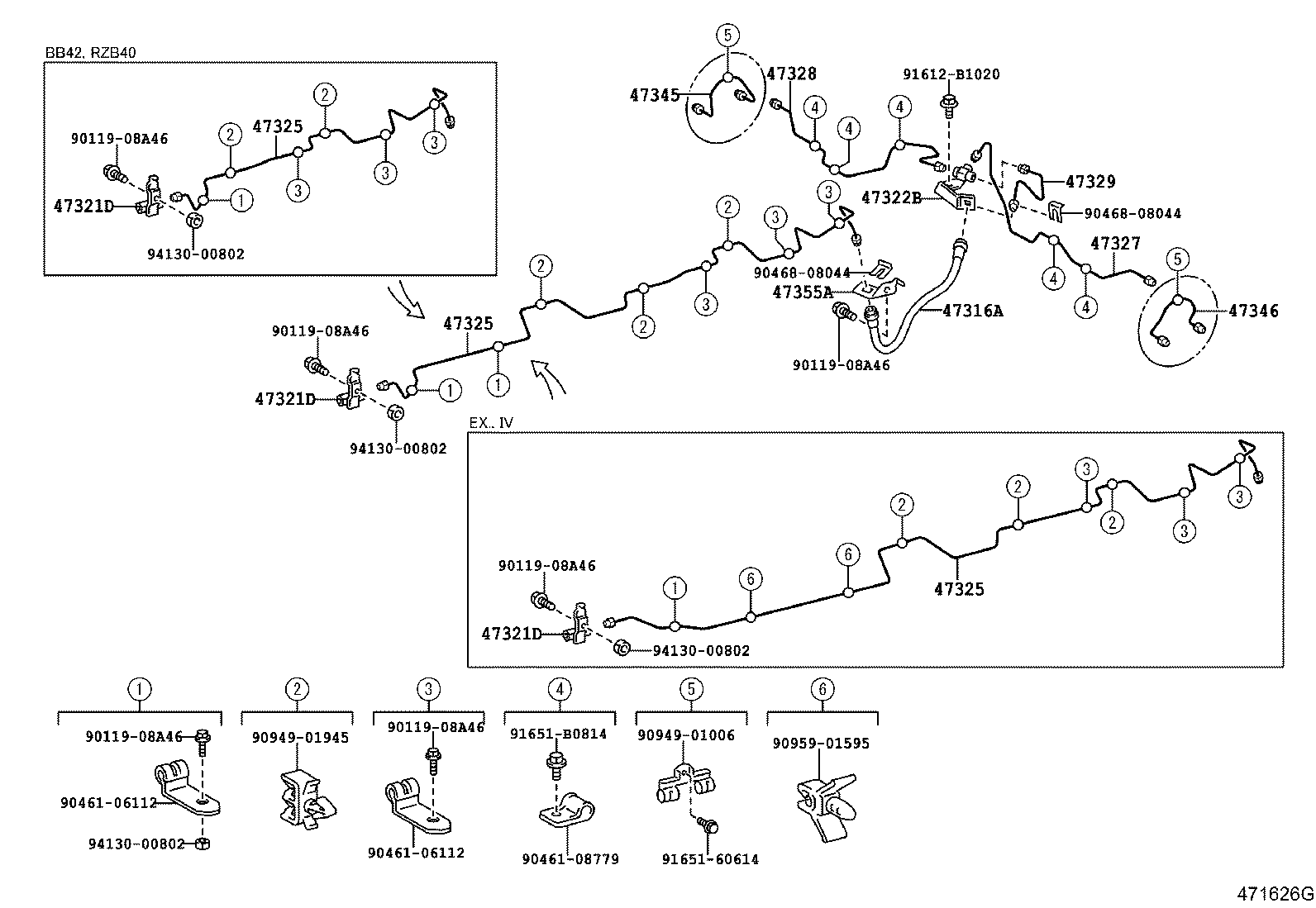

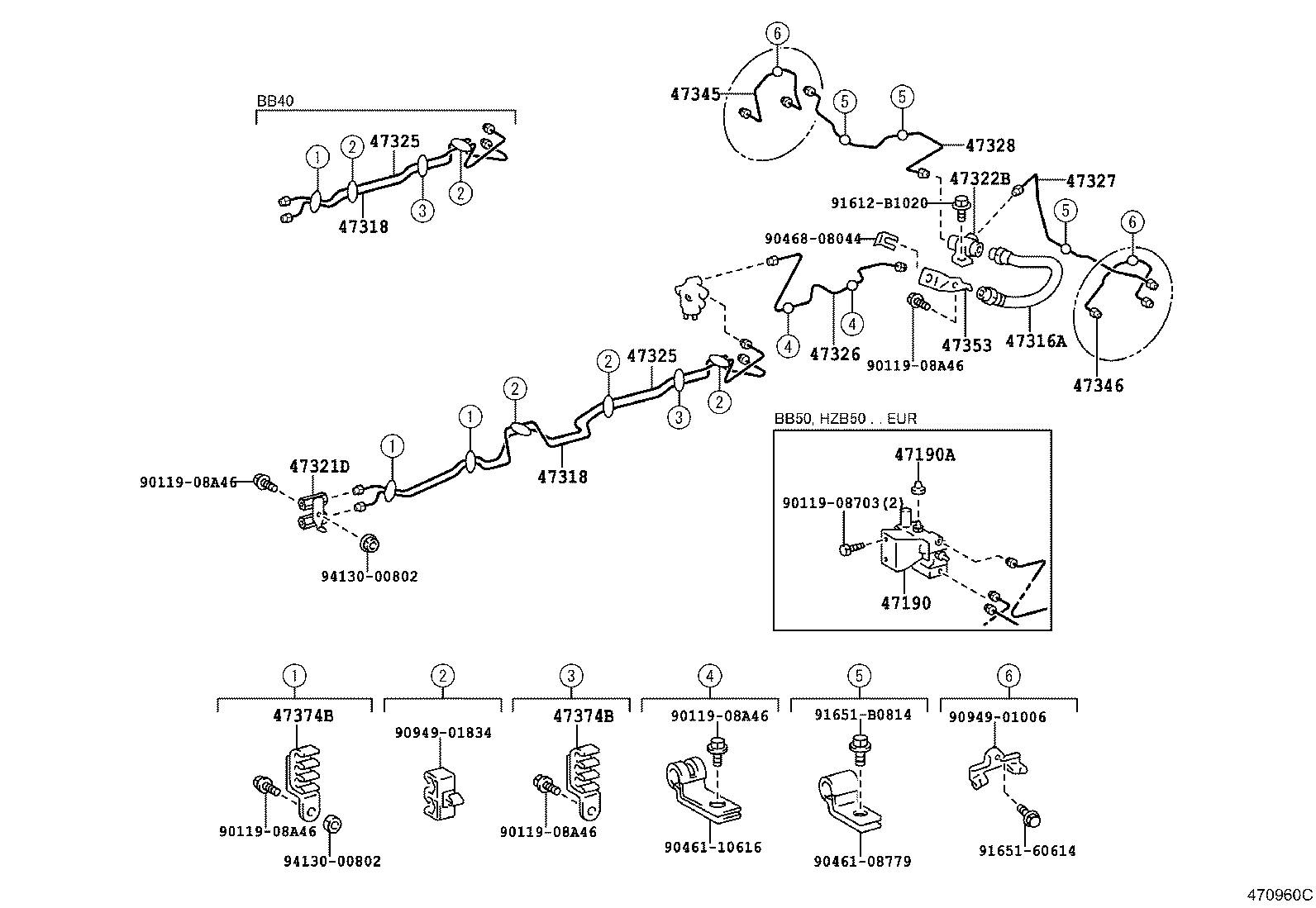

ILLUST NO. 2 OF 4(9301-9907)30S..4FC ; (9301-9907)HZB50..TD ; (9301-9907)HZB50..19S,22S ; (9301-9907

Click highlighted areas on diagram

diagram 47190 47190A 47316A 47318 47318 47321D 47322B 47325 47325 47326 47327 47328 47345 47346 47353 47374B 47374B 9011908703 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046108779 9046110616 9046808044 9094901006 9094901834 91612B1020 9165160614 91651B0814 9413000802 9413000802
Part # Description Qty Price
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-33805

BB4#,5#,HZB50,RZB40,50

 1
90947-02990

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12043

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
90412-10233

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..LHD..IV..TDEFI;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13520

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90413-10277

BB4#,5#,HZB50,RZB40,50

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36240

BB4#,HZB50,RZB40,50..CBU

 1
47327-36241

BB4#,5#,HZB50,RZB40,50..CBU

 1
47327-36251

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-36260

BB4#,5#,HZB50,RZB40,50..CBU

 1
47328-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-36190

BB4#,5#,HZB50,RZB40,50

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-35130

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 2
47372-36060

BB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50

NO.2

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-35130

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 2
47372-36060

BB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50

NO.2

 1
Common parts
90119-08703
90119-08A46
90461-08779
90461-10616
90468-08044
90949-01006
90949-01834
91612-B1020
91651-60614
91651-B0814
94130-00802

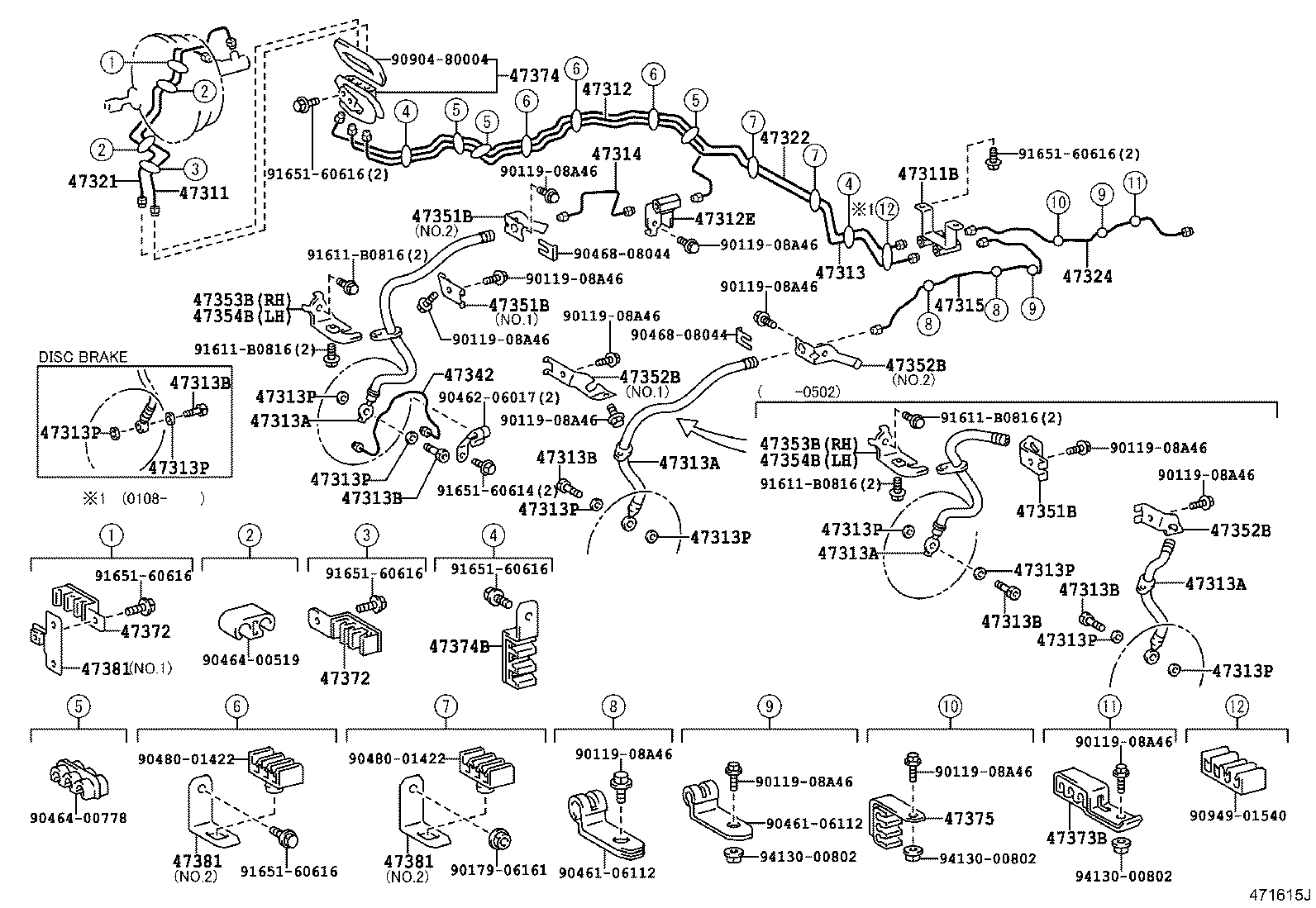

ILLUST NO. 1 OF 4(9301-9907)LHD..GCC,GEN

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313B 47313B 47313B 47313P 47313P 47313P 47313P 47313P 47313P 47314 47315 47321 47322 47324 47342 47351B 47352B 47353B 47354B 47371A 47371A 47372 47374 47374B 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046106112 9046110616 9046206017 9046400549 9046808044 9046808044 9048001187 9048001359 9048001359 9048001359 9048001359 9048001476 9090480004 9094902081 9094902085 9094902086 91611B0816 91611B0816 9164280825 9165160614 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36500

BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD

 1
47311-36561

BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12083

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-12045

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-36271

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47312-36270

BB4#,HZB50,RZB40,50..CBU

 1
47312-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47312-36301

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-10210

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
90412-10210

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250

BB4#,HZB50,RZB40,50..CBU

 1
47313-36311

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47313-36251

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-36371

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47314-36300

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47314-36371

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-36210

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
47315-36271

BB50..WOC..5F;BB50..EX..GEN;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..(17S,22S,23S,26S,30S)..(GCC,GEN)

 1
47315-36310

BB50..GEN..5F;BB42,58,59,BZB40,50,HZB50,RZB40,50..GCC,GEN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36320

BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD

 1
47321-36381

BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330

BB4#,HZB50,RZB40,50..CBU

 1
47322-36331

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47322-36401

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36290

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47324-36361

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47324-36361

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36090

BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO

 2
47342-36090

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47342-36090

BB42,RZB40;HZB50..20S,30S

 2
47342-36090

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,5#,HZB50,RZB40,50

 1
47351-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,5#,HZB50,RZB40,50

 1
47352-36200

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210

BB4#,5#,HZB50,RZB40,50

 1
47353-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354-36090

BB4#,5#,HZB50,RZB40,50

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB42,5#,HZB50,RZB40,50..LHD

 5
47373-36040

BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)

 1
47373-35040

BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB42,5#,HZB50,RZB40,50..LHD

 5
47373-36040

BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)

 1
47373-35040

BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-36060

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
47371-36100

BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 4
47374 - CONNECTOR, TUBE
47307-36010

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47307-36080

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47307-36080

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-35130

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 2
47372-36060

BB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50

NO.2

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.1

 1
47381-36120

BB4#,5#,HZB50,RZB40,50

 1
47381-36160

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.2

 5
Common parts
90119-08A46
90179-06161
90461-06112
90461-10616
90462-06017
90464-00549
90468-08044
90480-01187
90480-01359
90480-01476
90904-80004
90949-02081
90949-02085
90949-02086
91611-B0816
91642-80825
91651-60614
91651-60616
94130-00802

ILLUST NO. 4 OF 4(9301- )HZB50..TD ; (9301- )BB42..RHD..SRF..WC ; (9301- )BB50,HZB50..19S,2

Click highlighted areas on diagram

diagram 04477 31478D 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47936 47937 90015AA103 90015AA103 9011908703 9017008016 9017908146 9017908146 9017908146 9017910016 9020108062 9020123360 9020123360 91611B0816 9413000802 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9451200800 9461210800 9538102020
Part # Description Qty Price
Common parts
90015-AA103
90119-08703
90170-08016
90179-08146
90179-10016
90201-08062
90201-23360
91611-B0816
94130-00802
94512-00800
94612-10800
95381-02020

ILLUST NO. 1 OF 4(9907- )BB42..RHD..WOC ; (9907- )HZB50..RHD..GEN..5F ; (9907- )BB4#,50,59,

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313A 47313A 47313B 47313B 47313B 47313B 47313B 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47314 47315 47321 47322 47324 47342 47351B 47351B 47351B 47352B 47352B 47352B 47353B 47353B 47354B 47354B 47372 47372 47373B 47374 47374B 47375 47381 47381 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046106112 9046106112 9046206017 9046400519 9046400778 9046808044 9046808044 9048001422 9048001422 9090480004 9094901540 91611B0816 91611B0816 91611B0816 91611B0816 9165160614 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36500

BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD

 1
47311-36561

BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12083

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-12045

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-36271

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47312-36270

BB4#,HZB50,RZB40,50..CBU

 1
47312-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47312-36301

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-10210

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
90412-10210

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250

BB4#,HZB50,RZB40,50..CBU

 1
47313-36311

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47313-36251

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-36371

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47314-36300

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47314-36371

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-36210

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
47315-36271

BB50..WOC..5F;BB50..EX..GEN;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..(17S,22S,23S,26S,30S)..(GCC,GEN)

 1
47315-36310

BB50..GEN..5F;BB42,58,59,BZB40,50,HZB50,RZB40,50..GCC,GEN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36320

BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD

 1
47321-36381

BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330

BB4#,HZB50,RZB40,50..CBU

 1
47322-36331

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47322-36401

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36290

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47324-36361

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47324-36361

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36090

BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO

 2
47342-36090

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47342-36090

BB42,RZB40;HZB50..20S,30S

 2
47342-36090

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,5#,HZB50,RZB40,50

 1
47351-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,5#,HZB50,RZB40,50

 1
47351-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,5#,HZB50,RZB40,50

 1
47351-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,5#,HZB50,RZB40,50

 1
47352-36200

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,5#,HZB50,RZB40,50

 1
47352-36200

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,5#,HZB50,RZB40,50

 1
47352-36200

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210

BB4#,5#,HZB50,RZB40,50

 1
47353-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210

BB4#,5#,HZB50,RZB40,50

 1
47353-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354-36090

BB4#,5#,HZB50,RZB40,50

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354-36090

BB4#,5#,HZB50,RZB40,50

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-36060

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
47371-36100

BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 4
47372 - CLAMP, BRAKE TUBE, NO.2
47371-36060

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
47371-36100

BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 4
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01536

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..STD..GEN..CBU..5F..TD;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);BB58,BZB40,RZB40,50..(17S,23S,26S,30S)..WC..(GCC,GEN)

W/O(LSPV)

 1
47374 - CONNECTOR, TUBE
47307-36010

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47307-36080

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47307-36080

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-35130

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 2
47372-36060

BB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50

NO.2

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-36060

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.1

 1
47381-36120

BB4#,5#,HZB50,RZB40,50

 1
47381-36160

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.2

 5
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.1

 1
47381-36120

BB4#,5#,HZB50,RZB40,50

 1
47381-36160

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.2

 5
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.1

 1
47381-36120

BB4#,5#,HZB50,RZB40,50

 1
47381-36160

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.2

 5
Common parts
90119-08A46
90179-06161
90461-06112
90462-06017
90464-00519
90464-00778
90468-08044
90480-01422
90904-80004
90949-01540
91611-B0816
91651-60614
91651-60616
94130-00802

ILLUST NO. 1 OF 4(9907- )HZB50..LHD..20S,30S ; (9907- )BB50..STD..GEN..5F..TD ; (9907- )BB4

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313A 47313A 47313B 47313B 47313B 47313B 47313B 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47313P 47314 47315 47321 47322 47324 47342 47351B 47351B 47351B 47352B 47352B 47352B 47353B 47353B 47354B 47354B 47371A 47372 47373B 47374 47374B 47375 47381 47381 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046106112 9046106112 9046206017 9046400519 9046400778 9046400874 9046808044 9046808044 9048001187 9048001422 9048001422 9090480004 91611B0816 91611B0816 9165160614 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36500

BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD

 1
47311-36561

BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12083

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-12045

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-36271

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47312-36270

BB4#,HZB50,RZB40,50..CBU

 1
47312-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47312-36301

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-10210

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
90412-10210

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36250

BB4#,HZB50,RZB40,50..CBU

 1
47313-36311

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47313-36251

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02707

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90947-02708

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90947-02B92

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
90947-02B92

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90947-02B91

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
90401-10023

BB4#,5#,HZB50,RZB40,50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 2
90401-10015

BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S

 2
90401-10023

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,BZB50..HRF..(20S,21S,26S)..WC..5F..(DSL,LPG,TDEFI)

W(FRONT DISC BRAKE)

 2
90401-10015

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

BB4#,5#,HZB50,RZB40,50

 4
90430-10074

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-36371

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47314-36300

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47314-36371

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-36210

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
47315-36271

BB50..WOC..5F;BB50..EX..GEN;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..(17S,22S,23S,26S,30S)..(GCC,GEN)

 1
47315-36310

BB50..GEN..5F;BB42,58,59,BZB40,50,HZB50,RZB40,50..GCC,GEN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36320

BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD

 1
47321-36381

BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36330

BB4#,HZB50,RZB40,50..CBU

 1
47322-36331

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50

 1
47322-36401

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-36290

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47324-36361

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47324-36361

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36090

BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO

 2
47342-36090

BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC

 2
47342-36090

BB42,RZB40;HZB50..20S,30S

 2
47342-36090

BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN

 2
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,5#,HZB50,RZB40,50

 1
47351-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,5#,HZB50,RZB40,50

 1
47351-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36210

BB4#,5#,HZB50,RZB40,50

 1
47351-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,5#,HZB50,RZB40,50

 1
47352-36200

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,5#,HZB50,RZB40,50

 1
47352-36200

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36200

BB4#,5#,HZB50,RZB40,50

 1
47352-36200

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210

BB4#,5#,HZB50,RZB40,50

 1
47353-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36210

BB4#,5#,HZB50,RZB40,50

 1
47353-36210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354-36090

BB4#,5#,HZB50,RZB40,50

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36090

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47354-36090

BB4#,5#,HZB50,RZB40,50

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-36040

BB42,5#,HZB50,RZB40,50..LHD

 5
47373-36040

BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)

 1
47373-35040

BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-36060

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
47371-36100

BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 4
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01536

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..STD..GEN..CBU..5F..TD;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);BB58,BZB40,RZB40,50..(17S,23S,26S,30S)..WC..(GCC,GEN)

W/O(LSPV)

 1
47374 - CONNECTOR, TUBE
47307-36010

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
47307-36080

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47307-36080

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-35130

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 2
47372-36060

BB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50

NO.2

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-36060

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.1

 1
47381-36120

BB4#,5#,HZB50,RZB40,50

 1
47381-36160

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.2

 5
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.1

 1
47381-36120

BB4#,5#,HZB50,RZB40,50

 1
47381-36160

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.2

 5
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36120

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.1

 1
47381-36120

BB4#,5#,HZB50,RZB40,50

 1
47381-36160

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

NO.2

 5
Common parts
90119-08A46
90179-06161
90461-06112
90462-06017
90464-00519
90464-00778
90464-00874
90468-08044
90480-01187
90480-01422
90904-80004
91611-B0816
91651-60614
91651-60616
94130-00802

ILLUST NO. 2 OF 4(9907-0108)BB50..GEN..5F ; (9907-0108)BB4#,58,HZB50,RZB40,50..MTM..GCC,GEN

Click highlighted areas on diagram

diagram 47316A 47321D 47321D 47321D 47322B 47325 47325 47325 47327 47328 47329 47345 47346 47355A 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046106112 9046106112 9046108779 9046808044 9046808044 9094901006 9094901945 9095901595 91612B1020 9165160614 91651B0814 9413000802 9413000802 9413000802 9413000802
Part # Description Qty Price
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-33805

BB4#,5#,HZB50,RZB40,50

 1
90947-02990

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12043

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
90412-10233

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..LHD..IV..TDEFI;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12043

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
90412-10233

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..LHD..IV..TDEFI;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12043

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
90412-10233

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..LHD..IV..TDEFI;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13520

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90413-10277

BB4#,5#,HZB50,RZB40,50

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36240

BB4#,HZB50,RZB40,50..CBU

 1
47327-36241

BB4#,5#,HZB50,RZB40,50..CBU

 1
47327-36251

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-36260

BB4#,5#,HZB50,RZB40,50..CBU

 1
47328-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-36221

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47329-36221

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-36040

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
Common parts
90119-08A46
90461-06112
90461-08779
90468-08044
90949-01006
90949-01945
90959-01595
91612-B1020
91651-60614
91651-B0814
94130-00802

ILLUST NO. 3 OF 4(9907-0302)BB50..6F ; (0302- )BB50..IV ; (0302- )XZB50..ARL,EUR ; (0908- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44590 9009905277 9009905277 9009905277 9017910071
Part # Description Qty Price
Common parts
90099-05277
90179-10071

ILLUST NO. 2 OF 4(9301-9907)GCC,GEN,SCO..5F

Click highlighted areas on diagram

diagram 47316A 47321D 47322B 47325 47325 47327 47328 47345 47346 47353 9011908A46 9011908A46 9011908A46 9011908A46 9046108779 9046110616 9046110616 9046808044 9094901006 9094901834 91612B1020 9165160614 91651B0814 9413000802 9413000802
Part # Description Qty Price
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-33805

BB4#,5#,HZB50,RZB40,50

 1
90947-02990

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12043

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
90412-10233

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..LHD..IV..TDEFI;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13520

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90413-10277

BB4#,5#,HZB50,RZB40,50

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36240

BB4#,HZB50,RZB40,50..CBU

 1
47327-36241

BB4#,5#,HZB50,RZB40,50..CBU

 1
47327-36251

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-36260

BB4#,5#,HZB50,RZB40,50..CBU

 1
47328-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-36190

BB4#,5#,HZB50,RZB40,50

 1
Common parts
90119-08A46
90461-08779
90461-10616
90468-08044
90949-01006
90949-01834
91612-B1020
91651-60614
91651-B0814
94130-00802

ILLUST NO. 2 OF 4(0302- )ARL ; (0908- )TAIW ; (0908- )HZB50..LHD..HRF..30S..WC..GEN ; (1209

Click highlighted areas on diagram

W(ABS)

diagram 47312E 47316A 47318 47321B 47321D 47322B 47325 47327 47328 47332 47333 47334 47345 47346 47353 47355A 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046108779 9046400778 9046808044 9046808044 9046808044 9094901006 9094901249 9094901536 9094901536 9094901B98 91612B1020 9165160614 91651B0814 9413000802 9413000802 9413000802 9413000802
Part # Description Qty Price
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-10210

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-10210

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
90412-10210

BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU

 1
90412-10210

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
90412-10210

BB59;BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,20S,21S,23S,26S,30S)..(GCC,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-33805

BB4#,5#,HZB50,RZB40,50

 1
96912-33805

BB4#,5#,HZB50,RZB40,50

 1
90947-02990

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90947-02990

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12043

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
90412-12043

BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S

 1
90412-10233

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..LHD..IV..TDEFI;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90412-10233

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..LHD..IV..TDEFI;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13520

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90904-13520

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
90413-10277

BB4#,5#,HZB50,RZB40,50

 1
90413-10277

BB4#,5#,HZB50,RZB40,50

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36400

BB58,RZB50;BB50..GEN..IV;BB50,HZB50..20S,30S

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47325-36511

HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50,58,RZB50..(23S,30S)..(GCC,GEN)

W/O(LSPV)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36240

BB4#,HZB50,RZB40,50..CBU

 1
47327-36240

BB4#,HZB50,RZB40,50..CBU

 1
47327-36241

BB4#,5#,HZB50,RZB40,50..CBU

 1
47327-36241

BB4#,5#,HZB50,RZB40,50..CBU

 1
47327-36251

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47327-36251

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-36260

BB4#,5#,HZB50,RZB40,50..CBU

 1
47328-36260

BB4#,5#,HZB50,RZB40,50..CBU

 1
47328-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47328-36301

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345-36050

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB4#,5#,HZB50,RZB40,50

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47345-36050

BB42,5#,BZB40,50,HZB50,RZB40,50..EUR,GCC,GEN

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-36190

BB4#,5#,HZB50,RZB40,50

 1
47353-36190

BB4#,5#,HZB50,RZB40,50

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-36040

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
47355-36040

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
Common parts
90119-08A46
90461-08779
90464-00778
90468-08044
90949-01006
90949-01249
90949-01536
90949-01B98
91612-B1020
91651-60614
91651-B0814
94130-00802
