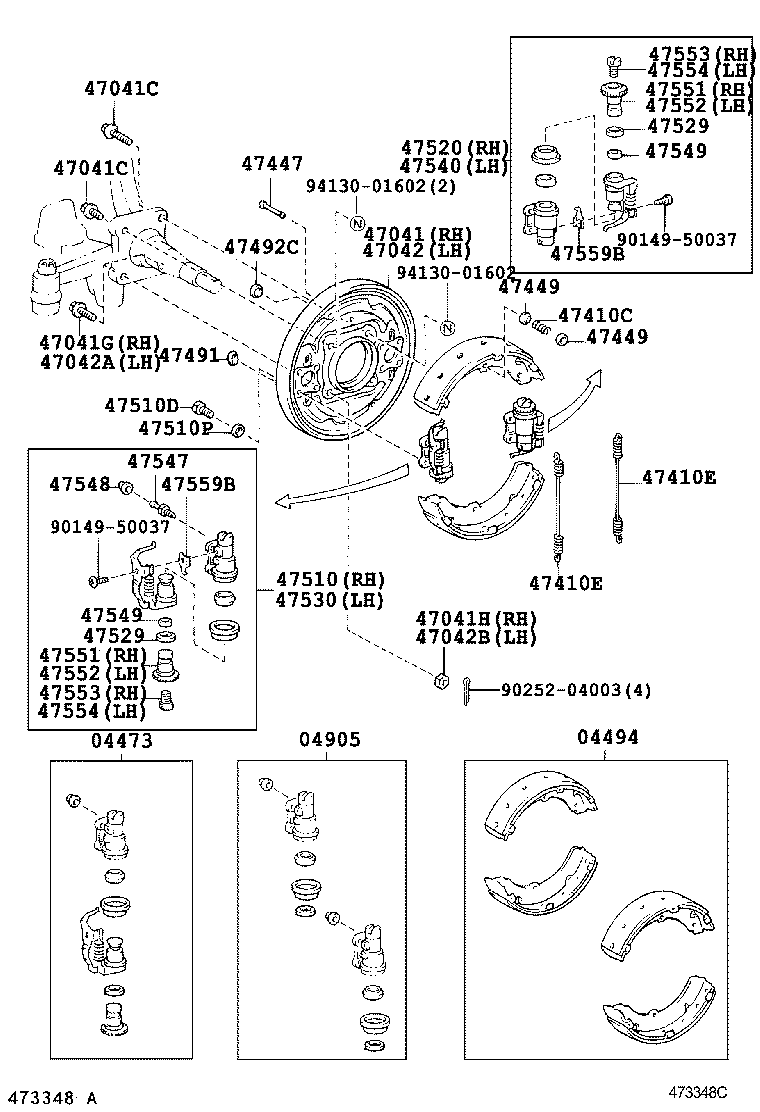

HZB50L-ZCMQS (1993)
Toyota Coaster
(9301-0408)4FC ; (9705-0408)STD..GEN..IV ; (0108-1108)BZB40,50,XZB40
W(AUTO ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36040 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F LH |
2 | ||
| 04473-36030 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F RH |
2 | ||
| 04473-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN RH |
2 | ||
| 04473-36060 |
BZB40,50 LH |
2 | ||
| 04473-36050 |
BZB40,50 RH |
2 | ||
| 04473-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) LH |
2 | ||
| 04473-36061 |
BZB40,50 LH |
2 | ||
| 04473-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) RH |
2 | ||
| 04473-36040 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN LH |
2 | ||
| 04473-36061 |
BZB40,50 LH |
2 | ||
| 04473-36051 |
BZB40,50 RH |
2 | ||
| 04473-36040 |
BB42,50,58,HZB50,RZB40..17S,20S,23S,26S,30S LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36180 |
BB42,58,HZB50,RZB40..GCC,GEN |
1 | ||
| 04494-36180 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 04494-36240 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN MARK NBK LN519 |
1 | ||
| 04494-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 04494-36240 |
HZB50..LHD..EX;BB42..LHD..WOC..GEN;HZB50..LHD..HRF..WOC MARK NBK LN519,HONG KONG OR JORDAN SPEC |
1 | ||
| 04494-36180 |
BB50..WOC..GEN;BB42,58,HZB50,RZB40..GCC,GEN |
1 | ||
| 04494-36220 |
BB42,43,50..17S,20S |
1 | ||
| 04494-36240 |
HZB50..LHD..EX;HZB50..LHD..HRF..WOC;BB42..LHD..SRF..WOC..GEN MARK NBK LN519,HONG KONG OR JORDAN SPEC |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36140 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 04905-36110 |
BB42,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 04905-36140 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 04905-36150 |
BZB40,50 |
1 | ||
| 04905-36140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 04905-36151 |
BZB40,50 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36180 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 47041-36180 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47041-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 47041-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90105-16044 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX60-26.5 |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90105-16044 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX60-26.5 |
2 | ||
| 47041G - BOLT(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 90102-16002 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX65-25 |
1 | ||
| 90102-16002 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX65-25 |
1 | ||
| 90102-16002 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX65-25 |
1 | ||
| 47041H - NUT(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 94145-71600 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 94145-71600 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94142-61600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 94142-61600 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 94145-71600 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 47042-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
1 | ||
| 47042-36180 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47042-36180 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 47042A - BOLT(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 90102-16002 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX65-25 |
1 | ||
| 90102-16002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX65-25 |
1 | ||
| 47042B - NUT(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 94145-71600 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 94145-71600 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94145-71600 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94142-61600 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 94142-61600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90501-20012 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90501-20012 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 90501-20012 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 90507-29006 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90507-29006 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90507-29006 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 90507-29006 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90507-29006 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90507-29006 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47447-36030 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47447-36030 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 47447-36030 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB42,RZB40;HZB50..20S,30S |
8 | ||
| 47449-30020 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
8 | ||
| 47449-30020 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
8 | ||
| 47449-30020 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB42,RZB40;HZB50..20S,30S |
8 | ||
| 47449-30020 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
8 | ||
| 47449-30020 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
8 | ||
| 47449-30020 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47491-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47491-36020 |
BZB40,50 |
8 | ||
| 47491-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47491-36020 |
BB42,50,58,HZB50,RZB40..(17S,20S,23S,26S,30S)..(GCC,GEN) |
4 | ||
| 47492C - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47492-28010 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47492-28010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 47492-28010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47492-28010 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36170 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47510-36170 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47510-36180 |
BZB40,50 |
1 | ||
| 47510-36170 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
16 | ||
| 90101-10127 |
BB42,RZB40;HZB50..20S,30S |
16 | ||
| 90101-10127 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
16 | ||
| 90101-10127 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BB42,RZB40;HZB50..20S,30S |
16 | ||
| 90201-10287 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
16 | ||
| 90201-10287 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
16 | ||
| 90201-10287 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47520-36180 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47520-36190 |
BZB40,50 |
1 | ||
| 47520-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BZB40,50 |
4 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BZB40,50 |
4 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36170 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47530-36180 |
BZB40,50 |
1 | ||
| 47530-36170 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47530-36170 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47540-36180 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47540-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47540-36190 |
BZB40,50 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 47547-27020 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN)..5F |
2 | ||
| 47547-12010 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 47547-27020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47547-12010 |
BZB40,50 |
2 | ||
| 47547-27020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 31478-30010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 31478-30010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 31478-30010 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BZB40,50 |
4 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BZB40,50 |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36020 |
BZB40,50 |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36020 |
BZB40,50 |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36020 |
BZB40,50 |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36020 |
BZB40,50 |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BZB40,50 |
2 | ||
| 47553-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47553-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47553-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BZB40,50 |
2 | ||
| 47553-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47553-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47553-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47554-36070 |
BZB40,50 |
2 | ||
| 47554-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47554-36070 |
BZB40,50 |
2 | ||
| 47554-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BZB40,50 |
4 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BZB40,50 |
4 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90252-04003 | ||||
| 94130-01602 | ||||
(9301- )XZB40,50..LHD..GEN ; (9301- )BB42,43,58,HZB50,RZB40..MTM..GCC,GEN,SCO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36040 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F LH |
2 | ||
| 04473-36040 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F LH |
2 | ||
| 04473-36030 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F RH |
2 | ||
| 04473-36030 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F RH |
2 | ||
| 04473-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN RH |
2 | ||
| 04473-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN RH |
2 | ||
| 04473-36060 |
BZB40,50 LH |
2 | ||
| 04473-36060 |
BZB40,50 LH |
2 | ||
| 04473-36050 |
BZB40,50 RH |
2 | ||
| 04473-36050 |
BZB40,50 RH |
2 | ||
| 04473-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) LH |
2 | ||
| 04473-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) LH |
2 | ||
| 04473-36061 |
BZB40,50 LH |
2 | ||
| 04473-36061 |
BZB40,50 LH |
2 | ||
| 04473-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) RH |
2 | ||
| 04473-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) RH |
2 | ||
| 04473-36040 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN LH |
2 | ||
| 04473-36040 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN LH |
2 | ||
| 04473-36061 |
BZB40,50 LH |
2 | ||
| 04473-36061 |
BZB40,50 LH |
2 | ||
| 04473-36051 |
BZB40,50 RH |
2 | ||
| 04473-36051 |
BZB40,50 RH |
2 | ||
| 04473-36040 |
BB42,50,58,HZB50,RZB40..17S,20S,23S,26S,30S LH |
2 | ||
| 04473-36040 |
BB42,50,58,HZB50,RZB40..17S,20S,23S,26S,30S LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36180 |
BB42,58,HZB50,RZB40..GCC,GEN |
1 | ||
| 04494-36180 |
BB42,58,HZB50,RZB40..GCC,GEN |
1 | ||
| 04494-36180 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 04494-36180 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 04494-36240 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN MARK NBK LN519 |
1 | ||
| 04494-36240 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN MARK NBK LN519 |
1 | ||
| 04494-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 04494-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 04494-36240 |
HZB50..LHD..EX;BB42..LHD..WOC..GEN;HZB50..LHD..HRF..WOC MARK NBK LN519,HONG KONG OR JORDAN SPEC |
1 | ||
| 04494-36240 |
HZB50..LHD..EX;BB42..LHD..WOC..GEN;HZB50..LHD..HRF..WOC MARK NBK LN519,HONG KONG OR JORDAN SPEC |
1 | ||
| 04494-36180 |
BB50..WOC..GEN;BB42,58,HZB50,RZB40..GCC,GEN |
1 | ||
| 04494-36180 |
BB50..WOC..GEN;BB42,58,HZB50,RZB40..GCC,GEN |
1 | ||
| 04494-36220 |
BB42,43,50..17S,20S |
1 | ||
| 04494-36220 |
BB42,43,50..17S,20S |
1 | ||
| 04494-36240 |
HZB50..LHD..EX;HZB50..LHD..HRF..WOC;BB42..LHD..SRF..WOC..GEN MARK NBK LN519,HONG KONG OR JORDAN SPEC |
1 | ||
| 04494-36240 |
HZB50..LHD..EX;HZB50..LHD..HRF..WOC;BB42..LHD..SRF..WOC..GEN MARK NBK LN519,HONG KONG OR JORDAN SPEC |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36140 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 04905-36140 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 04905-36110 |
BB42,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 04905-36110 |
BB42,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 04905-36140 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 04905-36140 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 04905-36150 |
BZB40,50 |
1 | ||
| 04905-36150 |
BZB40,50 |
1 | ||
| 04905-36140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 04905-36140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 04905-36151 |
BZB40,50 |
1 | ||
| 04905-36151 |
BZB40,50 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36180 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 47041-36180 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 47041-36180 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47041-36180 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47041-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 47041-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 47041-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
1 | ||
| 47041-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90105-16044 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX60-26.5 |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90105-16044 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX60-26.5 |
2 | ||
| 90105-16045 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16045 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX35.5-26.5 |
2 | ||
| 90105-16044 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX60-26.5 |
2 | ||
| 90105-16044 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX60-26.5 |
2 | ||
| 47041G - BOLT(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 90102-16002 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX65-25 |
1 | ||
| 90102-16002 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX65-25 |
1 | ||
| 90102-16002 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX65-25 |
1 | ||
| 47041H - NUT(FOR BRAKE BACKING PLATE FRONT RH) | ||||
| 94145-71600 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 94145-71600 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 94145-71600 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94145-71600 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94142-61600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 94142-61600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 94142-61600 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 94142-61600 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 94145-71600 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94145-71600 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 47042-36180 |
BB42,RZB40;HZB50..20S,30S |
1 | ||
| 47042-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
1 | ||
| 47042-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
1 | ||
| 47042-36180 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47042-36180 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47042-36180 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 47042-36180 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
1 | ||
| 47042A - BOLT(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 90102-16002 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX65-25 |
1 | ||
| 90102-16002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB42,RZB40;HZB50..20S,30S *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX74-27 |
1 | ||
| 90102-16002 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX74-27 |
1 | ||
| 90102-16001 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX65-25 |
1 | ||
| 90102-16001 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO *16-1.5PX65-25 |
1 | ||
| 47042B - NUT(FOR BRAKE BACKING PLATE FRONT LH) | ||||
| 94145-71600 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 94145-71600 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 94145-71600 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94145-71600 |
BB50..EX;BB42,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94145-71600 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94145-71600 |
BB50..EX;BB50..GEN..IV;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 94142-61600 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 94142-61600 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 94142-61600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 94142-61600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90501-20012 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90501-20012 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90501-20012 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90501-20012 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 90501-20012 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 90501-20012 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 90501-20012 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 90507-29006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 90507-29006 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90507-29006 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90507-29006 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90507-29006 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90507-29006 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 90507-29006 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 90507-29006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 90507-29006 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90507-29006 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 90507-29006 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90507-29006 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 90507-29006 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 90507-29006 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47419 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47419-35011 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47419-35011 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47491-36020 |
BB42,50,58,HZB50,RZB40..(17S,20S,23S,26S,30S)..(GCC,GEN) |
4 | ||
| 47491-36020 |
BB42,50,58,HZB50,RZB40..(17S,20S,23S,26S,30S)..(GCC,GEN) |
4 | ||
| 47419-35011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47419-35011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47419-35011 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47419-35011 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47447-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47447-36030 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47447-36030 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47447-36030 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 47447-36030 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 47447-36030 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 47447-36030 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB42,RZB40;HZB50..20S,30S |
8 | ||
| 47449-30020 |
BB42,RZB40;HZB50..20S,30S |
8 | ||
| 47449-30020 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
8 | ||
| 47449-30020 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
8 | ||
| 47449-30020 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
8 | ||
| 47449-30020 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
8 | ||
| 47449-30020 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
8 | ||
| 47449-30020 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB42,RZB40;HZB50..20S,30S |
8 | ||
| 47449-30020 |
BB42,RZB40;HZB50..20S,30S |
8 | ||
| 47449-30020 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
8 | ||
| 47449-30020 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
8 | ||
| 47449-30020 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
8 | ||
| 47449-30020 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
8 | ||
| 47449-30020 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
8 | ||
| 47449-30020 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47491-36010 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47491-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47491-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47491-36020 |
BZB40,50 |
8 | ||
| 47491-36020 |
BZB40,50 |
8 | ||
| 47491-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47491-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47491-36020 |
BB42,50,58,HZB50,RZB40..(17S,20S,23S,26S,30S)..(GCC,GEN) |
4 | ||
| 47491-36020 |
BB42,50,58,HZB50,RZB40..(17S,20S,23S,26S,30S)..(GCC,GEN) |
4 | ||
| 47492C - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47492-28010 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47492-28010 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
4 | ||
| 47492-28010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 47492-28010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
4 | ||
| 47492-28010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47492-28010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47492-28010 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 47492-28010 |
BB42,RZB40;HZB50..20S,30S |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36170 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47510-36170 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47510-36170 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47510-36170 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47510-36180 |
BZB40,50 |
1 | ||
| 47510-36180 |
BZB40,50 |
1 | ||
| 47510-36170 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47510-36170 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
16 | ||
| 90101-10127 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
16 | ||
| 90101-10127 |
BB42,RZB40;HZB50..20S,30S |
16 | ||
| 90101-10127 |
BB42,RZB40;HZB50..20S,30S |
16 | ||
| 90101-10127 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
16 | ||
| 90101-10127 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
16 | ||
| 90101-10127 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
16 | ||
| 90101-10127 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BB42,RZB40;HZB50..20S,30S |
16 | ||
| 90201-10287 |
BB42,RZB40;HZB50..20S,30S |
16 | ||
| 90201-10287 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
16 | ||
| 90201-10287 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
16 | ||
| 90201-10287 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
16 | ||
| 90201-10287 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
16 | ||
| 90201-10287 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
16 | ||
| 90201-10287 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47520-36180 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47520-36180 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47520-36180 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47520-36190 |
BZB40,50 |
1 | ||
| 47520-36190 |
BZB40,50 |
1 | ||
| 47520-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47520-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36170 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47530-36170 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47530-36180 |
BZB40,50 |
1 | ||
| 47530-36180 |
BZB40,50 |
1 | ||
| 47530-36170 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47530-36170 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47530-36170 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47530-36170 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47540-36180 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47540-36180 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47540-36180 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
1 | ||
| 47540-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47540-36180 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 47540-36190 |
BZB40,50 |
1 | ||
| 47540-36190 |
BZB40,50 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 47547-12010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 47547-27020 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN)..5F |
2 | ||
| 47547-27020 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN)..5F |
2 | ||
| 47547-12010 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 47547-12010 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 47547-27020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47547-27020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47547-12010 |
BZB40,50 |
2 | ||
| 47547-12010 |
BZB40,50 |
2 | ||
| 47547-27020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47547-27020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 31478-30010 |
BB42,RZB40;HZB50..20S,30S |
2 | ||
| 31478-30010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 31478-30010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 31478-30010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 31478-30010 |
BB50..EX;BB50..WOC..GEN;BB42,43,58,HZB50,RZB40..GCC,GEN,SCO |
2 | ||
| 31478-30010 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 31478-30010 |
BB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,58,BZB40,50,HZB50..HRF..(17S,21S,23S,26S,30S)..WC |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BZB40,50 |
2 | ||
| 47553-36070 |
BZB40,50 |
2 | ||
| 47553-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47553-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47553-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47553-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47553-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47553-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BZB40,50 |
2 | ||
| 47553-36070 |
BZB40,50 |
2 | ||
| 47553-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47553-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47553-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47553-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47553-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47553-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47554-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47554-36070 |
BZB40,50 |
2 | ||
| 47554-36070 |
BZB40,50 |
2 | ||
| 47554-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47554-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47554-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 47554-36070 |
BZB40,50 |
2 | ||
| 47554-36070 |
BZB40,50 |
2 | ||
| 47554-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554-36060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47554-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47554-36060 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47555-36040 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47555-36040 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47555-36040 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47555-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47555-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47555-36040 |
BB50..EX;BB42,43,58,HZB50,RZB40..(GCC,GEN,SCO)..5F |
4 | ||
| 47555-36040 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47555-36040 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
4 | ||
| 47555-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| 47555-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,58..HRF..(20S,23S,26S)..WC..(DSL,TDEFI) |
4 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90252-04003 | ||||
| 94130-01602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
