HZB50L-ZCMQS (1993)
Toyota Coaster

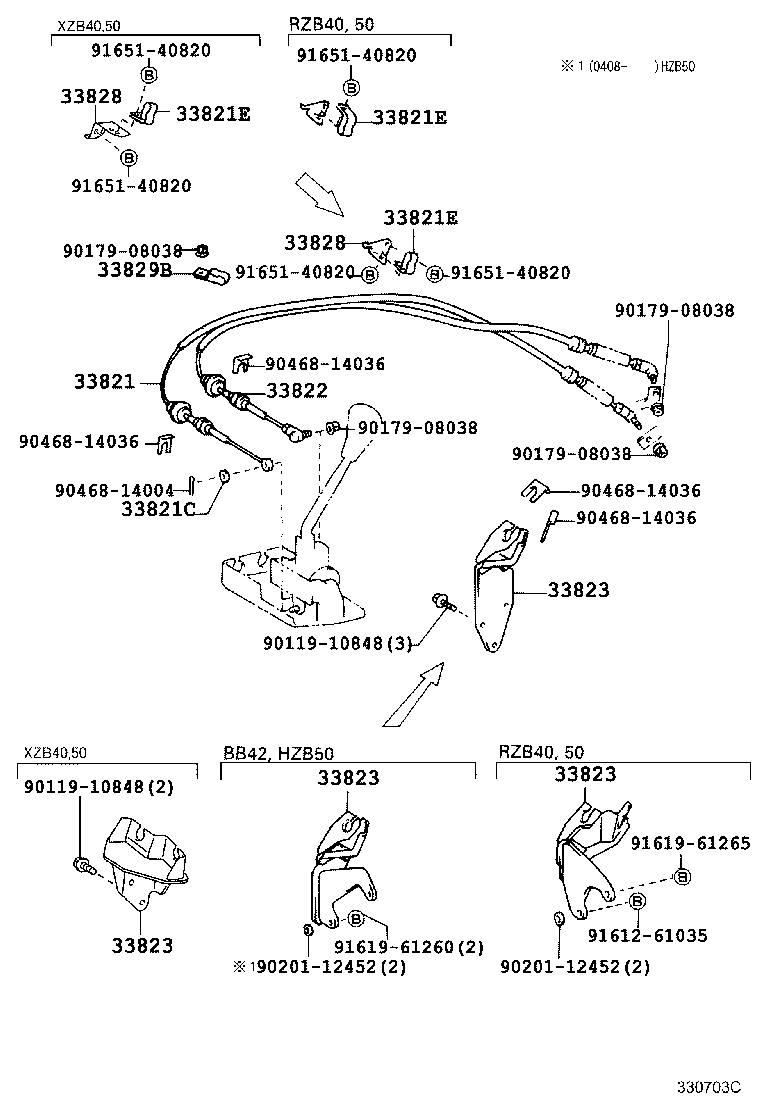

ILLUST NO. 2 OF 2(9705- )LHD..IV..6F ; (9705- )BB50..LHD..CHI,GEN ; (9705- )BB42,58,HZB50,R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-36040 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33821-36070 |
RZB40,50 |
1 | ||
| 33821-36010 |
BB42,HZB50..LHD..5F |
1 | ||
| 33821-36020 |
RZB40,50 |
1 | ||
| 33821-36041 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 90201-08023 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 90201-08023 |
HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01B24 |
BB43,50..GEN;BB42,58,HZB50..LHD |
1 | ||
| 90949-01B24 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01B24 |
BB43,50..GEN;BB42,58,HZB50..LHD |
1 | ||
| 90949-01B24 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01B24 |
BB43,50..GEN;BB42,58,HZB50..LHD |
1 | ||
| 90949-01B24 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-36060 |
RZB40,50 |
1 | ||
| 33822-36010 |
BB42,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33822-36030 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33822-36031 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36060 |
HZB50..4FC;BB43,50..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 33828-36060 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36060 |
HZB50..4FC;BB43,50..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 33828-36060 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37120 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33829-37120 |
BB42,50,58,HZB50,RZB40,50..LHD |
1 | ||
| 33829-37120 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) |
1 | ||
| Common parts | ||||
| 90119-10848 | ||||
| 90179-08038 | ||||
| 90201-12452 | ||||
| 90468-14004 | ||||
| 90468-14036 | ||||
| 91612-61035 | ||||
| 91619-61260 | ||||
| 91619-61265 | ||||
| 91651-40820 | ||||
(9301-9907)BB42,HZB50,RZB40,50..LHD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36060E0 |
BB4#,HZB50,RZB40,50..5F GREIGE,TRIM4# |
1 | ||
| 33504-36051E0 |
HZB50..5F..DSL;BB4#,5#,RZB40,50 GRAIGE,TRIM4# |
1 | ||
| 33504-36051C0 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,HZB50,RZB40,50..5F BLACK,TRIM4# |
1 | ||
| 33504-36051C0 |
BB42,50,59,BZB40,50,HZB50,RZB40,50..(GCC,GEN)..5F BLACK,TRIM1# |
1 | ||
| 33520A - SHAFT ASSY, FLOOR SHIFT CONTROL | ||||
| 33520-36230 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-36040 |
BB42,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-36130 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT) | ||||
| 33580-36090 |
BB42,HZB50..LHD..5F |
1 | ||
| 33580-36100 |
BB50,RZB40,50..LHD |
1 | ||
| 33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT) | ||||
| 33590-36140 |
BB50,RZB40,50..LHD |
1 | ||
| 33590-36120 |
HZB50..LHD..5F |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36170 |
HZB50..LHD..5F |
1 | ||
| 33706-36190 |
RZB40,50 |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-36560 |
BB42,HZB50..LHD..5F |
1 | ||
| 33790-36570 |
BB50,RZB40,50..LHD |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36090 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36090 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36040 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36040 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 33779 - ARM, SHIFT LEVER HOUSING, NO.2 | ||||
| 33779-36140 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2) | ||||
| 90386-14012 |
BB42,50,HZB50,RZB40,50..LHD..5F |
6 | ||
| 33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2) | ||||
| 90386-14012 |
BB42,50,HZB50,RZB40,50..LHD..5F |
6 | ||
| 33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2) | ||||
| 90386-14012 |
BB42,50,HZB50,RZB40,50..LHD..5F |
6 | ||
| 33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2) | ||||
| 90386-14012 |
BB42,50,HZB50,RZB40,50..LHD..5F |
6 | ||
| 33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2) | ||||
| 90386-14012 |
BB42,50,HZB50,RZB40,50..LHD..5F |
6 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-36040 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33821-36070 |
RZB40,50 |
1 | ||
| 33821-36010 |
BB42,HZB50..LHD..5F |
1 | ||
| 33821-36020 |
RZB40,50 |
1 | ||
| 33821-36041 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 90201-08023 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 90201-08023 |
HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 90201-08023 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 90201-08023 |
HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-36060 |
RZB40,50 |
1 | ||
| 33822-36010 |
BB42,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33822-36030 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33822-36031 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-36030 |
HZB50..LHD..5F |
1 | ||
| 33829-36050 |
RZB40,50 |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-36440 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33840-36380 |
BB42,HZB50..LHD..5F |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-36310 |
HZB50..LHD..5F |
1 | ||
| 33850-36330 |
RZB40,50 |
1 | ||
| 38976B - CLAMP, PUSH PULL CABLE | ||||
| 38976-36010 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| Common parts | ||||
| 78186-36010 | ||||
| 90119-08766 | ||||
| 90170-08052 | ||||
| 90179-08141 | ||||
| 90179-08204 | ||||
| 90201-12452 | ||||
| 90468-14004 | ||||
| 90468-14036 | ||||
| 91611-60616 | ||||
| 91611-60625 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91611-B0825 | ||||
| 91619-61260 | ||||
| 91651-60618 | ||||
| 91651-60816 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94130-61200 | ||||
| 94511-01000 | ||||
| 94531-01200 | ||||
| 94612-11001 | ||||

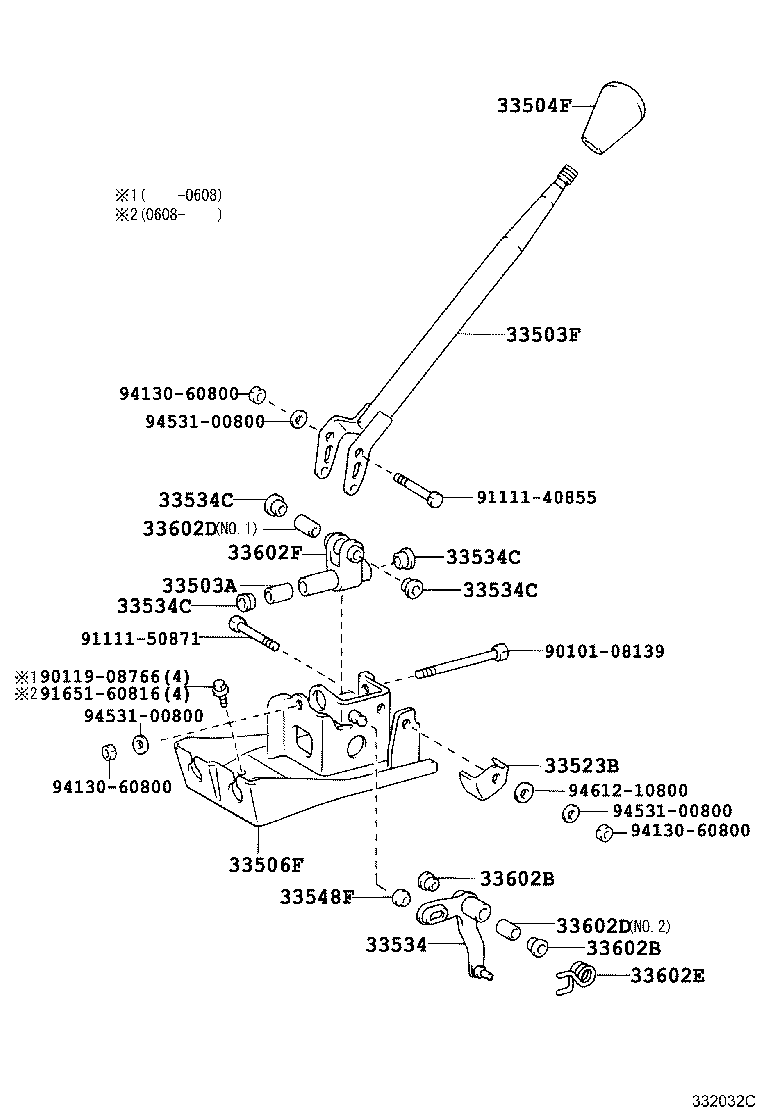

ILLUST NO. 1 OF 2(9705- )LHD..IV..6F ; (9705- )BB50..LHD..CHI,GEN ; (9705- )BB42,58,HZB50,R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33501-36240 |
BB42,50,58,HZB50,RZB40,50..LHD |
1 | ||
| 33501-36240 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33501-36240 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-36070 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33055-36070 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36060E0 |
BB4#,HZB50,RZB40,50..5F GREIGE,TRIM4# |
1 | ||
| 33504-36051E0 |
HZB50..5F..DSL;BB4#,5#,RZB40,50 GRAIGE,TRIM4# |
1 | ||
| 33504-36051C0 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,HZB50,RZB40,50..5F BLACK,TRIM4# |
1 | ||
| 33504-36051C0 |
BB42,50,59,BZB40,50,HZB50,RZB40,50..(GCC,GEN)..5F BLACK,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-36020 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33506-36020 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING | ||||
| 33507-36040 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) |
1 | ||
| 33507-36040 |
BB42,50,58,HZB50,RZB40,50..LHD |
1 | ||
| 33507-36040 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33533F - SHAFT, BELLCRANK (FOR FLOOR SHIFT) | ||||
| 33533-36050 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33533-36050 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) |
1 | ||
| 33533-36050 |
BB42,50,58,HZB50,RZB40,50..LHD |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08153 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.2 |
1 | ||
| 90440-13002 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.1 |
1 | ||
| 90387-08153 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.2 |
1 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08153 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.2 |
1 | ||
| 90440-13002 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.1 |
1 | ||
| 90387-08153 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.2 |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03066 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 90949-03066 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-36040 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33602-36040 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33606 - LEVER SUB-ASSY, WIRE PULL | ||||
| 33606-36020 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33606-36020 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) |
1 | ||
| 33606-36020 |
BB42,50,58,HZB50,RZB40,50..LHD |
1 | ||
| 33693A - SHIM, SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT) | ||||
| 33693-36050 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) T=0.6 |
1 | ||
| 33693-36080 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) T=1.2 |
1 | ||
| 33693-36090 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) T=1.4 |
1 | ||
| 33693-36070 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) T=1.0 |
1 | ||
| 33693-36060 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) T=0.8 |
1 | ||
| 33693-36080 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) T=1.2 |
1 | ||
| 33693-36050 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) T=0.6 |
1 | ||
| 33693-36060 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) T=0.8 |
1 | ||
| 33693-36050 |
BB42,50,58,HZB50,RZB40,50..LHD T=0.6 |
1 | ||
| 33693-36070 |
BB42,50,58,HZB50,RZB40,50..LHD T=1.0 |
1 | ||
| 33693-36090 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) T=1.4 |
1 | ||
| 33693-36060 |
BB42,50,58,HZB50,RZB40,50..LHD T=0.8 |
1 | ||
| 33693-36080 |
BB42,50,58,HZB50,RZB40,50..LHD T=1.2 |
1 | ||
| 33693-36070 |
BB42..WC..GCC;RZB40..22S..CHI;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC;BB50,58,HZB50,RZB50..LHD..(20S,23S,30S) T=1.0 |
1 | ||
| 33693-36090 |
BB42,50,58,HZB50,RZB40,50..LHD T=1.4 |
1 | ||
| Common parts | ||||
| 90101-08163 | ||||
| 90201-08094 | ||||
| 90206-16006 | ||||
| 90560-16024 | ||||
| 91111-50871 | ||||
| 91311-80812 | ||||
| 91611-B0816 | ||||
| 91611-G0612 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
ILLUST NO. 2 OF 2(9705- )BB59,BZB50..IV ; (9705- )BB50..RHD..GEN ; (9802- )BB43 ; (9907-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-36040 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33821-36040 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33821-36070 |
RZB40,50 |
1 | ||
| 33821-36070 |
RZB40,50 |
1 | ||
| 33821-36010 |
BB42,HZB50..LHD..5F |
1 | ||
| 33821-36010 |
BB42,HZB50..LHD..5F |
1 | ||
| 33821-36020 |
RZB40,50 |
1 | ||
| 33821-36020 |
RZB40,50 |
1 | ||
| 33821-36041 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33821-36041 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 90201-08023 |
BB50..WC..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 90201-08023 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 90201-08023 |
BB42,50,HZB50,RZB40,50..LHD..5F |
2 | ||
| 90201-08023 |
HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN |
1 | ||
| 90201-08023 |
HZB50..LHD;BB42..WC..GCC;BB50..EX..TDEFI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01B24 |
BB43,50..GEN;BB42,58,HZB50..LHD |
1 | ||
| 90949-01B24 |
BB43,50..GEN;BB42,58,HZB50..LHD |
1 | ||
| 90949-01B24 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 90949-01B24 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01B24 |
BB43,50..GEN;BB42,58,HZB50..LHD |
1 | ||
| 90949-01B24 |
BB43,50..GEN;BB42,58,HZB50..LHD |
1 | ||
| 90949-01B24 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 90949-01B24 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-36060 |
RZB40,50 |
1 | ||
| 33822-36060 |
RZB40,50 |
1 | ||
| 33822-36010 |
BB42,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33822-36010 |
BB42,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33822-36030 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33822-36030 |
BB42,58,HZB50..LHD;BB50..STD..WC..GEN |
1 | ||
| 33822-36031 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33822-36031 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36010 |
HZB50..LHD |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36030 |
BB43,5#..GEN |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33804-36040 |
RZB40,50 |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33823-36110 |
BB42,50,HZB50,RZB40,50..LHD..5F |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36041 |
RZB40,50 |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33804-36011 |
HZB50..LHD |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36060 |
HZB50..4FC;BB43,50..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 33828-36060 |
HZB50..4FC;BB43,50..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 33828-36060 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33828-36060 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36060 |
HZB50..4FC;BB43,50..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 33828-36060 |
HZB50..4FC;BB43,50..GEN;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 33828-36060 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| 33828-36060 |
BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,HZB50,RZB50..LHD..(GCC,GEN)..CBU..5F |
1 | ||
| Common parts | ||||
| 90119-10848 | ||||
| 90179-08038 | ||||
| 90468-14004 | ||||
| 90468-14036 | ||||
| 91651-40820 | ||||
ILLUST NO. 1 OF 2(9705- )BB50,59..RHD..GEN ; (9802- )BB43,58..17S,23S ; (9907- )6F..TD ; (0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-36070 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33055-36070 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33055-36070 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33055-36070 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36060E0 |
BB4#,HZB50,RZB40,50..5F GREIGE,TRIM4# |
1 | ||
| 33504-36060E0 |
BB4#,HZB50,RZB40,50..5F GREIGE,TRIM4# |
1 | ||
| 33504-36051E0 |
HZB50..5F..DSL;BB4#,5#,RZB40,50 GRAIGE,TRIM4# |
1 | ||
| 33504-36051E0 |
HZB50..5F..DSL;BB4#,5#,RZB40,50 GRAIGE,TRIM4# |
1 | ||
| 33504-36051C0 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,HZB50,RZB40,50..5F BLACK,TRIM4# |
1 | ||
| 33504-36051C0 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,HZB50,RZB40,50..5F BLACK,TRIM4# |
1 | ||
| 33504-36051C0 |
BB42,50,59,BZB40,50,HZB50,RZB40,50..(GCC,GEN)..5F BLACK,TRIM1# |
1 | ||
| 33504-36051C0 |
BB42,50,59,BZB40,50,HZB50,RZB40,50..(GCC,GEN)..5F BLACK,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-36020 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33506-36020 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33506-36020 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33506-36020 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 90386-13007 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
4 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08153 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.2 |
1 | ||
| 90387-08153 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.2 |
1 | ||
| 90440-13002 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.1 |
1 | ||
| 90387-08153 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.2 |
1 | ||
| 90387-08153 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.2 |
1 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08153 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.2 |
1 | ||
| 90387-08153 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.2 |
1 | ||
| 90440-13002 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.1 |
1 | ||
| 90440-13002 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.1 |
1 | ||
| 90387-08153 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.2 |
1 | ||
| 90387-08153 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) NO.2 |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03066 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 90949-03066 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 90949-03066 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 90949-03066 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-36040 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33602-36040 |
BB42..WC..GCC;RZB40..WOC..GEN;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN) |
1 | ||
| 33602-36040 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| 33602-36040 |
BB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90101-08139 | ||||
| 90119-08766 | ||||
| 91111-40855 | ||||
| 91111-50871 | ||||
| 91651-60816 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
