HZB30R-MRZQ (1990)
Toyota Coaster

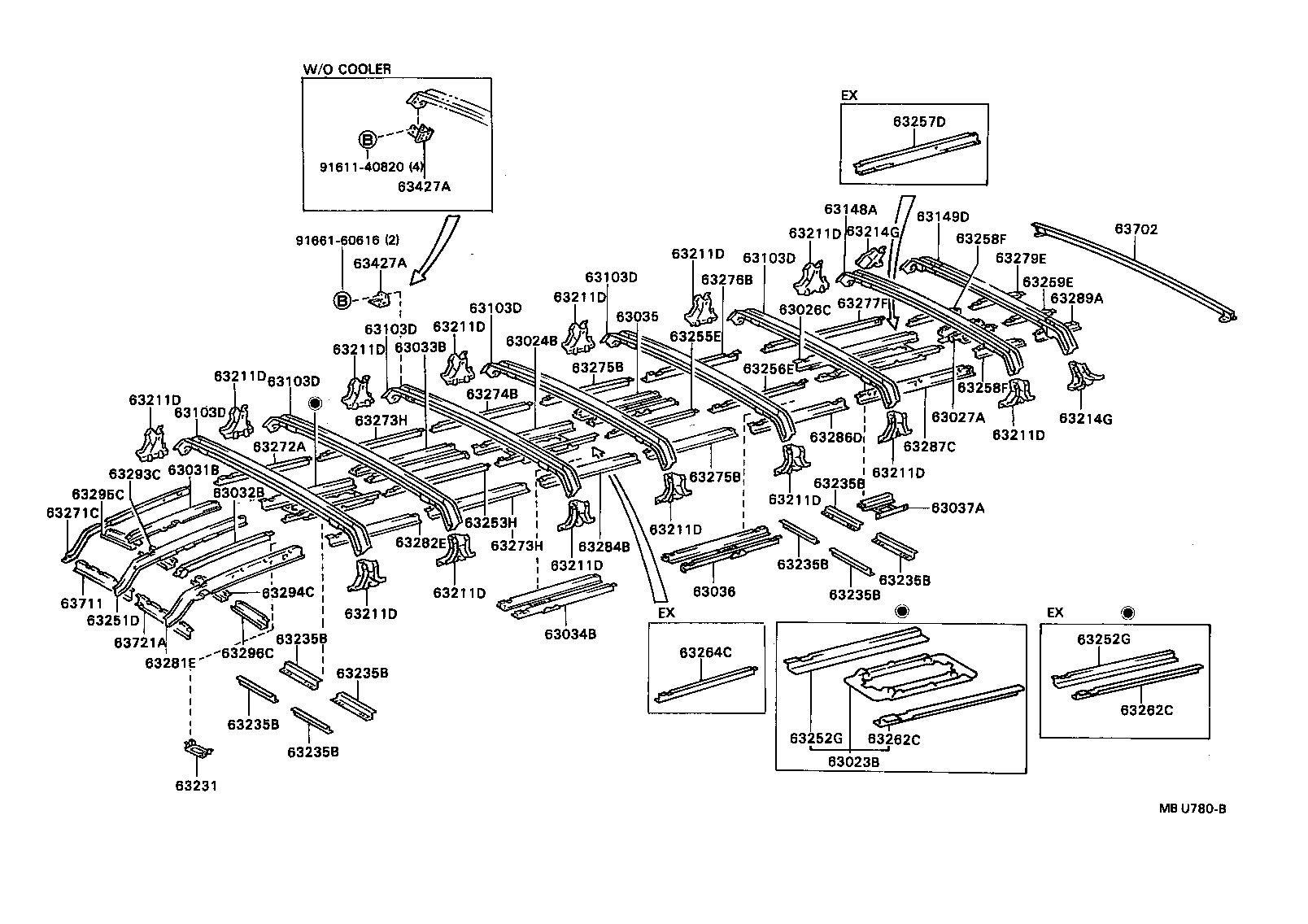

ILLUST NO. 4 OF 4(9001- )BB32,FB30,HZB30..HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-90B00 |
BB2#,32,FB30,HZB30,RB20..(DLX,STD)..HRF |
1 | ||
| 63024B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.4 | ||||
| 63024-90B01 |
HZB30..(DLX,STD)..HRF |
1 | ||
| 63026C - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.7 | ||||
| 63026-90B00 |
FB30,HZB30..(DLX,STD)..HRF |
1 | ||
| 63031B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER RH NO.1 | ||||
| 63031-90B00 |
BB21,32,HZB30,RB20..HRF..WOC |
1 | ||
| 63032B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER LH, NO.1 | ||||
| 63032-90B00 |
BB21,HZB30,RB20..HRF..WOC |
1 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF |
6 | ||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
2 | ||
| 63105-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF |
6 | ||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
2 | ||
| 63105-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF |
6 | ||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
2 | ||
| 63105-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF |
6 | ||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
2 | ||
| 63105-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF |
6 | ||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
2 | ||
| 63105-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF |
6 | ||
| 63103-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
2 | ||
| 63105-90B00 |
FB30,HZB30..(DLX,STD)..HRF W/BAGGAGE RACK |
4 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63207-90B04 |
BB21,32,FB30,HZB30,RB20..(DLX,STD)..HRF |
1 | ||
| 63207-90B07 |
HZB30..HRF..WOC W/BAGGAGE RACK |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63208-90B01 |
BB21,HZB30,RB20..HRF..WOC |
1 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB32,FB30,HZB30..HRF |
14 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B01 |
BB2#,32,FB30,HZB30,RB20..HRF |
2 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B01 |
BB2#,32,FB30,HZB30,RB20..HRF |
2 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB2#,32,FB30,HZB30,RB20..(DLX,EX,STD)..HRF 4 SPEAKER |
8 | ||
| 63251D - STRENGTH, ROOF PANEL, CENTER NO.1 | ||||
| 63251-90B01 |
BB21,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90B02 |
FB30,HZB30..(DLX,STD)..HRF |
2 | ||
| 63255E - STRENGTH, ROOF PANEL, CENTER NO.5 | ||||
| 63255-90B01 |
HZB30..(DLX,STD)..HRF |
1 | ||
| 63256E - STRENGTH, ROOF PANEL, CENTER NO.6 | ||||
| 63256-90B01 |
FB30,HZB30..HRF |
1 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B01 |
BB21,HZB30,RB20..HRF..WOC |
2 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B01 |
BB21,HZB30,RB20..HRF..WOC |
2 | ||
| 63259E - STRENGTH, ROOF PANEL, CENTER NO.9 | ||||
| 63259-90B01 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63262C - STRENGTH, ROOF PANEL, CENTER NO.2 LH | ||||
| 63262-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 63262C - STRENGTH, ROOF PANEL, CENTER NO.2 LH | ||||
| 63262-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90B03 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB2#,32,FB30,HZB30,RB20..HRF |
2 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB2#,32,FB30,HZB30,RB20..HRF |
2 | ||
| 63274B - STRENGTH, ROOF PANEL, NO.4 RH | ||||
| 63274-90B01 |
HZB30..HRF..WOC |
1 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB2#,32,FB30,HZB30,RB20..HRF |
2 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB2#,32,FB30,HZB30,RB20..HRF |
2 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-90B01 |
FB30,HZB30..HRF |
1 | ||
| 63277F - STRENGTH, ROOF PANEL, NO.7 RH | ||||
| 63277-90B01 |
FB30,HZB30..HRF |
1 | ||
| 63279E - STRENGTH, ROOF PANEL, NO.9 RH | ||||
| 63279-90B01 |
BB23,32,FB30,HZB30..HRF |
1 | ||
| 63281E - STRENGTH, ROOF PANEL, NO.1 LH | ||||
| 63022-90B00 |
BB21,HZB30,RB20..HRF..WOC |
1 | ||
| 63282E - STRENGTH, ROOF PANEL, NO.2 LH | ||||
| 63282-90B02 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63284B - STRENGTH, ROOF PANEL, NO.4 LH | ||||
| 63284-90B00 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-90B01 |
FB30,HZB30..HRF |
1 | ||
| 63287C - STRENGTH, ROOF PANEL, NO.7 LH | ||||
| 63287-90B01 |
FB30,HZB30..HRF |
1 | ||
| 63289A - STRENGTH, ROOF PANEL, NO.9 LH | ||||
| 63289-90B01 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63293C - STRENGTH, ROOF PANEL, NO.11 RH | ||||
| 63293-90B03 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63294C - STRENGTH, ROOF PANEL, NO.11 LH | ||||
| 63294-90B01 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63295C - STRENGTH, ROOF PANEL, NO.12 RH | ||||
| 63295-90B02 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63296C - STRENGTH, ROOF PANEL, NO.12 LH | ||||
| 63296-90B01 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-90B02 |
HZB30..HRF..WOC W/BAGGAGE RACK |
5 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-90B02 |
HZB30..HRF..WOC W/BAGGAGE RACK |
5 | ||
| 63702 - BRACKET SUB-ASSY, ROOF LINING REAR | ||||
| 63702-90B01 |
BB21,HZB30,RB20..HRF..WOC |
1 | ||
| 63711 - BRACKET, ROOF LINING, FRONT RH | ||||
| 63711-90B02 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| 63721A - BRACKET, ROOF LINING, FRONT LH | ||||
| 63721-90B02 |
BB2#,32,FB30,HZB30,RB20..HRF |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91661-60616 | ||||
