HZB30R-MR (1990)
Toyota Coaster

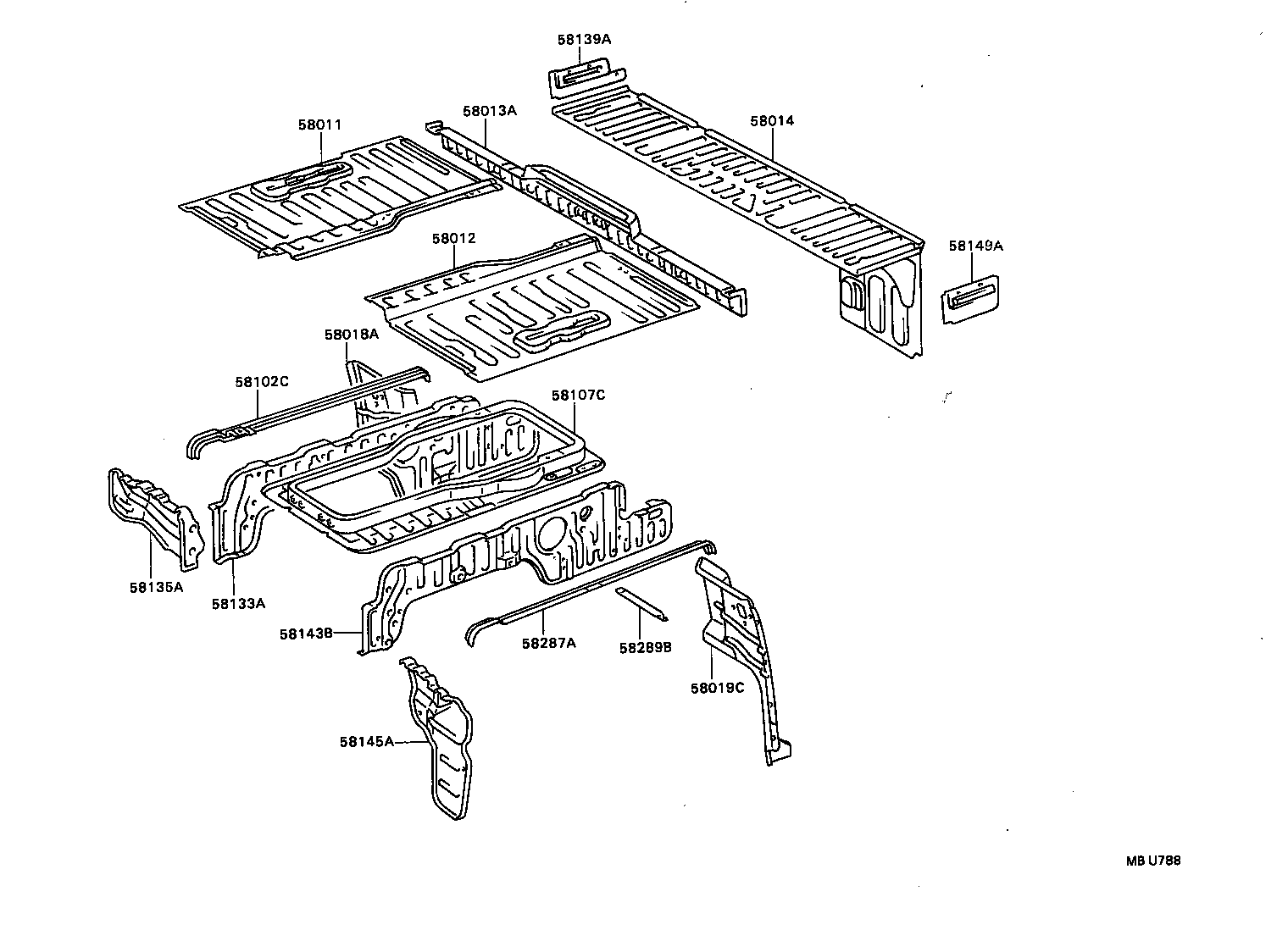

ILLUST NO. 2 OF 2(9001- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58011-90B00 |
BB21,HZB30..RHD..GEN |
1 | ||
| 58011-90B04 |
BB21,HZB30..RHD..GEN |
1 | ||
| 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58012-90B14 |
HZB30..RHD..GEN HONG KONG SPEC |
1 | ||
| 58012-90B00 |
BB21,HZB30..RHD..GEN |
1 | ||
| 58013A - PANEL SUB-ASSY, FRONT FLOOR, REAR UPPER | ||||
| 58013-90B04 |
HZB30..RHD..GEN W/FR HEATER |
1 | ||
| 58013-90B10 |
HZB30..RHD..GEN W/SEPARATE MECANICAL AUTO DOOR & FR HEATER |
1 | ||
| 58013-90B21 |
HZB30..RHD..GEN |
1 | ||
| 58013-90B22 |
HZB30..RHD..GEN HONG KONG SPEC OR W/SEPARATE MECANICAL AUTO DOOR |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-90B44 |
HZB30..RHD..30S |
1 | ||
| 58014-90B46 |
HZB30..RHD..GEN W/GLIDING AUTO DOOR & GLIDING TYPE CENTER DOOR OR FR HEATER;W/GLIDING AUTO DOOR OR W/FOLDING TYPE CENTER DOOR;W/GLIDING TYPE CENTER DOOR & FR HEATER |
1 | ||
| 58014-90B45 |
HZB30..RHD..30S W/FOLDING AUTO DOOR OR W/FOLDING AUTO DOOR & FR HEATER |
1 | ||
| 58014-90B46 |
HZB30..RHD..30S W/FR HEATER |
1 | ||
| 58014-90B47 |
HZB30..RHD..30S W/SEPARATE MECANICAL AUTO DOOR OR W/SEPARATE MECANICAL AUTO DOOR & FOLDING CENTERDOOR;W/FR HEATER |
1 | ||
| 58018A - PANEL SUB-ASSY, FRONT FLOOR HOUSING, RH | ||||
| 58018-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 58019C - PANEL SUB-ASSY, FRONT FLOOR HOUSING, LH | ||||
| 58019-90B00 |
BB21,HZB30..RHD |
1 | ||
| 58019-90B02 |
HZB30..RHD..GEN H0NG K0NG SPEC |
1 | ||
| 58102C - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58102-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 58107C - ANGLE SUB-ASSY, FRONT FLOOR | ||||
| 58107-90B03 |
HZB30..RHD |
1 | ||
| 58133A - APRON, FRONT FLOOR SIDE, NO.2 RH | ||||
| 58133-90B04 |
FB30,HZB30 |
1 | ||
| 58135A - PANEL, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58135-90B01 |
HZB30..RHD |
1 | ||
| 58139A - PLATE, FRONT FLOOR SIDE, REAR RH | ||||
| 58139-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 58143B - APRON, FRONT FLOOR SIDE, NO.2 LH | ||||
| 58143-90B06 |
FB30,HZB30 |
1 | ||
| 58145A - PANEL, FRONT FLOOR HOUSING, FRONT LH | ||||
| 58145-90B02 |
HZB30..RHD |
1 | ||
| 58149A - PLATE, FRONT FLOOR SIDE, REAR LH | ||||
| 58149-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 58287A - REINFORCEMENT, SIDE FLOOR, NO.1 LH | ||||
| 58287-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 58289B - REINFORCEMENT, SIDE FLOOR, NO.3 LH | ||||
| 58289-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
