HZB30R-MDZRQ (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1H#

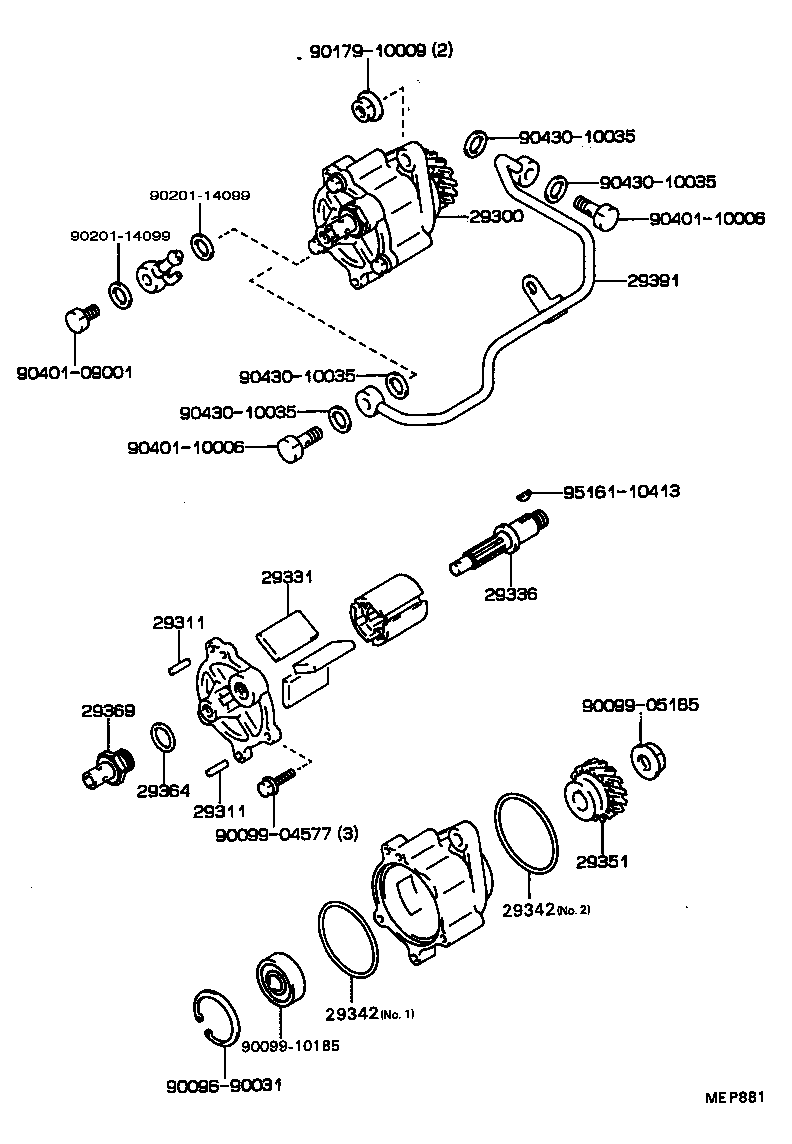

Click highlighted areas on diagram

diagram 29300 29311 29311 29331 29336 29342 29342 29351 29364 29369 29391 9009690031 9009904577 9009905185 9009910185 9017910009 9020114099 9020114099 9040109001 9040110006 9040110006 9043010035 9043010035 9043010035 9043010035 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-17010

1H#..HDB30,HZB30

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1H#..HDB30,HZB30

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1H#..HDB30,HZB30

 2
29331 - BLADE, VACUUM PUMP, A
29331-58050

1H#..HDB30,HZB30

 3
29336 - SHAFT, VACUUM PUMP
29336-58050

1H#..HDB30,HZB30

 1
29342 - PACKING, VACUUM PUMP
29342-17010

1H#..HDB30,HZB30

NO.2

 1
29342-58010

1H#..HDB30,HZB30

NO.1

 1
29342 - PACKING, VACUUM PUMP
29342-17010

1H#..HDB30,HZB30

NO.2

 1
29342-58010

1H#..HDB30,HZB30

NO.1

 1
29351 - GEAR, VACUUM PUMP
29351-17010

1H#..HDB30,HZB30

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1H#..HDB30,HZB30

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1H#..HDB30,HZB30

 1
29391 - TUBE, VACUUM PUMP
29391-17010

1H#..HDB30,HZB30

 1
Common parts
90096-90031
90099-04577
90099-05185
90099-10185
90179-10009
90201-14099
90401-09001
90401-10006
90430-10035
95161-10413
