HZB30R-MDZR (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

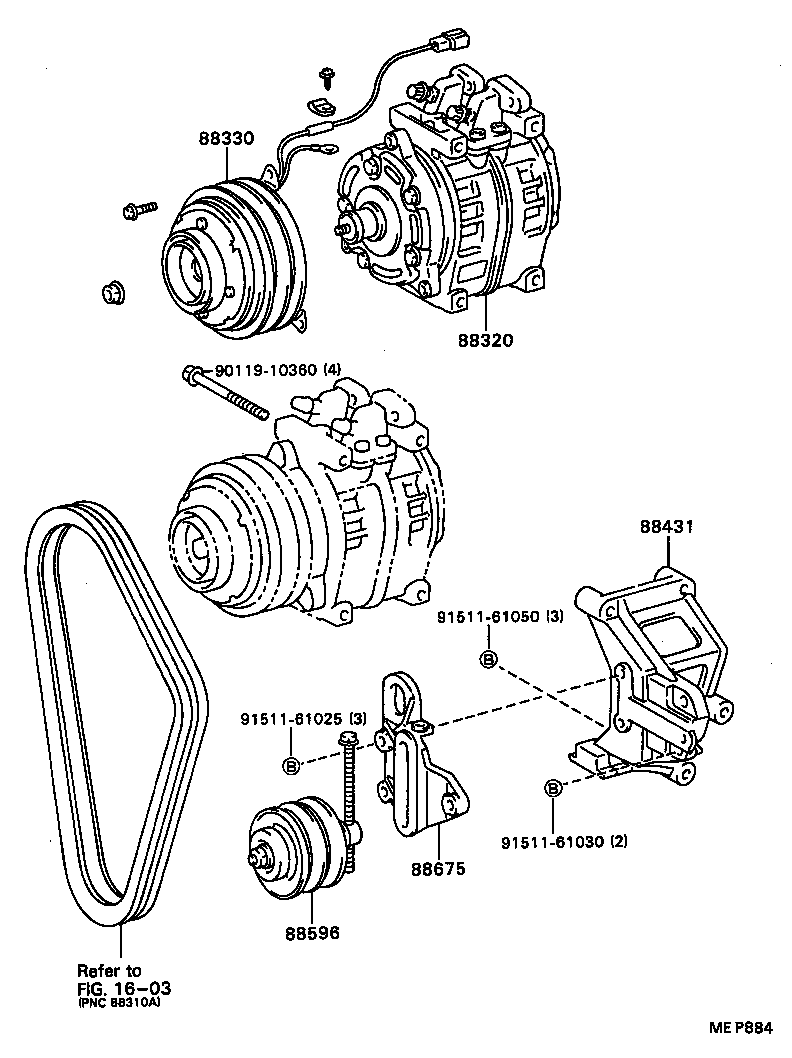

ILLUST NO. 1 OF 2(9001-9301)HZB30..WC ; (9109-9301)EUR

Click highlighted areas on diagram

diagram 1603 88320 88330 88431 88596 88675 9011910360 9151161025 9151161030 9151161050
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-36310

HZB30..WC

 1
88330 - CLUTCH ASSY, MAGNET
88410-36320

HZB30..WC

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36510

HZB30..WC

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-36110

HZB30..WC

 1
88675 - BRACKET, IDLER PULLEY (FOR COOLER)
88444-36150

HZB30..WC

 1
Common parts
90119-10360
91511-61025
91511-61030
91511-61050
Linked diagrams
1603
