HZB30R-MD (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1H#

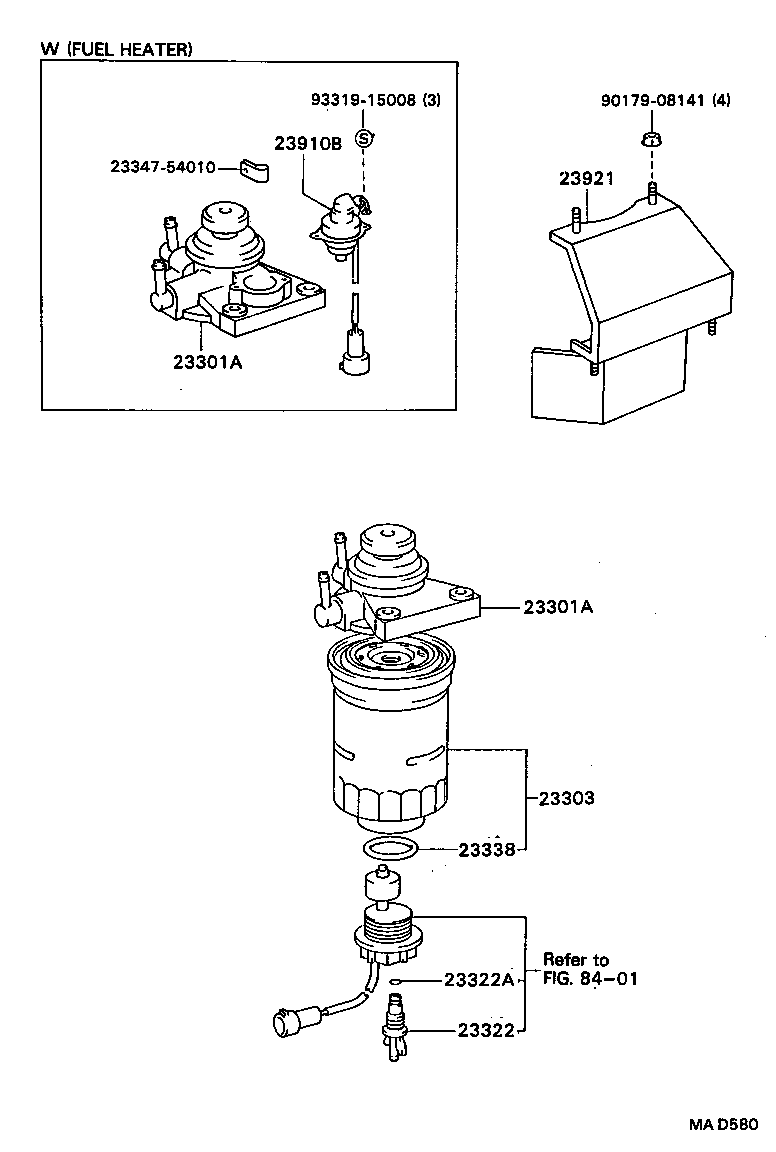

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2334754010 23910B 23921 8401 9017908141 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-58100

1HZ..HZB30

 1
23301-17100

1HZ..HZB30..GEN

W/FUEL HEATER

 1
23301A - CAP ASSY, FUEL FILTER
23301-58100

1HZ..HZB30

 1
23301-17100

1HZ..HZB30..GEN

W/FUEL HEATER

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-56040

1HZ..HZB30

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

1H#..HDB30,HZB30

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1H#..HDB30,HZB30

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1H#..HDB30,HZB30

 1
23910B - HEATER ASSY, FUEL
23910-17010

1HZ..HZB30..GEN

W/FUEL HEATER

 1
23921 - SUPPORT, FUEL FILTER
23904-17020

1H#..HDB30,HZB30..5F

 1
Common parts
23347-54010
90179-08141
93319-15008
Linked diagrams
8401
