HZB30L-PDZRV (1990)
Toyota Coaster

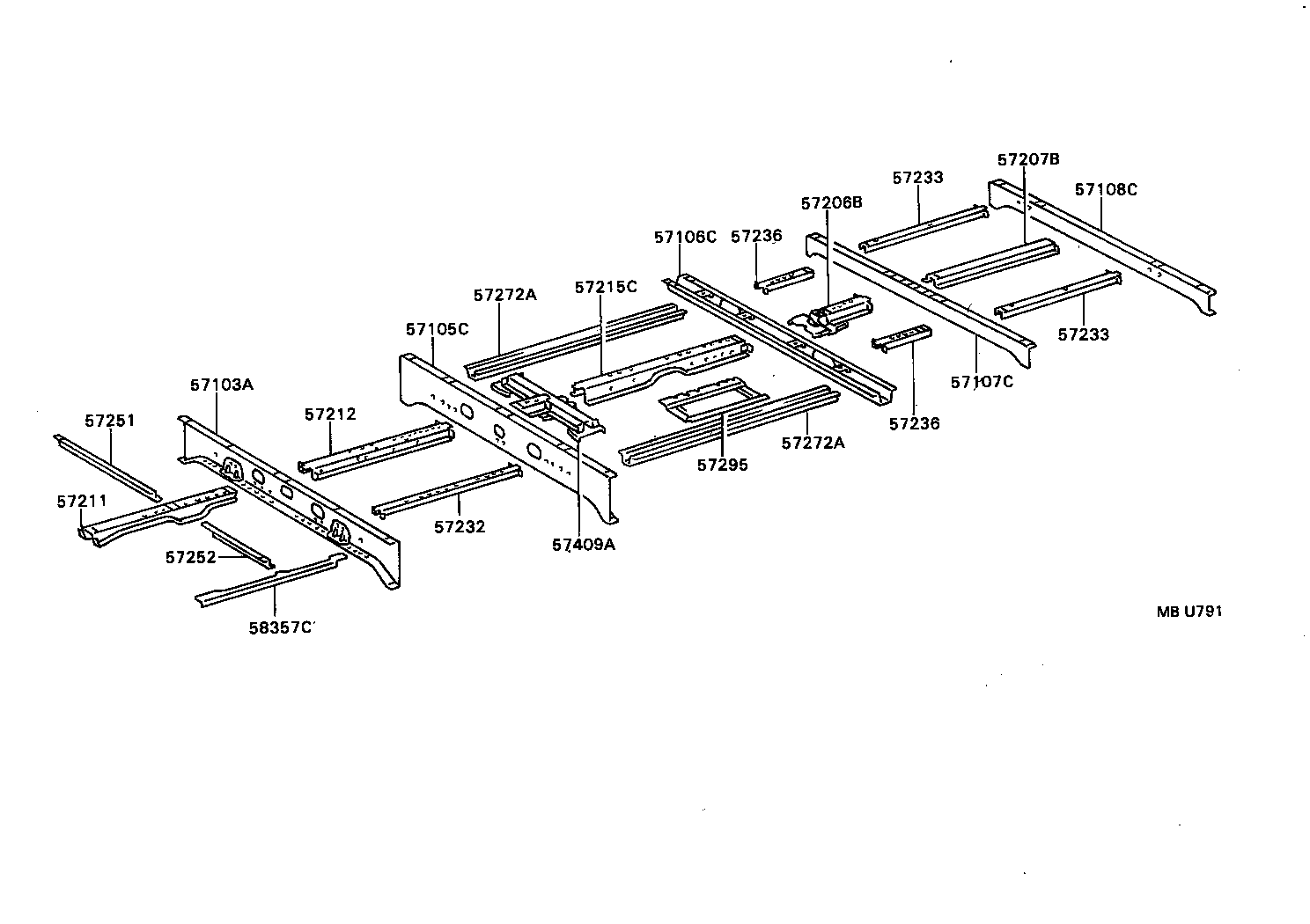

ILLUST NO. 2 OF 2(9001- )BB21,HZB30,RB20..ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 | ||||
| 57103-90B08 |
BB21,32,FB30,HZB30,RB20..LHD W/GLIDING TYPE CENTER DOOR OR W/GLIDING TYPE CENTER DOOR & W/TACHOMETER |
1 | ||
| 57103-90B01 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 57105C - CROSSMEMBER SUB-ASSY, FLOOR, NO.5 | ||||
| 57105-90B03 |
HZB30..ME |
1 | ||
| 57105-90B04 |
HZB30..ME |
1 | ||
| 57106C - CROSSMEMBER SUB-ASSY, FLOOR, NO.6 | ||||
| 57106-90B04 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 57107C - CROSSMENBER SUB-ASSY, FLOOR, NO.7 | ||||
| 57107-90B01 |
HZB30..ME |
1 | ||
| 57107-90B03 |
HZB30..ME |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-90B03 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 57206B - STRENGTH SUB-ASSY, ANCHOR | ||||
| 57206-90B07 |
FB30,HZB30..LHD CHINA DISTINATION PACKAGE |
1 | ||
| 57206-90B01 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 57206-90B07 |
BB21,HZB30..LHD W/TACHOMETER |
1 | ||
| 57207B - STRENGTH SUB-ASSY, REAR FLOOR HOUSING, NO.7 | ||||
| 57207-36010 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 57207-90B01 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 57211 - STRENGTH, ANCHOR, NO.1 | ||||
| 57211-90B08 |
HZB30..ME |
1 | ||
| 57211-90B01 |
HZB30..ME |
1 | ||
| 57212 - STRENGTH, ANCHOR, NO.2 | ||||
| 57212-90B01 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 57215C - STRENGTH, ANCHOR, NO.5 | ||||
| 57215-90B01 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 57205-90B00 |
FB30,HZB30..LHD CHINA DISTINATION PACKAGE |
1 | ||
| 57205-90B00 |
BB21,HZB30..LHD W/TACHOMETER |
1 | ||
| 57232 - STRENGTH, ANCHOR SIDE, NO.2 | ||||
| 57232-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 57233 - STRENGTH, ANCHOR SIDE, NO.3 | ||||
| 57233-90B03 |
BB21,HZB30,RB20 W/*SSBD |
1 | ||
| 57233-36010 |
HZB30,RB20 W/*SSBD & TACHMETER |
2 | ||
| 57233-36010 |
BB21,HZB30,RB20 W/*SSBD |
1 | ||
| 57233-90B03 |
HZB30,RB20 W/*SSBD & TACHMETER |
2 | ||
| 57233 - STRENGTH, ANCHOR SIDE, NO.3 | ||||
| 57233-90B03 |
BB21,HZB30,RB20 W/*SSBD |
1 | ||
| 57233-36010 |
HZB30,RB20 W/*SSBD & TACHMETER |
2 | ||
| 57233-36010 |
BB21,HZB30,RB20 W/*SSBD |
1 | ||
| 57233-90B03 |
HZB30,RB20 W/*SSBD & TACHMETER |
2 | ||
| 57236 - STRENGTH, ANCHOR SIDE, NO.6 | ||||
| 57236-90B00 |
BB2#,32,FB30,HZB30,RB20..GEN,ME |
1 | ||
| 57236 - STRENGTH, ANCHOR SIDE, NO.6 | ||||
| 57236-90B00 |
BB2#,32,FB30,HZB30,RB20..GEN,ME |
1 | ||
| 57251 - STRENGTH, FLOOR CROSS | ||||
| 57251-90B01 |
HZB30..LHD |
1 | ||
| 57252 - STRENGTH, FLOOR CROSS, NO.2 | ||||
| 57252-90B00 |
BB2#,32,FB30,HZB30,RB20 |
1 | ||
| 57272A - STRENGTH, REAR FLOOR HOUSING, SIDE | ||||
| 57272-90B00 |
BB2#,32,FB30,HZB30,RB20 |
2 | ||
| 57272A - STRENGTH, REAR FLOOR HOUSING, SIDE | ||||
| 57272-90B00 |
BB2#,32,FB30,HZB30,RB20 |
2 | ||
| 57295 - INSULATOR, ANCHOR STRENGTH TO REAR FLOOR | ||||
| 57295-90B00 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 57409A - STRENGTH SUB-ASSY, REAR FLOOR HOUSING | ||||
| 57409-90B05 |
BB21,HZB30..LHD W/TACHOMETER |
1 | ||
| 57409-90B03 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 57409-90B05 |
FB30,HZB30..LHD CHINA DISTINATION PACKAGE |
1 | ||
| 58357C - STRENGTH, CENTER DOOR STEP, UPPER | ||||
| 58357-90B01 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
