HZB30L-MDZR (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

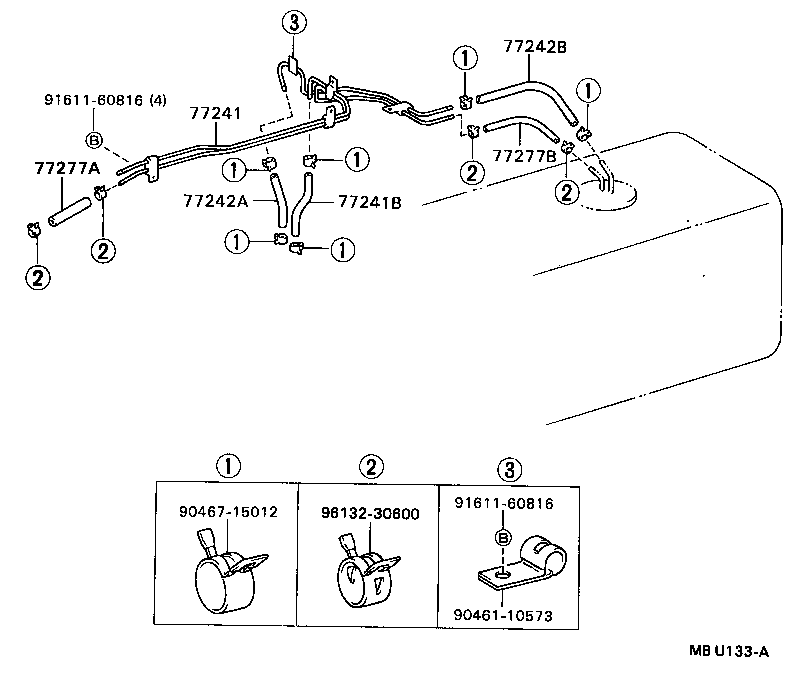

ILLUST NO. 2 OF 2(9001- )HZB30..LHD

Click highlighted areas on diagram

diagram 77241 77241B 77242A 77242B 77277A 77277B 9046110573 9046715012 9161160816 9161160816 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77205-36700

HZB30..LHD

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BB2#,30

*H,L=190,ID=7.6

 1
95332-10020

HZB30..5F

*H,L=200

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

BB2#,30

*H,L=190,ID=7.6

 1
95332-10024

HZB30..5F

*H,L=240

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08040

BB2#,30

*H,L=360,ID=7.6

 1
95332-10020

HZB30..LHD

*H,L=200

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-17030

HDB30,HZB30

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06020

HZB30..LHD

*H,L=180

 1
Common parts
90461-10573
90467-15012
91611-60816
96132-30600
