HZB30L-MDZR (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

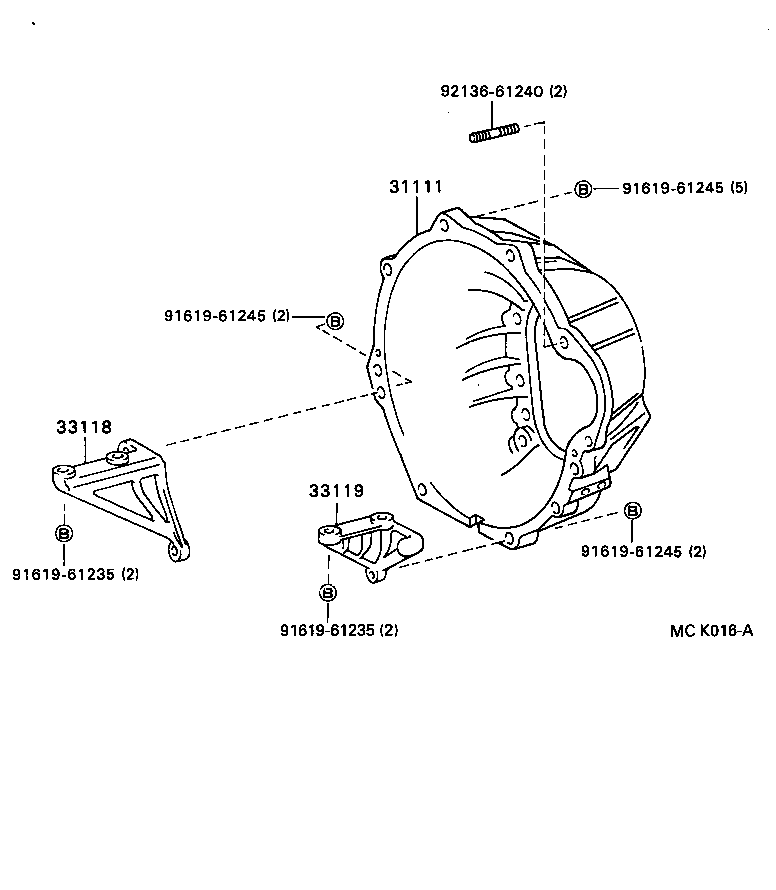

ILLUST NO. 1 OF 2(9001- )HDB30,HZB30

Click highlighted areas on diagram

diagram 31111 33118 33119 9161961235 9161961235 9161961245 9161961245 9161961245 9213661240
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-36050

BB20,30

 1
31111-36290

HDB30,HZB30..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36010

BB20,30

 1
33118-60030

HDB30,HZB30..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-60030

HDB30,HZB30..5F

 1
33119-36010

BB20,30

 1
33119-60031

HDB30,HZB30..5F

 1
Common parts
91619-61235
91619-61245
92136-61240
