HZB30L-MDZR (1990)
Toyota Coaster
Production
Jan 1990
-
Jan 1993
Engine
1HZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )BB2#,FB30,HZB30,RB20

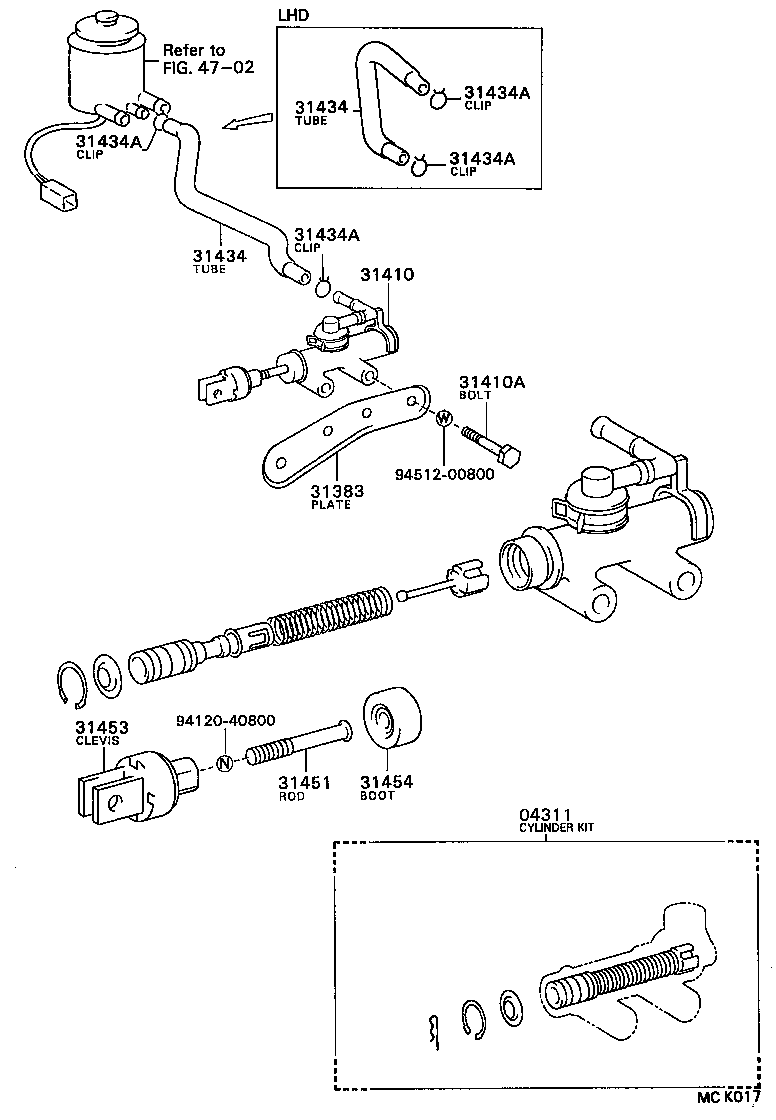

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-30080 |
BB20,30,RB20 |
1 | ||
| 04311-20080 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 31383 - PLATE, PEDAL SUPPORT SHAFT SET | ||||
| 55136-90B00 |
HZB30..GEN |
1 | ||
| 55136-90B00 |
BB20,22,23,3#,RB20 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-36160 |
BB2#,FB30,HZB30 |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91121-40870 |
BB2#,3#,FB30,HB30,HZB30,RB20 |
2 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36080 |
HZB30..5F |
1 | ||
| 31434-36080 |
BB20,21,3#,FB30,HB30,RB20..LHD |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-36080 |
HZB30..5F |
1 | ||
| 31434-36080 |
BB20,21,3#,FB30,HB30,RB20..LHD |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90467-14044 |
BB20,30,RB20 |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30060 |
BB2#,30,FB30,HB30,RB20 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
BB2#,3#,FB30,HB30,HZB30,RB20 |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
