HZB30L-MDZR (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1H#

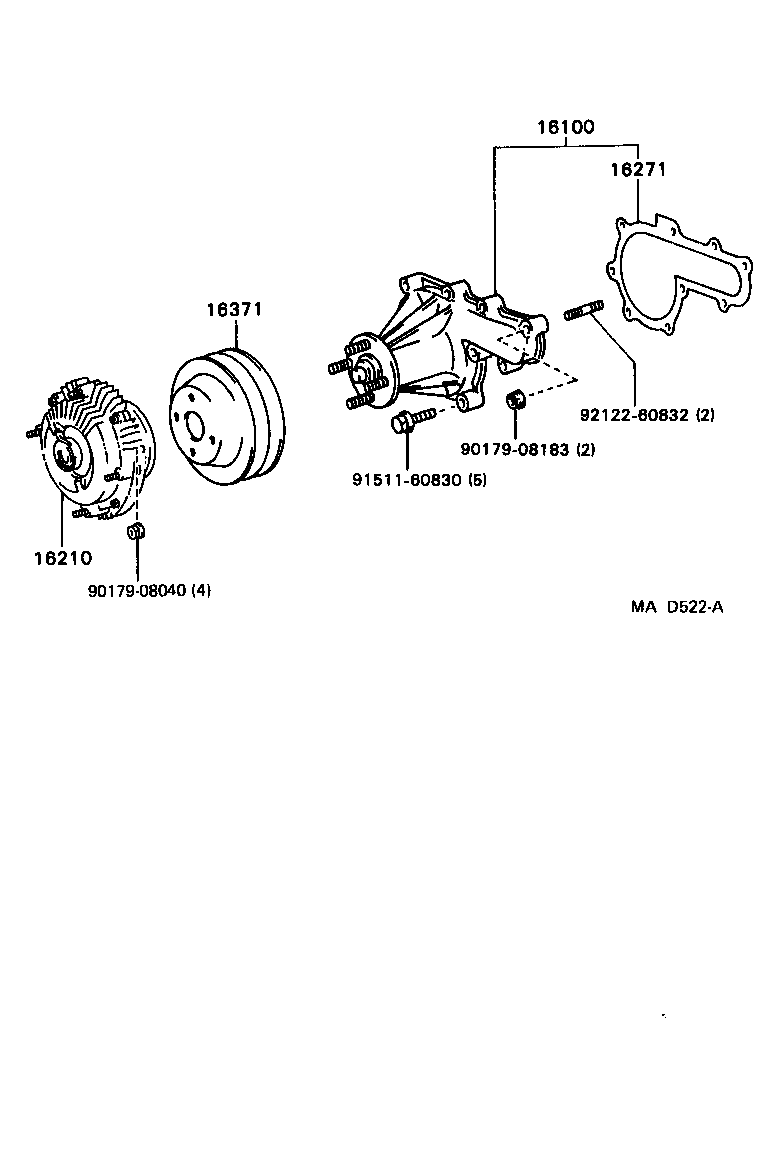

Click highlighted areas on diagram

diagram 16100 16210 16271 16371 9017908040 9017908183 9151160830 9212260832
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19235

1H#..HDB30,HZB30

 1
16210 - COUPLING ASSY, FLUID
16210-17030

1H#..HDB30,HZB30

 1
16271 - GASKET, WATER PUMP
16271-17010

1H#..HDB30,HZB30

 1
16371 - PULLEY, FAN
16371-17010

1H#..HDB30,HZB30

 1
Common parts
90179-08040
90179-08183
91511-60830
92122-60832
