HZB30L-MDZ (1990)
Toyota Coaster
(9001- )1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54250 |
1HZ..HZB30 W/HAC |
1 | ||
| 22101-64230 |
1HZ..HZB30 |
1 | ||
| 22101-54770 |
1HZ..HZB30 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-54060 |
1HZ..HZB30 |
6 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-17020 |
1HZ..HZB30..5F |
1 | ||
| 22108-17010 |
1HZ..HZB30..5F |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-17010 |
1HZ..HZB30 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-17010 |
1HZ..HZB30 |
1 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
1HZ..HZB30 |
2 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
1HZ..HZB30 |
6 | ||
| 22149-56351 |
1HZ..HZB30 |
6 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-17140 |
1H#..HDB30,HZB30 T=1.95,T=1.95 |
1 | ||
| 22179-17141 |
1H#..HDB30,HZB30 T=2.05,T=2.05 |
1 | ||
| 22179-17142 |
1H#..HDB30,HZB30 T=2.15,T=2.15 |
1 | ||
| 22179-17146 |
1H#..HDB30,HZB30 T=2.55,T=2.55 |
1 | ||
| 22179-17151 |
1H#..HDB30,HZB30 T=2.99,T=2.99 |
1 | ||
| 22179-17144 |
1H#..HDB30,HZB30 T=2.35,T=2.35 |
1 | ||
| 22179-17143 |
1H#..HDB30,HZB30 T=2.25,T=2.25 |
1 | ||
| 22179-17145 |
1H#..HDB30,HZB30 T=2.45,T=2.45 |
1 | ||
| 22179-17149 |
1H#..HDB30,HZB30 T=2.85,T=2.85 |
1 | ||
| 22179-17153 |
1H#..HDB30,HZB30 T=3.09,T=3.09 |
1 | ||
| 22179-17150 |
1H#..HDB30,HZB30 T=2.94,T=2.94 |
1 | ||
| 22179-17155 |
1H#..HDB30,HZB30 T=3.19,T=3.19 |
1 | ||
| 22179-17148 |
1H#..HDB30,HZB30 T=2.75,T=2.75 |
1 | ||
| 22179-54012 |
1H#..HDB30,HZB30 T=2.1,T=2.1 |
1 | ||
| 22179-54020 |
1H#..HDB30,HZB30 T=2.9,T=2.9 |
1 | ||
| 22179-17147 |
1H#..HDB30,HZB30 T=2.65,T=2.65 |
1 | ||
| 22179-54011 |
1H#..HDB30,HZB30 T=2.0,T=2.0 |
1 | ||
| 22179-54014 |
1H#..HDB30,HZB30 T=2.3,T=2.3 |
1 | ||
| 22179-17152 |
1H#..HDB30,HZB30 T=3.04,T=3.04 |
1 | ||
| 22179-54019 |
1H#..HDB30,HZB30 T=2.8,T=2.8 |
1 | ||
| 22179-54016 |
1H#..HDB30,HZB30 T=2.5,T=2.5 |
1 | ||
| 22179-54018 |
1H#..HDB30,HZB30 T=2.7,T=2.7 |
1 | ||
| 22179-17154 |
1H#..HDB30,HZB30 T=3.14,T=3.14 |
1 | ||
| 22179-54015 |
1H#..HDB30,HZB30 T=2.4,T=2.4 |
1 | ||
| 22179-54013 |
1H#..HDB30,HZB30 T=2.2,T=2.2 |
1 | ||
| 22179-54017 |
1H#..HDB30,HZB30 T=2.6,T=2.6 |
1 | ||
| 22179-54010 |
1H#..HDB30,HZB30 T=1.9,T=1.9 |
1 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-64740 |
1HZ..HZB30 |
6 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
1HZ..HZB30..GEN BELLOWS COMPONENT PARTS |
1 | ||
| 22193-17020 |
1HZ..HZB30 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54261 |
1HZ..HZB30 ID=1.00,ID=1.35 |
1 | ||
| 22316-64640 |
1HZ..HZB30 MARK 23,W/HAC |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-17040 |
1HZ..HZB30 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
1H#..HDB30,HZB30..5F |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-17050 |
1HZ..HZB30 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
1HZ..HZB30 W/HAC |
1 | ||
| 22380-54020 |
1H#..HDB30,HZB30 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-56290 |
1HZ..HZB30..WOC..GEN 2 BATTERY |
1 | ||
| 22390-6A510 |
1HZ..HZB30..WOC..GEN |
1 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
1HZ..HZB30 |
1 | ||
| 22548 - NIPPLE, SWIVEL | ||||
| 22548-17010 |
1HZ..HZB30 |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-17010 |
1HZ..HZB30 |
1 | ||
| 22550-17020 |
1HZ..HZB30 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-17140 |
1H#..HDB30,HZB30 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
1HZ..HZB30 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17010 |
1HZ..HZB30 |
1 | ||
| 22612-17020 |
1HZ..HZB30 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17012 |
1HZ..HZB30 K=0.20,L=33.6,K=0.20 |
1 | ||
| 22615-18010 |
1HZ..HZB30 K=0.16,L=34.2,K=0.17 |
1 | ||
| 22615-17011 |
1HZ..HZB30 K=0.19,L=33.7,K=0.19 |
1 | ||
| 22615-17010 |
1HZ..HZB30 K=0.18,L=33.8,K=0.18 |
1 | ||
| 22615-18011 |
1HZ..HZB30 K=0.17,L=31.4,K=0.16 |
1 | ||
| 22615-17020 |
1HZ..HZB30 K=0.16,L=32.3,K=0.16 |
1 | ||
| 22615-17022 |
1HZ..HZB30 K=0.20,L=31.8,K=0.20 |
1 | ||
| 22615-17021 |
1HZ..HZB30 K=0.18,L=32.0,K=0.18 |
1 | ||
| 22615-17030 |
1HZ..HZB30 K=1.7,L=27.9,K=1.70 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
1HZ..HZB30 NO.2 |
1 | ||
| 22658-17010 |
1HZ..HZB30 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
1HZ..HZB30 NO.2 |
1 | ||
| 22658-17010 |
1HZ..HZB30 NO.2 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
1H#..HDB30,HZB30 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-56350 |
1HZ..HZB30..5F MARK"247" |
1 | ||
| 22701-17011 |
1HZ..HZB30..5F MARK"384" |
1 | ||
| 22701-17010 |
1HZ..HZB30..5F MARK"383" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-17080 |
1HZ..HZB30 |
1 | ||
| 22703-54351 |
1HZ..HZB30..GEN BELLOWS COMPONENT PARTS |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1H#..HDB30,HZB30 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
1H#..HDB30,HZB30 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-17010 |
1HZ..HZB30 |
1 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22378-64010 |
1HZ..HZB30 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54310 |
1HZ..HZB30..5F |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
1HZ..HZB30 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-18010 |
1HZ..HZB30..WOC |
1 | ||
| 22751-18070 |
1HZ..HZB30..WOC..GEN W/48D26R X 2 BATTERY |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
1HZ..HZB30 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54264 | ||||
| 22172-6A330 | ||||
| 22231-58490 | ||||
| 22395-54010 | ||||
| 22395-54263 | ||||
| 22395-56351 | ||||
| 22395-58200 | ||||
| 22625-17020 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||

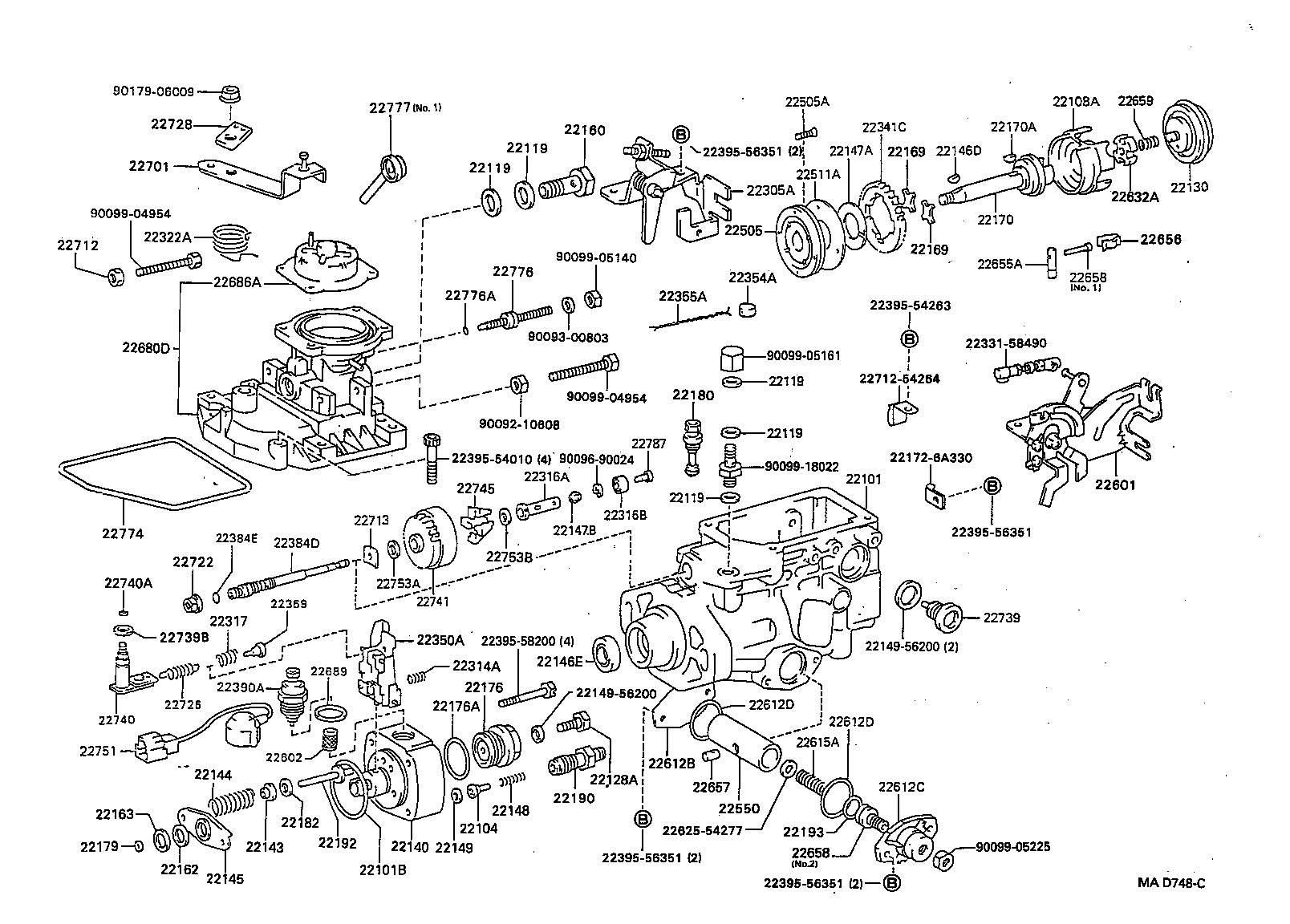

ILLUST NO. 1 OF 2(9001- )1HZ
W(HIGH ALTITUDE COMPENSATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54250 |
1HZ..HZB30 W/HAC |
1 | ||
| 22101-64230 |
1HZ..HZB30 |
1 | ||
| 22101-54770 |
1HZ..HZB30 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-54060 |
1HZ..HZB30 |
6 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-17020 |
1HZ..HZB30..5F |
1 | ||
| 22108-17010 |
1HZ..HZB30..5F |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-17010 |
1HZ..HZB30 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-17010 |
1HZ..HZB30 |
1 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
1HZ..HZB30 |
2 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
1HZ..HZB30 |
6 | ||
| 22149-56351 |
1HZ..HZB30 |
6 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-17140 |
1H#..HDB30,HZB30 T=1.95,T=1.95 |
1 | ||
| 22179-17141 |
1H#..HDB30,HZB30 T=2.05,T=2.05 |
1 | ||
| 22179-17142 |
1H#..HDB30,HZB30 T=2.15,T=2.15 |
1 | ||
| 22179-17146 |
1H#..HDB30,HZB30 T=2.55,T=2.55 |
1 | ||
| 22179-17151 |
1H#..HDB30,HZB30 T=2.99,T=2.99 |
1 | ||
| 22179-17144 |
1H#..HDB30,HZB30 T=2.35,T=2.35 |
1 | ||
| 22179-17143 |
1H#..HDB30,HZB30 T=2.25,T=2.25 |
1 | ||
| 22179-17145 |
1H#..HDB30,HZB30 T=2.45,T=2.45 |
1 | ||
| 22179-17149 |
1H#..HDB30,HZB30 T=2.85,T=2.85 |
1 | ||
| 22179-17153 |
1H#..HDB30,HZB30 T=3.09,T=3.09 |
1 | ||
| 22179-17150 |
1H#..HDB30,HZB30 T=2.94,T=2.94 |
1 | ||
| 22179-17155 |
1H#..HDB30,HZB30 T=3.19,T=3.19 |
1 | ||
| 22179-17148 |
1H#..HDB30,HZB30 T=2.75,T=2.75 |
1 | ||
| 22179-54012 |
1H#..HDB30,HZB30 T=2.1,T=2.1 |
1 | ||
| 22179-54020 |
1H#..HDB30,HZB30 T=2.9,T=2.9 |
1 | ||
| 22179-17147 |
1H#..HDB30,HZB30 T=2.65,T=2.65 |
1 | ||
| 22179-54011 |
1H#..HDB30,HZB30 T=2.0,T=2.0 |
1 | ||
| 22179-54014 |
1H#..HDB30,HZB30 T=2.3,T=2.3 |
1 | ||
| 22179-17152 |
1H#..HDB30,HZB30 T=3.04,T=3.04 |
1 | ||
| 22179-54019 |
1H#..HDB30,HZB30 T=2.8,T=2.8 |
1 | ||
| 22179-54016 |
1H#..HDB30,HZB30 T=2.5,T=2.5 |
1 | ||
| 22179-54018 |
1H#..HDB30,HZB30 T=2.7,T=2.7 |
1 | ||
| 22179-17154 |
1H#..HDB30,HZB30 T=3.14,T=3.14 |
1 | ||
| 22179-54015 |
1H#..HDB30,HZB30 T=2.4,T=2.4 |
1 | ||
| 22179-54013 |
1H#..HDB30,HZB30 T=2.2,T=2.2 |
1 | ||
| 22179-54017 |
1H#..HDB30,HZB30 T=2.6,T=2.6 |
1 | ||
| 22179-54010 |
1H#..HDB30,HZB30 T=1.9,T=1.9 |
1 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-64740 |
1HZ..HZB30 |
6 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
1HZ..HZB30..GEN BELLOWS COMPONENT PARTS |
1 | ||
| 22193-17020 |
1HZ..HZB30 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54261 |
1HZ..HZB30 ID=1.00,ID=1.35 |
1 | ||
| 22316-64640 |
1HZ..HZB30 MARK 23,W/HAC |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-17040 |
1HZ..HZB30 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
1H#..HDB30,HZB30..5F |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-17050 |
1HZ..HZB30 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
1HZ..HZB30 W/HAC |
1 | ||
| 22380-54020 |
1H#..HDB30,HZB30 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-56290 |
1HZ..HZB30..WOC..GEN 2 BATTERY |
1 | ||
| 22390-6A510 |
1HZ..HZB30..WOC..GEN |
1 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
1HZ..HZB30 |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-17010 |
1HZ..HZB30 |
1 | ||
| 22550-17020 |
1HZ..HZB30 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-17140 |
1H#..HDB30,HZB30 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
1HZ..HZB30 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17010 |
1HZ..HZB30 |
1 | ||
| 22612-17020 |
1HZ..HZB30 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17012 |
1HZ..HZB30 K=0.20,L=33.6,K=0.20 |
1 | ||
| 22615-18010 |
1HZ..HZB30 K=0.16,L=34.2,K=0.17 |
1 | ||
| 22615-17011 |
1HZ..HZB30 K=0.19,L=33.7,K=0.19 |
1 | ||
| 22615-17010 |
1HZ..HZB30 K=0.18,L=33.8,K=0.18 |
1 | ||
| 22615-18011 |
1HZ..HZB30 K=0.17,L=31.4,K=0.16 |
1 | ||
| 22615-17020 |
1HZ..HZB30 K=0.16,L=32.3,K=0.16 |
1 | ||
| 22615-17022 |
1HZ..HZB30 K=0.20,L=31.8,K=0.20 |
1 | ||
| 22615-17021 |
1HZ..HZB30 K=0.18,L=32.0,K=0.18 |
1 | ||
| 22615-17030 |
1HZ..HZB30 K=1.7,L=27.9,K=1.70 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
1HZ..HZB30 NO.2 |
1 | ||
| 22658-17010 |
1HZ..HZB30 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
1HZ..HZB30 NO.2 |
1 | ||
| 22658-17010 |
1HZ..HZB30 NO.2 |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-18071 |
1HZ..HZB30 W/HAC |
1 | ||
| 22686A - COVER, PNEUMATIC BELLOWS | ||||
| 22682-54351 |
1HZ..HZB30..GEN |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
1H#..HDB30,HZB30 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-56350 |
1HZ..HZB30..5F MARK"247" |
1 | ||
| 22701-17011 |
1HZ..HZB30..5F MARK"384" |
1 | ||
| 22701-17010 |
1HZ..HZB30..5F MARK"383" |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1H#..HDB30,HZB30 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
1H#..HDB30,HZB30 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-17010 |
1HZ..HZB30 |
1 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22378-64010 |
1HZ..HZB30 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54310 |
1HZ..HZB30..5F |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
1HZ..HZB30 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-18010 |
1HZ..HZB30..WOC |
1 | ||
| 22751-18070 |
1HZ..HZB30..WOC..GEN W/48D26R X 2 BATTERY |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
1HZ..HZB30 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
1HZ..HZB30..GEN W(HAC),NO.2 |
1 | ||
| 22777-54351 |
1HZ..HZB30 W(HAC),NO.1 |
1 | ||
| 22777-64410 |
1HZ..HZB30..GEN W(HAC),NO.3 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-6A330 | ||||
| 22331-58490 | ||||
| 22395-54010 | ||||
| 22395-54263 | ||||
| 22395-56351 | ||||
| 22395-58200 | ||||
| 22625-54277 | ||||
| 22712-54264 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-04954 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||

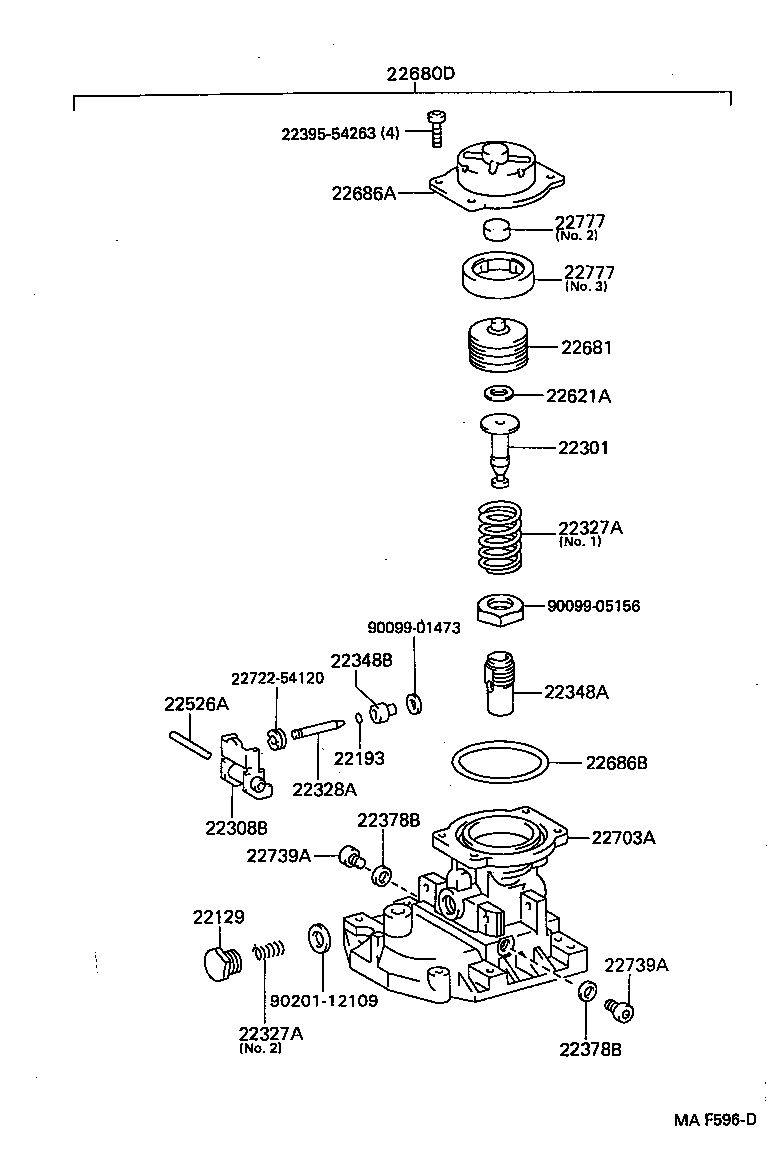

ILLUST NO. 2 OF 2(9102- )1HZ..GEN
W(HIGH ALTITUDE COMPENSATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22129 - PLUG, SCREW | ||||
| 22129-55110 |
1HZ..HZB30..GEN |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
1HZ..HZB30..GEN BELLOWS COMPONENT PARTS |
1 | ||
| 22193-17020 |
1HZ..HZB30 |
1 | ||
| 22301 - ROD SUB-ASSY, PUSH | ||||
| 22301-17050 |
1HZ..HZB30..GEN |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-54140 |
1HZ..HZB30..GEN |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-54800 |
1HZ..HZB30..GEN W(HAC),NO.1 |
1 | ||
| 22327-64400 |
1HZ..HZB30..GEN W(HAC),NO.2 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-54800 |
1HZ..HZB30..GEN W(HAC),NO.1 |
1 | ||
| 22327-64400 |
1HZ..HZB30..GEN W(HAC),NO.2 |
1 | ||
| 22328A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
1HZ..HZB30..GEN |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-64400 |
1HZ..HZB30..GEN |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
1HZ..HZB30..GEN |
1 | ||
| 22378B - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
1HZ..HZB30..GEN |
2 | ||
| 22378B - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
1HZ..HZB30..GEN |
2 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
1HZ..HZB30..GEN |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22624-54805 |
1HZ..HZB30..GEN T=0.9,T=0.9 |
1 | ||
| 22624-54806 |
1HZ..HZB30..GEN T=0.3,T=0.3 |
1 | ||
| 22624-54010 |
1HZ..HZB30..GEN T=0.2,T=0.2 |
1 | ||
| 22622-54010 |
1HZ..HZB30..GEN T=1.0,T=1.0 |
1 | ||
| 22624-54803 |
1HZ..HZB30..GEN T=0.7,T=0.7 |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-18071 |
1HZ..HZB30 W/HAC |
1 | ||
| 22681 - BELLOWS SUB-ASSY, PNEUMATIC | ||||
| 22681-6A570 |
1HZ..HZB30..GEN |
1 | ||
| 22686A - COVER, PNEUMATIC BELLOWS | ||||
| 22682-54351 |
1HZ..HZB30..GEN |
1 | ||
| 22686B - RING, O(FOR BELLOWS COVER) | ||||
| 90099-14057 |
1HZ..HZB30..GEN |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-17080 |
1HZ..HZB30 |
1 | ||
| 22703-54351 |
1HZ..HZB30..GEN BELLOWS COMPONENT PARTS |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1HZ..HZB30..GEN |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1HZ..HZB30..GEN |
2 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
1HZ..HZB30..GEN W(HAC),NO.2 |
1 | ||
| 22777-54351 |
1HZ..HZB30 W(HAC),NO.1 |
1 | ||
| 22777-64410 |
1HZ..HZB30..GEN W(HAC),NO.3 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
1HZ..HZB30..GEN W(HAC),NO.2 |
1 | ||
| 22777-54351 |
1HZ..HZB30 W(HAC),NO.1 |
1 | ||
| 22777-64410 |
1HZ..HZB30..GEN W(HAC),NO.3 |
1 | ||
| Common parts | ||||
| 22395-54263 | ||||
| 22722-54120 | ||||
| 90099-01473 | ||||
| 90099-05156 | ||||
| 90201-12109 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
