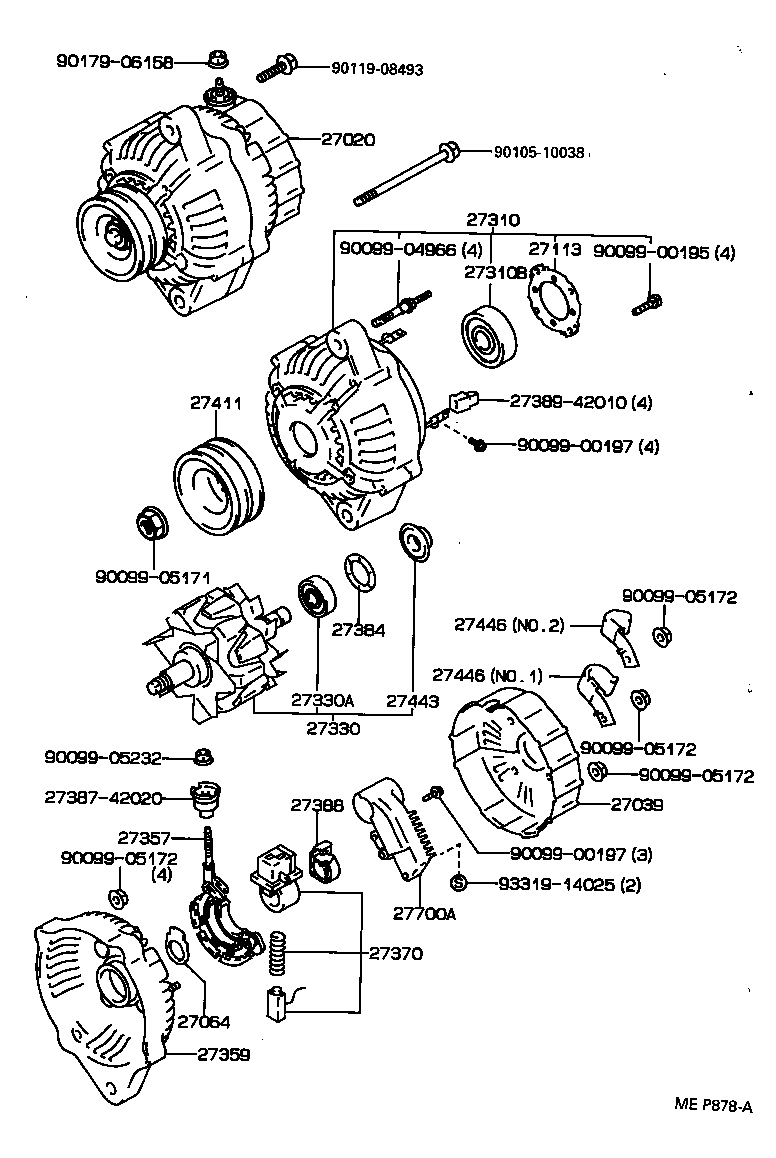

HZB30L-MDZ (1990)
Toyota Coaster
(9001- )1HZ
24V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17080 |
1HZ..HZB30 24V 55A,24V 55A |
1 | ||
| 27060-17090 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27039-42020 |
1HZ..HZB30 24V 55A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1HZ..HZB30 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1HZ..HZB30 24V 55A |
1 | ||
| 27312-72120 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58160 |
1HZ..HZB30 24V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10170 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 90099-10192 |
1HZ..HZB30 24V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58050 |
1HZ..HZB30 24V 55A |
1 | ||
| 27330-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1HZ..HZB30 24V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-58160 |
1HZ..HZB30 24V 55A |
1 | ||
| 27357-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27357-17080 |
1HZ..HZB30 24V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27359-58050 |
1HZ..HZB30 24V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16011 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27370-75060 |
1H#..HDB30,HZB30 24V 55A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1H#..HDB30,HZB30 24V 55A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1HZ..HZB30 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17090 |
1HZ..HZB30..WOC..GEN |
1 | ||
| 27411-17030 |
1HZ..HZB30 24V 55A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1HZ..HZB30 24V 55A |
1 | ||
| 27443-63020 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58040 |
1H#..HDB30,HZB30 24V 55A,NO.1 |
1 | ||
| 27446-58050 |
1H#..HDB30,HZB30 24V 55A,NO.2 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58040 |
1H#..HDB30,HZB30 24V 55A,NO.1 |
1 | ||
| 27446-58050 |
1H#..HDB30,HZB30 24V 55A,NO.2 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58020 |
1H#..HDB30,HZB30 24V 55A |
1 | ||
| 27700-58030 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10038 | ||||
| 90119-08493 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||

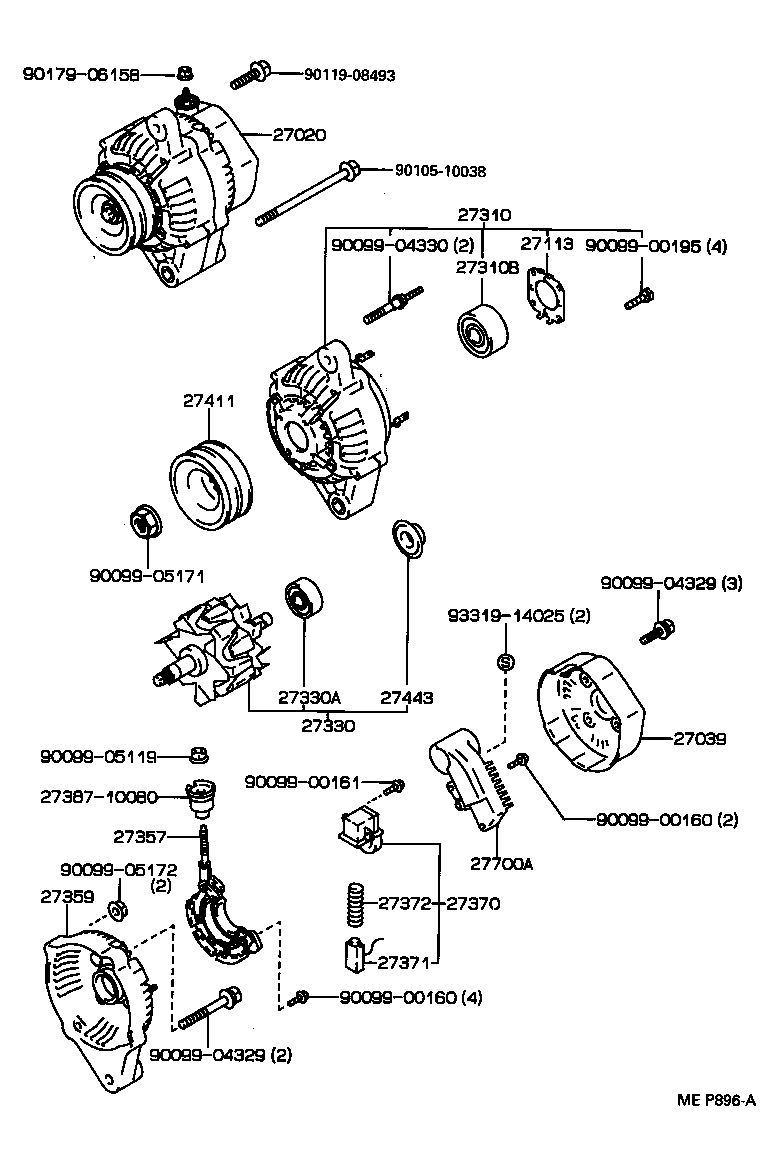

(9001- )1HZ..WOC
12V 45A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17080 |
1HZ..HZB30 24V 55A,24V 55A |
1 | ||
| 27060-17090 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27039-42020 |
1HZ..HZB30 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1HZ..HZB30 24V 55A |
1 | ||
| 27312-72120 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58160 |
1HZ..HZB30 24V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10170 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 90099-10192 |
1HZ..HZB30 24V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58050 |
1HZ..HZB30 24V 55A |
1 | ||
| 27330-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1HZ..HZB30 24V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-58160 |
1HZ..HZB30 24V 55A |
1 | ||
| 27357-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27357-17080 |
1HZ..HZB30 24V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72150 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27359-58050 |
1HZ..HZB30 24V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16011 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27370-75060 |
1H#..HDB30,HZB30 24V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1HZ..HZB30..WOC..GEN 12V 45A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
1HZ..HZB30..WOC..GEN 12V 45A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17090 |
1HZ..HZB30..WOC..GEN |
1 | ||
| 27411-17030 |
1HZ..HZB30 24V 55A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1HZ..HZB30 24V 55A |
1 | ||
| 27443-63020 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58020 |
1H#..HDB30,HZB30 24V 55A |
1 | ||
| 27700-58030 |
1HZ..HZB30..WOC..GEN 12V 45A |
1 | ||
| Common parts | ||||
| 27387-10080 | ||||
| 90099-00160 | ||||
| 90099-00161 | ||||
| 90099-00195 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10038 | ||||
| 90119-08493 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
