HZB30L-MDZ (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HZ

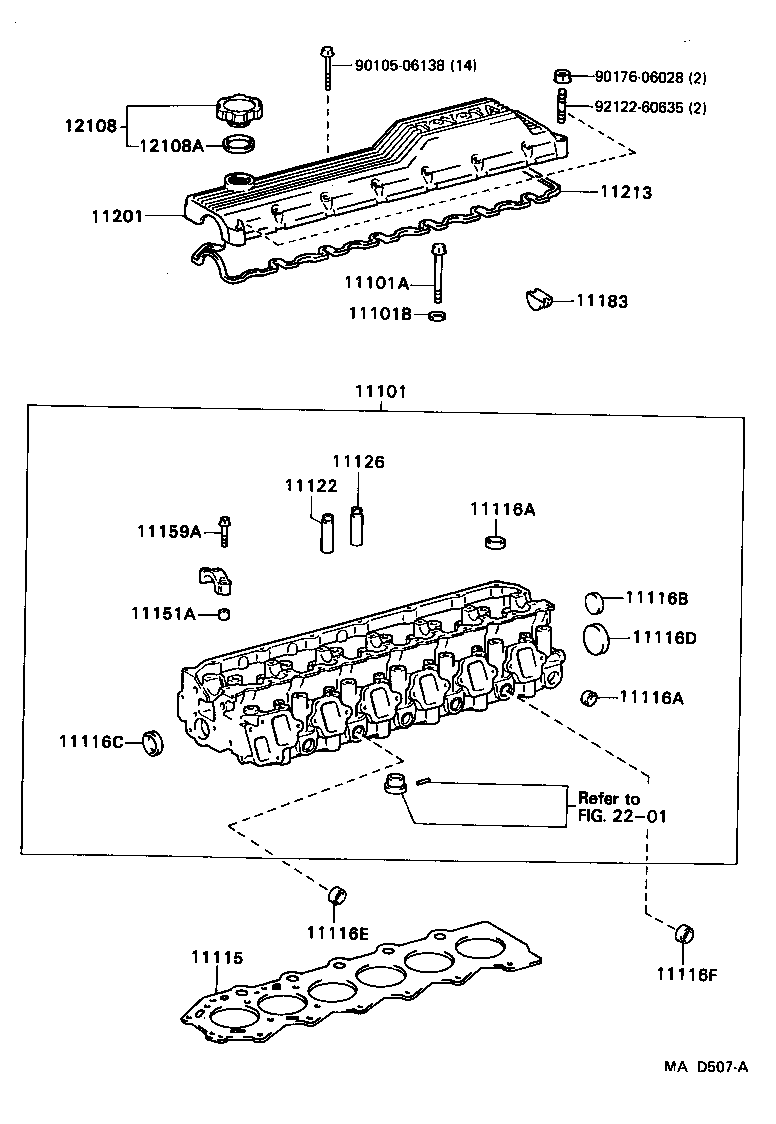

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11116A 11116A 11116B 11116C 11116D 11116E 11116F 11122 11126 11151A 11159A 11183 11201 11213 12108 12108A 2201 9010506138 9017606028 9212260635
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-17010

1HZ..HZB30

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02096

1H#..HDB30,HZB30

 26
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11027

1H#..HDB30,HZB30

 26
11115 - GASKET, CYLINDER HEAD
11115-1701001

1H#..HDB30,HZB30

MARK 1,MARK 1

 1
11115-1701003

1H#..HDB30,HZB30

MARK 3,MARK 3

 1
11115-1701005

1H#..HDB30,HZB30

MARK 5,MARK 5

 1
11116A - PLUG, TIGHT, NO.1
96411-42500

1H#..HDB30,HZB30

OD=25

 10
11116A - PLUG, TIGHT, NO.1
96411-42500

1H#..HDB30,HZB30

OD=25

 10
11116B - PLUG, TIGHT, NO.2
96411-43500

1H#..HDB30,HZB30

OD=35

 1
11116C - PLUG, TIGHT, NO.3
96411-44000

1H#..HDB30,HZB30

OD=40

 1
11116D - PLUG, TIGHT, NO.4
96411-44500

1H#..HDB30,HZB30

OD=45

 1
11116E - PLUG, TIGHT, NO.5
96411-42500

1HZ..HZB30

OD=25

 1
11116F - PLUG, TIGHT, NO.6
96411-42500

1HZ..HZB30..GEN,ME

OD=25

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-54020

1H#..HDB30,HZB30

STD,STD

 6
11123-54020

1H#..HDB30,HZB30

O/S 0.05,O/S 0.05

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11123-54020

1H#..HDB30,HZB30

O/S 0.05,O/S 0.05

 6
11122-54020

1H#..HDB30,HZB30

STD,STD

 6
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1H#..HDB30,HZB30

L=8,OD=11

 14
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08789

1H#..HDB30,HZB30

 14
11183 - PLUG, SEMICIRCULAR
11183-54011

1H#..HDB30,HZB30

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-17010

1H#..HDB30,HZB30

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-17010

1H#..HDB30,HZB30

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1H#..HDB30,HZB30

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1H#..HDB30,HZB30

 1
Common parts
90105-06138
90176-06028
92122-60635
Linked diagrams
2201
