HZB30L-MDR (1990)
Toyota Coaster
Production
Jan 1990
-
Jan 1993
Engine
1HZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )HDB30,HZB30

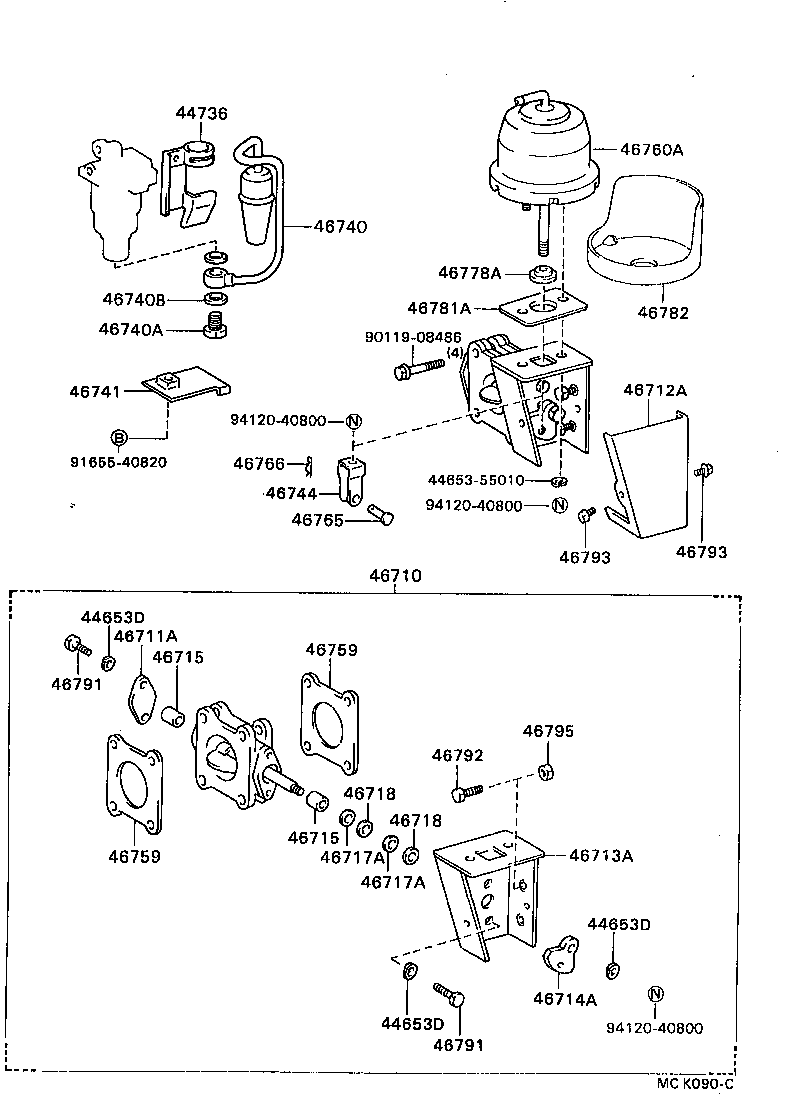

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44653D - WASHER, EXHAUST VALVE COVER | ||||
| 44653-55010 |
HDB30,HZB30 |
3 | ||
| 44653D - WASHER, EXHAUST VALVE COVER | ||||
| 44653-55010 |
HDB30,HZB30 |
3 | ||
| 44653D - WASHER, EXHAUST VALVE COVER | ||||
| 44653-55010 |
HDB30,HZB30 |
3 | ||
| 44736 - BRACKET, AIR CLEANER | ||||
| 44736-36042 |
HDB30,HZB30 |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-36170 |
HDB30,HZB30 |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-36060 |
HDB30,HZB30 |
1 | ||
| 46713A - BRACKET, EXHAUST BRAKE CHAMBER | ||||
| 46713-36060 |
HDB30,HZB30 |
1 | ||
| 46714A - LEVER, EXHAUST BRAKE | ||||
| 46714-36010 |
HDB30,HZB30 |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36010 |
HDB30,HZB30 L=16.0 |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36010 |
HDB30,HZB30 L=16.0 |
1 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
HDB30,HZB30 |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
HDB30,HZB30 |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
HDB30,HZB30 |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
HDB30,HZB30 |
2 | ||
| 46741 - PROTECTOR, EXHAUST RETADER CLEANER | ||||
| 46741-36010 |
HDB30,HZB30 |
1 | ||
| 46744 - CLEVIS, EXHAUST BRAKE ROD CLEVIS | ||||
| 46744-25010 |
HDB30,HZB30 |
1 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36040 |
HDB30,HZB30 |
2 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36040 |
HDB30,HZB30 |
2 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-36092 |
HDB30,HZB30 |
1 | ||
| 46760-36093 |
HDB30,HZB30 |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 44765-36010 |
HDB30,HZB30 |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
HDB30,HZB30 |
1 | ||
| 46778A - BEARING, EXHAUST BRAKE CHAMBER ROD | ||||
| 46778-36060 |
HDB30,HZB30 |
1 | ||
| 46781A - INSULATOR, EXHAUST BRAKE CHAMBER | ||||
| 46781-36060 |
HDB30,HZB30 |
1 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-36130 |
HDB30,HZB30 |
1 | ||
| 46791 - BOLT, EXHAUST VALVE COVER | ||||
| 46791-36010 |
HDB30,HZB30 |
2 | ||
| 46791 - BOLT, EXHAUST VALVE COVER | ||||
| 46791-36010 |
HDB30,HZB30 |
2 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-36010 |
HDB30,HZB30 |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
HDB30,HZB30 |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
HDB30,HZB30 |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-36010 |
HDB30,HZB30 |
2 | ||
| Common parts | ||||
| 44653-55010 | ||||
| 90119-08486 | ||||
| 91655-40820 | ||||
| 94120-40800 | ||||
