HB30R-MDZR (1986)
Toyota Coaster

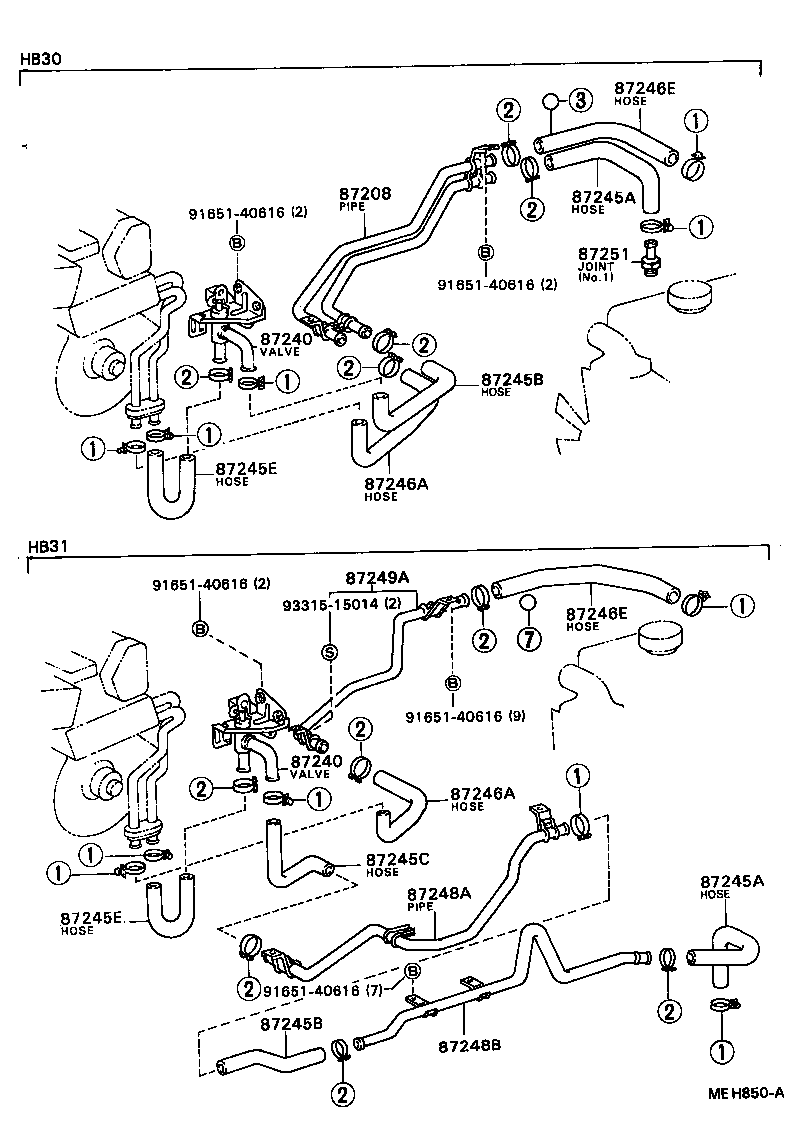

ILLUST NO. 1 OF 3(8610-9001)HB3#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-90B05 |
BB2#,3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90B00 |
BB2#,30,HB3#,HDB30,HZB30,RB20..RHD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90B00 |
BB2#,30,HB3#,HDB30,HZB30,RB20..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90B06 |
HB30..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90B06 |
HB30..RHD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90B02 |
HB30..RHD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90B02 |
HB30..RHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90B00 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90B00 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90B04 |
BB20,21,23,3#,RB20 |
1 | ||
| 87245-90B01 |
HB3#..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90B04 |
BB20,21,23,3#,RB20 |
1 | ||
| 87245-90B01 |
HB3#..RHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90B05 |
HB30..RHD |
1 | ||
| 87245-90B25 |
BB2#,3# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90B05 |
HB30..RHD |
1 | ||
| 87245-90B25 |
BB2#,3# |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-60010 |
HB30 NO.2 |
1 | ||
| 87251-30200 |
HB3# NO.1 |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||
| 93315-15014 | ||||

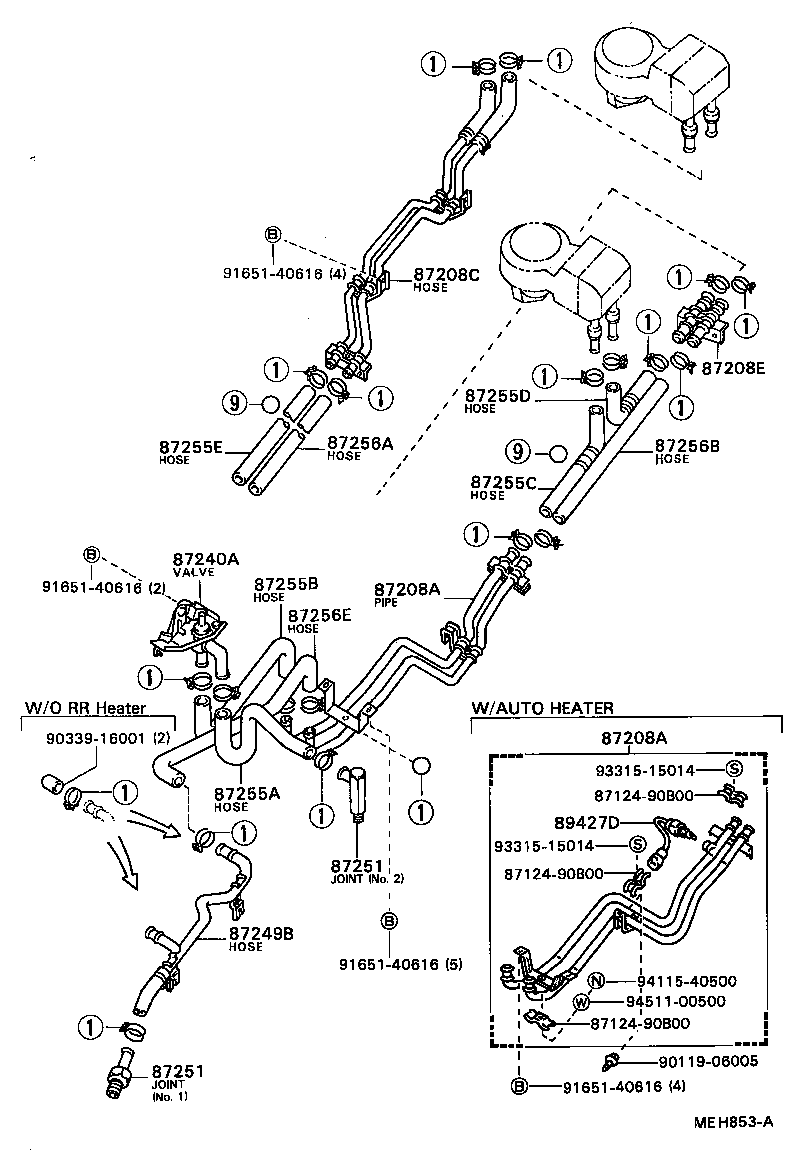

ILLUST NO. 2 OF 3(8610-9001)HB30..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B03 |
BB20..RHD..(16S,20S,22S,26S);BB21,30,HB3#,HDB30,HZB30,RB20..RHD HB31,HDB30,HZB30:NO.1 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B03 |
BB20..RHD..(16S,20S,22S,26S);BB21,30,HB3#,HDB30,HZB30,RB20..RHD HB31,HDB30,HZB30:NO.1 |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-90B01 |
BB21,30,HB30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87209-90B20 |
HB30 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-60010 |
HB30 NO.2 |
1 | ||
| 87251-30200 |
HB3# NO.1 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-60010 |
HB30 NO.2 |
1 | ||
| 87251-30200 |
HB3# NO.1 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-90B08 |
HB30..RHD |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90B09 |
BB21,30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) |
1 | ||
| 87245-90B09 |
HB3#..RHD |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90B07 |
HB30 |
1 | ||
| Common parts | ||||
| 87124-90B00 | ||||
| 90119-06005 | ||||
| 90339-16001 | ||||
| 91651-40616 | ||||
| 93315-15014 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
