HB30R-MDZR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9001)HB3# ; (9001- )HDB30,HZB30

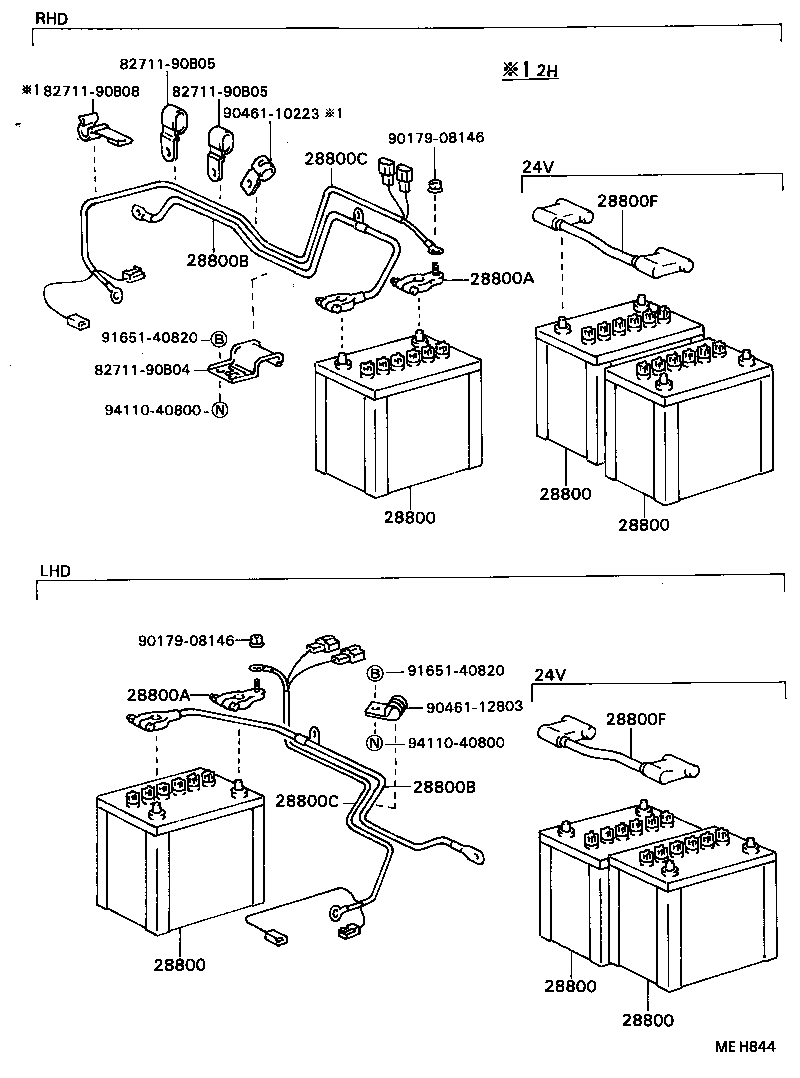

Click highlighted areas on diagram

diagram 28800 28800 28800 28800 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800F 28800F 8271190B04 8271190B05 8271190B05 8271190B08 9017908146 9017908146 9046110223 9046112803 9165140820 9165140820 9411040800 9411040800
Part # Description Qty Price
28800 - BATTERY
28800-30082

1HZ..HZB30;22R,3F,2H..FB30,HB30,RB20..DLX,EXS,STD

48D26R,48D26R(N50)

 2
28800 - BATTERY
28800-30082

1HZ..HZB30;22R,3F,2H..FB30,HB30,RB20..DLX,EXS,STD

48D26R,48D26R(N50)

 2
28800 - BATTERY
28800-30082

1HZ..HZB30;22R,3F,2H..FB30,HB30,RB20..DLX,EXS,STD

48D26R,48D26R(N50)

 2
28800 - BATTERY
28800-30082

1HZ..HZB30;22R,3F,2H..FB30,HB30,RB20..DLX,EXS,STD

48D26R,48D26R(N50)

 2
28800 - BATTERY
28800-30082

1HZ..HZB30;22R,3F,2H..FB30,HB30,RB20..DLX,EXS,STD

48D26R,48D26R(N50)

 2
28800 - BATTERY
28800-30082

1HZ..HZB30;22R,3F,2H..FB30,HB30,RB20..DLX,EXS,STD

48D26R,48D26R(N50)

 2
28800B - CABLE, BATTERY TO GROUND
90982-02235

2H..HB30..RHD..(DLX,EX);2H..HB30..RHD..STD..GEN

24V

 1
28800B - CABLE, BATTERY TO GROUND
90982-02235

2H..HB30..RHD..(DLX,EX);2H..HB30..RHD..STD..GEN

24V

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82113-90B00

2H..HB30..RHD

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82113-90B00

2H..HB30..RHD

 1
Common parts
82711-90B04
82711-90B05
82711-90B08
90179-08146
90461-10223
90461-12803
91651-40820
94110-40800
