HB30R-MDZR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

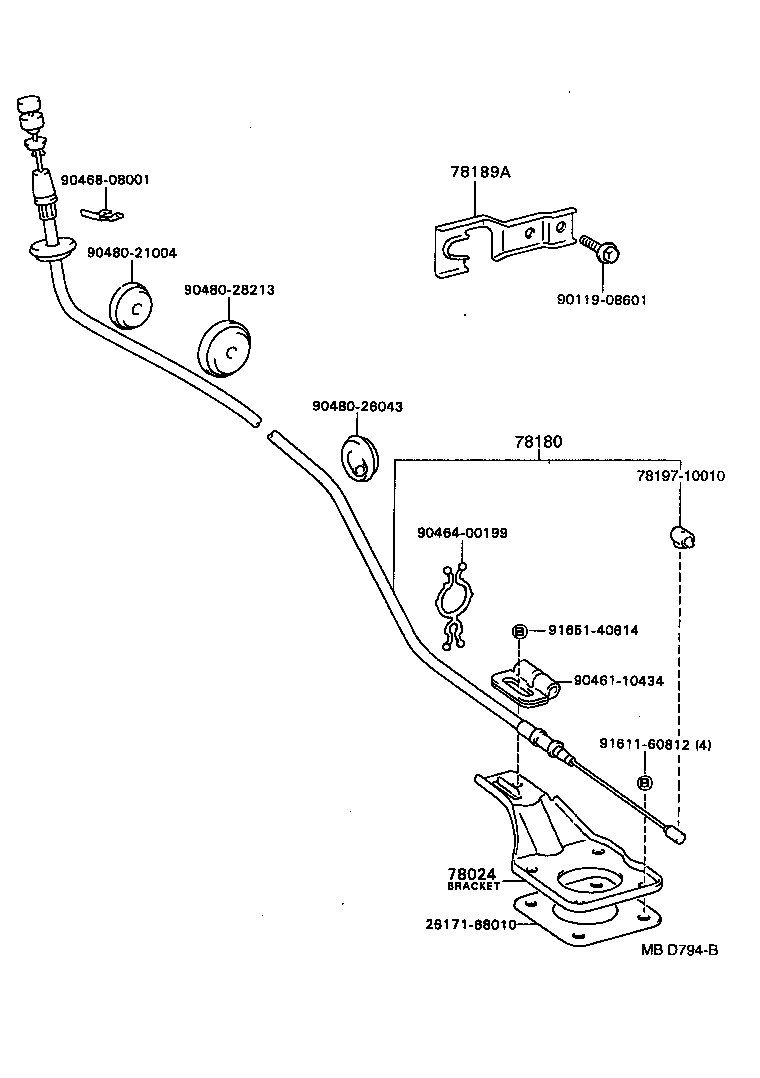

ILLUST NO. 2 OF 2(8610-9001)HB30..RHD

Click highlighted areas on diagram

diagram 2617168010 78024 78180 78189A 7819710010 9011908601 9046110434 9046400199 9046808001 9048021004 9048026043 9048028213 9161160812 9165140614
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-90B00

BB20,21,30

 1
78184-90B01

HB30

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90B04

HB30..RHD

 1
78180-90B00

BB20,21,30..RHD

 1
Common parts
26171-68010
78197-10010
90119-08601
90461-10434
90464-00199
90468-08001
90480-21004
90480-26043
90480-28213
91611-60812
91651-40614
