HB30R-MDZR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

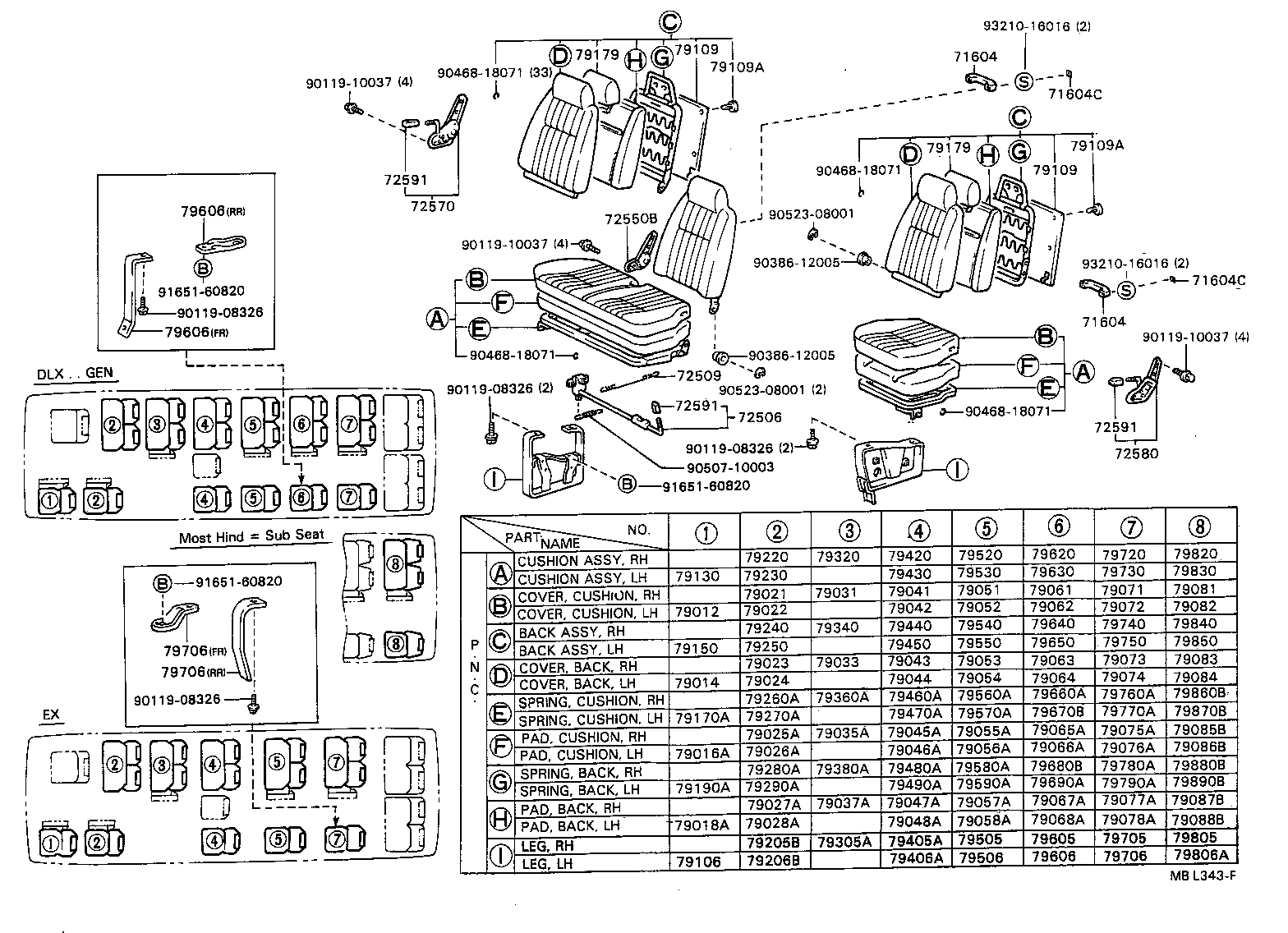

ILLUST NO. 2 OF 4(8610- )RHD..23S,30S

Click highlighted areas on diagram

diagram 71604 71604 71604C 71604C 79012 79014 79016A 79018A 79021 79022 79023 79024 79025A 79026A 79027A 79028A 79031 79033 79035A 79037A 79041 79042 79043 79044 79045A 79046A 79047A 79048A 79051 79052 79053 79054 79055A 79056A 79057A 79058A 79061 79062 79063 79064 79065A 79066A 79067A 79068A 79071 79072 79073 79074 79075A 79076A 79077A 79078A 79081 79082 79083 79084 79085B 79086B 79087B 79088B 79106 79109 79109A 79130 79150 79170A 79179 79179 79190A 79205B 79206B 79220 79230 79240 79250 79260A 79270A 79280A 79290A 79305A 79309 79309A 79320 79340 79360A 79380A 79405A 79406A 79420 79430 79440 79450 79460A 79470A 79480A 79490A 79505 79506 79520 79530 79540 79550 79560A 79570A 79580A 79590A 79605 79606 79606 79606 79620 79630 79640 79650 79660A 79670B 79680B 79690A 79705 79705 79705 79706 79720 79730 79740 79750 79760A 79770A 79780A 79790A 79805 79806A 79820 79830 79840 79850 79860B 79870B 79880B 79890B 9011908326 9011908326 9011908326 9011908326 9011908326 9011910037 9011910037 9046818071 9046818071 9046818071 9046818071 9165160820 9165160820 9321016016 9321016016
Part # Description Qty Price
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01

FB30,HB30

 15
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01

FB30,HB30

 15
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-1401032

FB30,HB30

DARK WINE,DARK WINE

 30
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-1401032

FB30,HB30

DARK WINE,DARK WINE

 30
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-90B14

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN

FB

 1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79023-90B2402

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79023-90B2502

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79013-90B4612

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-90B3602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79033-90B3702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH
79033-90B3702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH
79031-90B07

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79031-90B04

HB30..RHD..DLX..GEN

FB

 1
79031-90B19

HB30..RHD..DLX..GEN

PF

 1
79031-90B15

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH
79012-90B04

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79012-90B19

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79022-90B04

HB30..RHD..DLX..GEN

FB

 1
79022-90B34

HB30..RHD..DLX..GEN

PF

 1
79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH
79033-90B13

HB30..RHD..DLX..GEN

FB

 1
79013-90B37

HB30..RHD..DLX..GEN

PF,W/RECLINING

 2
79013-90B09

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 2
79033-90B3702

HB30..RHD..DLX..GEN

FB,RED

 1
79033-90B3602

HB30..RHD..DLX..GEN

PF,WINE,WINE

 1
79033-90B23

HB30..RHD..DLX..GEN

PF

 1
79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH
79013-90B15

HB30..RHD..DLX..GEN

FB

 1
79013-90B27

HB30..RHD..DLX..GEN

PF

 1
79013-90B4602

HB30..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

HB30..RHD..DLX..GEN

FB,RED,RED

 1
79014-90B00

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79014-90B04

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH
79033-90B3702

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,RED,RED

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..(26S,30S)

FB,W/RECLINING,RED,RED

 2
79033-90B3602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,WINE,WINE

 1
79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..(26S,30S)

FB,RED,RED

 1
79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,W/RECLINING,RED,RED

 2
79033-90B3602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79033-90B3702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH
79033-90B3702

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,W/MOST HIND=SUB SEAT,RED,RED

 1
79033-90B3602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,W/MOST HIND=SUB SEAT,WINE,WINE

 1
79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,W/MOST HIND=SUB SEAT,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,W/MOST HIND=SUB SEAT RED,RED

 1
79109 - BOARD SUB-ASSY, NO.1 SEAT BACK
79109-90B02

HB30..RHD..DLX

W/MOST HIND=SUB SEAT

 7
79109-90B02

FB30,HB30..DLX,EX

 6
79130 - CUSHION ASSY, NO.1 SEAT, LH
79230-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79150 - BACK ASSY, NO.1 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,WINE

 1
79230 - CUSHION ASSY, NO.2 SEAT, LH
79230-90B07

BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN

FB

 1
79240 - BACK ASSY, NO.2 SEAT, RH
79250-90B3502

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79250 - BACK ASSY, NO.2 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,W/GLIDE DOOR,RED,WINE

 1
79240-90B3602

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79309 - BOARD SUB-ASSY, NO.3 SEAT BACK
79309-90B02

FB30,HB30..DLX

W/O FOLDING SEAT

 6
79309-90B02

HB30..RHD..DLX..GEN

W/MOST HIND=SUB SEAT

 7
79320 - CUSHION ASSY, NO.3 SEAT, RH
79320-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79340 - BACK ASSY, NO.3 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79420 - CUSHION ASSY, NO.4 SEAT, RH
79320-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79430 - CUSHION ASSY, NO.4 SEAT, LH
79430-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79440 - BACK ASSY, NO.4 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79450 - BACK ASSY, NO.4 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,WINE

 1
79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH
79470-90B01

HB30..30S

 1
79520 - CUSHION ASSY, NO.5 SEAT, RH
79320-90B25

HB30..RHD..DLX..GEN

PF

 1
79320-90B07

HB30..RHD..DLX..GEN

FB

 1
79320-90B08

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79320-90B31

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79530 - CUSHION ASSY, NO.5 SEAT, LH
79430-90B07

HB30..RHD..DLX..GEN

FB

 1
79430-90B18

HB30..RHD..DLX..GEN

PF

 1
79430-90B22

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79430-90B08

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79540 - BACK ASSY, NO.5 SEAT, RH
79140-90B04

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 2
79140-90B26

HB30..RHD..DLX..GEN

PF,W/RECLINING

 2
79340-90B30

HB30..RHD..DLX..GEN

PF

 1
79350-90B03

HB30..RHD..DLX..GEN

FB

 1
79350-90B0902

HB30..RHD..DLX..GEN

FB,RED,RED

 1
79550 - BACK ASSY, NO.5 SEAT, LH
79140-90B13

HB30..RHD..DLX..GEN

FB

 1
79150-90B08

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79150-90B37

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79140-90B3102

HB30..RHD..DLX..GEN

FB,RED,WINE

 1
79140-90B20

HB30..RHD..DLX..GEN

PF

 1
79560A - SPRING ASSY, NO.5 SEAT CUSHION, RH
79360-90B00

HB30..RHD..(23S,30S)

 1
79360-90B01

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 1
79570A - SPRING ASSY, NO.5 SEAT CUSHION, LH
79470-90B00

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 1
79470-90B01

HB30..RHD..30S

 1
79580A - SPRING ASSY, NO.5 SEAT BACK, RH
79180-90B01

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 2
79380-90B00

HB30..RHD..DLX..GEN

 1
79590A - SPRING ASSY, NO.5 SEAT BACK, LH
79190-90B01

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 1
79180-90B00

HB30..RHD..DLX..GEN

 1
79620 - CUSHION ASSY, NO.6 SEAT, RH
79620-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79630 - CUSHION ASSY, NO.6 SEAT, LH
79630-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79640 - BACK ASSY, NO.6 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,RED,RED

 1
79650 - BACK ASSY, NO.6 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,RED,WINE

 1
79720 - CUSHION ASSY, NO.7 SEAT, RH
79620-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79730 - CUSHION ASSY, NO.7 SEAT, LH
79630-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79740 - BACK ASSY, NO.7 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79750 - BACK ASSY, NO.7 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,WINE

 1
79850 - BACK ASSY, NO.8 SEAT, LH
79240-90B3602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,W/MOSTHIND=SUB SEAT,RED,RED

 1
Common parts
90119-08326
90119-10037
90468-18071
91651-60820
93210-16016

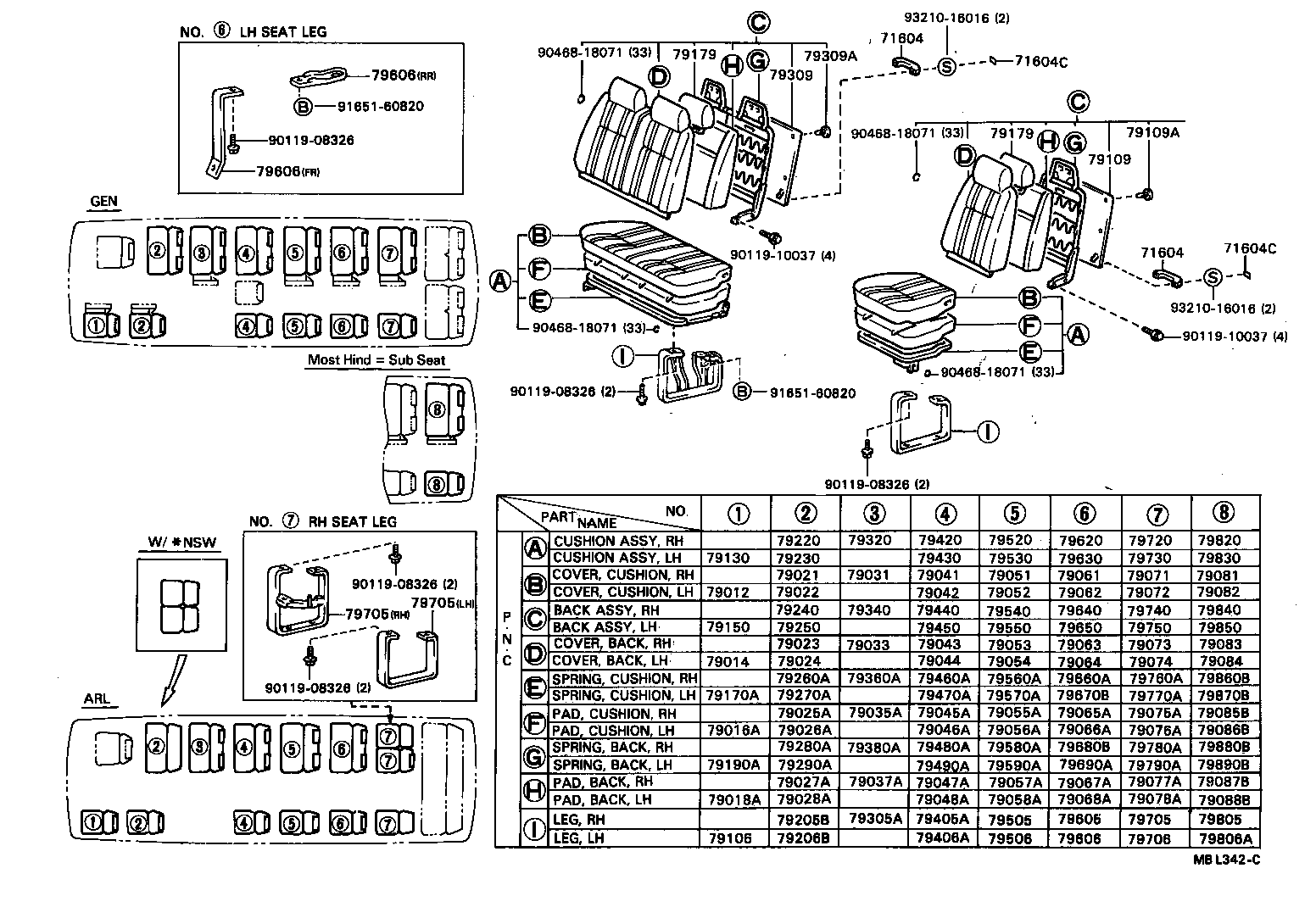

ILLUST NO. 2 OF 4(8610- )HB30,HZB30..RHD..DLX,EX

Click highlighted areas on diagram

diagram 71604 71604 71604C 71604C 72506 72509 72550B 72570 72580 72591 72591 72591 79012 79014 79016A 79018A 79021 79022 79023 79024 79025A 79026A 79027A 79028A 79031 79033 79035A 79037A 79041 79042 79043 79044 79045A 79046A 79047A 79048A 79051 79052 79053 79054 79055A 79056A 79057A 79058A 79061 79062 79063 79064 79065A 79066A 79067A 79068A 79071 79072 79073 79074 79075A 79076A 79077A 79078A 79081 79082 79083 79084 79085B 79086B 79087B 79088B 79106 79109 79109 79109A 79109A 79130 79150 79170A 79179 79179 79190A 79205B 79206B 79220 79230 79240 79250 79260A 79270A 79280A 79290A 79305A 79320 79340 79360A 79380A 79405A 79406A 79420 79430 79440 79450 79460A 79470A 79480A 79490A 79505 79506 79520 79530 79540 79550 79560A 79570A 79580A 79590A 79605 79606 79606 79606 79620 79630 79640 79650 79660A 79670B 79680B 79690A 79705 79706 79706 79706 79720 79730 79740 79750 79760A 79770A 79780A 79790A 79805 79806A 79820 79830 79840 79850 79860B 79870B 79880B 79890B 9011908326 9011908326 9011908326 9011908326 9011910037 9011910037 9011910037 9038612005 9038612005 9046818071 9046818071 9046818071 9046818071 9050710003 9052308001 9052308001 9165160820 9165160820 9165160820 9321016016 9321016016
Part # Description Qty Price
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01

FB30,HB30

 15
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01

FB30,HB30

 15
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-1401032

FB30,HB30

DARK WINE,DARK WINE

 30
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-1401032

FB30,HB30

DARK WINE,DARK WINE

 30
72506 - ARM SUB-ASSY, RECLINING ADJUSTER, CENTER LH
72506-90B00

HB30..RHD..(DLX,EX)..GEN

 6
72550B - ADJUSTER ASSY, RECLINING SEAT, CENTER RH
72550-90B00

HB30..RHD..(DLX,EX)..GEN

 6
72570 - ADJUSTER ASSY, REAR RECLINING SEAT, RH
72530-90B00

HB30..RHD..(DLX,EX)..GEN

 6
72580 - ADJUSTER ASSY, REAR RECLINING SEAT, LH
72540-90B00

HB30..RHD..(DLX,EX)..GEN

 5
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-90B14

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN

FB

 1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79023-90B2402

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79023-90B2502

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79013-90B4612

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-90B3602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79033-90B3702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH
79033-90B3702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH
79031-90B07

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79031-90B04

HB30..RHD..DLX..GEN

FB

 1
79031-90B19

HB30..RHD..DLX..GEN

PF

 1
79031-90B15

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH
79012-90B04

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79012-90B19

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79022-90B04

HB30..RHD..DLX..GEN

FB

 1
79022-90B34

HB30..RHD..DLX..GEN

PF

 1
79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH
79033-90B13

HB30..RHD..DLX..GEN

FB

 1
79013-90B37

HB30..RHD..DLX..GEN

PF,W/RECLINING

 2
79013-90B09

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 2
79033-90B3702

HB30..RHD..DLX..GEN

FB,RED

 1
79033-90B3602

HB30..RHD..DLX..GEN

PF,WINE,WINE

 1
79033-90B23

HB30..RHD..DLX..GEN

PF

 1
79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH
79013-90B15

HB30..RHD..DLX..GEN

FB

 1
79013-90B27

HB30..RHD..DLX..GEN

PF

 1
79013-90B4602

HB30..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

HB30..RHD..DLX..GEN

FB,RED,RED

 1
79014-90B00

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79014-90B04

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH
79033-90B3702

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,RED,RED

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..(26S,30S)

FB,W/RECLINING,RED,RED

 2
79033-90B3602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,WINE,WINE

 1
79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..(26S,30S)

FB,RED,RED

 1
79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH
79031-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH
79022-90B04

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,W/RECLINING,RED,RED

 2
79033-90B3602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79033-90B3702

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..GEN

PF,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH
79033-90B3702

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,W/MOST HIND=SUB SEAT,RED,RED

 1
79033-90B3602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,W/MOST HIND=SUB SEAT,WINE,WINE

 1
79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH
79013-90B4602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

PF,W/MOST HIND=SUB SEAT,WINE,WINE

 1
79013-90B4702

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,W/MOST HIND=SUB SEAT RED,RED

 1
79109 - BOARD SUB-ASSY, NO.1 SEAT BACK
79109-90B02

HB30..RHD..DLX

W/MOST HIND=SUB SEAT

 7
79109-90B02

FB30,HB30..DLX,EX

 6
79109 - BOARD SUB-ASSY, NO.1 SEAT BACK
79109-90B02

HB30..RHD..DLX

W/MOST HIND=SUB SEAT

 7
79109-90B02

FB30,HB30..DLX,EX

 6
79130 - CUSHION ASSY, NO.1 SEAT, LH
79230-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79150 - BACK ASSY, NO.1 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,WINE

 1
79230 - CUSHION ASSY, NO.2 SEAT, LH
79230-90B07

BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN

FB

 1
79240 - BACK ASSY, NO.2 SEAT, RH
79250-90B3502

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79250 - BACK ASSY, NO.2 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,W/GLIDE DOOR,RED,WINE

 1
79240-90B3602

BB21,HB30,RB20..RHD..(DLX,EX)..GEN

FB,RED,RED

 1
79320 - CUSHION ASSY, NO.3 SEAT, RH
79320-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79340 - BACK ASSY, NO.3 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79420 - CUSHION ASSY, NO.4 SEAT, RH
79320-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79430 - CUSHION ASSY, NO.4 SEAT, LH
79430-90B07

BB20,21,HB30,RB20..RHD..DLX..GEN

FB

 1
79440 - BACK ASSY, NO.4 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79450 - BACK ASSY, NO.4 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,WINE

 1
79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH
79470-90B01

HB30..30S

 1
79520 - CUSHION ASSY, NO.5 SEAT, RH
79320-90B25

HB30..RHD..DLX..GEN

PF

 1
79320-90B07

HB30..RHD..DLX..GEN

FB

 1
79320-90B08

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79320-90B31

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79530 - CUSHION ASSY, NO.5 SEAT, LH
79430-90B07

HB30..RHD..DLX..GEN

FB

 1
79430-90B18

HB30..RHD..DLX..GEN

PF

 1
79430-90B22

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79430-90B08

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79540 - BACK ASSY, NO.5 SEAT, RH
79140-90B04

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 2
79140-90B26

HB30..RHD..DLX..GEN

PF,W/RECLINING

 2
79340-90B30

HB30..RHD..DLX..GEN

PF

 1
79350-90B03

HB30..RHD..DLX..GEN

FB

 1
79350-90B0902

HB30..RHD..DLX..GEN

FB,RED,RED

 1
79550 - BACK ASSY, NO.5 SEAT, LH
79140-90B13

HB30..RHD..DLX..GEN

FB

 1
79150-90B08

HB30..RHD..(DLX,EX)..GEN

FB,W/RECLINING

 1
79150-90B37

HB30..RHD..DLX..GEN

PF,W/RECLINING

 1
79140-90B3102

HB30..RHD..DLX..GEN

FB,RED,WINE

 1
79140-90B20

HB30..RHD..DLX..GEN

PF

 1
79560A - SPRING ASSY, NO.5 SEAT CUSHION, RH
79360-90B00

HB30..RHD..(23S,30S)

 1
79360-90B01

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 1
79570A - SPRING ASSY, NO.5 SEAT CUSHION, LH
79470-90B00

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 1
79470-90B01

HB30..RHD..30S

 1
79580A - SPRING ASSY, NO.5 SEAT BACK, RH
79180-90B01

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 2
79380-90B00

HB30..RHD..DLX..GEN

 1
79590A - SPRING ASSY, NO.5 SEAT BACK, LH
79190-90B01

HB30..RHD..(DLX,EX)..GEN

W/RECLINING

 1
79180-90B00

HB30..RHD..DLX..GEN

 1
79620 - CUSHION ASSY, NO.6 SEAT, RH
79620-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79630 - CUSHION ASSY, NO.6 SEAT, LH
79630-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79640 - BACK ASSY, NO.6 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,RED,RED

 1
79650 - BACK ASSY, NO.6 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,RED,WINE

 1
79720 - CUSHION ASSY, NO.7 SEAT, RH
79620-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79730 - CUSHION ASSY, NO.7 SEAT, LH
79630-90B10

BB20,21,HB30,RB20..RHD..DLX..(26S,30S)

FB

 1
79740 - BACK ASSY, NO.7 SEAT, RH
79350-90B0902

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,RED

 1
79750 - BACK ASSY, NO.7 SEAT, LH
79140-90B3102

BB21,HB30,RB20..RHD..DLX..GEN

FB,RED,WINE

 1
79850 - BACK ASSY, NO.8 SEAT, LH
79240-90B3602

BB21,HB30,RB20..RHD..DLX..(26S,30S)

FB,W/MOSTHIND=SUB SEAT,RED,RED

 1
Common parts
90119-08326
90119-10037
90386-12005
90468-18071
90507-10003
90523-08001
91651-60820
93210-16016
