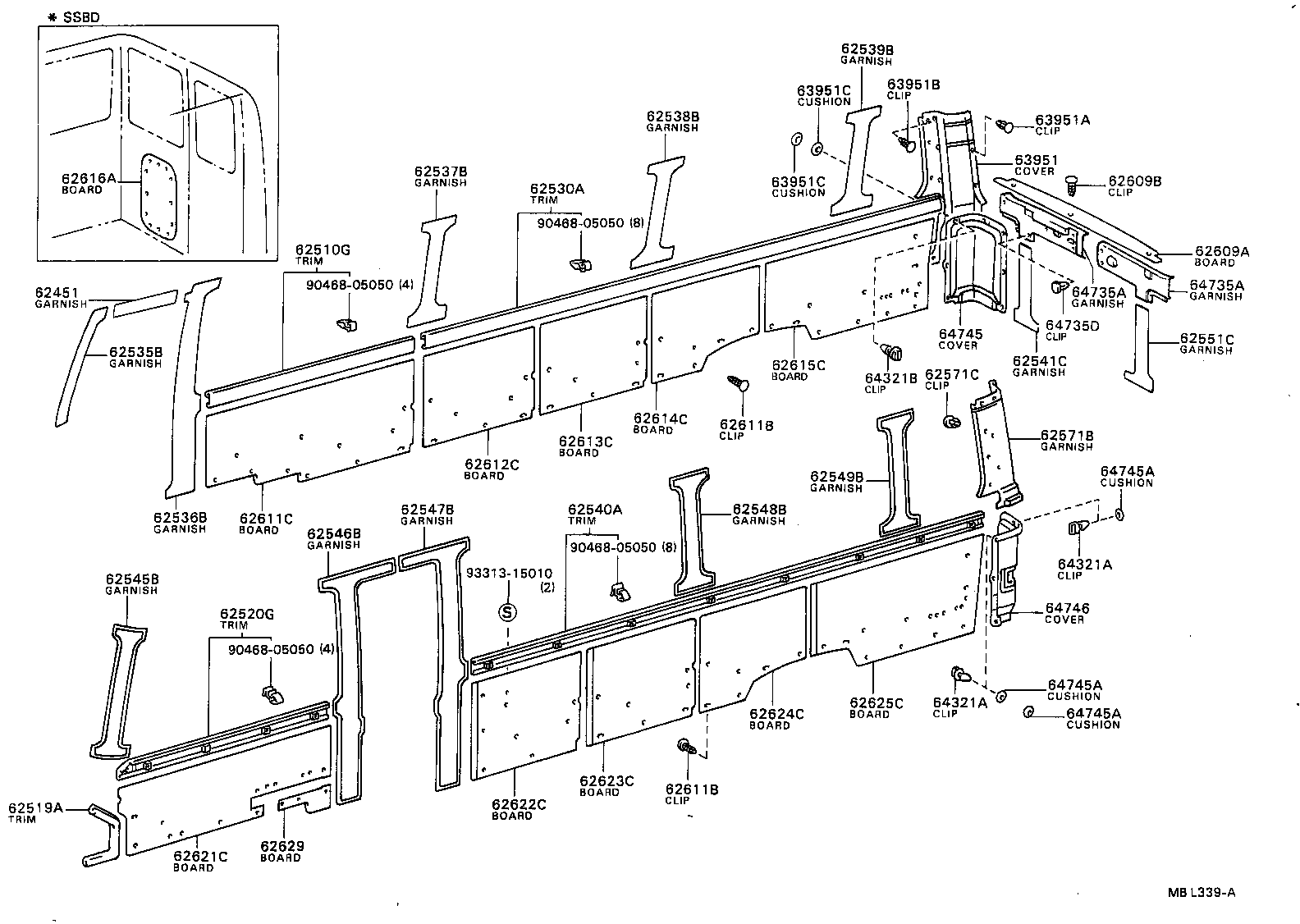

HB30R-MDZR (1986)
Toyota Coaster
(8610-9001)HB30..RHD ; (9001- )HZB30..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-90B00 |
BB21,22,HB30,RB20..RHD..(DLX,STD)..GEN |
1 | ||
| 62519A - TRIM, SIDE LOWER WINDOW | ||||
| 62519-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-90B02 |
BB21,HB30,RB20..RHD..(DLX,STD)..(22S,26S,30S) |
1 | ||
| 62520-90B02 |
BB20,21,HB30,RB20..RHD..(22S,26S,30S) |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62530-90B05 |
FB30,HB30..WC |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62540-90B03 |
FB30,HB30..GEN,ME |
1 | ||
| 62540-90B04 |
HB30..RHD..GEN W/GLIDE DOOR |
1 | ||
| 62540-90B0306 |
FB30,HB30..29S,30S SABLE |
1 | ||
| 62609A - BOARD SUB-ASSY, LUGGAGE PARTITION | ||||
| 62609-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,STD)..(20S,22S,23S,25S,26S,29S,30S) |
1 | ||
| 62609B - CLIP (FOR LUGGAGE PARTITION BOARD) | ||||
| 90467-0602002 |
BB20,21,FB30,HB30,RB20..(DLX,STD)..(20S,22S,23S,25S,26S,29S,30S) DARK WINE,DARK WINE |
3 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-90B04 |
HB30..RHD..30S |
1 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-90B03 |
HB30..RHD..(23S,30S) |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62613-90B00 |
HB30..RHD..(23S,30S) |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-90B00 |
FB30,HB30..DLX,STD |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62615-90B01 |
FB30,HB30..DLX..WC..(GEN,ME) |
1 | ||
| 62615-90B08 |
FB30,HB30..29S,30S W/O RR SEAT |
1 | ||
| 62615-90B28 |
HB30..RHD..30S..WC W/*SSBD |
1 | ||
| 62621C - BOARD, SIDE TRIM NO.1, LH | ||||
| 62621-90B3405 |
HB30..RHD..30S..WC HONG KONG SPEC,BEIGE,BEIGE |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-90B03 |
HB30..RHD..30S |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62623-90B00 |
HB30..RHD..30S |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-90B00 |
FB30,HB30..DLX,STD |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62625-90B01 |
FB30,HB30..DLX..(GEN,ME) |
1 | ||
| 62625-90B07 |
FB30,HB30..DLX..(GEN,ME) W/O RR SEAT |
1 | ||
| 62625-90B24 |
HB30..RHD..30S W/*SSBD |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-90B01 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..WC W/FOLDING SEAT |
1 | ||
| 63951-90B02 |
BB20,21,FB30,HB30,RB20..DLX..WC |
1 | ||
| 63951A - CLIP(FOR COOLER PIPE COVER) NO.1 | ||||
| 90467-1001708 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..WC W/FOLDING SEAT,IVORY,IVORY |
7 | ||
| 90467-10024 |
BB21,FB30,HB30,RB20..DLX..WC IVORY |
5 | ||
| 90467-1001708 |
BB20,21,FB30,HB30,RB20..DLX..WC IVORY,IVORY |
5 | ||
| 90467-10024 |
BB21,FB30,HB30,RB20..(DLX,EX,EXS)..WC W/FOLDING SEAT,IVORY;W/O RR SEAT,IVORY |
7 | ||
| 63951B - CLIP(FOR COOLER PIPE COVER) NO.2 | ||||
| 90467-0602008 |
BB20,21,FB30,HB30,RB20..DLX..WC IVORY,IVORY |
1 | ||
| 63951C - CUSHION(FOR COOLER PIPE COVER) | ||||
| 90540-08005 |
BB20,21,FB30,HB30,RB20..DLX..WC T=4.0 |
1 | ||
| 63951C - CUSHION(FOR COOLER PIPE COVER) | ||||
| 90540-08005 |
BB20,21,FB30,HB30,RB20..DLX..WC T=4.0 |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-10024 |
BB21,FB30,HB30,RB20..(DLX,EXS)..(GEN,ME) IVORY |
10 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-90B00 |
BB20..15S;BB2#,FB30,HB30,RB20..WC..(GEN,ME) |
1 | ||
| 64745A - CUSHION(FOR REAR COMBINATION LAMP SERVICE COVER) | ||||
| 90540-08005 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX)..WC..(GEN,ME) T=4.0 |
2 | ||
| 64745A - CUSHION(FOR REAR COMBINATION LAMP SERVICE COVER) | ||||
| 90540-08005 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX)..WC..(GEN,ME) T=4.0 |
2 | ||
| 64745A - CUSHION(FOR REAR COMBINATION LAMP SERVICE COVER) | ||||
| 90540-08005 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX)..WC..(GEN,ME) T=4.0 |
2 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-90B01 |
HB30..RHD..30S..WC HONG KONG SPEC,W/*SOBD |
1 | ||
| Common parts | ||||
| 90468-05050 | ||||
| 93313-15010 | ||||
