HB30R-MDZR (1986)
Toyota Coaster

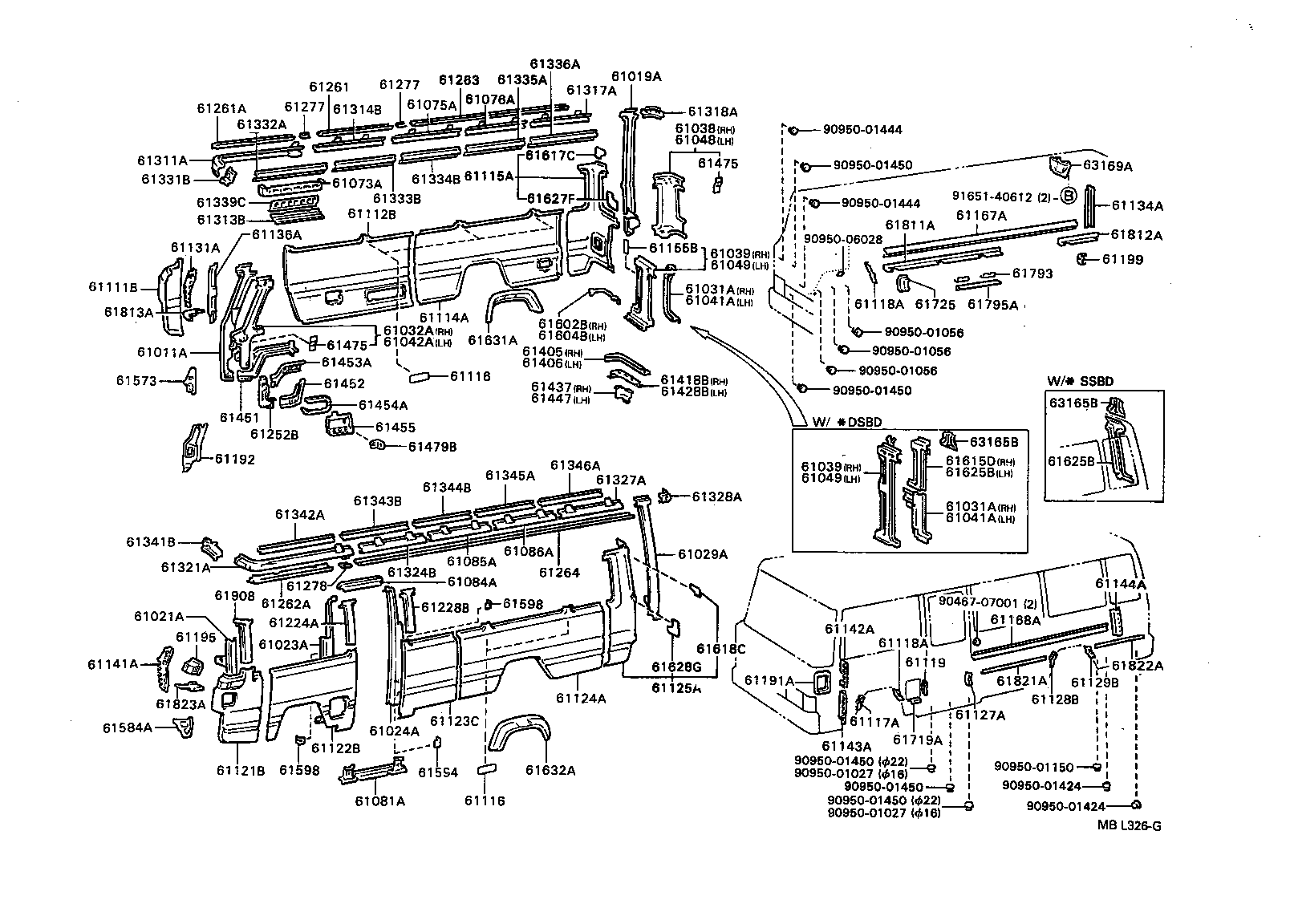

ILLUST NO. 1 OF 3(8610- )HB30,HZB30..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61021A - PILLAR SUB-ASSY, NO.1 LH | ||||
| 61021-90B02 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61023A - PILLAR SUB-ASSY, NO.3 LH | ||||
| 61023-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61024A - PILLAR SUB-ASSY, NO.4 LH | ||||
| 61024-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..DLX,EX,EXS |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..DLX,EX,EXS |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61249-90B00 |
BB21,HB30,HZB30,RB20;BB20..16S,20S,22S,26S |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61249-90B00 |
BB21,HB30,HZB30,RB20;BB20..16S,20S,22S,26S |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-90B02 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61073A - PANEL SUB-ASSY, FRONT VENTILATOR, RH | ||||
| 61073-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61081A - RAIL SUB-ASSY, NO.2 LOWER OUTER, LH | ||||
| 61081-90B01 |
BB20,21,HB30,HZB30,RB20..RHD..(DLX,EX)..GEN |
1 | ||
| 61084A - RAIL SUB-ASSY, CENTER DOOR, LH | ||||
| 61084-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH | ||||
| 61085-90B02 |
BB2#,HB30,HZB30,RB20..RHD..HRF |
1 | ||
| 61111B - PANEL, NO.1 SIDE, RH | ||||
| 61111-90B00 |
BB20,21,HB30,RB20..RHD |
1 | ||
| 61111-90B05 |
HB30..RHD..GEN W/COOL AIR INTAKE SNORKEL TYPE |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-90B01 |
BB2#,HB30,HZB30,RB20..RHD..WC |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-90B01 |
BB20,21,FB30,HB30,RB20..HRF..(16S,17S,20S,22S,23S,26S,29S,30S) |
1 | ||
| 61107-90B05 |
HB30..RHD..GEN NEW GUINEA SPEC,W/*SSBD |
1 | ||
| 61107-90B04 |
HB30..RHD..HRF..GEN NEW GUINEA SPEC |
1 | ||
| 61107-90B08 |
HB30..RHD..HRF..GEN NEW GUINEA SPEC,W/*DSBD |
1 | ||
| 61117A - GUSSET, SIDE PANEL RELIEF, NO.1 | ||||
| 61117-90B00 |
BB2#,HB30,RB20..RHD |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61117-90B00 |
BB2#,FB30,HB30,RB20 RH |
1 | ||
| 61118-90B00 |
BB2#,FB30,HB30,RB20 LH |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61117-90B00 |
BB2#,FB30,HB30,RB20 RH |
1 | ||
| 61118-90B00 |
BB2#,FB30,HB30,RB20 LH |
1 | ||
| 61119 - GUSSET, SIDE PANEL RELIEF, NO.3 | ||||
| 61119-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61121B - PANEL, NO.1 SIDE, LH | ||||
| 61121-90B00 |
BB2#,HB30,RB20..RHD |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61125A - PANEL, NO.4 SIDE, LH | ||||
| 61125-90B01 |
BB20,21,FB30,HB30,RB20..HRF..(16S,17S,20S,22S,23S,26S,29S,30S) |
1 | ||
| 61127A - GUSSET, SIDE PANEL RELIEF, NO.4 | ||||
| 61127-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61128B - GUSSET, SIDE PANEL RELIEF, NO.5 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61129B - GUSSET, SIDE PANEL RELIEF, NO.6 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61134A - STRENGTH, SIDE PANEL, NO.3 UPPER RH | ||||
| 61134-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61136A - PANEL, FRONT SIDE END, RH | ||||
| 61136-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61142A - STRENGTH, SIDE PANEL, NO.2 UPPER LH | ||||
| 61142-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61143A - STRENGTH, SIDE PANEL, NO.2 LOWER LH | ||||
| 61143-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61144A - STRENGTH, SIDE PANEL, NO.3 UPPER LH | ||||
| 61144-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61191A - REINFORCEMENT, SIDE LOWER WINDOW | ||||
| 61191-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61195 - RETAINER, OUTER SIDE MIRROR, LH | ||||
| 61195-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61199 - BRACKET, SIDE PANEL TO REAR MUDGUARD | ||||
| 61199-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
2 | ||
| 61224A - PILLAR, NO.3 OUTER, UPPER LH | ||||
| 61224-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61228B - PILLAR, NO.4 OUTER, UPPER LH | ||||
| 61228-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61358-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61368-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61311A - RAIL, NO.1 UPPER OUTER, RH | ||||
| 61077-90B00 |
BB2#,HB30,HZB30,RB20..RHD..HRF |
1 | ||
| 61313B - RAIL, NO.1 UPPER OUTER, LOWER RH | ||||
| 61313-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61314B - RAIL, NO.2 UPPER OUTER, RH | ||||
| 61078-90B01 |
BB2#,HB30,HZB30,RB20..RHD..HRF |
1 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61324B - RAIL, NO.2 UPPER OUTER, LH | ||||
| 61088-90B01 |
BB2#,HB30,RB20..RHD..HRF..GEN |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61331B - RAIL, NO.1 UPPER INNER, FRONT RH | ||||
| 61331-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61332A - RAIL, NO.1 UPPER INNER, REAR RH | ||||
| 61332-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61333B - RAIL, NO.2 UPPER INNER, RH | ||||
| 61333-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61334B - RAIL, NO.3 UPPER INNER, RH | ||||
| 61334-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61336A - RAIL, NO.5 UPPER INNER, RH | ||||
| 61336-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61339C - RAIL, NO.1 UPPER, INNER LOWER | ||||
| 61339-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61341B - RAIL, NO.1 UPPER INNER, FRONT LH | ||||
| 61341-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61343B - RAIL, NO.2 UPPER INNER, LH | ||||
| 61343-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61344B - RAIL, NO.3 UPPER INNER, LH | ||||
| 61344-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61346A - RAIL, NO.5 UPPER INNER, LH | ||||
| 61346-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61437 - RAIL, NO.7 LOWER INNER, RH | ||||
| 61437-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61447 - RAIL, NO.7 LOWER INNER, LH | ||||
| 61447-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61454A - PANEL, FRONT DOOR STEP, RH | ||||
| 61454-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61455 - PANEL, FRONT DOOR STEP SIDE, RH | ||||
| 61455-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61573 - EXTENSION, FLOOR PANEL, NO.1 | ||||
| 61573-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61584A - EXTENSION, FLOOR PANEL, NO.2 LH | ||||
| 61584-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61602B - STRENGTH SUB-ASSY, REAR CORNER, INNER RH | ||||
| 61602-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..WC |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-90B00 |
FB30,HB30 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-90B00 |
FB30,HB30 |
1 | ||
| 61719A - STIFFENER, BATTERY SERVICE HOLE | ||||
| 61719-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61731-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61793 - PLATE, COOLER CONDENSER COVER LOCK | ||||
| 61793-90B00 |
BB2#,FB30,HB30,HZB30,RB20..WC |
2 | ||
| 61795A - PLATE, COOLER CONDENSER COVER SHIELD | ||||
| 61795-90B00 |
BB2#,HB30,HZB30,RB20..RHD..WC |
1 | ||
| 61812A - RAIL, DUSTPROOF, REAR RH | ||||
| 61812-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61822A - RAIL, DUSTPROOF, REAR LH | ||||
| 61822-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61908 - PILLAR SUB-ASSY, NO.1 OUTER, UPPER LH | ||||
| 61908-90B00 |
BB21,HB30,HZB30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) |
1 | ||
| Common parts | ||||
| 90467-07001 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01150 | ||||
| 90950-01424 | ||||
| 90950-01444 | ||||
| 90950-01450 | ||||
| 90950-06028 | ||||
| 91651-40612 | ||||
