HB30R-MD (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1990
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(8205-8808)BB2#,30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36120 |
BB2#,30;RB20..ARL |
1 | ||
| 44704-36130 |
HB30 |
1 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
BB2#,30;RB20..ARL |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09053 |
BB21,30..WOC;BB20..(20S,22S,26S)..WOC |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09053 |
BB21,30..WOC;BB20..(20S,22S,26S)..WOC |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09053 |
BB21,30..WOC;BB20..(20S,22S,26S)..WOC |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB20,30,RB20 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB20,30,RB20 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90467-16141 | ||||
| 91611-40816 | ||||
| 91651-60616 | ||||

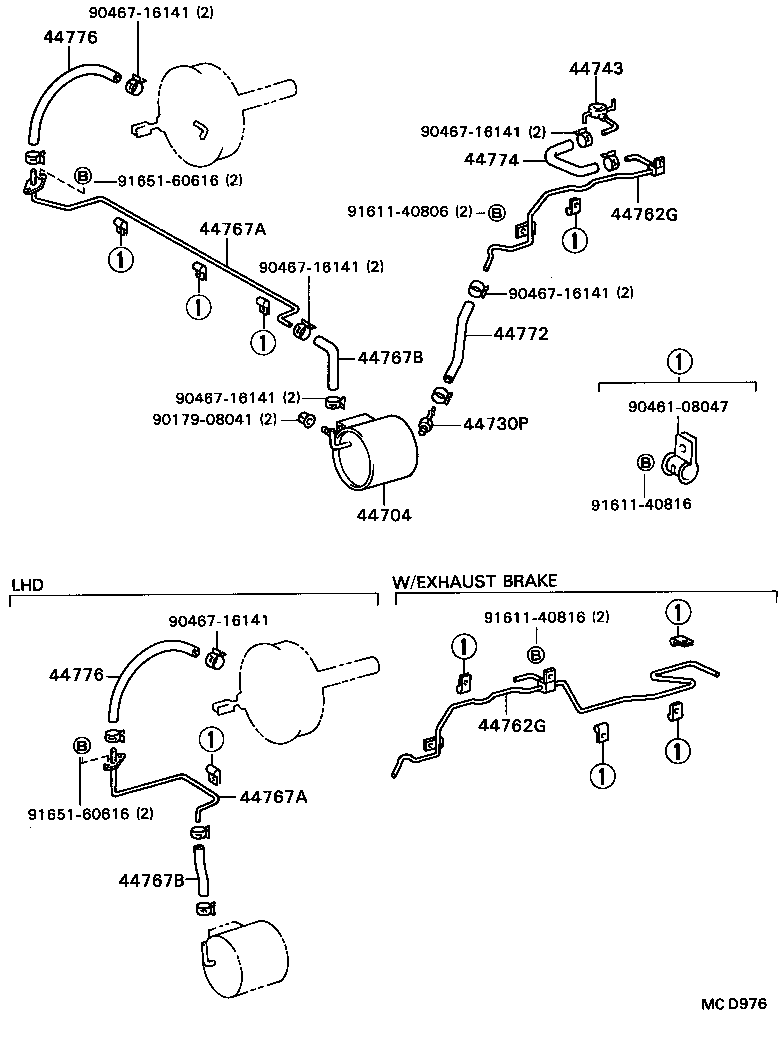

ILLUST NO. 2 OF 2(8610-9001)HB30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36120 |
BB2#,30;RB20..ARL |
1 | ||
| 44704-36130 |
HB30 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09053 |
BB21,30..WOC;BB20..(20S,22S,26S)..WOC |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB20,30,RB20 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB20,30,RB20 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90467-16141 | ||||
| 91611-40806 | ||||
| 91611-40816 | ||||
| 91651-60616 | ||||
