FB30L-MDZRV (1986)
Toyota Coaster

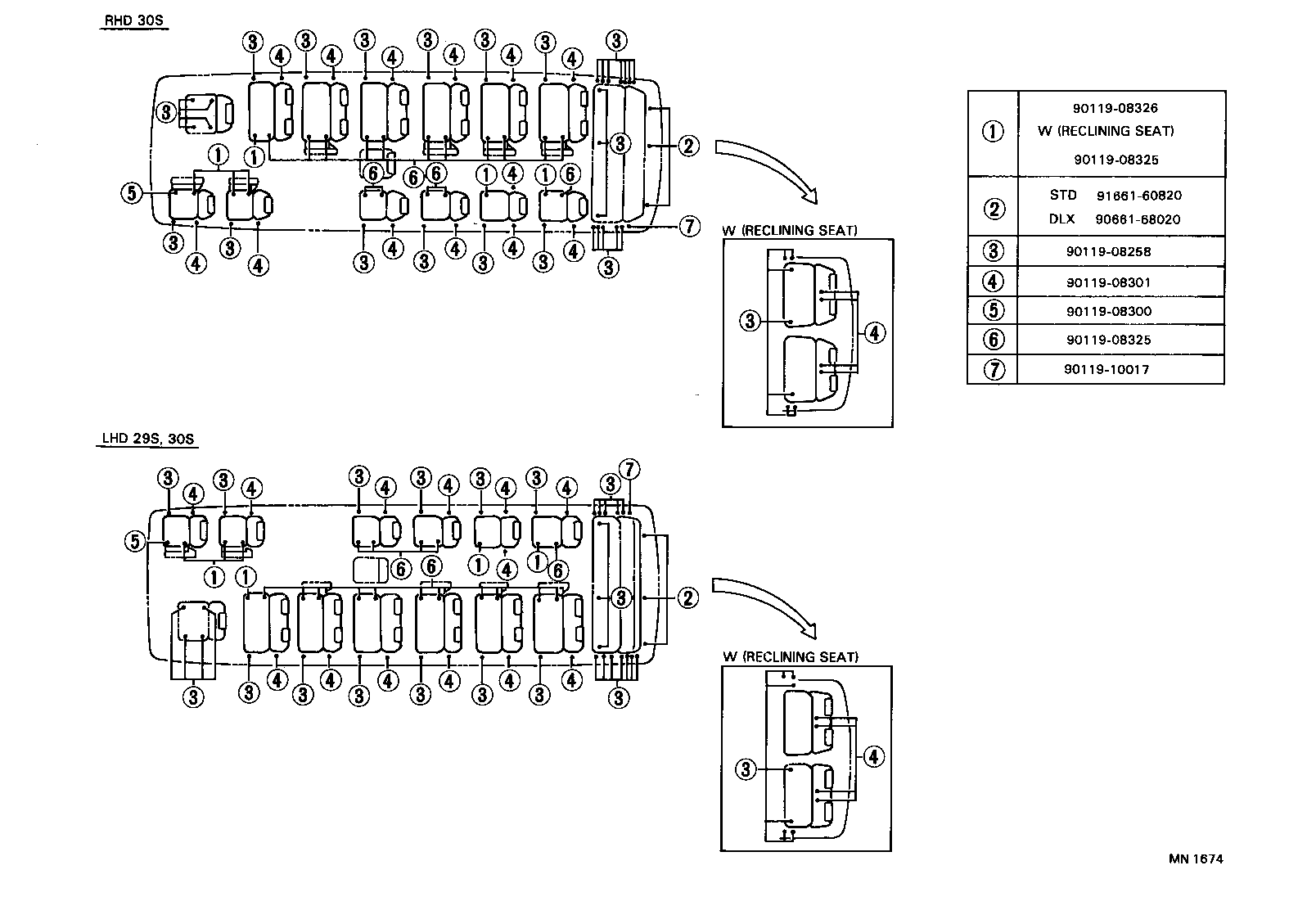

ILLUST NO. 2 OF 4(8610- )BB32,FB30,HB30,HZB30..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
FB30,HB30 |
15 | ||
| 74610-1002026 |
FB30,HB30,HZB30 SABLE,SABLE |
15 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
FB30,HB30 |
15 | ||
| 74610-1002026 |
FB30,HB30,HZB30 SABLE,SABLE |
15 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1401032 |
FB30,HB30 DARK WINE,DARK WINE |
30 | ||
| 74617-1401040 |
FB30,HB30,HZB30 SABLE,SABLE |
30 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1401032 |
FB30,HB30 DARK WINE,DARK WINE |
30 | ||
| 74617-1401040 |
FB30,HB30,HZB30 SABLE,SABLE |
30 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-90B1902 |
BB21,FB30,HB30,RB20..LHD..DLX PF,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2302 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79011-90B2402 |
BB21,FB30,HB30,RB20..LHD..DLX PF,W/SUB SEAT,WINE,WINE |
1 | ||
| 79011-90B4006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79011-90B3306 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79011-90B2202 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79011-90B2606 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79011-90B3206 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-90B4602 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79013-90B4702 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79013-90B7006 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79013-90B6306 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79013-90B5906 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79013-90B7006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79175-90B03 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-90B1902 |
BB21,FB30,HB30,RB20..LHD..DLX PF,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2302 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79011-90B2402 |
BB21,FB30,HB30,RB20..LHD..DLX PF,RED,WINE |
1 | ||
| 79011-90B3306 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79011-90B3206 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79011-90B4006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79011-90B2606 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B4302 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79022-90B6106 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79022-90B5606 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79022-90B6606 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79022-90B4202 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79022-90B6306 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-90B4702 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79013-90B4602 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79013-90B6306 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79013-90B7306 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79013-90B7006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79013-90B5906 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-90B3806 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,W/RECLINING,SABLE,SABLE |
2 | ||
| 79023-90B2502 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79023-90B2402 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79023-90B3406 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79023-90B3906 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79023-90B4006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79023-90B3406 |
BB21,FB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79033-90B5306 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79175-90B03 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79375-90B01 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-90B2002 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79032-90B2606 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79032-90B2102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79032-90B3106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79032-90B3006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79032-90B3206 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79033-90B3602 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79033-90B3702 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79033-90B5406 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79033-90B4506 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79033-90B4706 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79033-90B5306 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79011-90B1902 |
BB21,FB30,HB30,RB20..LHD..DLX PF,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2302 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79011-90B3206 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79011-90B3306 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79011-90B2402 |
BB21,FB30,HB30,RB20..LHD..DLX PF,RED,WINE |
1 | ||
| 79011-90B4006 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79011-90B2606 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79032-90B2002 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79032-90B2102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79032-90B2606 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79032-90B3106 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79032-90B3206 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-90B6306 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79013-90B4602 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79013-90B4702 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79013-90B5906 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79013-90B7006 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79013-90B7306 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79033-90B3702 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED |
1 | ||
| 79033-90B3602 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79033-90B4506 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79033-90B5306 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79033-90B5406 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79175-90B03 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79375-90B01 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79011-90B10 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79011-90B2302 |
FB30,HB30..LHD..DLX FB,RED,RED |
1 | ||
| 79011-90B3206 |
FB30,HZB30..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79011-90B2606 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79011-90B4006 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79032-90B08 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79032-90B15 |
FB30,HB30..LHD..DLX PF |
1 | ||
| 79032-90B2102 |
FB30,HB30..LHD..DLX FB,RED,RED |
1 | ||
| 79032-90B2002 |
FB30,HB30..LHD..DLX PF,WINE,WINE |
1 | ||
| 79032-90B2606 |
FB30,HB30,HZB30..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79032-90B3006 |
FB30,HB30,HZB30..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79032-90B3106 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79013-90B7306 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79013-90B7006 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79032-90B3206 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79013-90B27 |
FB30,HB30..LHD..DLX PF |
1 | ||
| 79013-90B15 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79013-90B4602 |
FB30,HB30..LHD..DLX PF,WINE,WINE |
1 | ||
| 79013-90B4702 |
FB30,HB30..LHD..DLX FB,RED,RED |
1 | ||
| 79013-90B5906 |
FB30,HB30,HZB30..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79013-90B6306 |
FB30,HB30,HZB30..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79033-90B13 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79033-90B23 |
FB30,HB30..LHD..DLX PF |
1 | ||
| 79033-90B3602 |
FB30,HB30..LHD..DLX PF,WINE,WINE |
1 | ||
| 79033-90B3702 |
FB30,HB30..LHD..DLX FB,RED,RED |
1 | ||
| 79033-90B5306 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79033-90B4706 |
FB30,HB30,HZB30..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79033-90B4506 |
FB30,HB30,HZB30..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79033-90B5406 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79055A - PAD SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79015-90B00 |
FB30,HB30,HZB30..LHD |
1 | ||
| 79056A - PAD SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79035-90B00 |
FB30,HB30,HZB30..LHD |
1 | ||
| 79057A - PAD SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79017-90B00 |
FB30,HB30..LHD |
1 | ||
| 79175-90B03 |
FB30,HZB30..WC..ME STD PACKAGE |
1 | ||
| 79058A - PAD SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79037-90B00 |
FB30,HB30,HZB30..LHD..DLX |
1 | ||
| 79375-90B01 |
FB30,HZB30..WC..ME STD PACKAGE |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79011-90B3206 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79011-90B3306 |
BB21,FB30,HZB30,RB20..ME PF,SABLE,SABLE |
1 | ||
| 79011-90B2302 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79011-90B2606 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79032-90B2002 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) PF,WINE,WINE |
1 | ||
| 79032-90B2102 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79032-90B3106 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79032-90B3006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) MOQUETTE,SABLE,SABLE |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-90B4602 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) PF,WINE,WINE |
1 | ||
| 79013-90B5906 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) PF,SABLE,SABLE |
1 | ||
| 79013-90B4702 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79013-90B6306 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) MOQUETTE,SABLE,SABLE |
1 | ||
| 79013-90B7006 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79033-90B3602 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) PF,WINE,WINE |
1 | ||
| 79033-90B3702 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79033-90B4506 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) PF,SABLE,SABLE |
1 | ||
| 79033-90B4706 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) MOQUETTE,SABLE,SABLE |
1 | ||
| 79033-90B5306 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79175-90B03 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79375-90B01 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79011-90B1902 |
BB21,FB30,HB30,RB20..LHD..DLX PF,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2302 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79011-90B2402 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79011-90B3106 |
BB21,FB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79011-90B3206 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79011-90B2606 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79032-90B2002 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79032-90B2102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79032-90B2606 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79032-90B3106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79032-90B3006 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-90B4602 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79013-90B4702 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79013-90B5906 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79013-90B6306 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,W/RECLINING,SABLE,SABLE |
2 | ||
| 79013-90B7006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79033-90B3702 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79033-90B3602 |
BB21,FB30,HB30,RB20..LHD..DLX PF,WINE,WINE |
1 | ||
| 79033-90B4506 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79033-90B5306 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79033-90B4706 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79175-90B03 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79375-90B01 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-90B0206 |
BB21,FB30,HZB30,RB20..(DLX,STD)..ME SABLE,SABLE |
1 | ||
| 79106-90B0006 |
FB30,HZB30,RB20..(26S,29S)..ME W/SUB SEAT,SABLE |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-90B0206 |
FB30,HB30,HZB30..DLX,EX SABLE,SABLE |
6 | ||
| 79109-90B02 |
FB30,HB30..DLX,EX |
6 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 90467-0807506 |
BB21,FB30,RB20..DLX..WC..ME SABLE,SABLE |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-90B1702 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79120-90B1502 |
BB21,FB30,RB20..DLX..ME PF,DARK WINE,DARK WINE |
1 | ||
| 79120-90B3206 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79120-90B2706 |
BB21,FB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79120-90B3006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79120-90B2102 |
BB21,FB30,RB20..DLX..ME PF,W/SUB SEAT,WINE,WINE |
1 | ||
| 79120-90B2606 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-90B2902 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79140-90B3906 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79140-90B4806 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79140-90B5106 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79140-90B3102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,WINE,WINE |
1 | ||
| 79140-90B3706 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79260-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB21,FB30,HB30,RB20..DLX,EX |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB21,FB30,HB30,RB20..DLX,EX |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX SABLE,SABLE |
1 | ||
| 79103-90B0106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79134-90B0406 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79234-90B0506 |
BB32,FB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79120-90B1502 |
BB21,FB30,RB20..DLX..ME PF,DARK WINE,DARK WINE |
1 | ||
| 79120-90B1902 |
BB21,FB30,RB20..ME FB,RED,RED |
1 | ||
| 79120-90B1702 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79120-90B2102 |
BB21,FB30,RB20..DLX..ME PF,W/SUB SEAT,WINE,WINE |
1 | ||
| 79220-90B5706 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79120-90B2706 |
BB21,FB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79120-90B3006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79120-90B3206 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79120-90B2606 |
BB21,FB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B4902 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79230-90B5202 |
BB21,FB30,RB20..DLX..ME PF,W/SEAT BELT,WINE,WINE |
1 | ||
| 79230-90B5102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79230-90B6706 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79230-90B7006 |
BB21,FB30,HB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79230-90B8006 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79230-90B7206 |
BB21,FB30,HB30,RB20..LHD..DLX PF,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79230-90B8106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79230-90B7706 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79140-90B3102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,W/GLIDE DOOR,WINE,WINE |
1 | ||
| 79140-90B2902 |
BB21,FB30,RB20..DLX..ME PF,W/GLIDE DOOR,WINE,WINE |
1 | ||
| 79240-90B3402 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79240-90B3602 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79140-90B3906 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 79240-90B4106 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79140-90B3706 |
BB21,FB30,HZB30,RB20..DLX..ME PF,W/GLIDE DOOR,SABLE |
1 | ||
| 79140-90B4806 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,W/*GLD,SABLE,SABLE |
1 | ||
| 79240-90B4006 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79140-90B5106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 79240-90B5606 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79240-90B5506 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-90B3302 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79250-90B4806 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79250-90B5006 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79250-90B4206 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79250-90B5506 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79260A - SPRING ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79260-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79370-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79370-90B0306 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79180-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 79103-90B0106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,W/*GLD,SABLE,SABLE |
1 | ||
| 79290-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX SABLE,SABLE |
1 | ||
| 79204-90B0106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79280-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX SABLE,SABLE |
1 | ||
| 79303-90B0106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79405-90B0006 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-90B02 |
FB30,HB30..DLX W/O FOLDING SEAT |
6 | ||
| 79309-90B0206 |
FB30,HB30,HZB30..DLX W/O FOLDING SEAT,SABLE,SABLE |
6 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-90B2102 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79330-90B2302 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79330-90B3806 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79330-90B2402 |
BB21,FB30,RB20..DLX..ME PF,W/SEAT BELT,WINE,WINE |
1 | ||
| 79330-90B4406 |
BB21,FB30,RB20..DLX..ME PF,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79330-90B1906 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79330-90B4306 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79330-90B2506 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79330-90B2606 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79350-90B0802 |
BB21,FB30,RB20..DLX..ME PF,WINE,RED |
1 | ||
| 79350-90B1306 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79350-90B1206 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79350-90B1506 |
BB21,FB30,HZB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79350-90B0902 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79250-90B4206 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79370-90B0306 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79303-90B0106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79380-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX SABLE,SABLE |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79433-90B0206 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79405-90B0006 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79420-90B2402 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79420-90B2202 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79420-90B2906 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79420-90B3006 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79420-90B3306 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79420-90B3406 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79330-90B2402 |
BB21,FB30,RB20..DLX..ME PF,W/SEAT BELT,WINE,WINE |
1 | ||
| 79330-90B2102 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79330-90B4306 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79330-90B3806 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79330-90B4406 |
BB21,FB30,HZB30,RB20..DLX..ME PF,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79330-90B1906 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79330-90B2606 |
BB21,FB30,RB20..DLX..WC..ME FB,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79330-90B2506 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79140-90B2902 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79140-90B3102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,WINE |
1 | ||
| 79140-90B3706 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX PF,SABLE,SABLE |
1 | ||
| 79140-90B4806 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79140-90B3906 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79140-90B5106 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79350-90B0802 |
BB21,FB30,RB20..DLX..ME PF,WINE,RED |
1 | ||
| 79350-90B1506 |
BB21,FB30,RB20..DLX..WC..ME FB,SABLE,SABLE |
1 | ||
| 79350-90B1206 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79350-90B1306 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79250-90B4206 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79460-90B0106 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79370-90B0306 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79370-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79480A - SPRING ASSY, NO.4 SEAT BACK, RH | ||||
| 79180-90B0006 |
BB21,FB30,HB30,RB20..LHD..DLX SABLE,SABLE |
1 | ||
| 79103-90B0106 |
FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79505 - LEG SUB-ASSY, NO.5 SEAT, RH | ||||
| 79433-90B0206 |
BB32,FB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79506 - LEG SUB-ASSY, NO.5 SEAT, LH | ||||
| 79405-90B0006 |
BB32,FB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79520 - CUSHION ASSY, NO.5 SEAT, RH | ||||
| 79420-90B08 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79420-90B16 |
FB30..ME PF |
1 | ||
| 79420-90B2202 |
FB30..ME PF,WINE,WINE |
1 | ||
| 79420-90B2402 |
FB30,HB30..LHD..DLX FB,RED,RED |
1 | ||
| 79420-90B3006 |
FB30,HZB30..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79420-90B3306 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79420-90B2906 |
FB30,HZB30..ME PF,SABLE,SABLE |
1 | ||
| 79420-90B3406 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79530 - CUSHION ASSY, NO.5 SEAT, LH | ||||
| 79330-90B08 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79330-90B18 |
FB30..ME PF,W/SEAT BELT |
1 | ||
| 79330-90B14 |
FB30..ME PF |
1 | ||
| 79330-90B2102 |
FB30..ME PF,WINE,WINE |
1 | ||
| 79330-90B2302 |
FB30,HB30..LHD..DLX FB,RED,RED |
1 | ||
| 79330-90B2402 |
FB30..ME PF,W/SEAT BELT,WINE,WINE |
1 | ||
| 79330-90B4406 |
FB30,HZB30..ME PF,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79330-90B3806 |
FB30,HZB30..ME PF,SABLE,SABLE |
1 | ||
| 79330-90B4306 |
FB30,HZB30..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79330-90B2506 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79330-90B1906 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79330-90B2606 |
FB30..WC..ME FB,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79540 - BACK ASSY, NO.5 SEAT, RH | ||||
| 79140-90B21 |
FB30..ME PF |
1 | ||
| 79140-90B13 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79140-90B2902 |
FB30..ME PF,WINE,WINE |
1 | ||
| 79140-90B3102 |
FB30,HB30..LHD..DLX FB,RED,WINE |
1 | ||
| 79140-90B3906 |
FB30,HB30,HZB30..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79140-90B3706 |
FB30,HZB30..ME PF,SABLE,SABLE |
1 | ||
| 79140-90B4806 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79140-90B5106 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79550 - BACK ASSY, NO.5 SEAT, LH | ||||
| 79350-90B03 |
FB30,HB30..LHD..DLX FB |
1 | ||
| 79350-90B07 |
FB30..ME PF |
1 | ||
| 79350-90B0802 |
FB30..ME PF,WINE,RED |
1 | ||
| 79350-90B0902 |
FB30,HB30..LHD..DLX FB,RED,RED |
1 | ||
| 79350-90B1206 |
FB30,HZB30..ME PF,SABLE,SABLE |
1 | ||
| 79250-90B4206 |
FB30..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79350-90B1306 |
FB30,HZB30..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79350-90B1506 |
FB30..WC..ME FB,SABLE,SABLE |
1 | ||
| 79560A - SPRING ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79460-90B01 |
FB30,HB30..LHD |
1 | ||
| 79460-90B0106 |
FB30,HB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79570A - SPRING ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79370-90B00 |
FB30,HB30..LHD |
1 | ||
| 79370-90B0306 |
FB30,HB30,HZB30..LHD..DLX W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79370-90B03 |
FB30,HB30..LHD..DLX W/SEAT BELT |
1 | ||
| 79370-90B0006 |
FB30,HB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79580A - SPRING ASSY, NO.5 SEAT BACK, RH | ||||
| 79180-90B00 |
FB30,HB30..LHD..DLX |
1 | ||
| 79103-90B0106 |
FB30,HZB30..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79180-90B0006 |
FB30,HB30,HZB30..LHD..DLX SABLE,SABLE |
1 | ||
| 79590A - SPRING ASSY, NO.5 SEAT BACK, LH | ||||
| 79380-90B00 |
FB30,HB30..LHD..DLX |
1 | ||
| 79303-90B0106 |
FB30,HZB30..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79380-90B0006 |
FB30,HB30,HZB30..LHD..DLX SABLE,SABLE |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79644-90B0006 |
FB30,HZB30..LHD RR,SABLE,SABLE |
1 | ||
| 79643-90B0006 |
FB30,HZB30..LHD FR,SABLE,SABLE |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79644-90B0006 |
FB30,HZB30..LHD RR,SABLE,SABLE |
1 | ||
| 79643-90B0006 |
FB30,HZB30..LHD FR,SABLE,SABLE |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79644-90B0006 |
FB30,HZB30..LHD RR,SABLE,SABLE |
1 | ||
| 79643-90B0006 |
FB30,HZB30..LHD FR,SABLE,SABLE |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79605-90B0006 |
FB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B4202 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79620-90B4002 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79620-90B4606 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79620-90B4506 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79620-90B5906 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B4302 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79630-90B4102 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79630-90B4402 |
BB21,FB30,RB20..DLX..ME PF,W/SEAT BELT,WINE,WINE |
1 | ||
| 79630-90B5806 |
BB21,FB30,HZB30,RB20..DLX..ME PF,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79630-90B5506 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79630-90B5406 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79630-90B6106 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-90B2902 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79140-90B3706 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) PF,SABLE,SABLE |
1 | ||
| 79140-90B3906 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) MOQUETTE,SABLE,SABLE |
1 | ||
| 79140-90B4806 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79350-90B0802 |
BB21,FB30,RB20..DLX..ME PF,WINE,RED |
1 | ||
| 79350-90B0902 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79350-90B1306 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79250-90B4206 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79350-90B1206 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79660A - SPRING ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79660-90B0306 |
BB32,FB30,HB30,HZB30,RB20..LHD..(26S,29S,30S) SABLE,SABLE |
1 | ||
| 79680B - SPRING ASSY, NO.6 SEAT BACK, RH | ||||
| 79303-90B0106 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79180-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) SABLE,SABLE |
1 | ||
| 79103-90B0106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| 79690A - SPRING ASSY, NO.6 SEAT BACK, LH | ||||
| 79380-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) SABLE,SABLE |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79733-90B0006 |
FB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79605-90B0006 |
FB30,HZB30..LHD SABLE,SABLE |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B4002 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79620-90B4202 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79620-90B4506 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79620-90B4606 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79620-90B5906 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B4102 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79630-90B4402 |
BB21,FB30,RB20..DLX..ME PF,W/SEAT BELT,WINE,WINE |
1 | ||
| 79630-90B4302 |
BB21,FB30,HB30,RB20..LHD..DLX..(25S,26S,29S,30S) FB,RED,RED |
1 | ||
| 79630-90B5806 |
BB21,FB30,HZB30,RB20..DLX..ME PF,W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79630-90B5406 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79630-90B5506 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79630-90B6106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-90B2902 |
BB21,FB30,RB20..DLX..ME PF,WINE,WINE |
1 | ||
| 79140-90B3102 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,WINE |
1 | ||
| 79140-90B3906 |
BB21,FB30,HB30,RB20..LHD..DLX MOQUETTE,SABLE,SABLE |
1 | ||
| 79140-90B3706 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79140-90B4806 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79350-90B0902 |
BB21,FB30,HB30,RB20..LHD..DLX FB,RED,RED |
1 | ||
| 79350-90B0802 |
BB21,FB30,RB20..DLX..ME PF,WINE,RED |
1 | ||
| 79350-90B1206 |
BB21,FB30,HZB30,RB20..DLX..ME PF,SABLE,SABLE |
1 | ||
| 79350-90B1306 |
BB21,FB30,HZB30,RB20..DLX..ME MOQUETTE,SABLE,SABLE |
1 | ||
| 79140-90B4806 |
BB21,FB30,RB20..DLX..WC..ME STD PACKAGE,FB,SABLE,SABLE |
1 | ||
| 79760A - SPRING ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79660-90B0306 |
BB21,32,FB30,HB30,HZB30,RB20..LHD..(25S,26S,29S,30S) SABLE,SABLE |
1 | ||
| 79770A - SPRING ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79670-90B0506 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) W/SEAT BELT,SABLE,SABLE |
1 | ||
| 79670-90B0106 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX..(25S,26S,29S,30S) SABLE,SABLE |
1 | ||
| 79780A - SPRING ASSY, NO.7 SEAT BACK, RH | ||||
| 79180-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX SABLE,SABLE |
1 | ||
| 79790A - SPRING ASSY, NO.7 SEAT BACK, LH | ||||
| 79380-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..DLX SABLE,SABLE |
1 | ||
| 79303-90B0106 |
BB21,FB30,HZB30,RB20..DLX..WC..ME STD PACKAGE,SABLE,SABLE |
1 | ||
| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90468-18071 | ||||
| 91651-60820 | ||||
| 93210-16016 | ||||
ILLUST NO. 4 OF 4(9001- )29S,30S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08301 | ||||
| 90119-08325 | ||||
| 90119-08326 | ||||
| 90119-10017 | ||||
| 90661-68020 | ||||
| 91661-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
