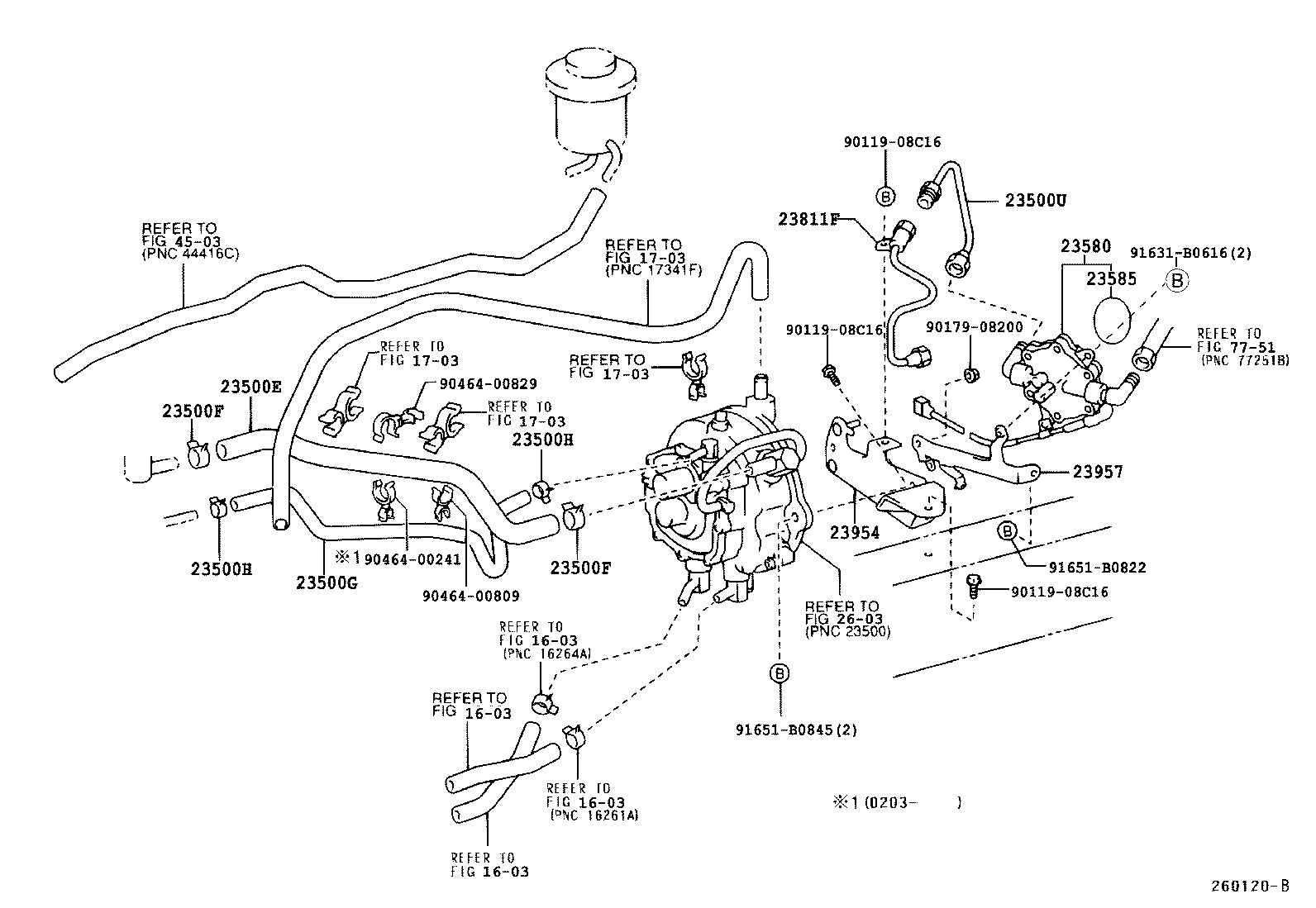

Toyota Coaster BZB40 LPG(CARBURETOR) FUEL PIPE

Part #	Description	Period	Qty
23500E - HOSE, WATER(FOR LPG REGULATOR INLET)
23271-48010	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23271-48010	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
23271-48010	1BZFPE..BZB40,50	08/2001 - 08/2004	1
23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)
96134-52600	1BZFPE..BZB40,50	08/2001 - 08/2004	2
96134-52600	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	2
96134-52600	1BZFPE..BZB40,50	01/2015 - 12/2999	2
23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)
96134-52600	1BZFPE..BZB40,50	08/2001 - 08/2004	2
96134-52600	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	2
96134-52600	1BZFPE..BZB40,50	01/2015 - 12/2999	2
23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET)
23273-48020	1BZFPE..BZB40,50	08/2001 - 08/2004	1
23273-48020	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
23273-48020	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)
96135-51300	1BZFPE..BZB40,50	08/2001 - 08/2004	2
96135-51300	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	2
96135-51300	1BZFPE..BZB40,50	01/2015 - 12/2999	2
23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)
96135-51300	1BZFPE..BZB40,50	08/2001 - 08/2004	2
96135-51300	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	2
96135-51300	1BZFPE..BZB40,50	01/2015 - 12/2999	2
23500U - PIPE, WATER BY-PASS, NO.2(FOR LPG)
23812-48021	1BZFPE..BZB40,50	02/2002 - 08/2004	1
23812-48021	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
23812-48020	1BZFPE..BZB40	08/2001 - 02/2002	1
23812-48021	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23580 - PREHEATER ASSY, LPG
23580-48010	1BZFPE..BZB40,50	08/2001 - 08/2004	1
23580-48010	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23580-48010	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
23585 - RING, O(FOR PREHEATER)
23585-72010	1BZFPE..BZB40,50	08/2001 - 08/2004	1
23585-72010	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23585-72010	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
23811F - PIPE, FUEL, NO.1
23811-48021	1BZFPE..BZB40,50	02/2002 - 08/2004	1
23811-48021	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
23811-48020	1BZFPE..BZB40	08/2001 - 02/2002	1
23811-48021	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23954 - BRACKET, LPG REGULATOR
23954-48010	1BZFPE..BZB40,50	08/2001 - 08/2004	1
23954-48010	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
23954-48010	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23957 - STAY, LPG REGULATOR
23957-48010	1BZFPE..BZB40,50	08/2001 - 08/2004	1
23957-48010	1BZFPE..BZB40,50	01/2015 - 12/2999	1
23957-48010	1BZFPE..BZB40,50..STD	08/2004 - 01/2015	1
Common parts
90119-08C16
90179-08200
90464-00241
90464-00809
90464-00829
91631-B0616
91651-B0822
91651-B0845
Linked diagrams
1603
1703
2603
4503
7751

BZB40R-ZCMSC (2001)

(0108- )1BZFPE
