BB58L-ZEFSZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2006
Engine 15BFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )14B,15BFTE ; (9907- )15BFT..BB50..STD..IV..5F

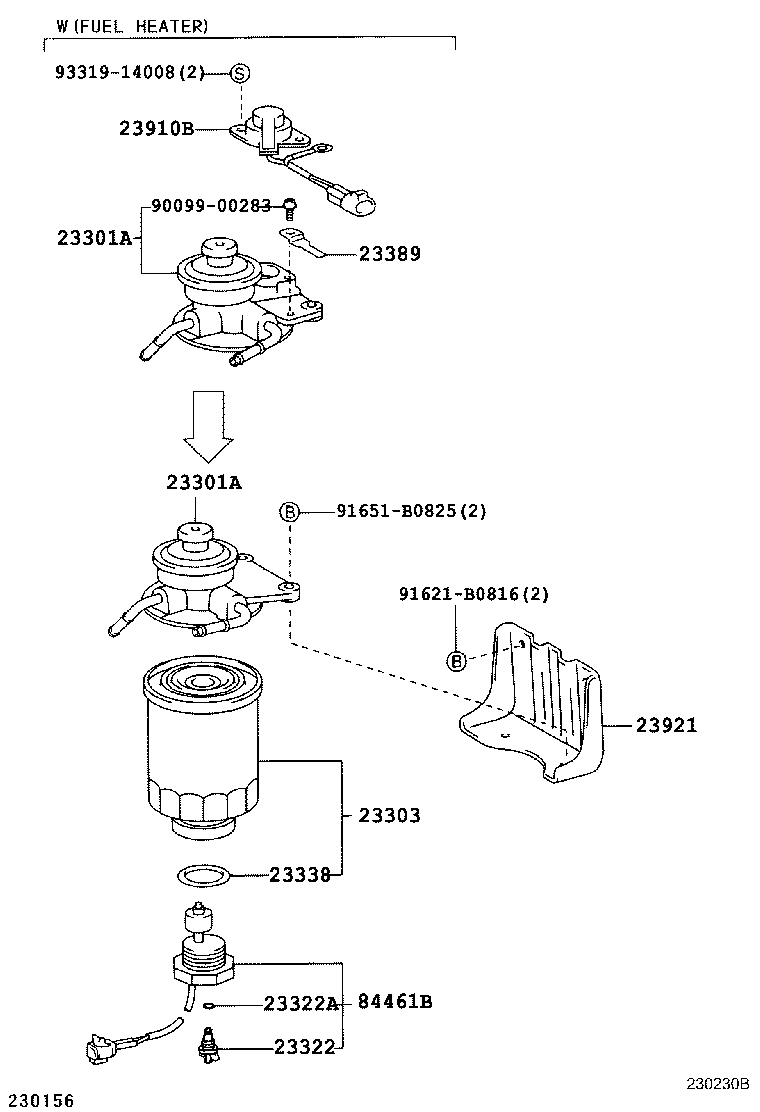

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 23389 23910B 23921 84461B 9009900283 91621B0816 91651B0825 9331914008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-58150

15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58

 1
23380-17430

15BFTE..BB5#..ARL,GEN

 1
23380-17430

15BFTE..BB5#..ARL,GEN

 1
23301A - CAP ASSY, FUEL FILTER
23301-58150

15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58

 1
23380-17430

15BFTE..BB5#..ARL,GEN

 1
23380-17430

15BFTE..BB5#..ARL,GEN

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-56040

15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58

 1
23390-64480

15BFTE..BB5#

 1
23390-64480

15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58

 1
23388-64470

15BFTE..BB5#

 1
23388-64470

15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58

 1
23344-54010

15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC

 1
23344-54010

15BFTE..BB5#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

15BFTE..BB5#

 1
23344-64010

15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC

 1
23344-64010

15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58

 1
23921 - SUPPORT, FUEL FILTER
23921-17040

15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58

 1
23921-17040

15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC

 1
84461B - SWITCH, LEVEL WARNING
84461-28040

BB5#..TDEFI;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC

 1
Common parts
90099-00283
91621-B0816
91651-B0825
93319-14008
