BB50R-ZEFRZQ (2002)
Toyota Coaster

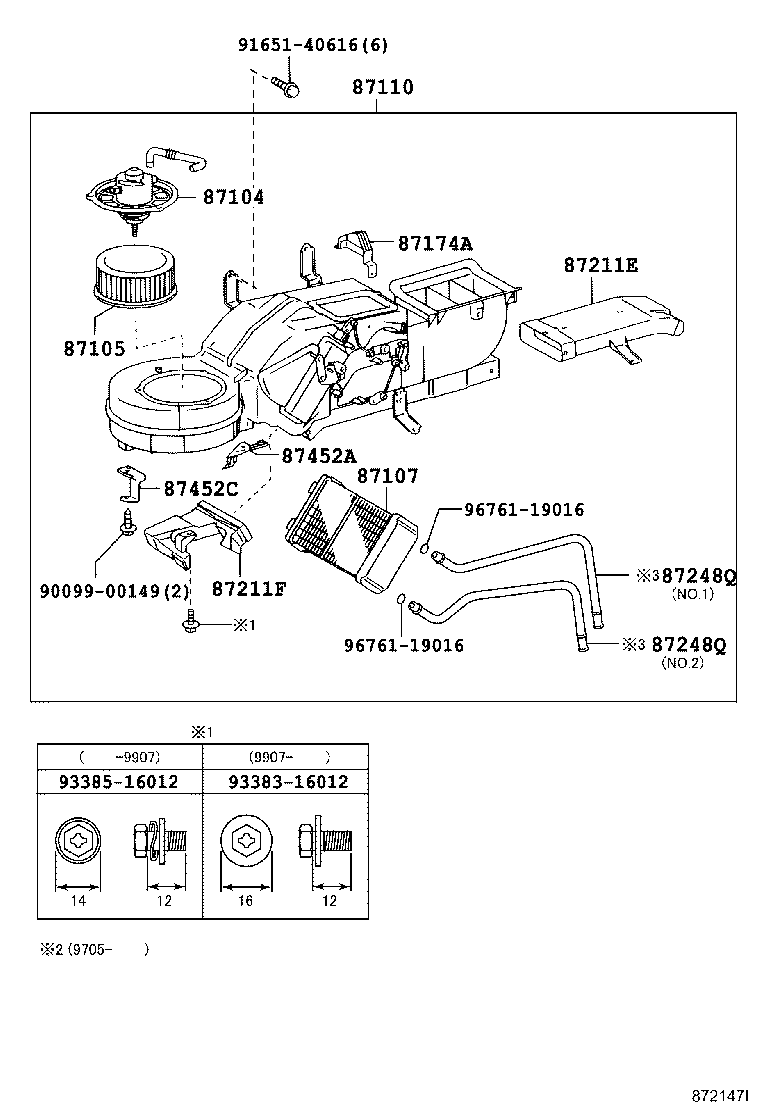

ILLUST NO. 1 OF 2(9301- )RHD
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-36230 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 87104-36200 |
BB50..WOC;BB50,59..WC..TDEFI |
1 | ||
| 87104-36200 |
BB5#..TDEFI 24V |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20110 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-36090 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 87107-36091 |
BB58,59;BB50..6F;BB50,BZB50..EX |
1 | ||
| 87107-36091 |
BB50..IV;BB42,58,59,HZB50,RZB40,50;BB50,BZB50..19S,20S,21S,30S |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-36342 |
BB50,59..EX;BB50..RHD..6F 24V |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-36050 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 87174-36050 |
BZB50..EX;BB5#..TDEFI |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-36080 |
BB50..RHD..6F;BB50,59,BZB50..EX |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-36140 |
BB50..RHD..6F;BB50,59,BZB50..EX |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-36200 |
BB50..RHD..6F;BB50,59,BZB50..EX NO.1 |
1 | ||
| 87248-36210 |
BB50..RHD..6F;BB50,59,BZB50..EX NO.2 |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-36200 |
BB50..RHD..6F;BB50,59,BZB50..EX NO.1 |
1 | ||
| 87248-36210 |
BB50..RHD..6F;BB50,59,BZB50..EX NO.2 |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-36030 |
BB4#,50,HZB50..RHD |
1 | ||
| 87452-36030 |
BZB50..EX;BB50,59..RHD |
1 | ||
| 87452C - BRACKET, FRONT HEATER, NO.2 | ||||
| 87452-36040 |
BZB50..EX;BB50,59..RHD |
1 | ||
| 87452-36040 |
BB4#,50,HZB50..RHD |
1 | ||
| Common parts | ||||
| 90099-00149 | ||||
| 91651-40616 | ||||
| 93383-16012 | ||||
| 93385-16012 | ||||
| 96761-19016 | ||||

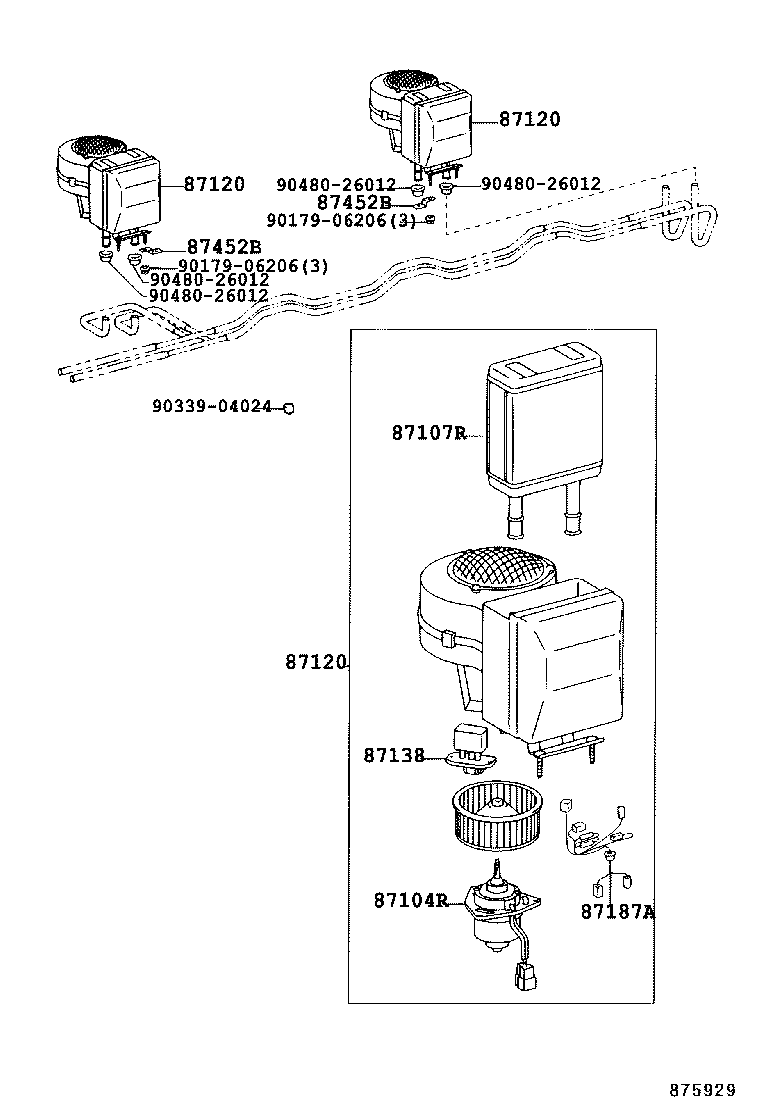

ILLUST NO. 2 OF 2(9301-1501)BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB5#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36270 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 87104-36240 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87104-36240 |
BB50,58..6F 24V |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36210 |
BB50,58..6F |
2 | ||
| 87107-36210 |
BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50 |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36480 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
2 | ||
| 87110-36590 |
BB50..RHD..6F 24V,FRONT |
1 | ||
| 87110-36600 |
BB50..RHD..6F 24V,REAR |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36480 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
2 | ||
| 87110-36590 |
BB50..RHD..6F 24V,FRONT |
1 | ||
| 87110-36600 |
BB50..RHD..6F 24V,REAR |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36480 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
2 | ||
| 87110-36590 |
BB50..RHD..6F 24V,FRONT |
1 | ||
| 87110-36600 |
BB50..RHD..6F 24V,REAR |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36110 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87138-36130 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 87138-36110 |
BB50,58..6F 24V |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36010 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87187-36020 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 87187-36010 |
BB50,58..6F 24V |
2 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 87452-36100 |
BB50..ARL;BB50..LHD..IV |
2 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 87452-36100 |
BB50..ARL;BB50..LHD..IV |
2 | ||
| Common parts | ||||
| 90179-06206 | ||||
| 90339-04024 | ||||
| 90480-26012 | ||||
