BB50R-ZEFRZQ (2002)
Toyota Coaster

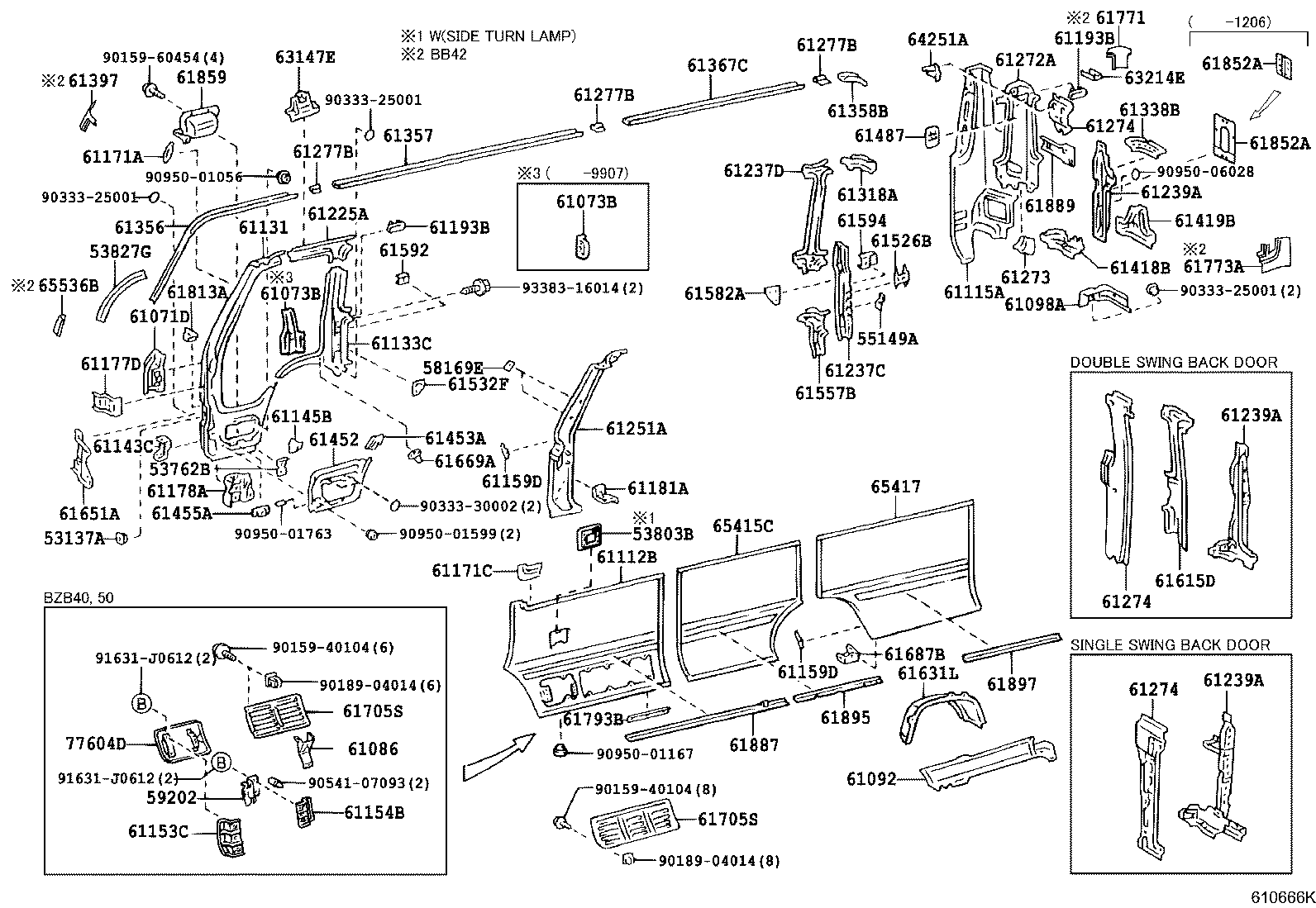

ILLUST NO. 1 OF 5(9301- )RHD
RH SIDE (1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53137A - RETAINER, HEADLAMP DOOR | ||||
| 53137-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 53137-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 53762B - REINFORCEMENT, RADIATOR RESERVE TANK MOUNT | ||||
| 53762-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 53762-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 53827-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 55149A - BRACKET, DASH WIRING HARNESS | ||||
| 55149-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 55149-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 58169E - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 58169-90A00 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61071D - REINFORCE SUB-ASSY, NO.1 PILLAR, UPPER RH | ||||
| 61071-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61071-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61073B - REINFORCE SUB-ASSY, NO.2 PILLAR, CENTER | ||||
| 61073-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61073-36020 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61073B - REINFORCE SUB-ASSY, NO.2 PILLAR, CENTER | ||||
| 61073-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61073-36020 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61092 - RAIL SUB-ASSY, NO.3 LOWER INNER, RH | ||||
| 61092-36030 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61092-36030 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61098A - STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH | ||||
| 61098-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61098-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-36010 |
BB50..WOC..CBU..TDEFI |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-36030 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 61115-36030 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-36020 |
BB50..20S,21S;BB59,BZB50..EX W(RADIO) |
1 | ||
| 61133C - PILLAR, FRONT BODY, LOWER OUTER RH | ||||
| 61133-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61133-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61143C - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 61143-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61143-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61145-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61159D - RETAINER, SIDE PANEL, NO.2 RH | ||||
| 61159-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61159-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61159D - RETAINER, SIDE PANEL, NO.2 RH | ||||
| 61159-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61159-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61171A - BRACKET, ANTENNA POLE MOUNTING | ||||
| 61171-20020 |
BB58,59;BB50,BZB50..19S,20S,21S |
1 | ||
| 61171C - STIFFENER, SIDE PANEL, NO.1 | ||||
| 61171-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61171-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61177D - REINFORCEMENT, NO.1 PILLAR, CENTER | ||||
| 61177-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61177-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61178A - REINFORCEMENT, NO.1 PILLAR, LOWER RH | ||||
| 61178-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61178-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 53803-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61225-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61237C - RAIL, ROOF SIDE, INNER NO.4 RH | ||||
| 61238-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61238-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61237D - PILLAR, NO.9 OUTER, UPPER RH | ||||
| 61237-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61237-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 61031-36030 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61031-36050 |
BB50..ARL W(VERTICAL EXHAUST PIPE) |
1 | ||
| 61031-36050 |
BB50..ARL W(VERTICAL EXHAUST PIPE) |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 61031-36030 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61031-36050 |
BB50..ARL W(VERTICAL EXHAUST PIPE) |
1 | ||
| 61031-36050 |
BB50..ARL W(VERTICAL EXHAUST PIPE) |
1 | ||
| 61239A - PILLAR, NO.10 RH | ||||
| 61031-36030 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 61031-36030 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61031-36050 |
BB50..ARL W(VERTICAL EXHAUST PIPE) |
1 | ||
| 61031-36050 |
BB50..ARL W(VERTICAL EXHAUST PIPE) |
1 | ||
| 61251A - PILLAR, NO.1 INNER, RH | ||||
| 61251-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61251-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61272A - PILLAR, NO.9 INNER, RH | ||||
| 61272-36031 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61272-36030 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61273 - PILLAR, NO.9 INNER, LOWER RH | ||||
| 61273-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61273-36030 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 61274-36030 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 61274-36030 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61274 - PILLAR, NO.10 INNER, RH | ||||
| 61274-36030 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 61274-36030 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 61277-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
3 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 61277-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
3 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 61277-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
3 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61318-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61338B - RAIL, REAR SIDE NO.2, RH | ||||
| 61338-36020 |
BB59,BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61356 - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61356-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61357 - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61357-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61358B - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61358-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61358-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61367C - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
1 | ||
| 61357-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61452-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61453-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61159-60010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61455-36010 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 61526B - BRACKET, SEAT ANCHOR, NO.2 RH | ||||
| 61509-36011 |
BB58,59;BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61532F - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61532-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61557B - GUSSET, PILLAR TO RAIL, NO.2 | ||||
| 61557-36020 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61557-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61582A - BRACKET, REAR SEAT, NO.2 | ||||
| 61582-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61592 - BRACKET, STIFFENER, NO.2 | ||||
| 61592-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61592-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61594 - BRACKET, STIFFENER, NO.4 | ||||
| 61594-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61594-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61631L - PANEL, REAR WHEEL HOUSE, OUTER RH | ||||
| 61631-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61631-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61651A - GUSSET, PILLAR SHEAR, NO.1 RH | ||||
| 61651-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61651-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61669A - RETAINER, FRONT DOOR OPEN SWITCH SET | ||||
| 61669-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61669-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61687B - BRACKET, MUDGUARD, REAR RH | ||||
| 61687-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61687-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61813A - PLATE, DUSTPROOF, NO.1 RH | ||||
| 61813-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61813-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61859 - COVER, FRONT DOOR STEP, RH | ||||
| 61859-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61859-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61887 - RAIL, SIDE PANEL DUST PROOF, NO.1 RH | ||||
| 61887-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61887-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61895 - RAIL, SIDE PANEL DUST PROOF, NO.2 RH | ||||
| 61895-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61895-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61897 - RAIL, SIDE PANEL DUST PROOF, NO.3 RH | ||||
| 61897-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61897-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 63147E - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36010 |
BB4#,5#,HZB50,RZB40,50..HRF..CBU |
1 | ||
| 65415C - PANEL, REAR BODY, FRONT RH | ||||
| 65415-36081 |
BB50..ARL |
1 | ||
| 65415-36081 |
BB50..ARL |
1 | ||
| 65417 - PANEL, REAR BODY, REAR RH | ||||
| 65417-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 65417-36030 |
BB50..ARL |
1 | ||
| 65417-36010 |
BB50..ARL |
1 | ||
| Common parts | ||||
| 90159-40104 | ||||
| 90159-60454 | ||||
| 90189-04014 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90541-07093 | ||||
| 90950-01056 | ||||
| 90950-01167 | ||||
| 90950-01599 | ||||
| 90950-01763 | ||||
| 90950-06028 | ||||
| 91631-J0612 | ||||
| 93383-16014 | ||||
ILLUST NO. 3 OF 5(9301- )RHD
CENTER DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61084A - RAIL SUB-ASSY, CENTER DOOR, LH | ||||
| 61084-36011 |
BB50..RHD..(EX,STD)..CBU |
1 | ||
| 61164A - STIFFENER, SIDE PANEL, UPPER NO.4 | ||||
| 61163-36010 |
BB50..STD..CBU;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 61164A - STIFFENER, SIDE PANEL, UPPER NO.4 | ||||
| 61163-36010 |
BB50..STD..CBU;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 61164A - STIFFENER, SIDE PANEL, UPPER NO.4 | ||||
| 61163-36010 |
BB50..STD..CBU;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 61164A - STIFFENER, SIDE PANEL, UPPER NO.4 | ||||
| 61163-36010 |
BB50..STD..CBU;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61201-36902 |
BB59,BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61201-36902 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61201-36902 |
BB59,BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61201-36902 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61201-36902 |
BB59,BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61201-36902 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61216B - PILLAR, NO.3 | ||||
| 61216-36020 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61216-36020 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61216-36020 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) |
1 | ||
| 61216B - PILLAR, NO.3 | ||||
| 61216-36020 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61216-36020 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61216-36020 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) |
1 | ||
| 61217C - PILLAR, NO.4 | ||||
| 61217-36020 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61217-36020 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61217-36020 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) |
1 | ||
| 61217C - PILLAR, NO.4 | ||||
| 61217-36020 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61217-36020 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61217-36020 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) |
1 | ||
| 61265D - PILLAR, NO.3 INNER, UPPER LH | ||||
| 61265-36050 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX W(GLIDING SIDE DOOR) |
1 | ||
| 61265-36021 |
BB50..RHD..STD..CBU |
1 | ||
| 61265D - PILLAR, NO.3 INNER, UPPER LH | ||||
| 61265-36050 |
BB50..STD..CBU;HZB50,RZB40..LHD..EX W(GLIDING SIDE DOOR) |
1 | ||
| 61265-36021 |
BB50..RHD..STD..CBU |
1 | ||
| 61267C - PILLAR, NO.4 INNER, UPPER LH | ||||
| 61267-36171 |
BB50..STD..ARL |
1 | ||
| 61267C - PILLAR, NO.4 INNER, UPPER LH | ||||
| 61267-36171 |
BB50..STD..ARL |
1 | ||
| 61288 - PILLAR, NO.3 CORNER, LH | ||||
| 61288-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61288-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61288-36080 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61288-36080 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61288 - PILLAR, NO.3 CORNER, LH | ||||
| 61288-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61288-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61288-36080 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61288-36080 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61289A - PILLAR, NO.4 CORNER, LH | ||||
| 61289-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61289-36130 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61289-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61289-36130 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61289A - PILLAR, NO.4 CORNER, LH | ||||
| 61289-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61289-36130 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61289-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61289-36130 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61305B - REINFORCE SUB-ASSY, CENTER BODY PILLER, LOWER FRONT | ||||
| 61305-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61306B - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER REAR | ||||
| 61306-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61307C - PILLAR SUB-ASSY, CENTER BODY, INNER FRONT | ||||
| 61307-36040 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61307-36040 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61307-36040 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61307C - PILLAR SUB-ASSY, CENTER BODY, INNER FRONT | ||||
| 61307-36040 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61307-36040 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61307-36040 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61308D - PILLAR SUB-ASSY, CENTER BODY, INNER REAR | ||||
| 61308-36030 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61308-36030 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61308-36030 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61308D - PILLAR SUB-ASSY, CENTER BODY, INNER REAR | ||||
| 61308-36030 |
BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61308-36030 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61308-36030 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING AUTO SIDE DOOR) |
1 | ||
| 61319B - PLATE, CENTER BODY PILLAR, OUTER RH | ||||
| 61319-36020 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61319-36020 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) |
1 | ||
| 61329 - PLATE, CENTER BODY PILLAR, OUTER LH | ||||
| 61329-36020 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61329-36020 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) |
1 | ||
| 61342A - RAIL, NO.1 UPPER INNER, REAR LH | ||||
| 61342-36020 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61342-36030 |
BB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61342-36030 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING SIDE DOOR) |
1 | ||
| 61342-36030 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61342A - RAIL, NO.1 UPPER INNER, REAR LH | ||||
| 61342-36020 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61342-36030 |
BB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU W(FOLDING SIDE DOOR) |
1 | ||
| 61342-36030 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING SIDE DOOR) |
1 | ||
| 61342-36030 |
BB50,BZB50..RHD..STD..CBU |
1 | ||
| 61389 - PATCH, CENTER BODY PILLAR, OUTER | ||||
| 61389-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61399 - PATCH, CENTER BODY PILLAR, OUTER NO.2 | ||||
| 61399-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61406 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH | ||||
| 61406-36010 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61406-36030 |
BB50..RHD..(EX,STD)..CBU |
1 | ||
| 61406 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH | ||||
| 61406-36010 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61406-36030 |
BB50..RHD..(EX,STD)..CBU |
1 | ||
| 61471 - RAIL, CENTER DOOR, OUTER | ||||
| 61471-36030 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61471 - RAIL, CENTER DOOR, OUTER | ||||
| 61471-36030 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61532E - GUSSET, SEAT ANCHOR, NO.2 | ||||
| 61532-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61532-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61532E - GUSSET, SEAT ANCHOR, NO.2 | ||||
| 61532-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61532-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61547A - GUSSET, SEAT ANCHOR, NO.7 LH | ||||
| 61547-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61547-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61547A - GUSSET, SEAT ANCHOR, NO.7 LH | ||||
| 61547-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61547-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61585A - GUSSET, REAR DOOR PILLAR, FRONT | ||||
| 61585-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61585-36010 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61585-36040 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING SIDE DOOR) |
1 | ||
| 61585A - GUSSET, REAR DOOR PILLAR, FRONT | ||||
| 61585-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61585-36010 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61585-36040 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING SIDE DOOR) |
1 | ||
| 61586A - GUSSET, REAR DOOR PILLAR, REAR | ||||
| 61586-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61586-36010 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61586-36040 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING SIDE DOOR) |
1 | ||
| 61586A - GUSSET, REAR DOOR PILLAR, REAR | ||||
| 61586-36020 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 61586-36010 |
BB50..CBU;HZB50,RZB40..DX,EX W(GLIDING SIDE DOOR) |
1 | ||
| 61586-36040 |
BB50,58..(17S,20S,21S,23S)..(EX,STD) W(FOLDING SIDE DOOR) |
1 | ||
| 61587 - GUSSET, CENTER DOOR PILLAR, FRONT LH | ||||
| 61587-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61587-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61587 - GUSSET, CENTER DOOR PILLAR, FRONT LH | ||||
| 61587-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61587-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61588 - GUSSET, CENTER DOOR PILLAR, REAR LH | ||||
| 61588-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61588-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61588 - GUSSET, CENTER DOOR PILLAR, REAR LH | ||||
| 61588-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61588-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61593 - BRACKET, STIFFENER, NO.3 | ||||
| 61593-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
4 | ||
| 61593-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
4 | ||
| 61593 - BRACKET, STIFFENER, NO.3 | ||||
| 61593-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
4 | ||
| 61593-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
4 | ||
| 61593 - BRACKET, STIFFENER, NO.3 | ||||
| 61593-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
4 | ||
| 61593-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
4 | ||
| 61593 - BRACKET, STIFFENER, NO.3 | ||||
| 61593-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
4 | ||
| 61593-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
4 | ||
| 61624F - PLATE, CENTER DOOR PILLER DUST PROOF, REAR LH | ||||
| 61624-36010 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 61787B - RETAINER, SLIDE DOOR ARM, UPPER REAR | ||||
| 61787-36011 |
BB50..CBU;HZB50,RZB40..DX,EX |
1 | ||
| 63147G - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 63147G - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| Common parts | ||||
| 61974-36020 | ||||
| 90333-25001 | ||||
| 90467-05096A1 | ||||
| 90467-05096B3 | ||||
| 91651-40816 | ||||

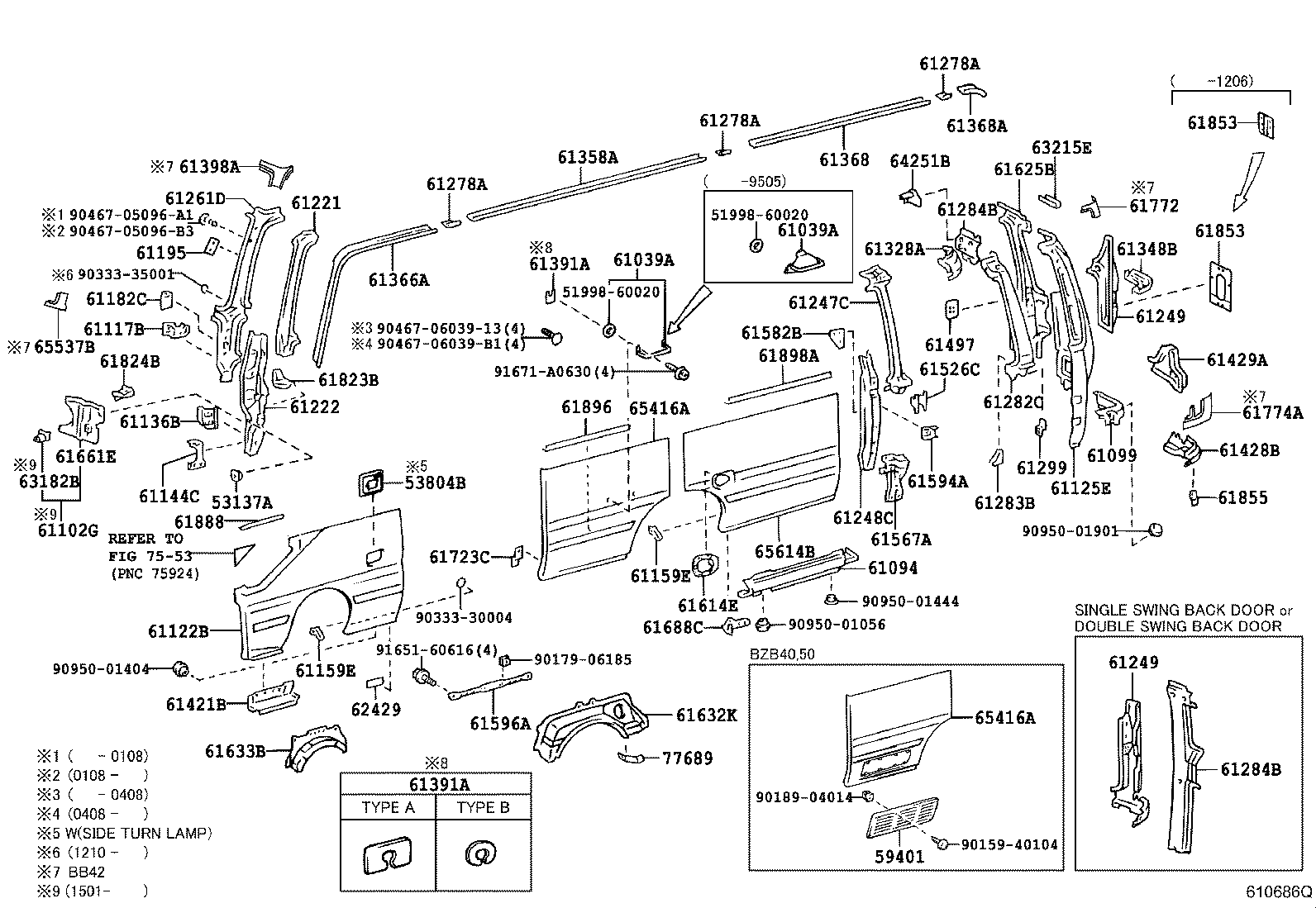

ILLUST NO. 2 OF 5(9301- )RHD
LH SIDE (1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53137A - RETAINER, HEADLAMP DOOR | ||||
| 53137-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 53137-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61094 - RAIL SUB-ASSY, NO.3 LOWER INNER, LH | ||||
| 61094-36030 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61094-36030 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61099 - STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH | ||||
| 61099-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61099-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61117B - RETAINER, WASHER TANK | ||||
| 61117-36020 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61117-36020 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-36020 |
BB50..ARL |
1 | ||
| 61125E - PANEL, NO.4 SIDE, LH | ||||
| 61125-36020 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61125-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI W(*DSBD) OR W(*SSBD) |
1 | ||
| 61136B - REINFORCEMENT, FRONT BODY PILLAR, OUTER | ||||
| 61135-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61135-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61144C - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 61144-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61159E - RETAINER, SIDE PANEL, NO.2 LH | ||||
| 61159-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61159-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61159E - RETAINER, SIDE PANEL, NO.2 LH | ||||
| 61159-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61159-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61183-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61183-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61221 - PILLAR, NO.1 OUTER, UPPER LH | ||||
| 61221-36010 |
BB50..ARL |
1 | ||
| 61222 - PILLAR, NO.1 OUTER, LOWER LH | ||||
| 61222-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61222-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61247C - PILLAR, NO.9 OUTER, UPPER LH | ||||
| 61247-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61247-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61248C - PILLAR, NO.9 OUTER, LOWER LH | ||||
| 61248-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61248-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61041-36020 |
BB4#,HZB50,RZB40,50..CBU W(DOUBLE SWING BACK DOOR) |
1 | ||
| 61041-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI W(*DSBD) OR W(*SSBD) |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61041-36020 |
BB4#,HZB50,RZB40,50..CBU W(DOUBLE SWING BACK DOOR) |
1 | ||
| 61041-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI W(*DSBD) OR W(*SSBD) |
1 | ||
| 61261D - PILLAR, NO.1 INNER, LH | ||||
| 61261-36020 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61261-36020 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 61277-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
3 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 61277-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
3 | ||
| 61278A - JOINT, ROOF DRIP CHANNEL, LH | ||||
| 61277-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| 61277-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
3 | ||
| 61282C - PILLAR, NO.9 INNER, LH | ||||
| 61282-36060 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61282-36061 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61283B - PILLAR, NO.9 INNER, LOWER LH | ||||
| 61283-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61283-36030 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36030 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI W(*DSBD) OR W(*SSBD) |
1 | ||
| 61284B - PILLAR, NO.10 INNER, LH | ||||
| 61284-36030 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI W(*DSBD) OR W(*SSBD) |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61328-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61348B - RAIL, REAR SIDE NO.2, LH | ||||
| 61348-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61348-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61358A - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61357-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61366A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61366-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61368 - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 | ||||
| 61357-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61357-36010 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
1 | ||
| 61368A - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61368-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61368-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61391A - PACKING, CENTER BODY PILLAR, NO.1 | ||||
| 61391-36030 |
BB50..ARL TYPE B |
4 | ||
| 61391-36020 |
BB50..ARL TYPE A |
1 | ||
| 61391A - PACKING, CENTER BODY PILLAR, NO.1 | ||||
| 61391-36030 |
BB50..ARL TYPE B |
4 | ||
| 61391-36020 |
BB50..ARL TYPE A |
1 | ||
| 61421B - RAIL, NO.1 LOWER OUTER, LH | ||||
| 61421-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61421-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61526C - BRACKET, SEAT ANCHOR, NO.2 LH | ||||
| 61526-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61525-36010 |
BB58,59;BZB50..EX;BB50..RHD..CBU W(SINGLE SWING BACK DOOR) |
1 | ||
| 61567A - GUSSET, PILLAR TO RAIL, NO.2 LH | ||||
| 61567-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61567-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61582B - BRACKET, REAR SEAT, NO.2 LH | ||||
| 61582-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61594A - BRACKET, STIFFENER, NO.4 LH | ||||
| 61594-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61594-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61596A - BRACKET, COMPUTER SET, LOWER LH | ||||
| 61596-36011 |
BB42,50,59,BZB40,50,HZB50..RHD..(ARL,GEN) |
1 | ||
| 61596-36011 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61704-12060 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61704-12060 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61625-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61632K - PANEL, REAR WHEEL HOUSE, OUTER LH | ||||
| 61632-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61632-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61633B - PANEL, WHEEL HOUSE | ||||
| 61633-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61633-36011 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61661E - GUSSET, PILLAR SHEAR, NO.1 LH | ||||
| 61661-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61661-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61688C - BRACKET, MUDGUARD, REAR LH | ||||
| 61688-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61688-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61823B - PLATE, DUST PROOF, NO.1 LH | ||||
| 61823-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61823-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61824B - PLATE, DUST PLOOF, NO.2 LH | ||||
| 61824-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61824-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61888 - RAIL, SIDE PANEL DUST PROOF, NO.1 LH | ||||
| 61888-36030 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61896 - RAIL, SIDE PANEL DUST PROOF, NO.2 LH | ||||
| 61896-36030 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61896-36030 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61898A - RAIL, SIDE PANEL DUST PROOF, NO.3 LH | ||||
| 61898-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61898-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 62429-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 63215E - CHANNEL, ROOF DRIP, REAR, LH | ||||
| 63215-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 63215-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 65416A - PANEL, REAR BODY, FRONT LH | ||||
| 65416-36100 |
BB50..ARL |
1 | ||
| 65416A - PANEL, REAR BODY, FRONT LH | ||||
| 65416-36100 |
BB50..ARL |
1 | ||
| 65614B - PANEL, REAR BODY, REAR LH | ||||
| 65614-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 65614-36010 |
BB59,BZB50..EX;BB50..CBU..TDEFI |
1 | ||
| 77689 - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.3 | ||||
| 77689-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 77689-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| Common parts | ||||
| 51998-60020 | ||||
| 90159-40104 | ||||
| 90179-06185 | ||||
| 90189-04014 | ||||
| 90333-30004 | ||||
| 90333-35001 | ||||
| 90467-05096A1 | ||||
| 90467-05096B3 | ||||
| 90467-0603913 | ||||
| 90467-06039B1 | ||||
| 90950-01056 | ||||
| 90950-01404 | ||||
| 90950-01444 | ||||
| 90950-01901 | ||||
| 91651-60616 | ||||
| 91671-A0630 | ||||
| Linked diagrams | ||||
| 7553 | ||||
ILLUST NO. 4 OF 5(9301-0311)BB50,59,BZB50,HZB50..RHD ; (0311-1501)BB50,BZB50,HZB50,XZB50..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-36010 |
BB50..RHD..CBU |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-36040 |
BB50,59..RHD..(ARL,GEN) |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-36032 |
BB50..ARL |
1 | ||
| 61016 - PILLAR SUB-ASSY, NO.6 RH | ||||
| 61016-36040 |
BB50..RHD..(DX,STD)..CBU |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-36011 |
BB50,59..RHD..(ARL,GEN) |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61018-36020 |
BB5#,HZB50,RZB50..HRF..CBU |
1 | ||
| 61018-36021 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-36011 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-36032 |
BB50..ARL |
1 | ||
| 61026A - PILLAR SUB-ASSY, NO.6 LH | ||||
| 61026-36040 |
BB50..RHD..(DX,STD)..CBU |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-36050 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-36020 |
BB5#,HZB50,RZB50..HRF..CBU |
1 | ||
| 61028-36021 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-36071 |
BB50..WOC..CBU..TDEFI |
1 | ||
| 61033-36071 |
BB50..WOC..CBU..TDEFI W(3 POINT DRIVERS SEAT BELT) |
1 | ||
| 61033-36072 |
BB50..WOC..CBU..TDEFI W(3 POINT DRIVERS SEAT BELT) |
1 | ||
| 61054B - PILLAR SUB-ASSY, NO.12 RH | ||||
| 61054-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 61064E - PILLAR SUB-ASSY, NO.12 LH | ||||
| 61064-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
BZB50..EX;BB50..RHD..CBU |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
BZB50..EX;BB50..RHD..CBU |
3 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36030 |
BZB50..EX;BB50..RHD..CBU |
3 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61254-36030 |
BB59,BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61254-36030 |
BB59,BZB50..EX;BB50..RHD..CBU |
2 | ||
| Common parts | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7751 | ||||

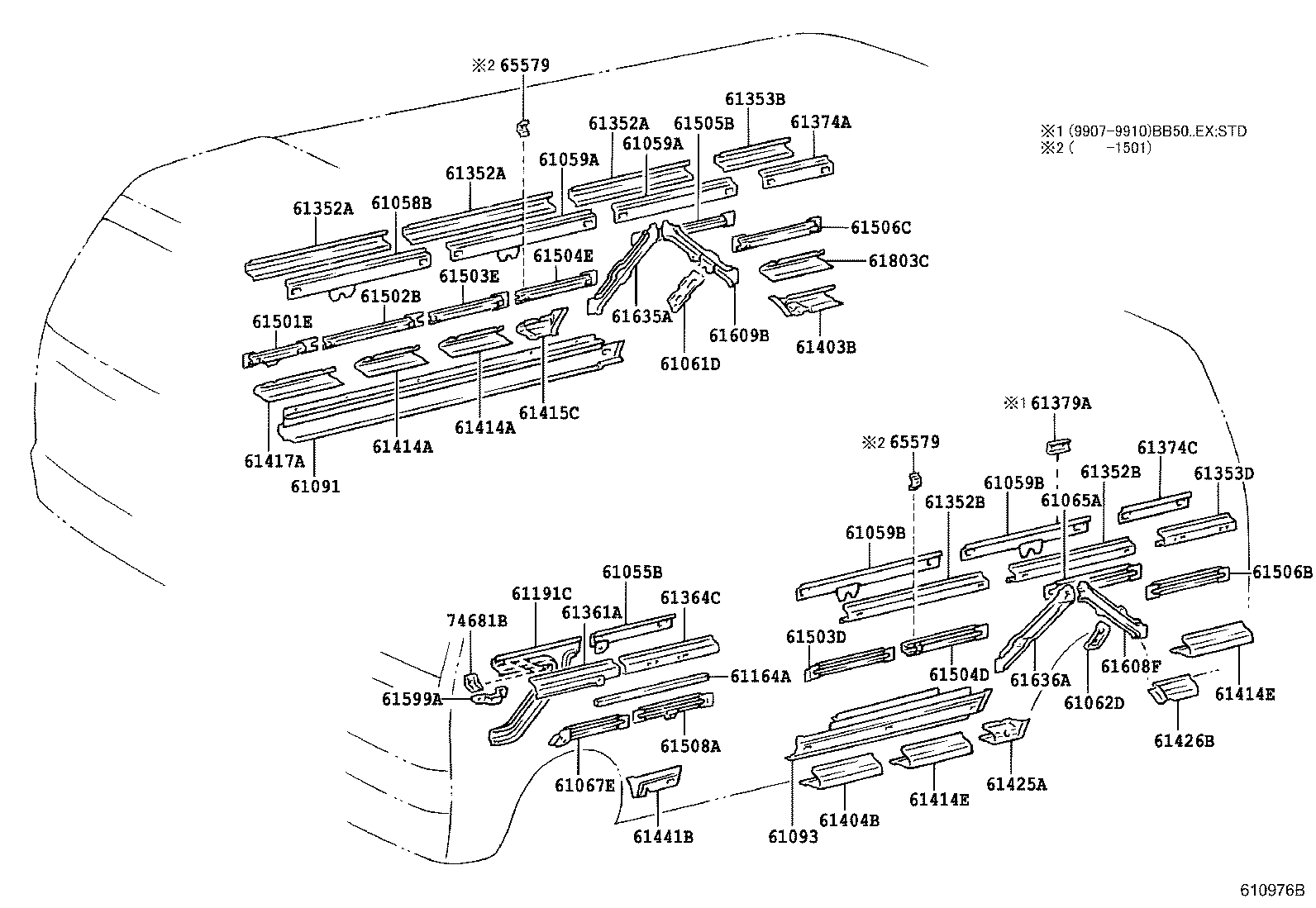

ILLUST NO. 5 OF 5(9301- )BB50,59,BZB50,HZB50,XZB5#..RHD
(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61055-36030 |
BB42,50,HZB50..RHD..(21S,26S,30S) W(3 POINT PASSENGER SEAT BELT) |
1 | ||
| 61055-36031 |
BB50..ARL W(3 POINT PASSENGER SEAT BELT) |
1 | ||
| 61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH | ||||
| 61058-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61058-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61059-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 61059-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
BB42,43..RHD;BB5#,HZB50,RZB50..CBU |
2 | ||
| 61059-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
BB42,43..RHD;BB5#,HZB50,RZB50..CBU |
2 | ||
| 61059-36020 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
2 | ||
| 61065A - RAIL SUB-ASSY, NO.5 SEAT ANCHOR, LH | ||||
| 61065-36011 |
BB50..RHD..(DX,STD)..CBU |
1 | ||
| 61067E - RAIL SUB-ASSY, NO.7 SEAT ANCHOR, LH | ||||
| 61067-36030 |
BB50..ARL |
1 | ||
| 61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH | ||||
| 61091-36030 |
BB50,HZB50..RHD..CBU |
1 | ||
| 61091-36030 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61093-36050 |
BB50,HZB50..RHD..CBU |
1 | ||
| 61093-36050 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61164A - STIFFENER, SIDE PANEL, UPPER NO.4 | ||||
| 61163-36010 |
BB50..STD..CBU;BB42,58,HZB50,RZB40,50..LHD |
1 | ||
| 61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH | ||||
| 61191-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61191-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61353B - RAIL, NO.3 CENTER OUTER, RH | ||||
| 61353-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61353-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61353D - RAIL, NO.3 CENTER, LH | ||||
| 61353-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61353-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61361-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61361-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61364C - RAIL, NO.4 CENTER OUTER, LH | ||||
| 61354-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61354-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61374A - RAIL, NO.4 CENTER INNER | ||||
| 61374-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61374-36011 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61374C - RAIL, NO.4 CENTER INNER, LH | ||||
| 61374-36011 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61374-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-36030 |
BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61404-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BB58,59;BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BB58,59;BZB50..EX;BB50..RHD..CBU |
2 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61415-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61415-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61417A - RAIL, NO.7 LOWER OUTER, RH | ||||
| 61417-36011 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61425A - RAIL, NO.5 LOWER OUTER, LH | ||||
| 61425-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61425-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61426B - RAIL, NO.6 LOWER OUTER, LH | ||||
| 61426-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61426-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61441B - RAIL, NO.1 LOWER INNER, LH | ||||
| 61441-36011 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61441-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61501E - RAIL SUB-ASSY, SEAT ANCHOR, RH | ||||
| 61501-36011 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61502B - RAIL SUB-ASSY, NO.2 SEAT ANCHOR, RH | ||||
| 61502-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61502-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61503D - RAIL SUB-ASSY, NO.3 SEAT ANCHOR | ||||
| 61503-36050 |
BB50,HZB50..RHD..CBU |
1 | ||
| 61503-36050 |
BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61503E - RAIL SUB-ASSY, NO.3 SEAT ANCHOR, RH | ||||
| 61503-36010 |
BB50,HZB50..RHD..CBU |
1 | ||
| 61503-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61504D - RAIL SUB-ASSY, NO.4 SEAT ANCHOR | ||||
| 61504-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61504-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61504E - RAIL SUB-ASSY, NO.4 SEAT ANCHOR, RH | ||||
| 61504-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61504-36010 |
BB5#,HZB50,RZB50..CBU |
1 | ||
| 61505B - RAIL SUB-ASSY, NO.5 SEAT ANCHOR, RH | ||||
| 61505-36011 |
BB50..RHD..(DX,STD)..CBU |
1 | ||
| 61506B - RAIL SUB-ASSY, NO.6 | ||||
| 61506-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61506-36011 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
1 | ||
| 61506C - RAIL SUB-ASSY, NO.6, RH | ||||
| 61506-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 61506-36011 |
BB50..CBU..TDEFI;BB58,BZB50..21S,23S |
1 | ||
| 61508A - RAIL SUB-ASSY, NO.8 SEAT ANCHOR | ||||
| 61508-36100 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61599A - BRACKET, STIFFENER, NO.6, LH | ||||
| 61599-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 61599-36010 |
BB59,BZB50..EX;BB50..RHD..CBU |
1 | ||
| 61608F - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61608-36021 |
BB50..RHD..(DX,STD)..CBU |
1 | ||
| 61609B - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61609-36021 |
BB50..RHD..(DX,STD)..CBU |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61635-36010 |
BB42,43,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-36010 |
BB42,43,5#,HZB50,RZB40,50..CBU |
1 | ||
| 61636-36010 |
BZB50..EX;BB5#..(ARL,GEN)..TDEFI |
1 | ||
| 61803C - RAIL SUB-ASSY, NO.4 LOWER OUTER, RH | ||||
| 61803-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 65579 - BRACKET, SIDE PANEL FRAME | ||||
| 65579-36010 |
BB50..ARL |
2 | ||
| 65579 - BRACKET, SIDE PANEL FRAME | ||||
| 65579-36010 |
BB50..ARL |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
