Toyota Coaster BB50 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
EU
COASTER
BB50R-ZEFRZQ (2002)
4804 - REAR SPRING & SHOCK ABSORBER

BB50R-ZEFRZQ (2002)

Toyota Coaster

Production Nov 2002 - Aug 2006

Engine 15BFTE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

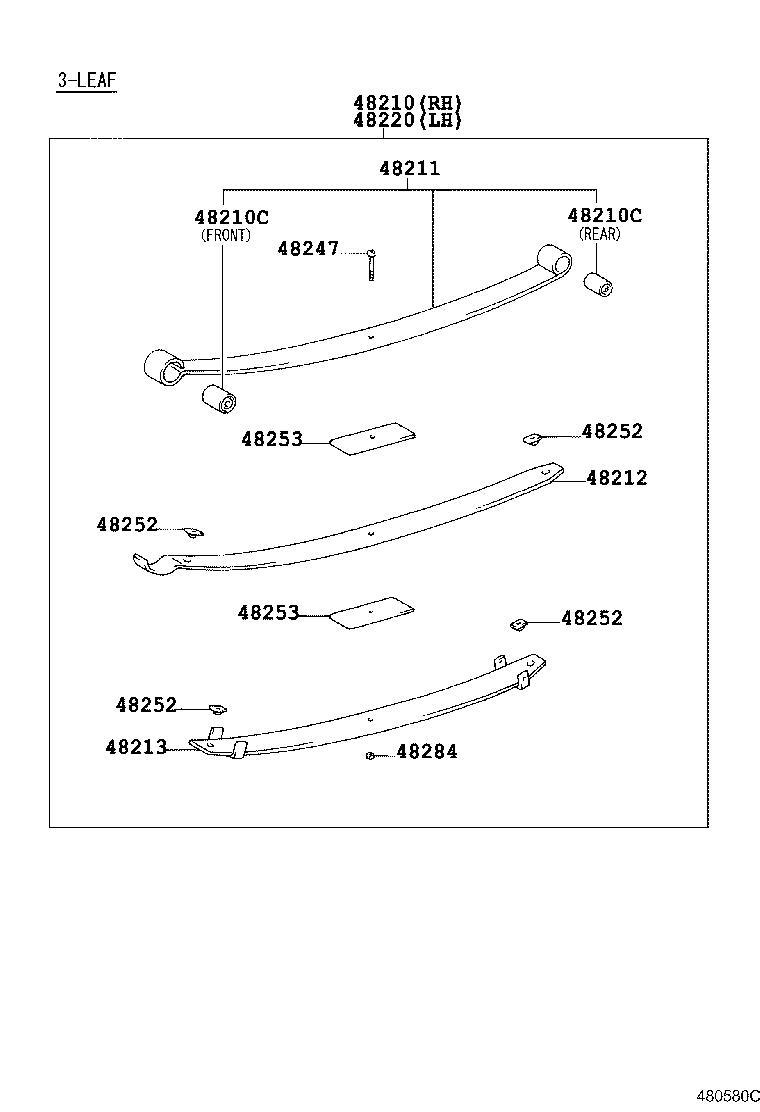

ILLUST NO. 2 OF 4(9301-0408) ; (0408- )BB50,XZB50..IV

Click highlighted areas on diagram

3-LEAF

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-3C020	BB50..ARL 2-LEAF	11/2002 - 08/2004	1
48210-3C020	BB50..ARL 2-LEAF,HEAVY DUTY SUSPENSION	08/2004 - 08/2006	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16015	BB4#,5#,HZB50,RZB40,50 REAR	01/1993 - 07/1999	2
90389-16018	BB4#,5#,HZB50,RZB40,50 FRONT	01/1993 - 07/1999	2
90389-16018	BZB50..EX;BB5#..TDEFI FRONT	08/2004 - 08/2006	2
90389-16015	BZB50..EX;BB5#..TDEFI REAR	08/2004 - 08/2006	2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16015	BB4#,5#,HZB50,RZB40,50 REAR	01/1993 - 07/1999	2
90389-16018	BB4#,5#,HZB50,RZB40,50 FRONT	01/1993 - 07/1999	2
90389-16018	BZB50..EX;BB5#..TDEFI FRONT	08/2004 - 08/2006	2
90389-16015	BZB50..EX;BB5#..TDEFI REAR	08/2004 - 08/2006	2
48211 - LEAF, REAR SPRING, NO.1
48201-3C020	BB50..CBU..6F HEAVY DUTY SUSPENSION,DRIVER SIDE	08/2004 - 08/2006	1
48201-3C010	BB50..CBU..6F HEAVY DUTY SUSPENSION,PASSENGER SIDE	08/2004 - 08/2006	1
48212 - LEAF, REAR SPRING, NO.2
48202-3C020	BB50..CBU..6F HEAVY DUTY SUSPENSION,DRIVER SIDE	08/2004 - 08/2006	1
48202-3C010	BB50..CBU..6F HEAVY DUTY SUSPENSION,PASSENGER SIDE	08/2004 - 08/2006	1
48220 - SPRING ASSY, REAR LH
48210-3C010	BB50..ARL 2-LEAF,HEAVY DUTY SUSPENSION	08/2004 - 08/2006	1
48210-3C010	BB50..ARL 2-LEAF	11/2002 - 08/2004	1
48247 - BOLT, REAR SPRING, CENTER
48247-3B840	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	2
48252 - SILENCER, REAR SPRING
48252-3B800	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	4
48252 - SILENCER, REAR SPRING
48252-3B800	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	4
48252 - SILENCER, REAR SPRING
48252-3B800	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	4
48252 - SILENCER, REAR SPRING
48252-3B800	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	4
48253 - SPACER, REAR SPRING, NO.1
48253-3B730	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	2
48253 - SPACER, REAR SPRING, NO.1
48253-3B730	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	2
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	2

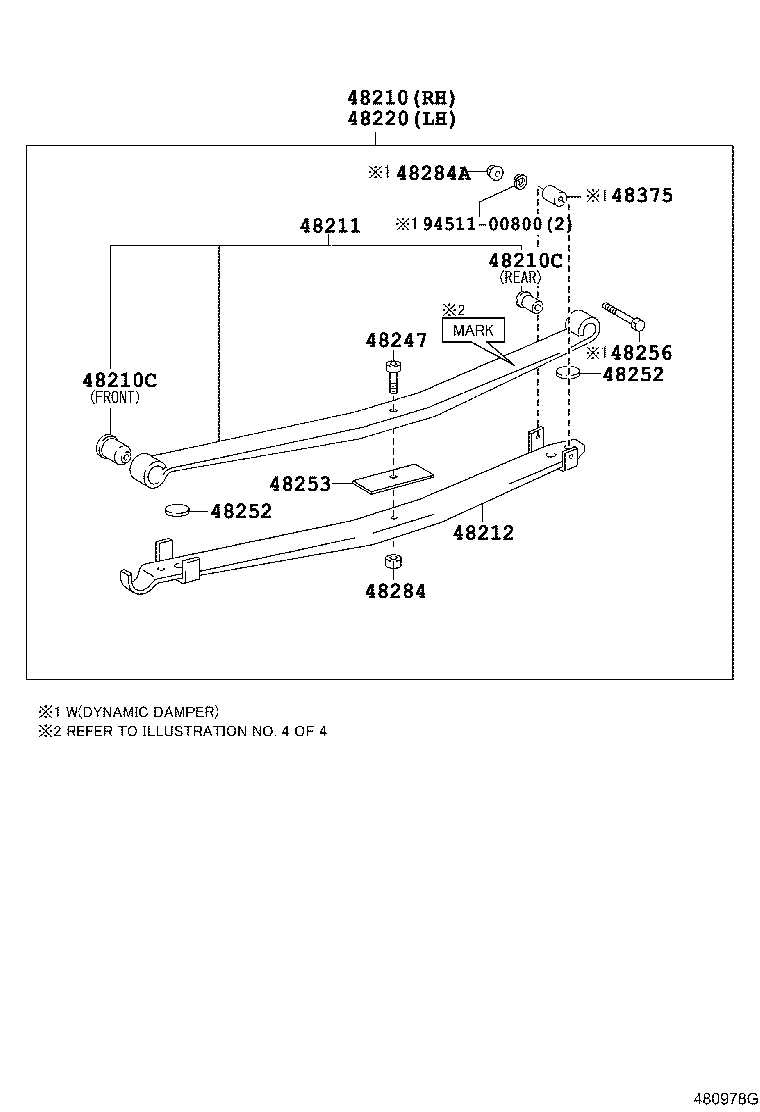

ILLUST NO. 2 OF 4(9301-0408) ; (0408- )ARL,GCC,GEN,TAIW

Click highlighted areas on diagram

2-LEAF

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-3C020	BB50..ARL 2-LEAF	11/2002 - 08/2004	1
48210-3C020	BB50..ARL 2-LEAF,HEAVY DUTY SUSPENSION	08/2004 - 08/2006	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16015	BB4#,5#,HZB50,RZB40,50 REAR	01/1993 - 07/1999	2
90389-16018	BB4#,5#,HZB50,RZB40,50 FRONT	01/1993 - 07/1999	2
90389-16018	BZB50..EX;BB5#..TDEFI FRONT	08/2004 - 08/2006	2
90389-16015	BZB50..EX;BB5#..TDEFI REAR	08/2004 - 08/2006	2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16015	BB4#,5#,HZB50,RZB40,50 REAR	01/1993 - 07/1999	2
90389-16018	BB4#,5#,HZB50,RZB40,50 FRONT	01/1993 - 07/1999	2
90389-16018	BZB50..EX;BB5#..TDEFI FRONT	08/2004 - 08/2006	2
90389-16015	BZB50..EX;BB5#..TDEFI REAR	08/2004 - 08/2006	2
48211 - LEAF, REAR SPRING, NO.1
48201-3C020	BB50..CBU..6F HEAVY DUTY SUSPENSION,DRIVER SIDE	08/2004 - 08/2006	1
48201-3C010	BB50..CBU..6F HEAVY DUTY SUSPENSION,PASSENGER SIDE	08/2004 - 08/2006	1
48212 - LEAF, REAR SPRING, NO.2
48202-3C020	BB50..CBU..6F HEAVY DUTY SUSPENSION,DRIVER SIDE	08/2004 - 08/2006	1
48202-3C010	BB50..CBU..6F HEAVY DUTY SUSPENSION,PASSENGER SIDE	08/2004 - 08/2006	1
48220 - SPRING ASSY, REAR LH
48210-3C010	BB50..ARL 2-LEAF,HEAVY DUTY SUSPENSION	08/2004 - 08/2006	1
48210-3C010	BB50..ARL 2-LEAF	11/2002 - 08/2004	1
48247 - BOLT, REAR SPRING, CENTER
48247-3B840	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	2
48252 - SILENCER, REAR SPRING
48252-3B800	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	4
48252 - SILENCER, REAR SPRING
48252-3B800	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	4
48253 - SPACER, REAR SPRING, NO.1
48253-3B730	BZB50..EX;BB5#..(ARL,GEN)..TDEFI	08/2004 - 08/2006	2
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	2
Common parts
94511-00800

ILLUST NO. 3 OF 4(9301- )

Click highlighted areas on diagram

W(STABILIZER)

Part #	Description	Period	Qty	Price
Common parts
90179-12047
90179-12128
91641-K0822
91651-B0825
