BB50R-ZEFRZQ (2002)

Toyota Coaster

Production Nov 2002 - Aug 2006
Engine 15BFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-1007)14B,15B#,3B

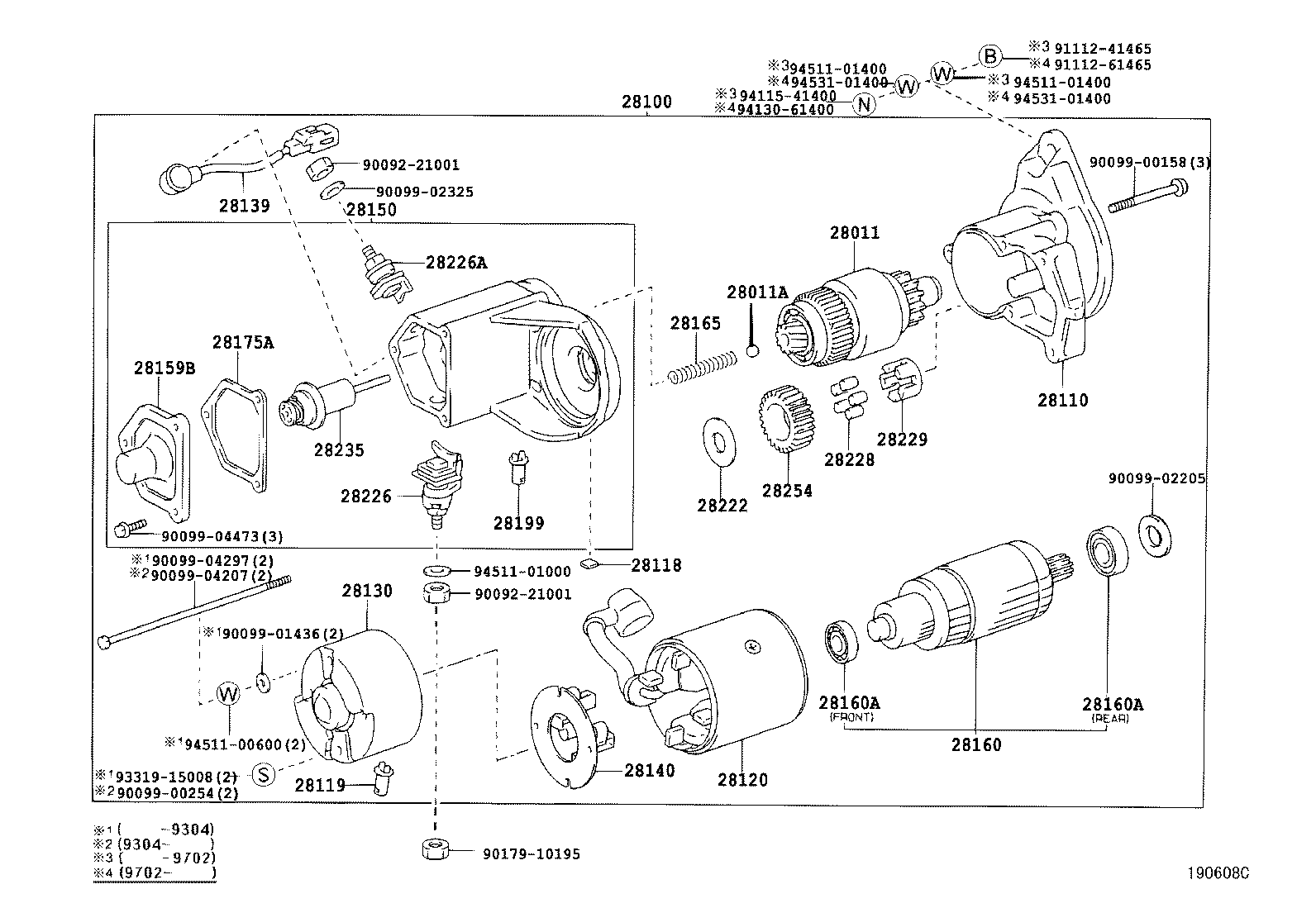

Click highlighted areas on diagram

12V 2.5KW, 24V 4.5KW

diagram 28011 28011A 28100 28110 28118 28119 28120 28130 28139 28140 28150 28159B 28160 28160A 28160A 28165 28175A 28199 28222 28226 28226A 28228 28229 28235 28254 9009221001 9009221001 9009900158 9009900254 9009901436 9009902205 9009902325 9009904207 9009904297 9009904473 9017910195 9111241465 9111261465 9331915008 9411541400 9413061400 9451100600 9451101000 9451101400 9451101400 9453101400 9453101400
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010

14B,15BFT,3B..BB4#,5#

 1
28011-54010

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28011A - BALL, STARTER CLUTCH
90099-12009

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28100 - STARTER ASSY
28100-56290

14B,15BFT,3B..BB4#,5#

24V 4.5KW

 1
28100-56291

15BFTE..BB5#

24V 4.5KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-56130

14B,15BFT,3B..BB4#,5#

 1
28110-56131

15BFTE..BB5#

 1
28118 - PLATE(FOR STARTER YOKE)
28118-77090

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28119 - COVER, STARTER END FRAME
28199-46080

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-56290

15BFTE..BB5#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-56290

14B,15BFT,3B..BB4#,5#

24V 4.5KW

 1
28150-56290

15BFTE..BB5#

24V 4.5KW

 1
28159B - COVER, MAGNET SWITCH
28159-17030

15BFTE..BB5#

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

15BFTE..BB5#;1BZFPE..BZB50..EX

REAR

 1
90099-10107

15BFTE..BB5#;1BZFPE..BZB50..EX

FRONT

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

15BFTE..BB5#;1BZFPE..BZB50..EX

REAR

 1
90099-10107

15BFTE..BB5#;1BZFPE..BZB50..EX

FRONT

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-56310

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28222 - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-17030

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-56300

14B,15BFT,3B..BB4#,5#

 1
28226-56300

15BFTE..BB5#

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-56080

15BFTE..BB5#;1BZFPE..BZB50..EX

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-56080

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28235 - PLUNGER, MAGNET SWITCH
28235-17030

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
28254 - PINION, STARTER IDLE GEAR
28254-77090

15BFTE..BB5#;1BZFPE..BZB50..EX

 1
Common parts
90092-21001
90099-00158
90099-00254
90099-01436
90099-02205
90099-02325
90099-04207
90099-04297
90099-04473
90179-10195
91112-41465
91112-61465
93319-15008
94115-41400
94130-61400
94511-00600
94511-01000
94511-01400
94531-01400
