BB50R-ZEFRZQ (2002)

Toyota Coaster

Production Nov 2002 - Aug 2006
Engine 15BFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

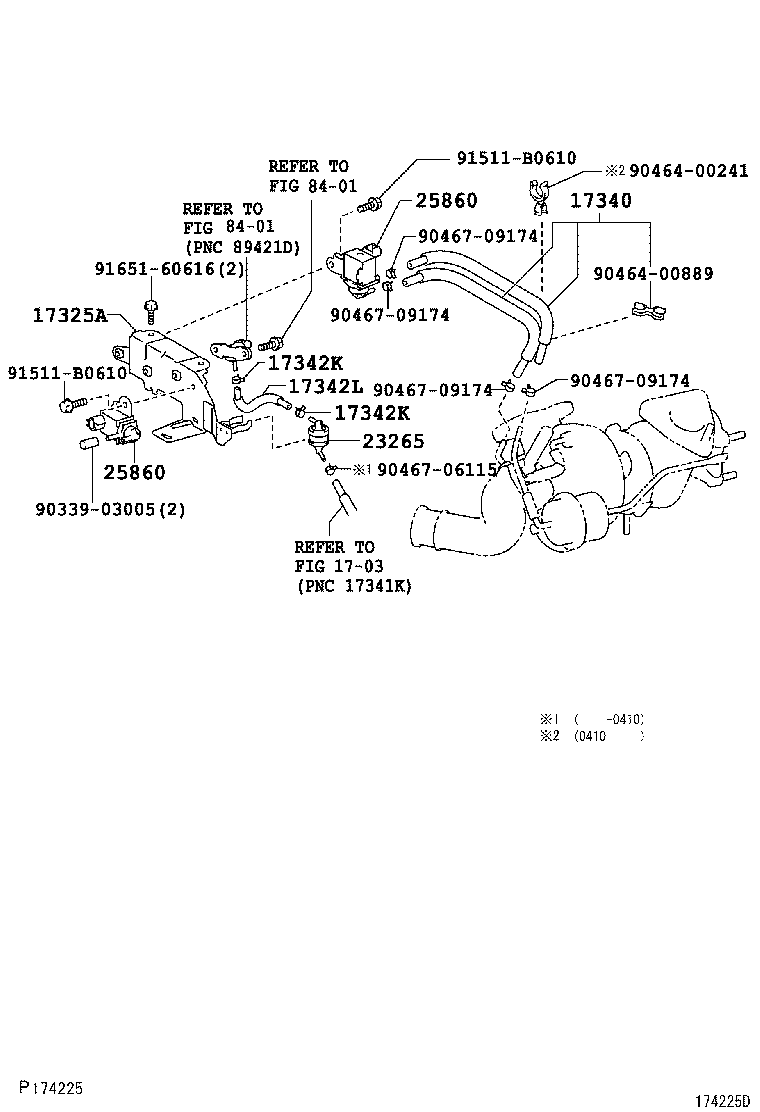

ILLUST NO. 2 OF 2(0408- )15BFT

Click highlighted areas on diagram

diagram 1703 17325A 17340 17342K 17342K 17342L 23265 25860 25860 8401 8401 9033903005 9046400241 9046400889 9046706115 9046709174 9046709174 9046709174 9046709174 91511B0610 91511B0610 9165160616
Part # Description Qty Price
17340 - HOSE ASSY, VACUUM SWITCHING VALVE
17340-58010

15BFT..BB50

 1
23265 - FILTER, GAS, NO.1
90917-11036

15BFTE..BB5#

 1
Common parts
90339-03005
90464-00241
90464-00889
90467-06115
90467-09174
91511-B0610
91651-60616
Linked diagrams
1703
8401

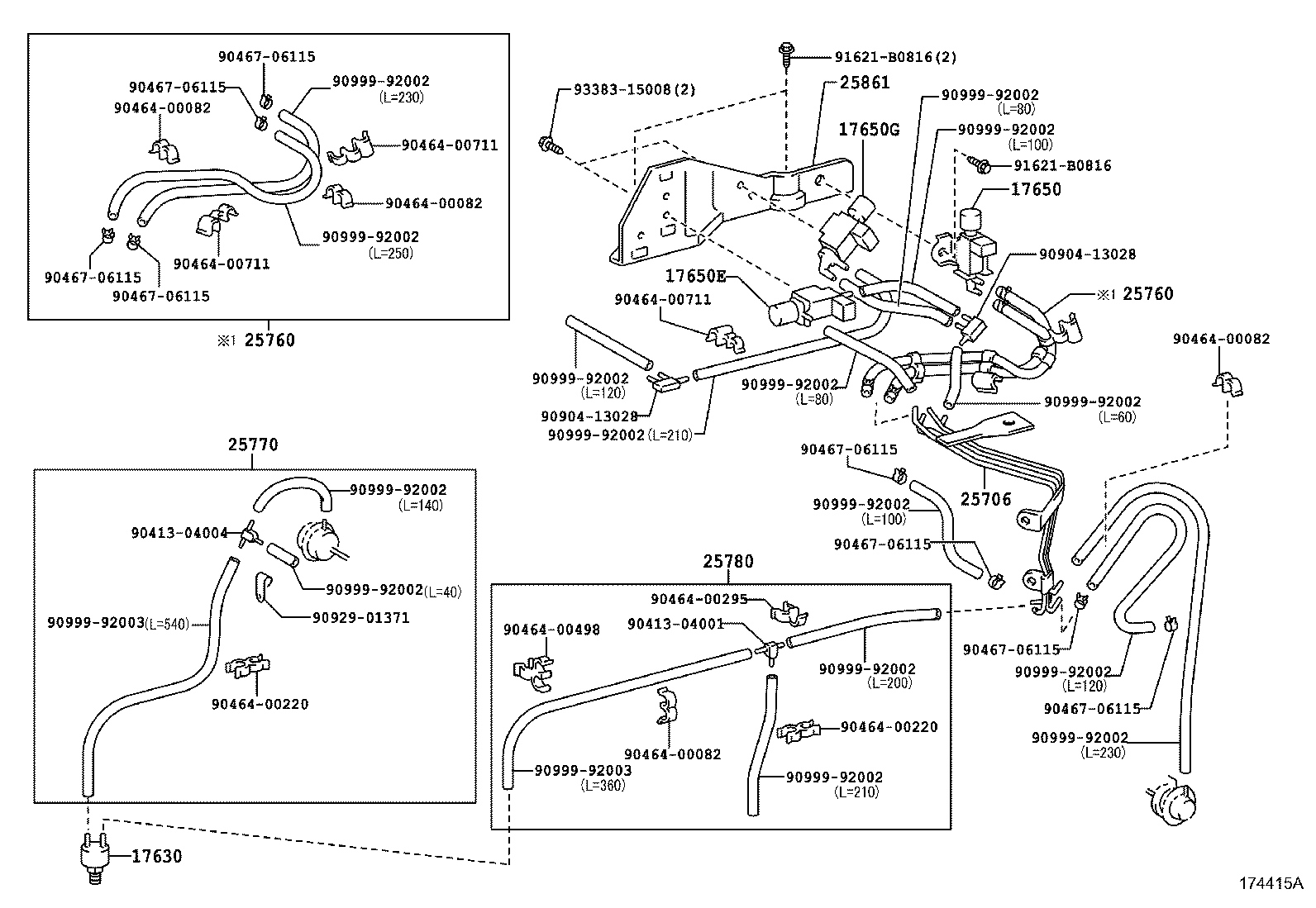

ILLUST NO. 1 OF 2(0408- )15BFT

Click highlighted areas on diagram

diagram 17630 17650 17650E 17650G 25706 25760 25760 25770 25780 25861 9041304001 9041304004 9046400082 9046400082 9046400082 9046400082 9046400220 9046400220 9046400295 9046400498 9046400711 9046400711 9046400711 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9090413028 9090413028 9092901371 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 91621B0816 91621B0816 9338315008
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15010

14B,15BFT,3B..BB4#,5#

 1
Common parts
90413-04001
90413-04004
90464-00082
90464-00220
90464-00295
90464-00498
90464-00711
90467-06115
90904-13028
90929-01371
90999-92002
90999-92003
91621-B0816
93383-15008
